Universal Stop / Marking Gauge for Steel Ruler

Hello everyone,

After my stop for folding rules presented here: https://makerworld.com/de/models/1795096-stop-marking-gauge-for-folding-rule#profileId-2079901

was quite positively received, I wanted to create something similar for steel rulers

The new stop should:

• Be universal, for steel rulers from 10mm to 20mm wide
• Manage without screws or glue
• Clamp the ruler without it being able to shift
• And manage without supports when printing the stop body

It was quite elaborate, but I am very satisfied with the result

The model comes on a total of 4 print plates


1. The stop body

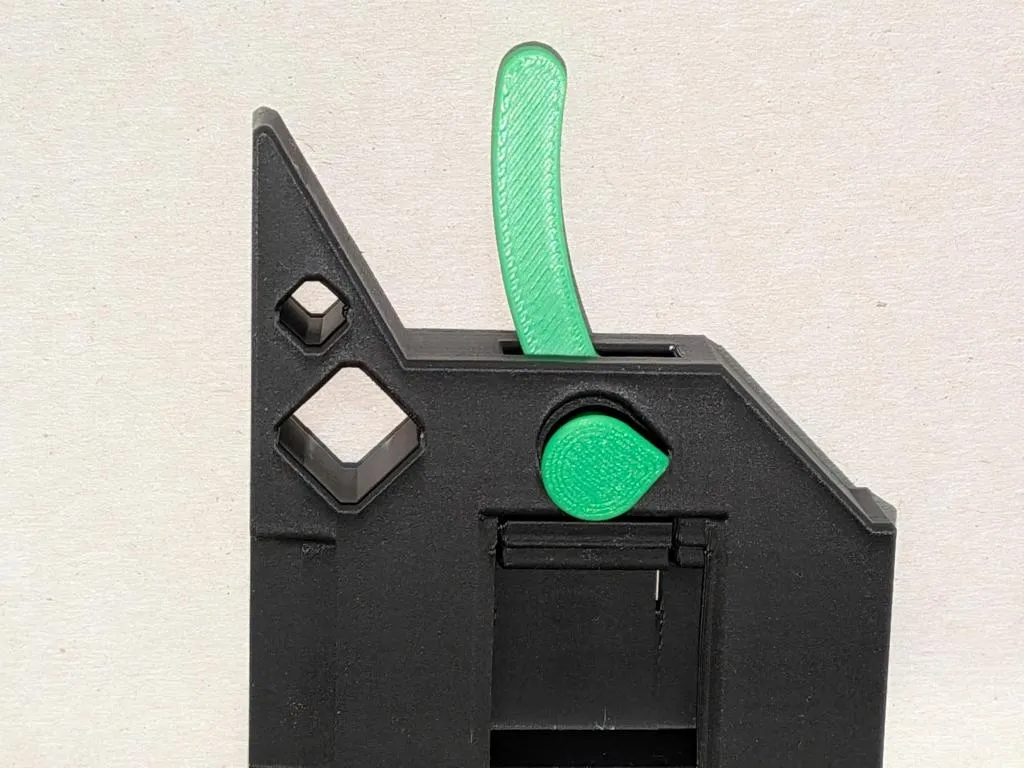

2. The clamping eccentric and axle bolt
3. Various inlay pieces for the different widths of steel rulers
4. Attachable additional stop for better handling with round workpiece edges

Assembly:

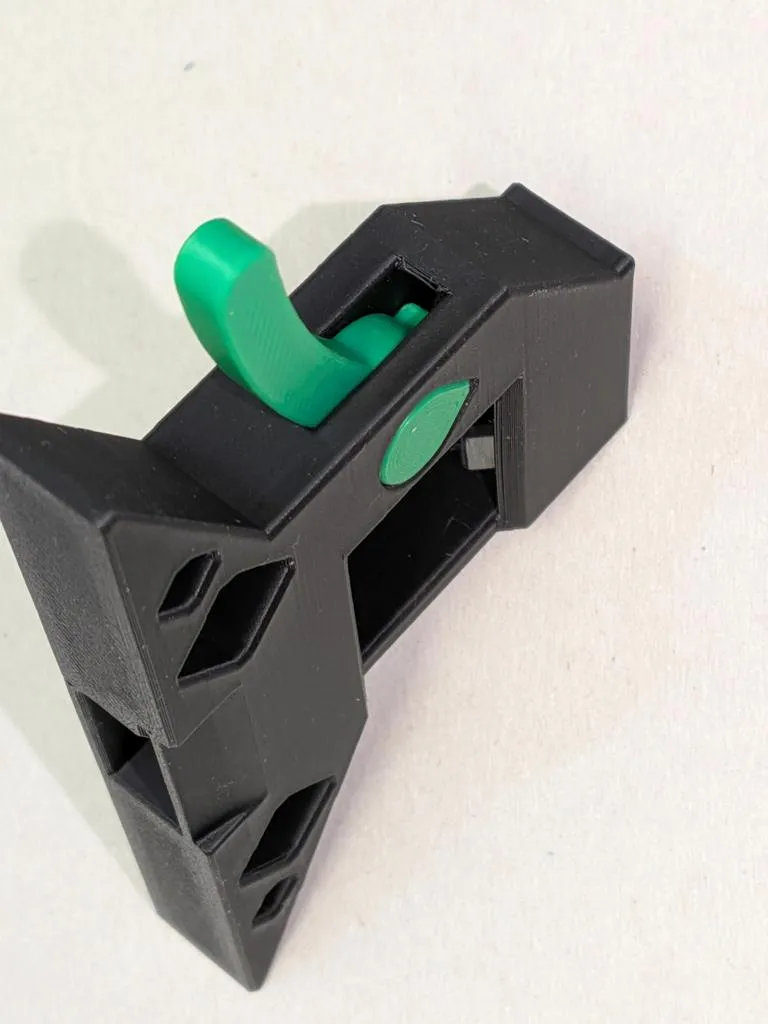

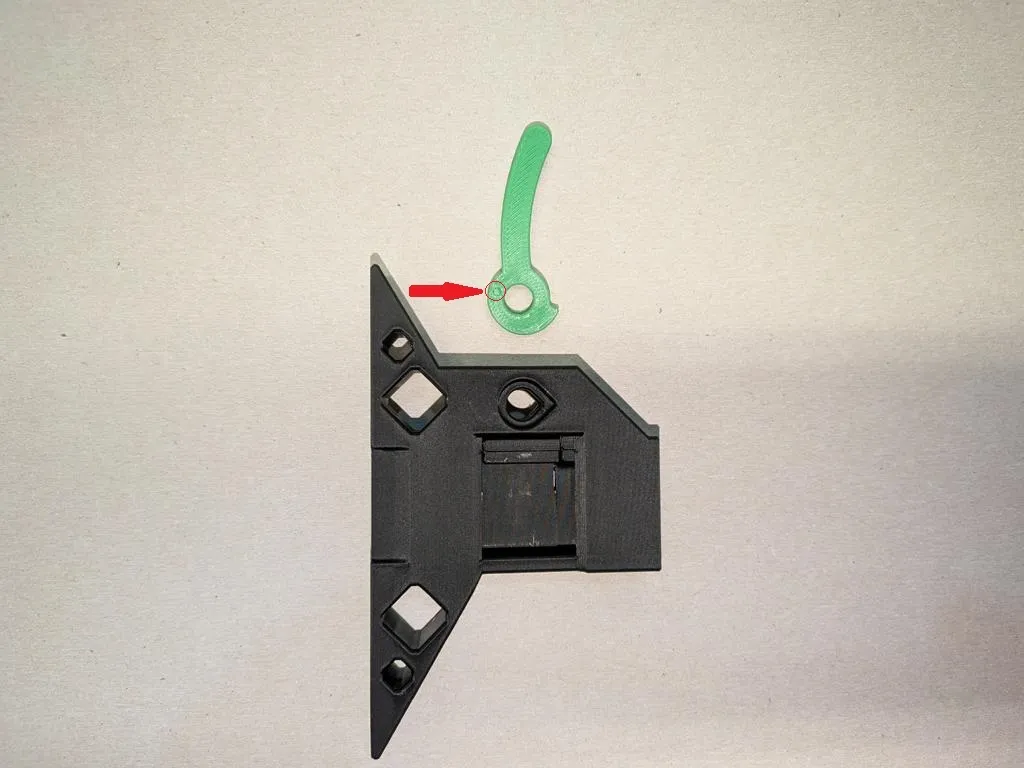

Insert the clamping lever with the mark facing upwards,

laterally into the recess

Align the holes on the clamping lever accordingly

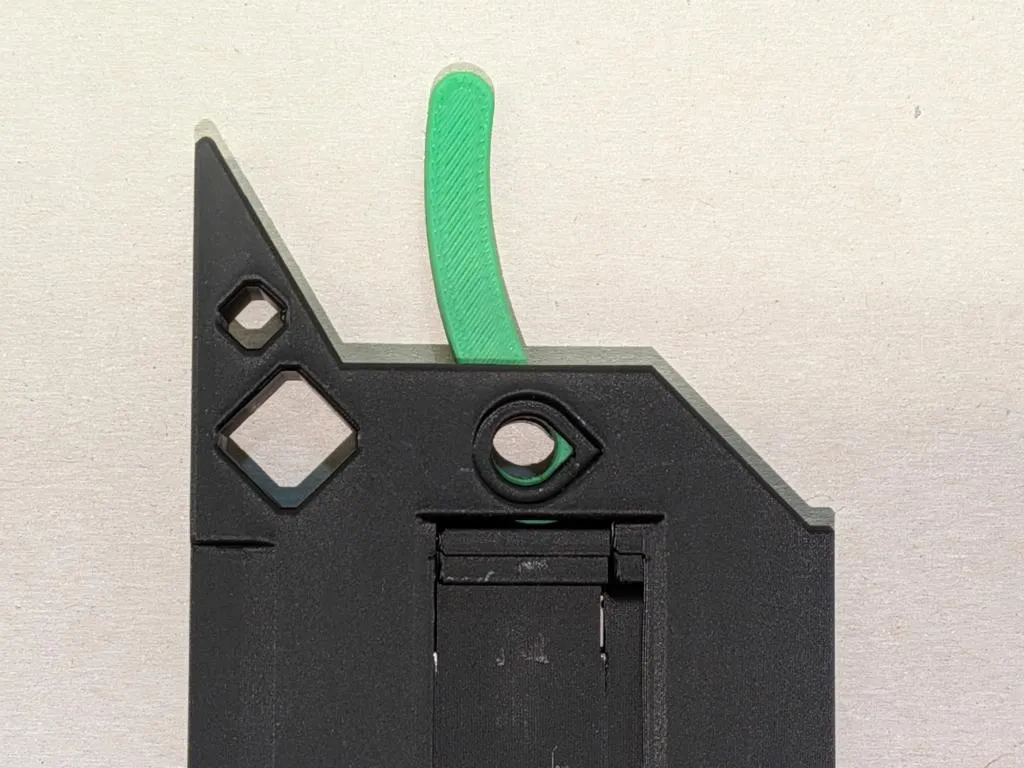

Insert the axle bolt

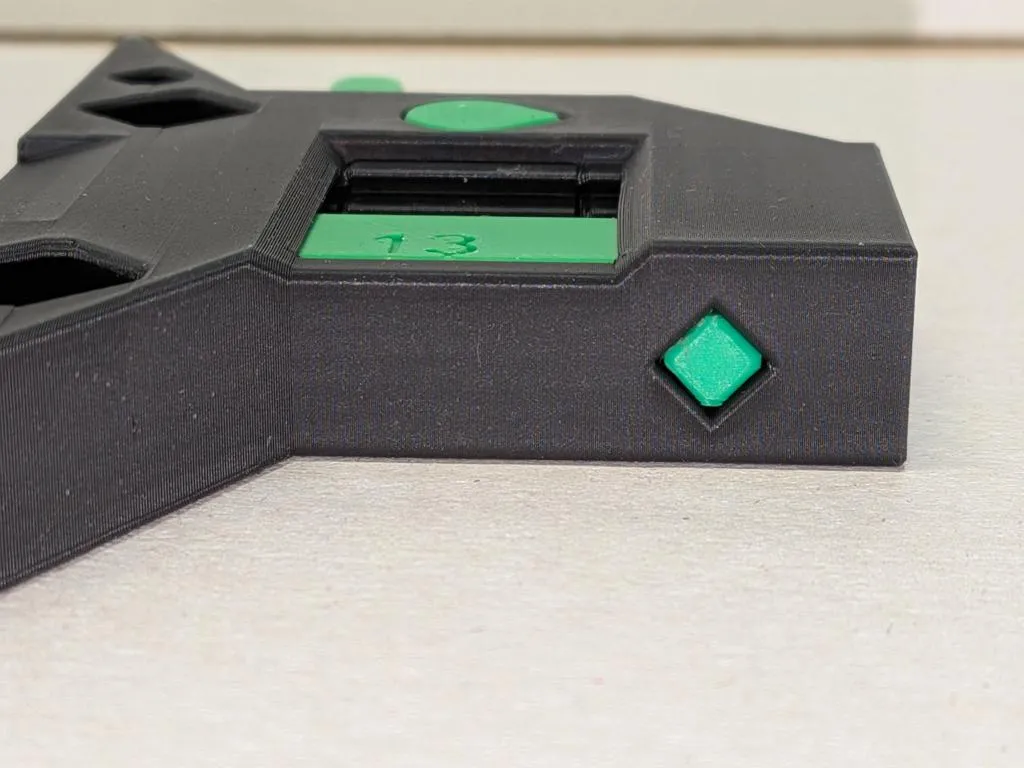

In the end position, the bolt clicks into place

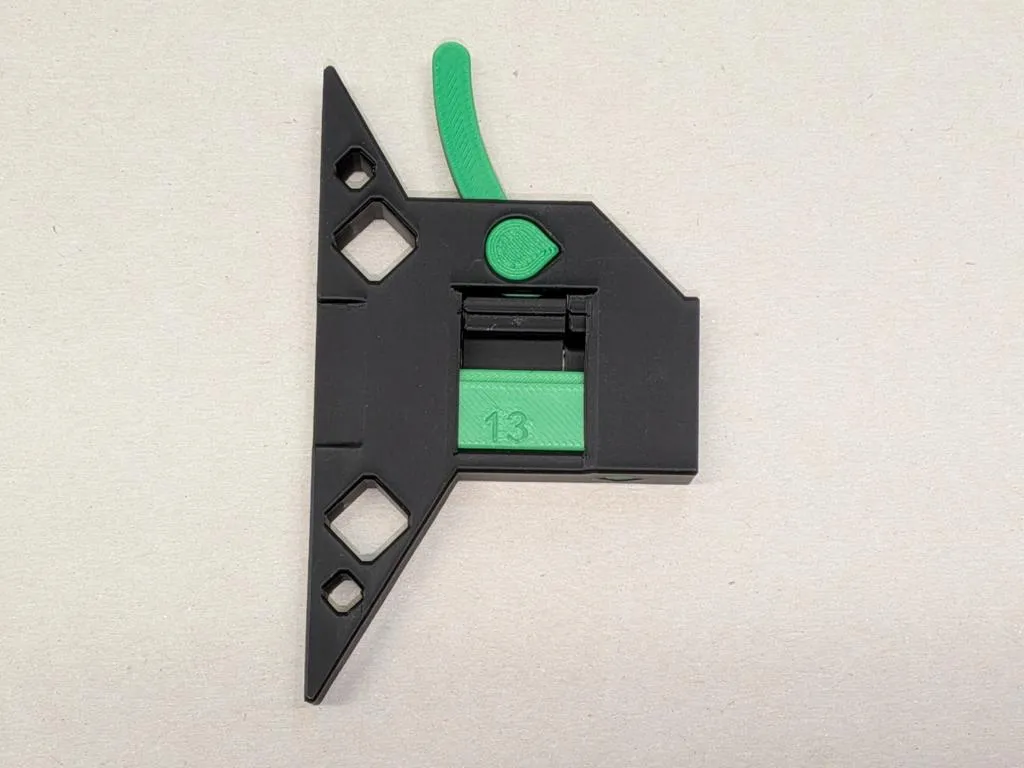

Print an inlay for your steel ruler

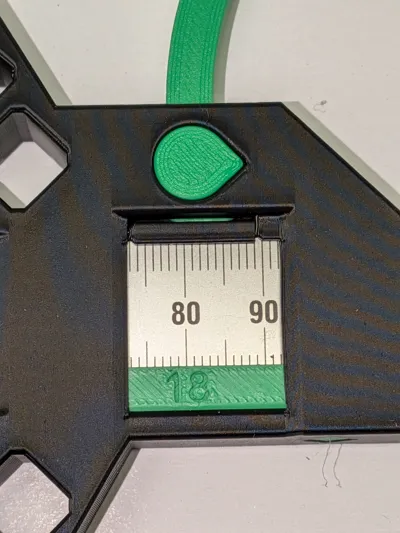

The printed number corresponds to the width of your steel ruler

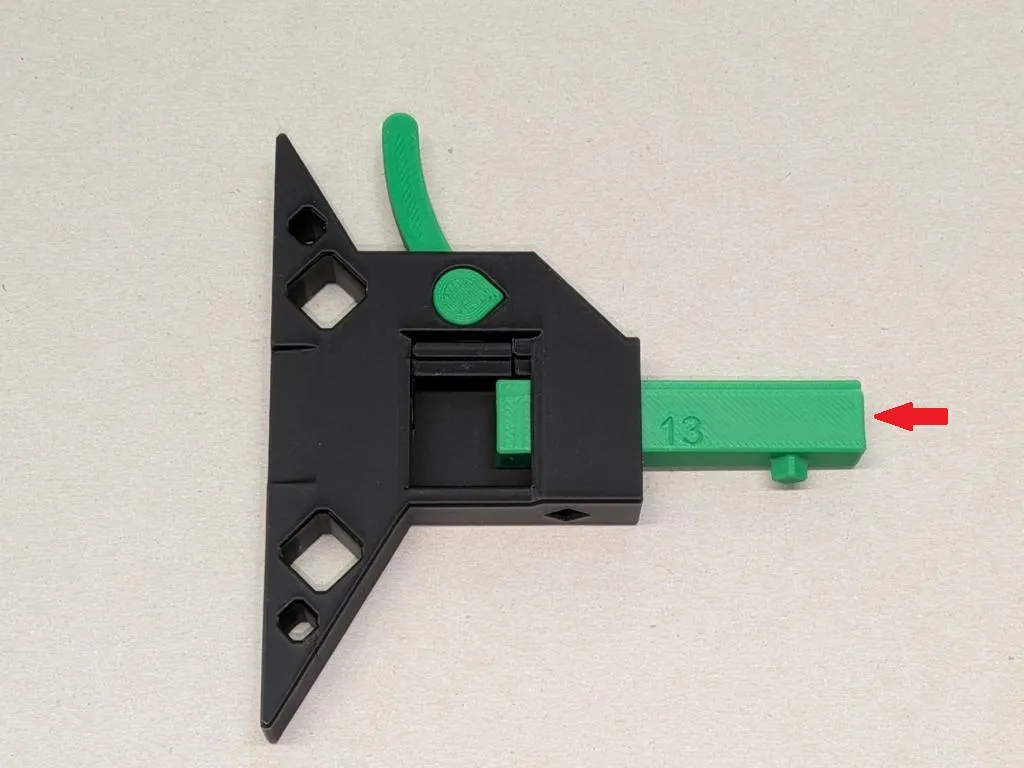

Slide the inlay with the number facing up laterally into the stop body

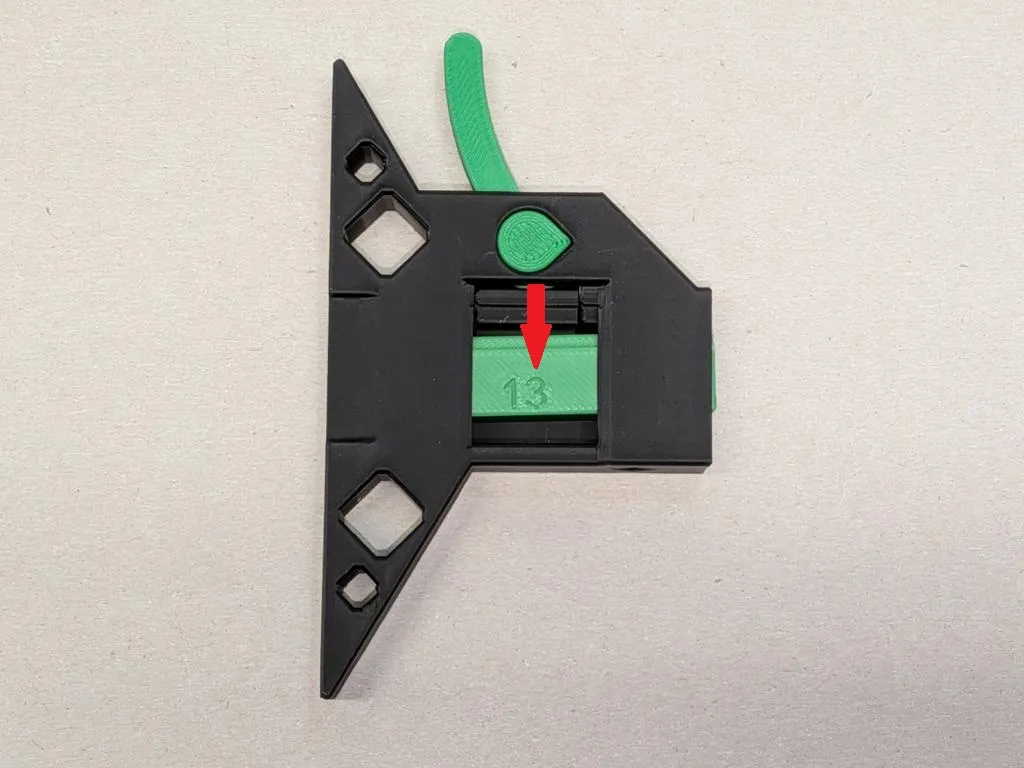

Once the inlay is pushed all the way to the front,
press it down

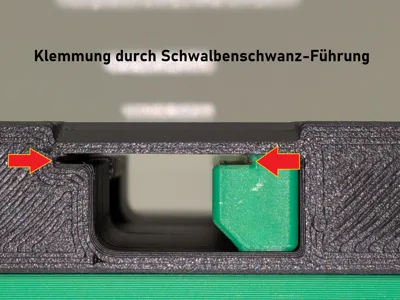

The inlay is now securely seated in the stop housing

Of course, you don't need to print all inlays

Measure how wide your ruler is and select the required inlay

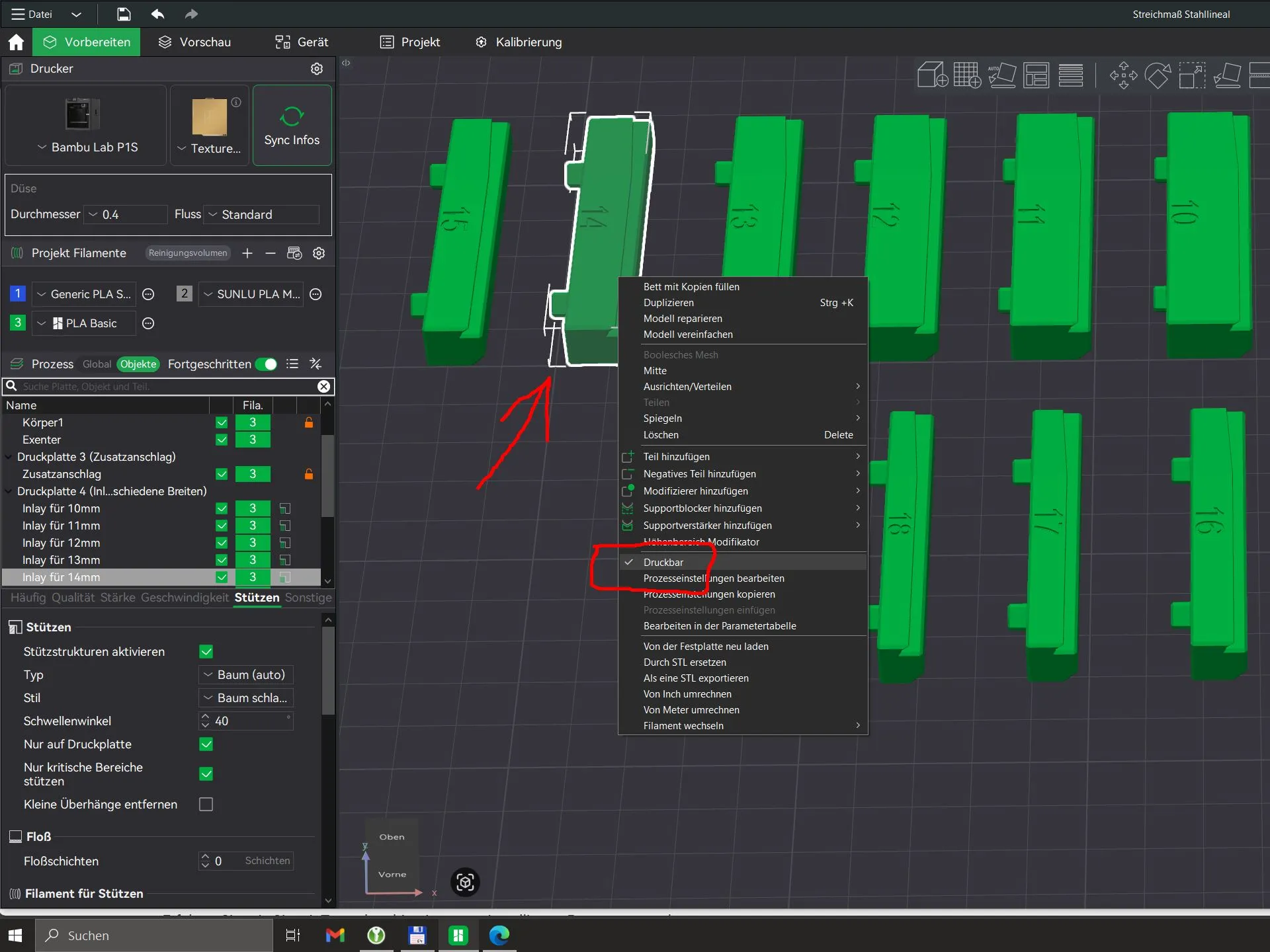

with the left mouse button A menu opens with the right mouse button

Leave the inlay you need as printable

For all others, uncheck printable

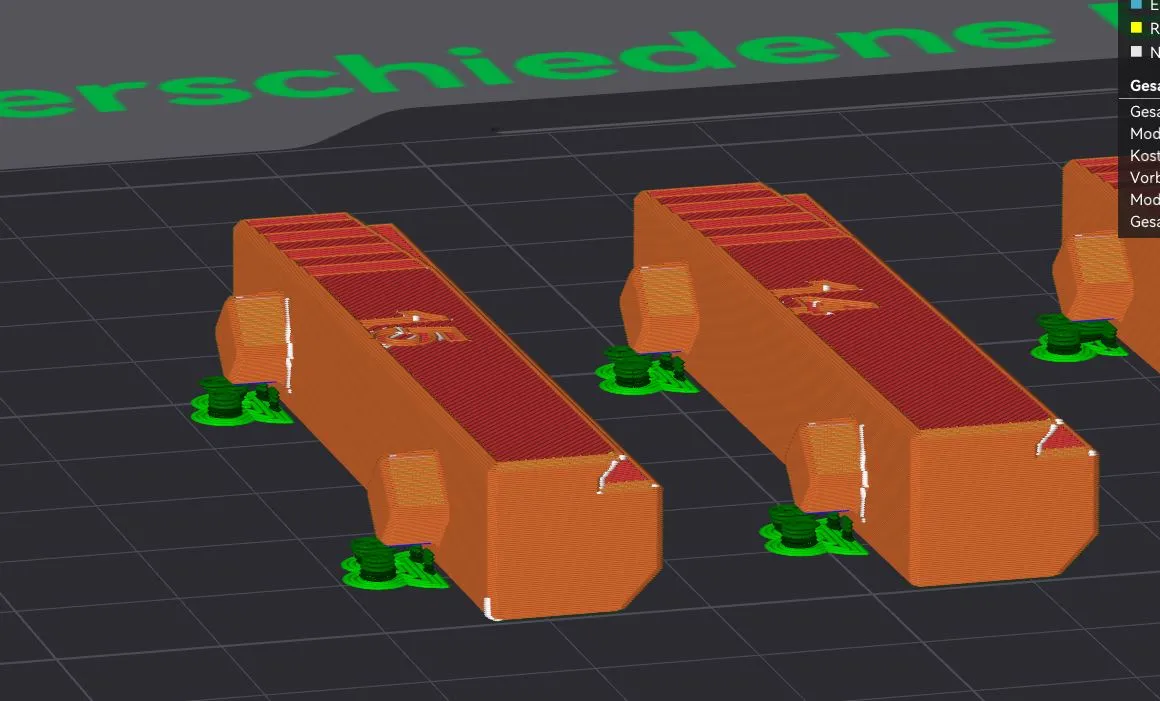

Only the inlays require supports, but they almost fall off by themselves, :-)

I hope you enjoy this model

Regards Zwackel
