Description

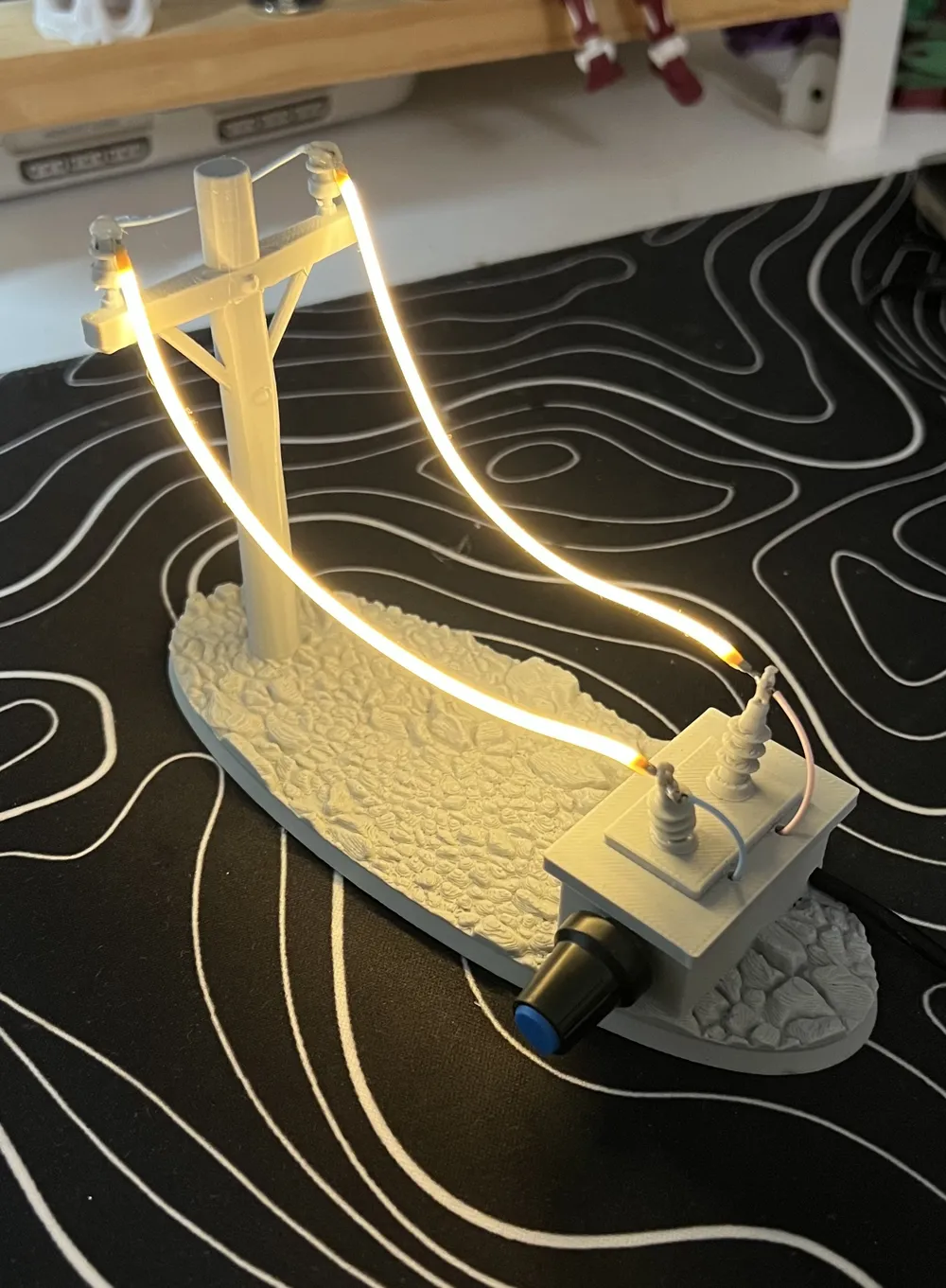

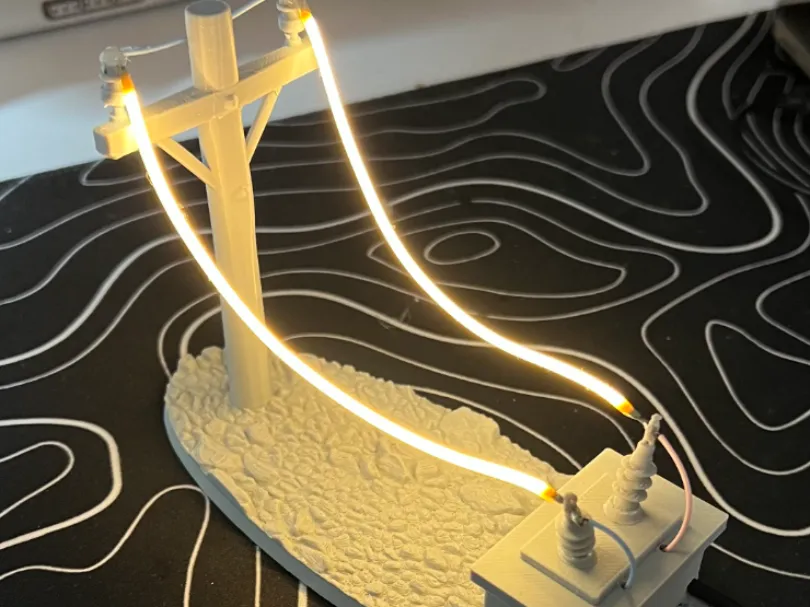

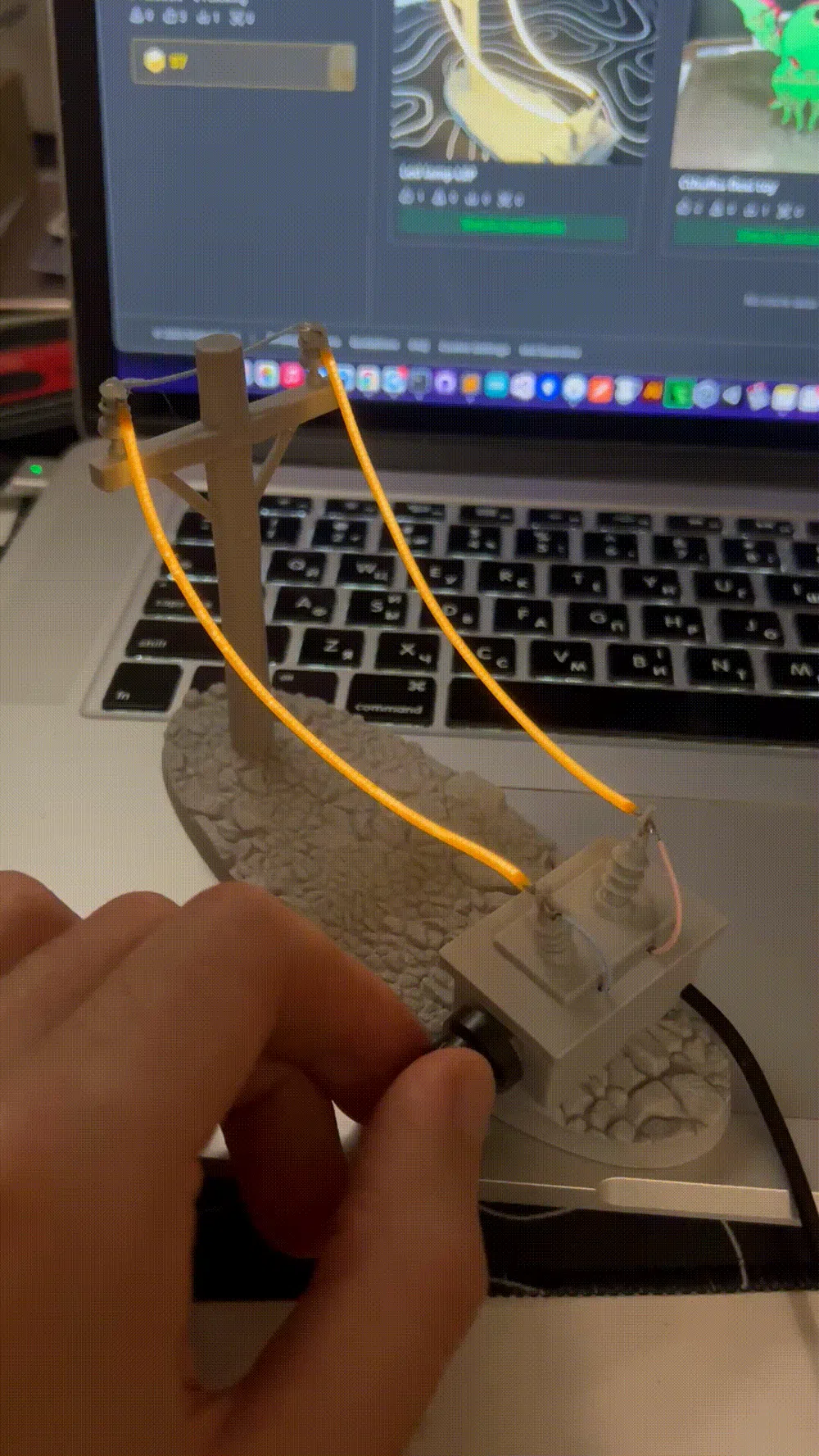

Decorative LED lamp in the form of power lines with brightness adjustment.
Components used in the project:
1. LED filament (COB LED) 130 mm, 3 V - 2 pcs.
2. Dimmer HW-070
3. Capacitor 1uF 10-25V
4. USB cable
5. A little thin cable for connecting LEDs
The filament is soldered in series. The capacitor is placed at the input of the dimmer.
The size of the lamp when assembled: 150x70x100 mm

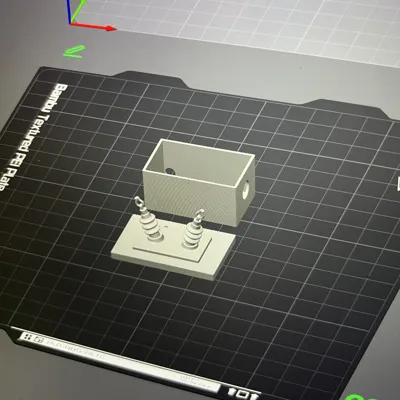

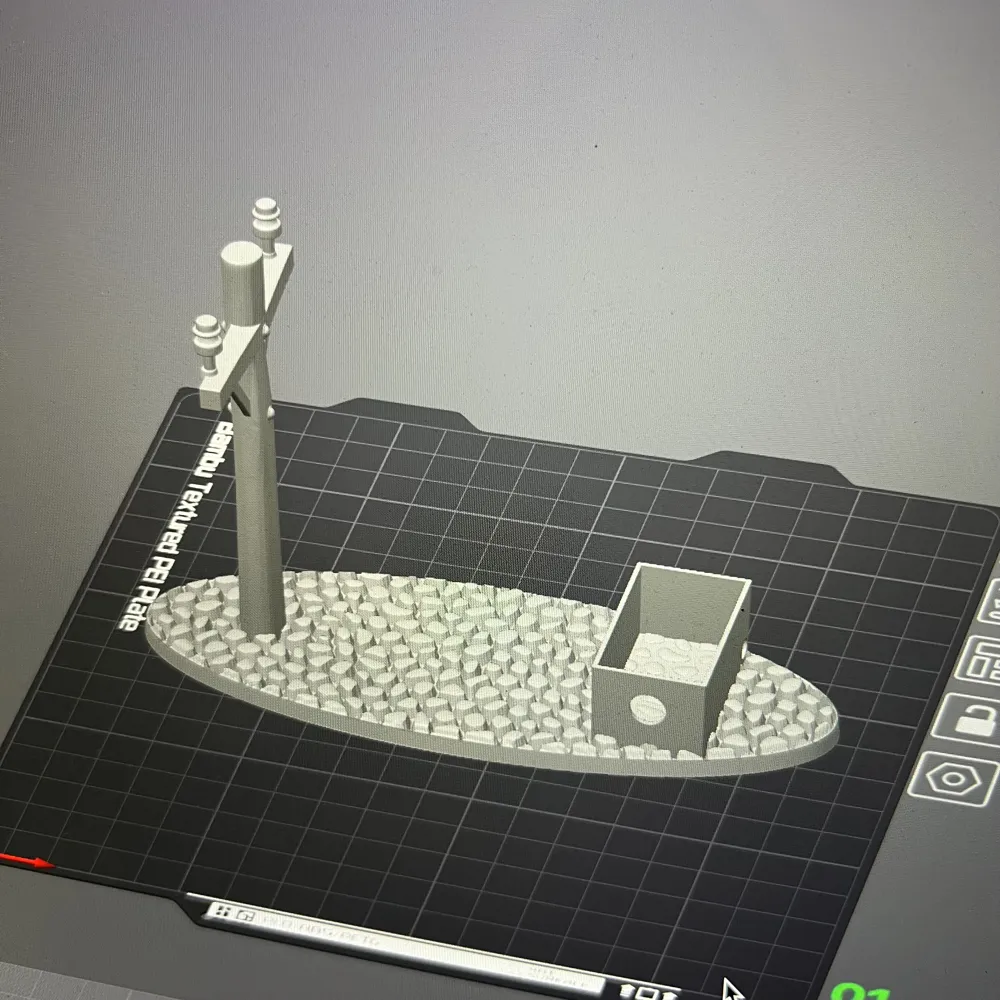

Printing Suggestions
- Layer Height: 0.2mm
- Infill: 10%
- Material: PLA/PETG
