double-acting cylinder Pneumatics Hydraulics
Print Profile(1)
Bill of Materials
- Magnet rund Ø10x4 x 1: diesen habe ich verbaut, den von Bambu habe ich als mögliche Alternative eingefügt.
Description
I have designed models of a double-acting cylinder for control technology lessons.
An AMS is required to print the model, as the non-adhering properties of PLA and PETG are used here.

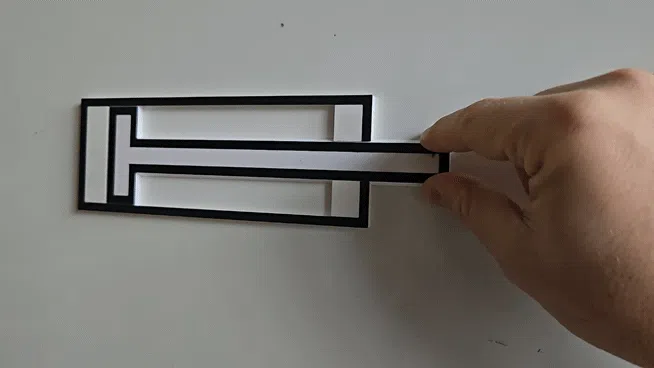

The cylinder itself is printed from PLA and the piston inside from PETG, one on top of the other. After complete cooling, the parts can then be moved.
I am currently also designing all the valves and control options. These will be available after successful testing.
Two magnets Ø10x4mm are also required. These are inserted after layer 27; a pause is set up in the print profile for this.
