Stroller Caddie - Collapsible Golf Club Rack
Print Profile(1)
Bill of Materials
- Hex Bolt 1/4-20 x 1.25" long x 3:
- Lock Nut 1/4-20 x 3:
- Washer 1/4" x 6:
- Rare Earth Round Magnet - 1/4" (6.4mm) x 1/16" (1.6mm) x 12:
Description
Boost Me (for free)
Boost for golf dads!

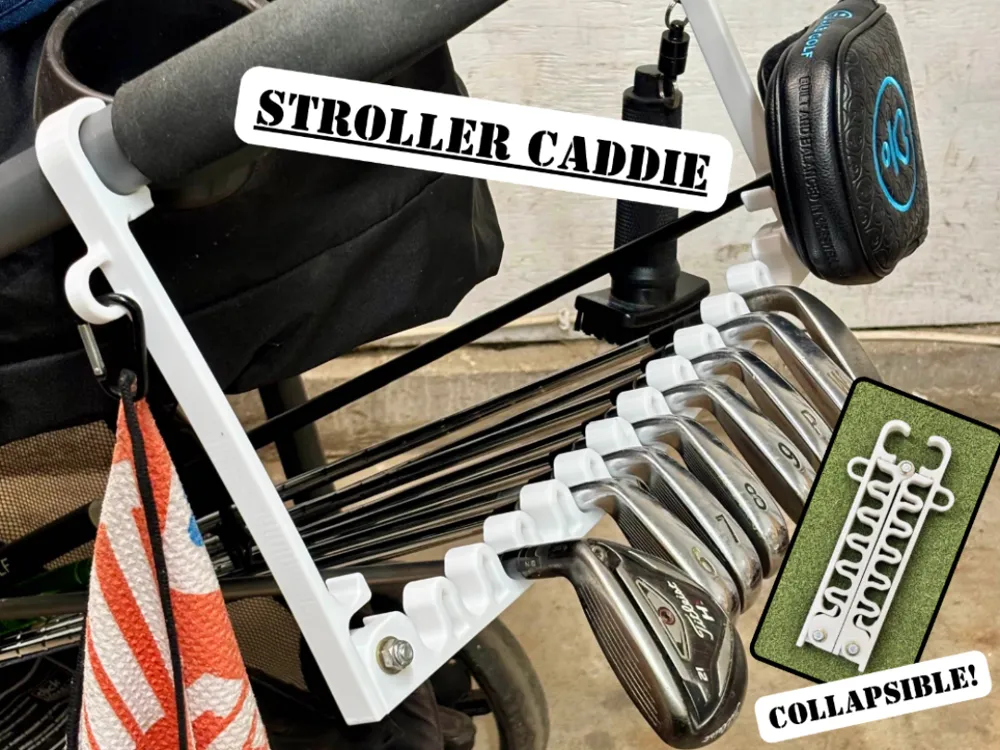

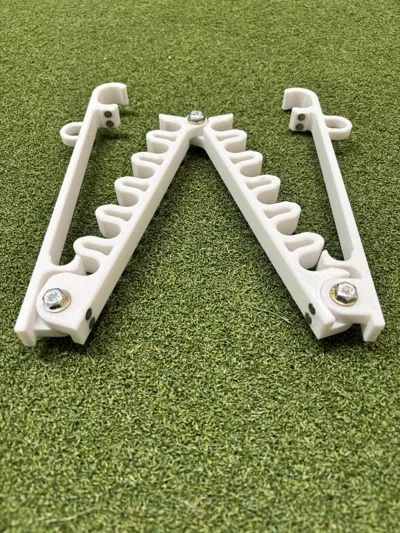

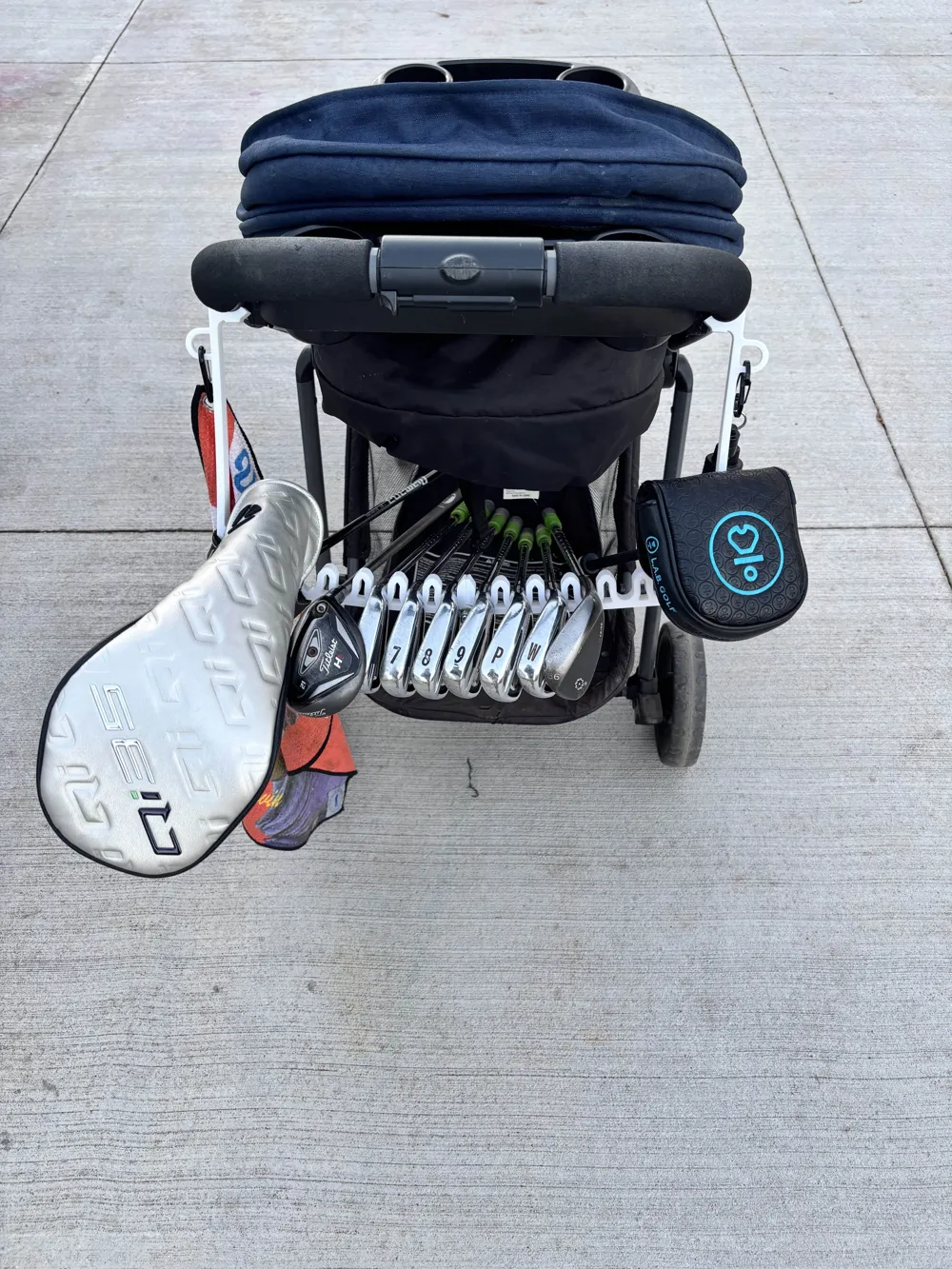

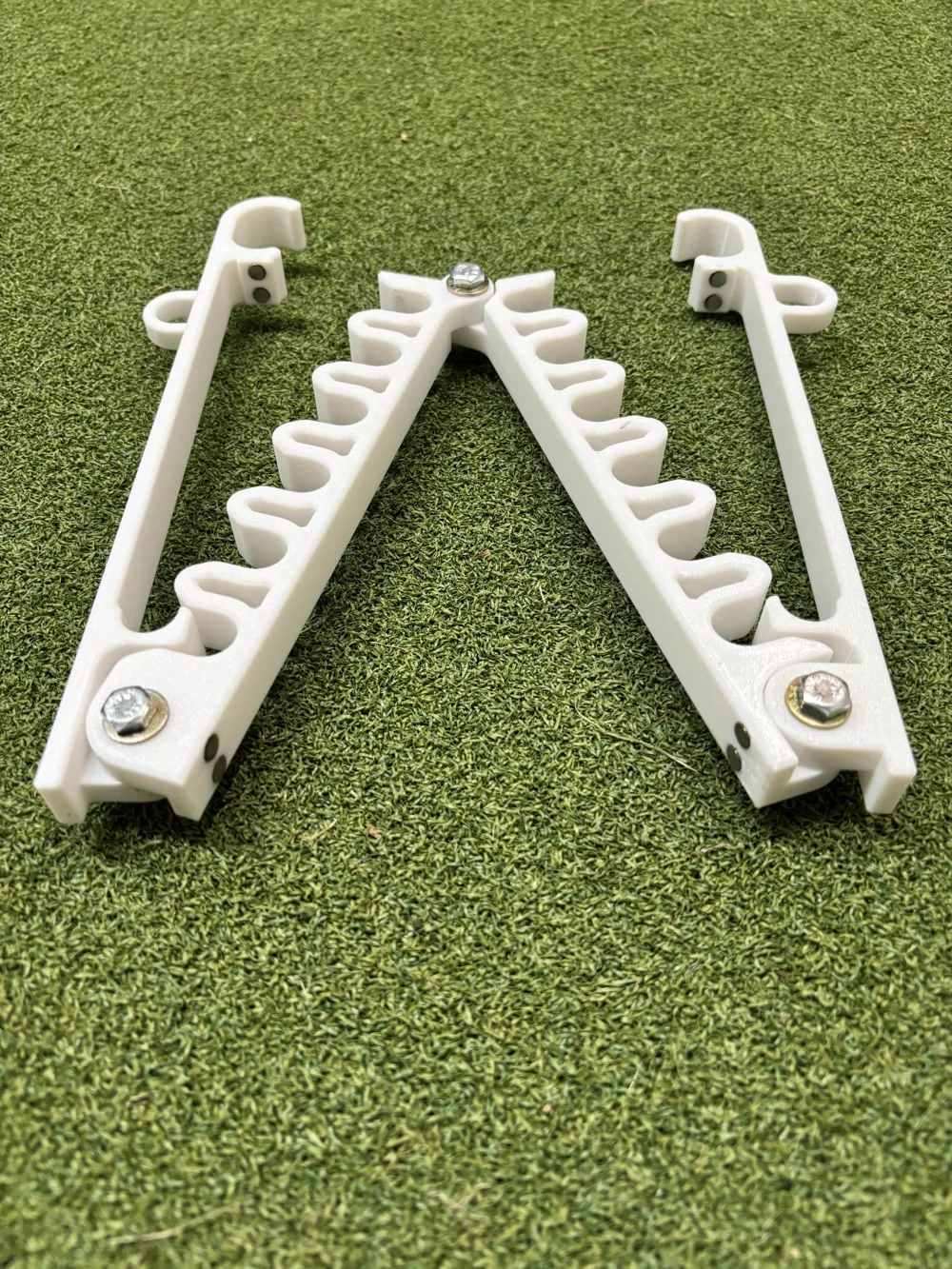

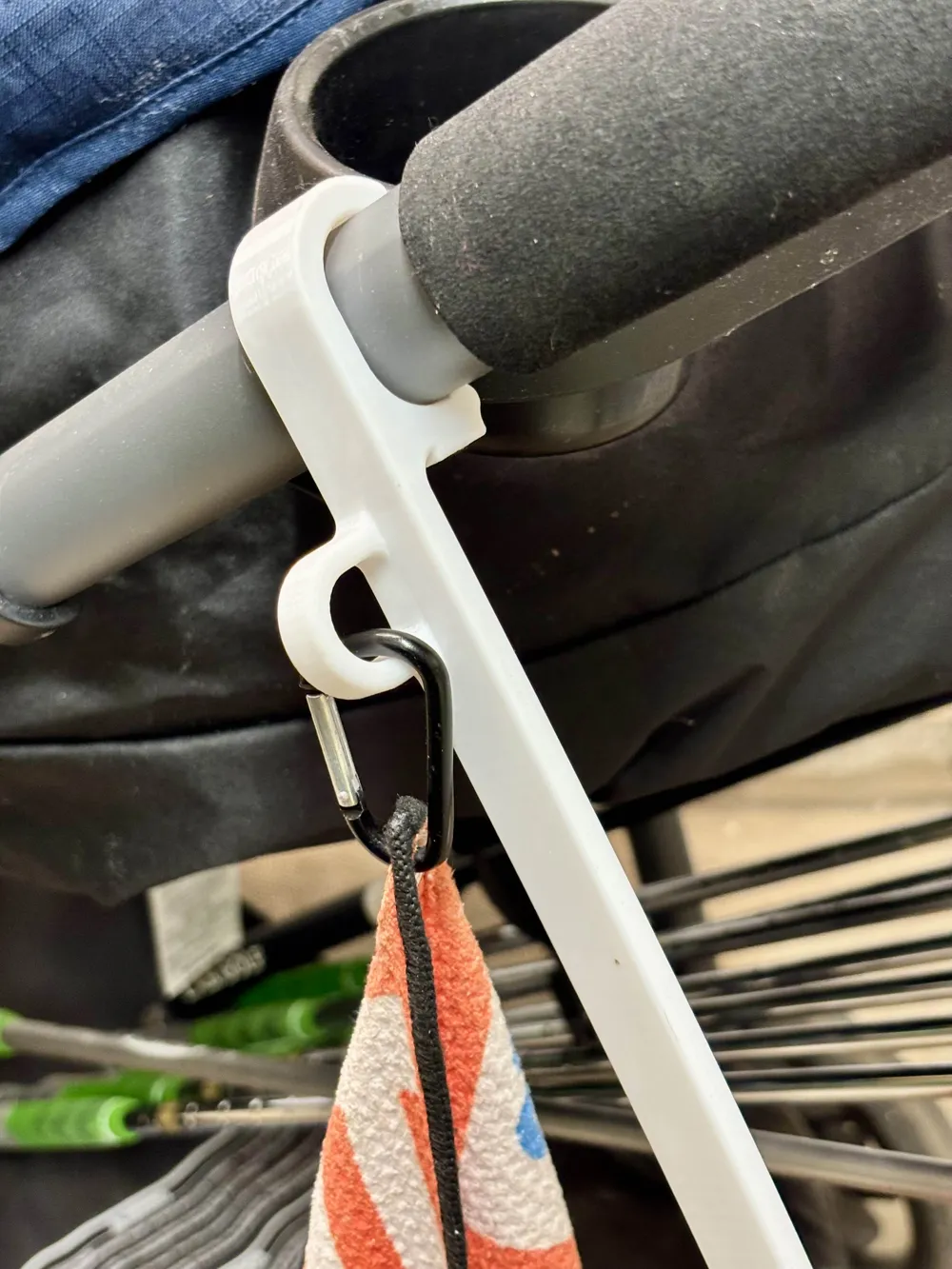

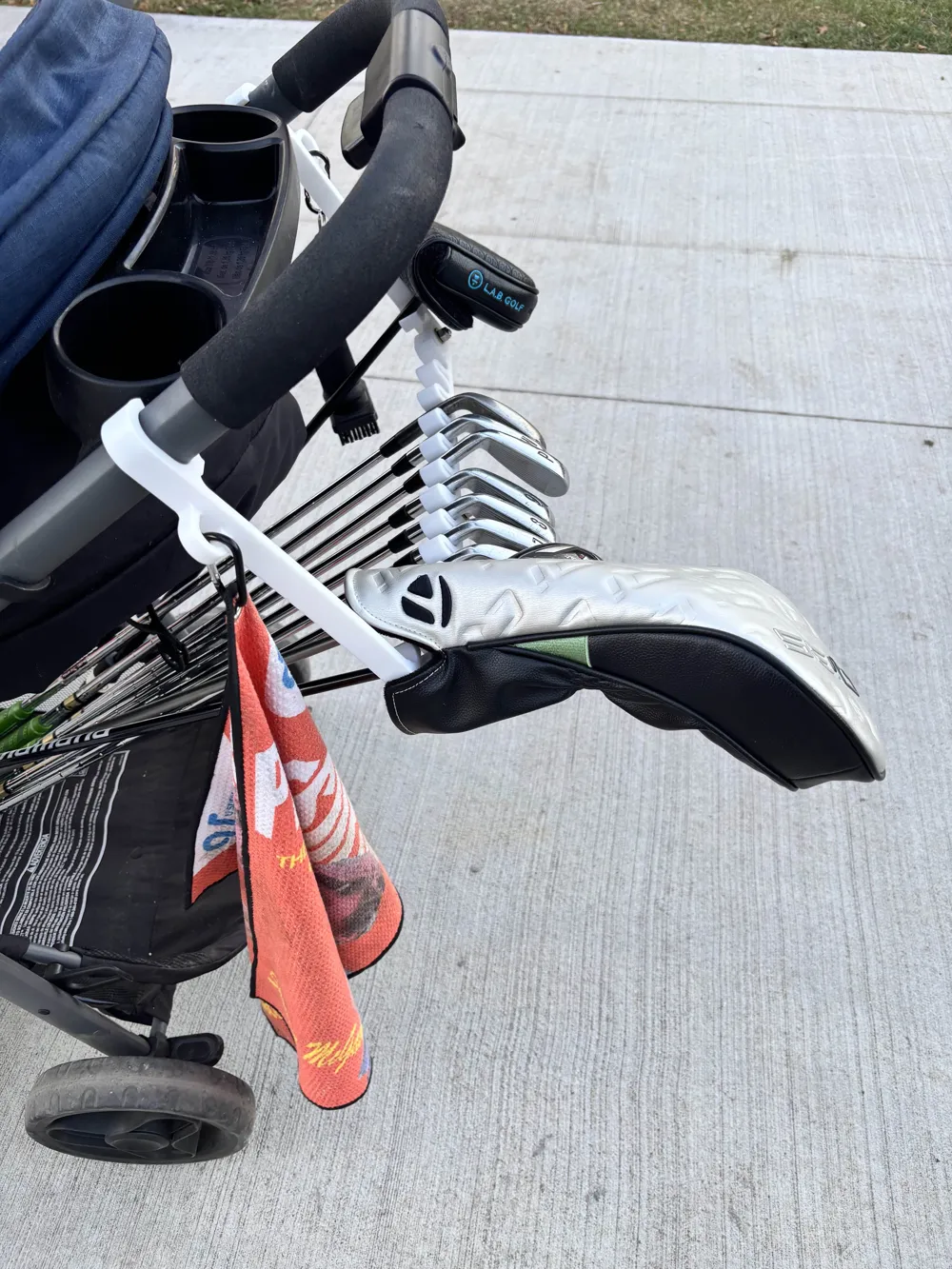

This is a collapsible golf club rack that mounts directly to a stroller handle, turning a standard stroller into a lightweight caddie setup. This rack securely holds a full set of clubs while still allowing the stroller to function normally. Perfect for par-3 courses or range sessions with the young one. It breaks down for easy storage and uses magnets to keep it in place.
Print out of PETG, it is intended to flex.
Do not over-tighten bolts!

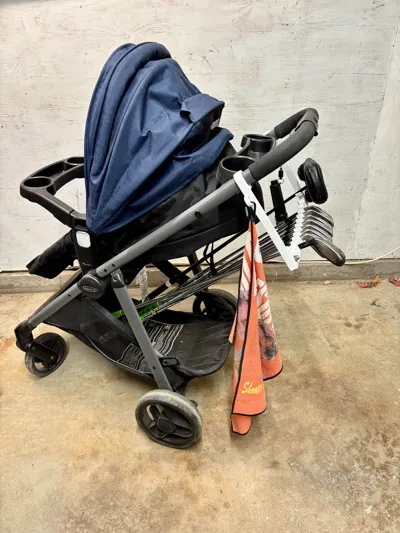

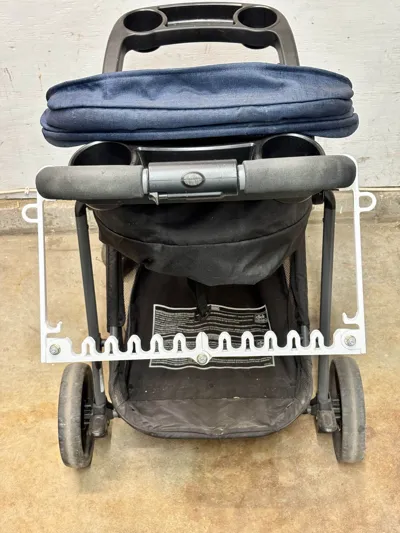

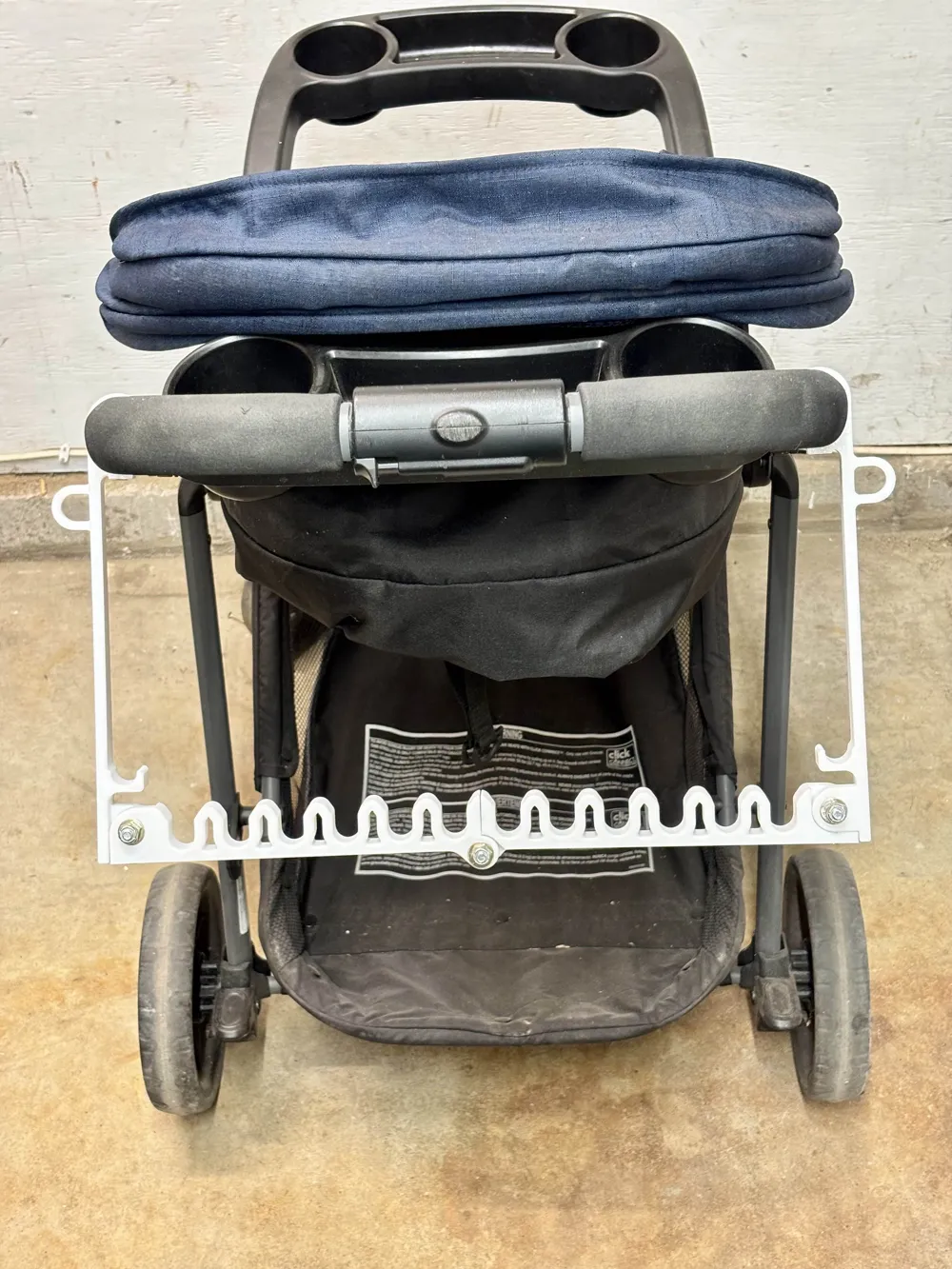

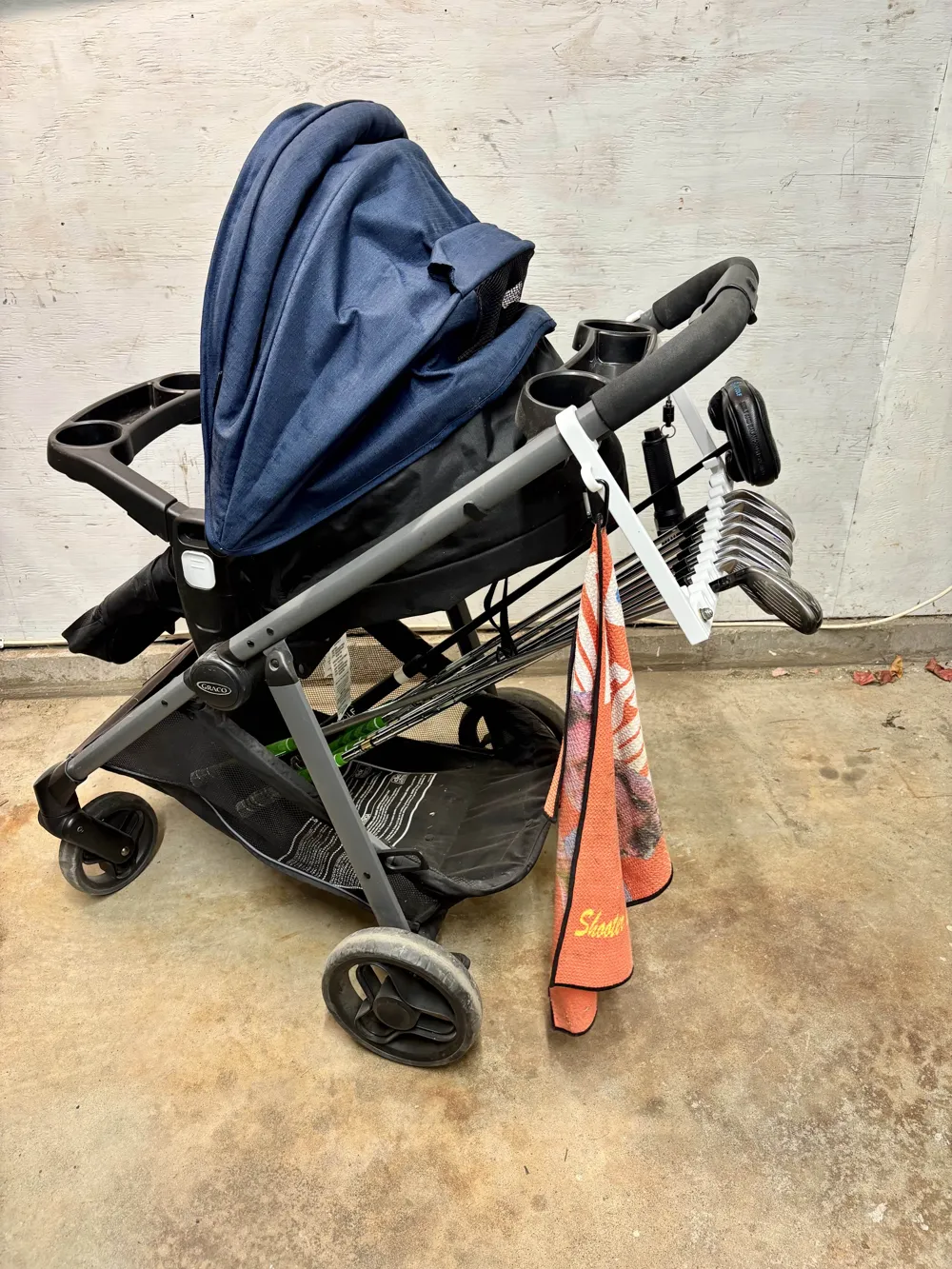

Fits Graco stroller.
Bill of Materials
- Hex Bolt ¼-20 x 1.25" - Qty 3 - Link
- Washer ¼" - Qty 6 - Link
- Lock nut ¼-20 - Qty 3 - Link
- Magnet options - Qty 12
- Neodymium magnet (0.250"(6.4mm) x 0.0625"(1.6mm)) - Qty 12 - (Link to Amazon)
- Neodymium magnet (0.190"(5mm) x 0.0625"(1.6mm)) - Qty 12 - (Link to Amazon)
- Neodymium magnet (0.250"(6.4mm) x 0.078"(2mm)) - Qty 12 - (Link to Amazon)
- This magnet option will work, but it will stand a little proud when installed.
Important Magnet Notes:
- There are multiple magnet options depending on availability, see BOM.

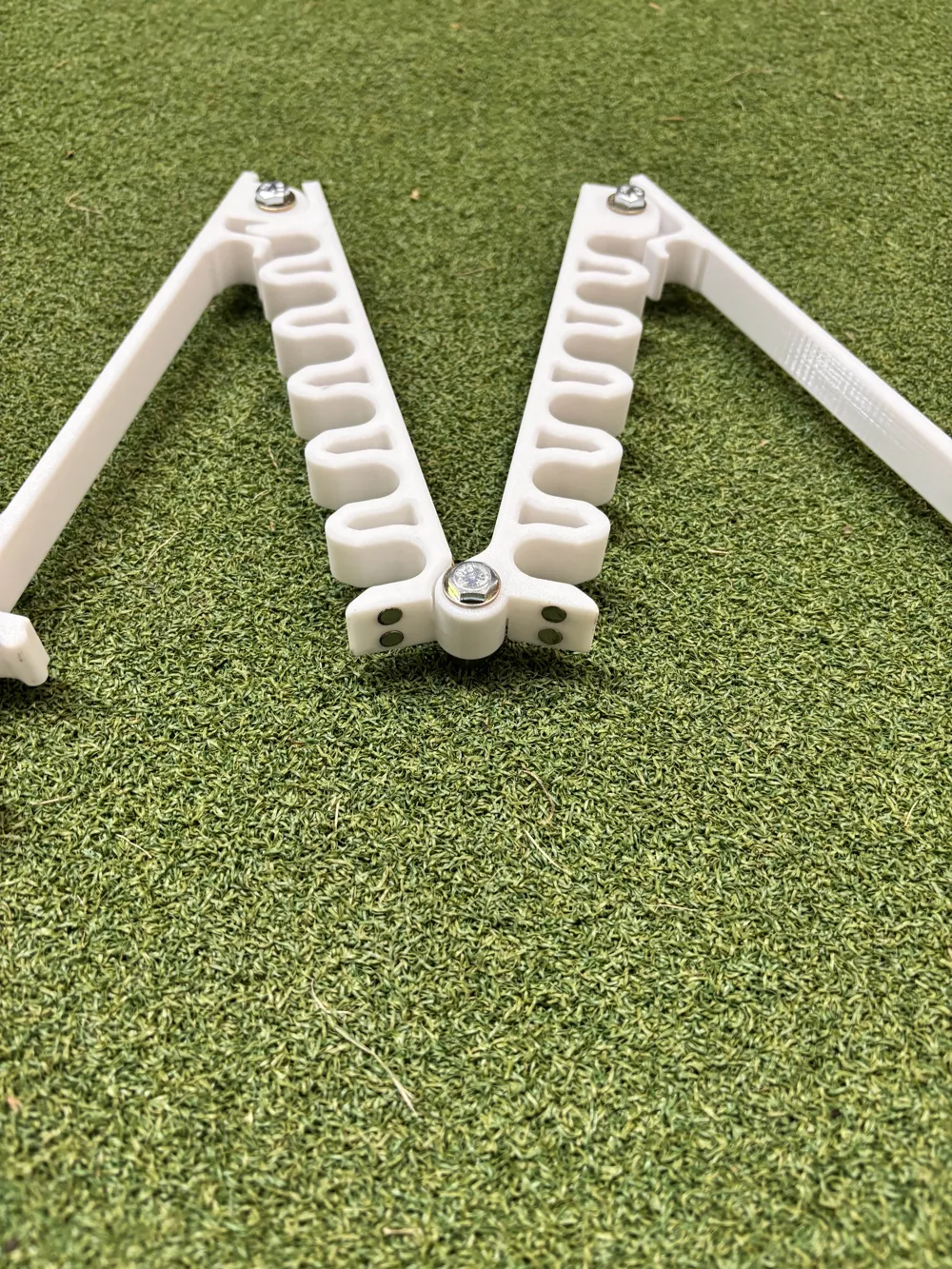

- Note the direction of magnets when assembling!!

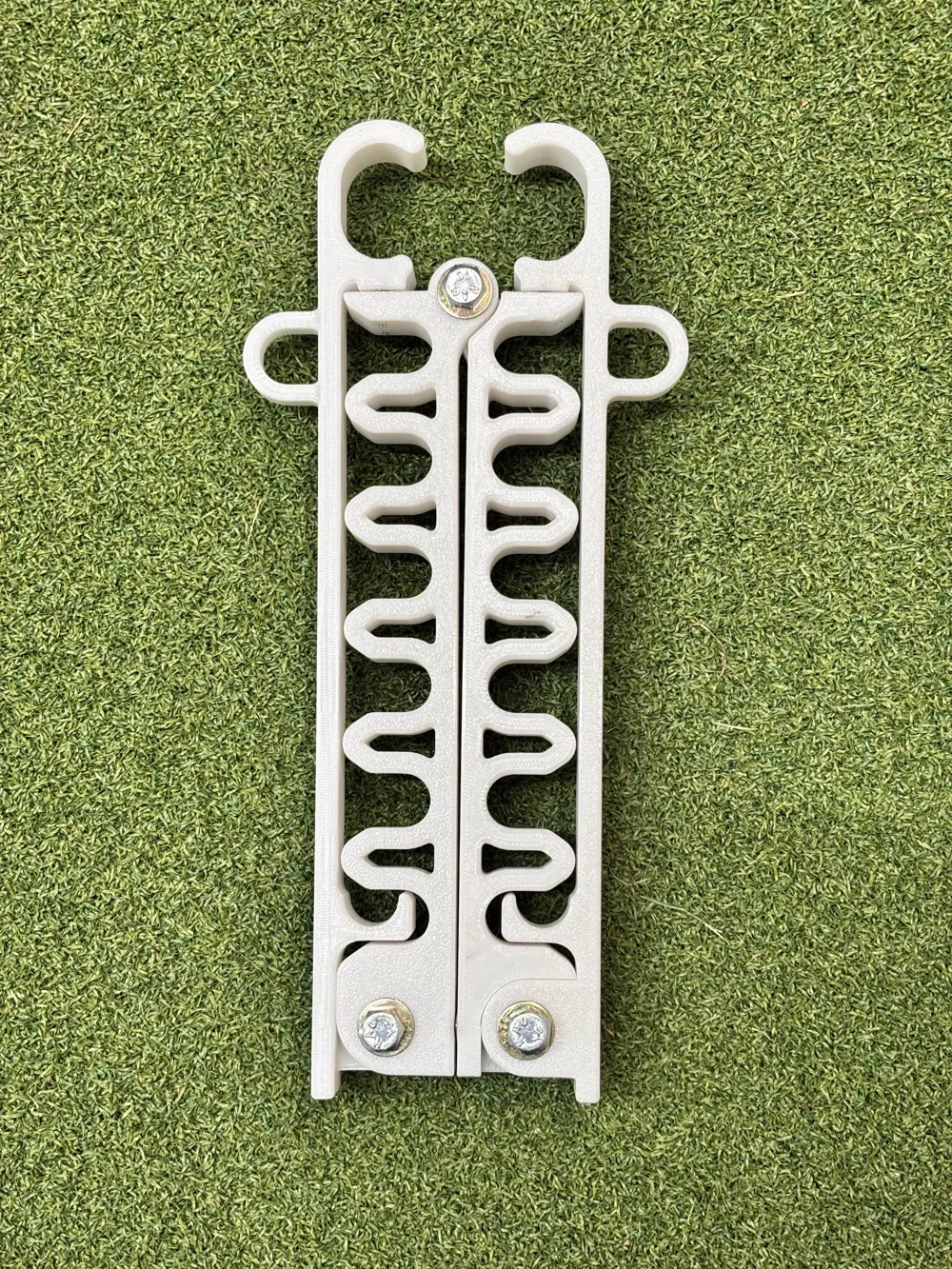

- If installed backwards, the rack will not hold in the collapsed position.

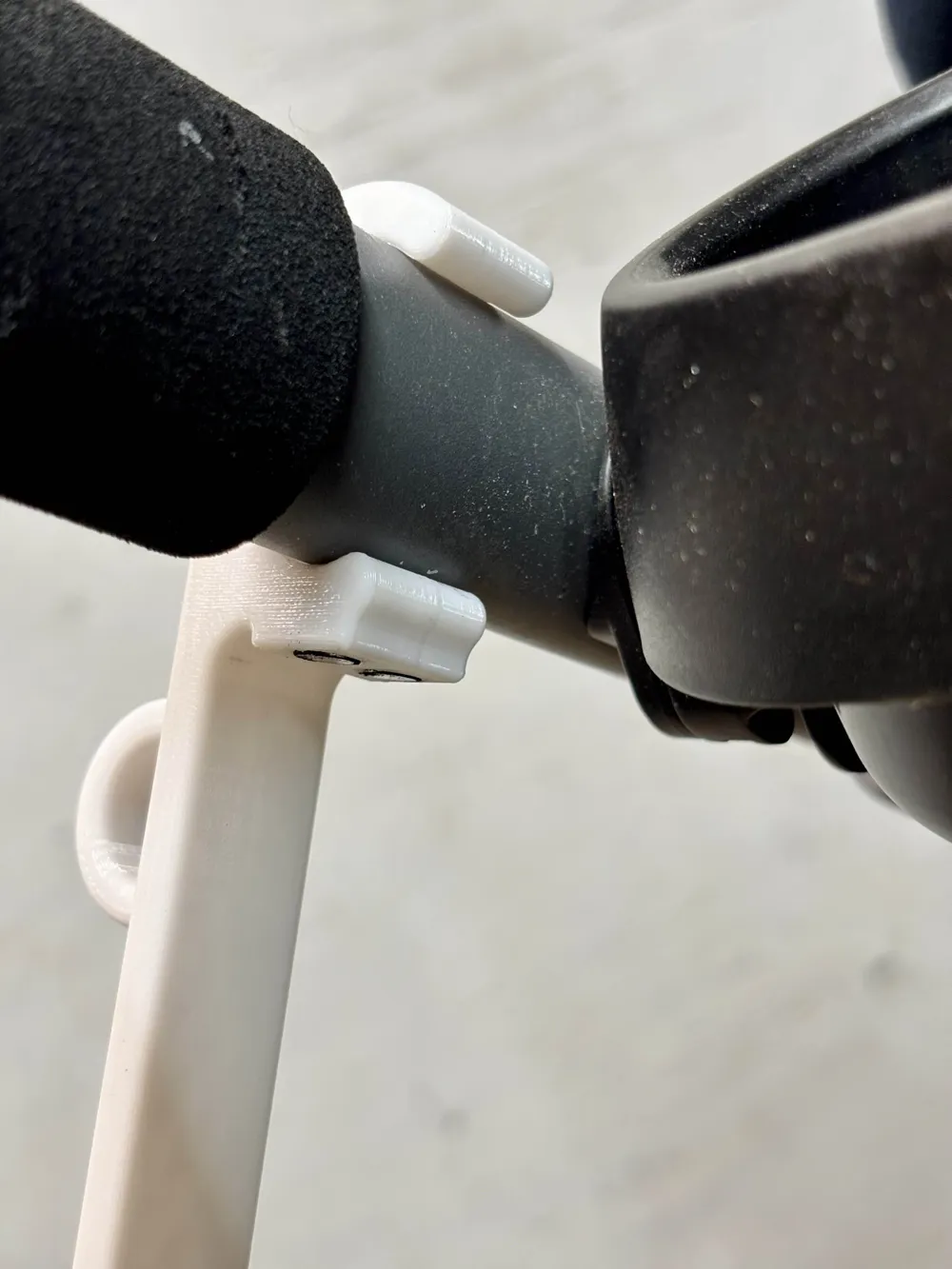

- Magnets Ø0.250"(6.4mm) x 0.0625"(1.6mm) - Can be pressed in with pliers or glued.
- Magnets Ø0.19"(5mm) - Must be glued.
- Magnets Ø0.250"(6.4mm) x 0.078"(2mm) - Can be pressed in with pliers or glued.
