Williams Arcade / Pinball Coin Door - Coin Slot
Print Profile(1)
Description

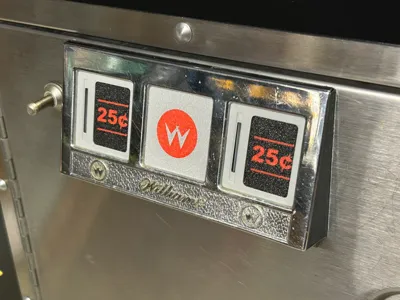

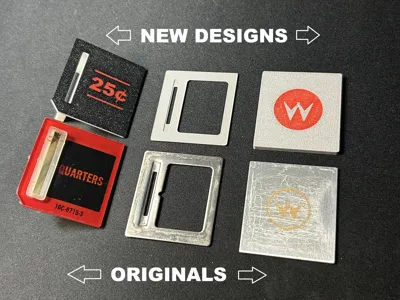

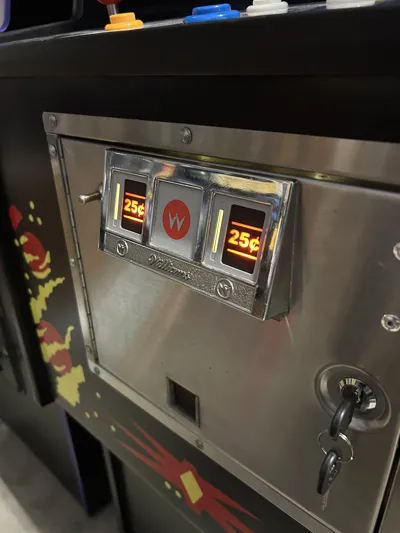

My Defender arcade cabinet was missing one plastic coin entry and had a scratched up emblem, so I've recreated suitable replacements. These should work on Williams arcade or pinball machines with the SILVER coin door per the pictures. The white backing PLA allows the light to shine through, illuminating the cover text nicely!
The “25c” text can be edited directly in Bambu Studio if you have an an alternate denomination you'd prefer to use.
Coin slot is sized for quarters (24 mm entry).
NOTE: If printing with PLA, please ensure you have replaced your coin door bulbs with low temp LEDs (the original incandescent bulbs might melt the plastic).
If you are not using LED bulbs in your coin door, make sure you remove the original bulbs.
Boost Me (for free)
Arcade and pinball mods are niche - your boost makes a huge difference! Consider leaving a like and boost if you appreciate this model.
Print Profile Settings:
- Standard 0.2 mm settings. Red text / logo are embedded 0.4 mm.
- Prints are separated onto two plates to minimize color changes.
- 4 colors total (red, grey, black, white). Red could be substitute with orange.
- Modifiers are provided to enable ironing on the coin slot covers.

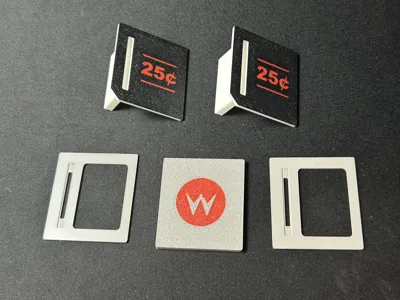

Model Details:
- Coin slot cover is sized for 24 mm (American or Canadian quarter). The back slot is ~30mm and could handle larger coins if the cover is widened.
- LxW: 48 x 42.5 mm, closely aligned to original Williams parts.
- “25c” Text can be directly modified in Bambu Studio.
Enjoy! :)
