Garmin Fenix bikecomputer
Print Profile(2)
Bill of Materials
Description
Garmin Fenix 7X Mount — compatible with all suitable Fenix models (Handlebar Ø 31.8 mm)
Brief Description

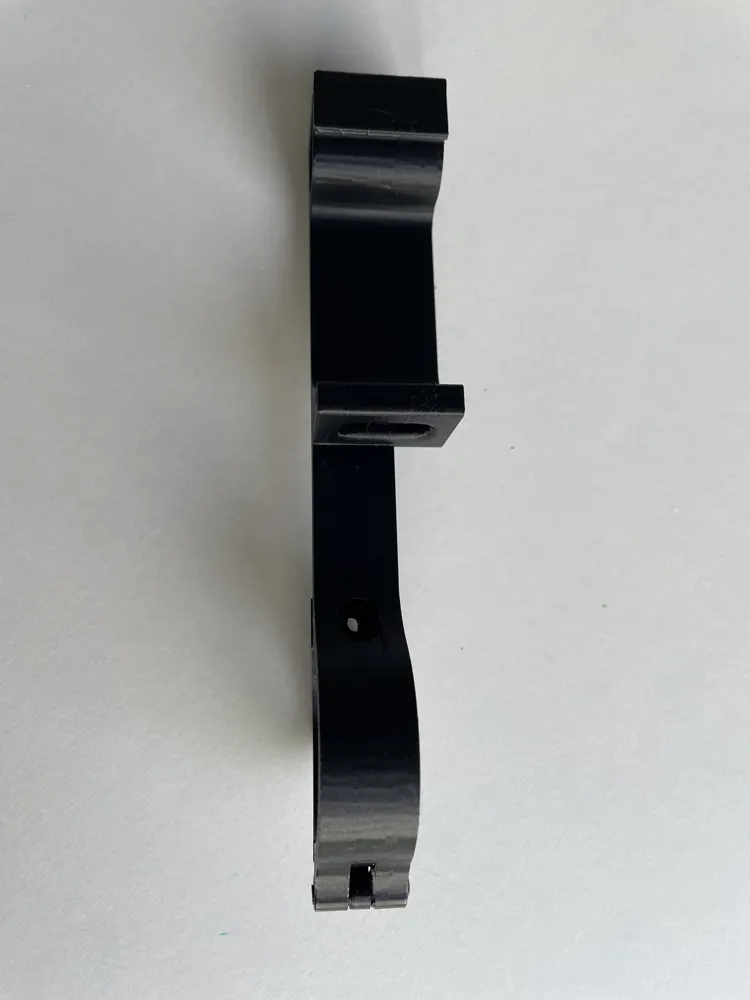

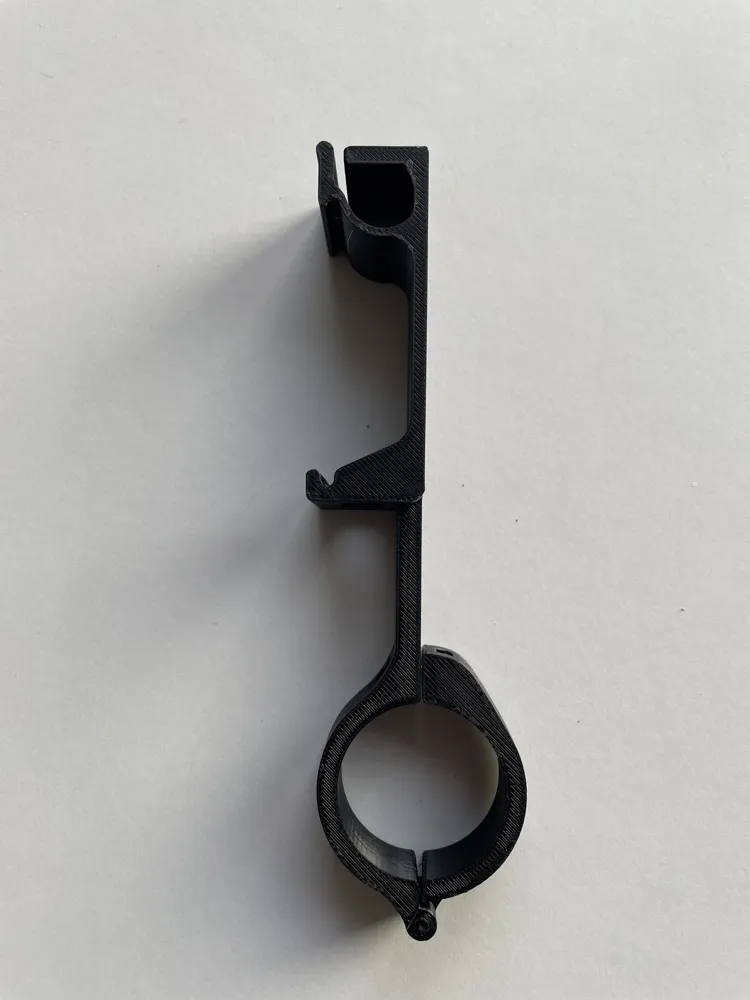

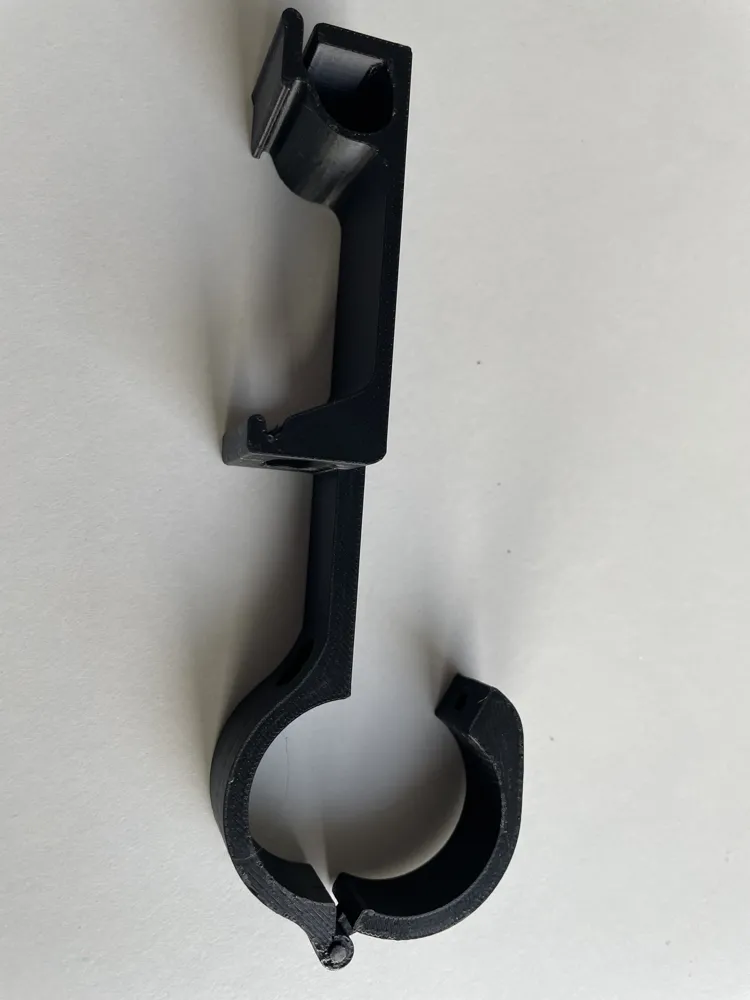

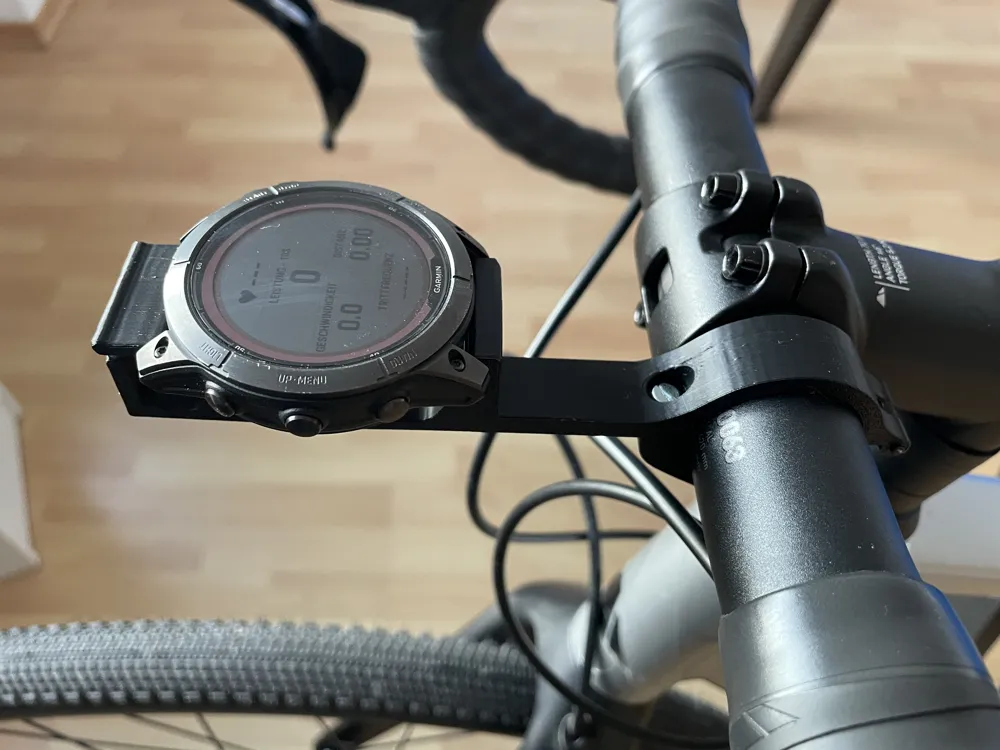

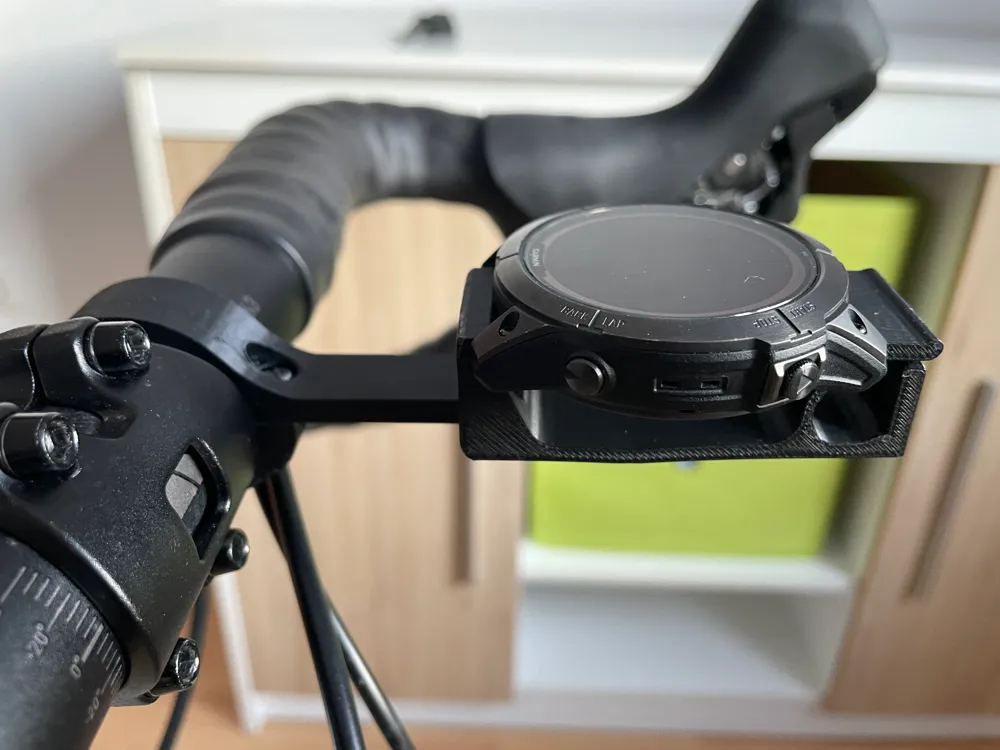

Sturdy, 3D-printable mount for the Garmin Fenix 7X and compatible Fenix models. Designed for bicycle handlebars with a diameter of 31.8 mm. It is mounted using a robust clamp with an M3 screw and nut. The hinge is reliably secured with a short piece of filament as a pin
Material used: PETG HF – high strength, good weather resistance, and ideal for outdoor use
Fenix Series ("X" or 51mm models in each case):
Fenix 8 (51 mm / Solar & AMOLED)
Fenix 7X / 7X Pro (all variants: Solar, Sapphire)
Fenix 6X (Pro, Sapphire, Solar)
Fenix 5X / 5X Plus
Fenix 3 / 3 HR
Epix Series:
Epix Pro (Gen 2) – 51 mm
Tactix & Enduro Series (Ultra-Performance):
Tactix 8 (51 mm) / Tactix 7 / Tactix Delta / Tactix Charlie
Enduro / Enduro 2 / Enduro 3
Instinct Series (large models):
Instinct 2X Solar
Instinct 3 (50 mm variants)
Descent & Quatix Series (Diving/Marine):
Descent Mk3i (51 mm) / Mk2 / Mk2i / Mk1
Quatix 8 (51 mm) / Quatix 7X / Quatix 6X / Quatix 3
Technical Details
- Compatible with: Garmin Fenix 7X and compatible Fenix models
- Handlebar mount: Ø 31.8 mm
- Material: PETG HF
- Fastening: M3 screw + M3 nut
- Hinge pin: filament piece (PETG HF)
Recommended print parameters:
- Layer height: 0.2–0.25 mm
- Perimeter: 3–4
- Infill: 30–50 %
Boost Me (for free)
If you like this model, I'd appreciate a boost!
Thanks for your support! 🚀
