Amaran 60x Front Plate

Amaran 60x / 60d Front Plate – Replacement 3D-Printable Part

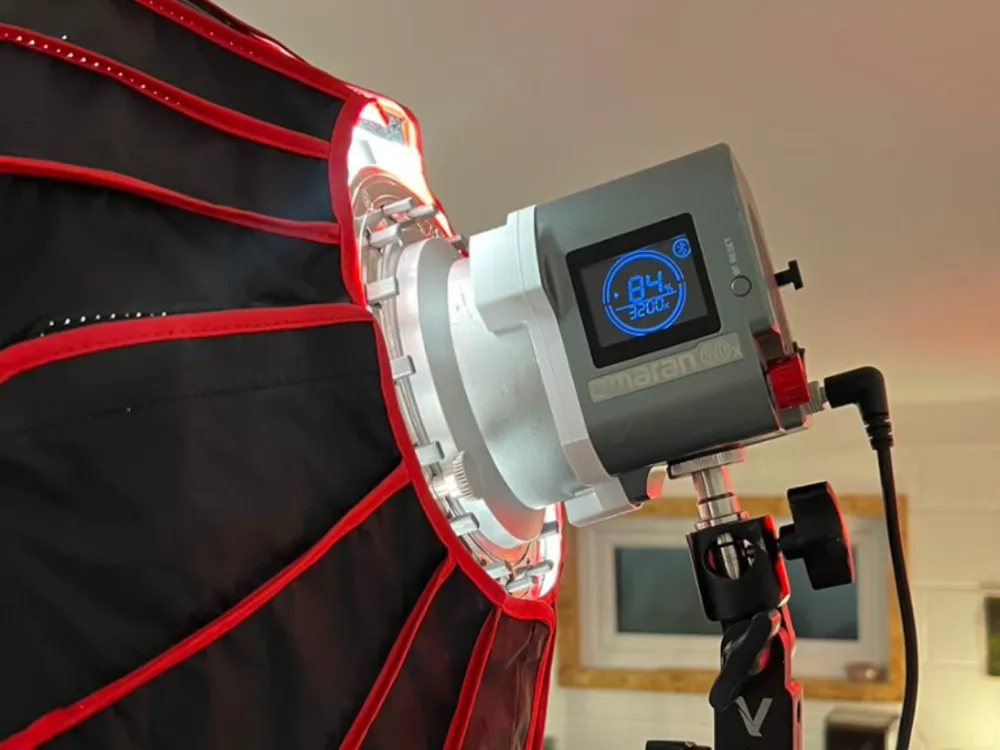

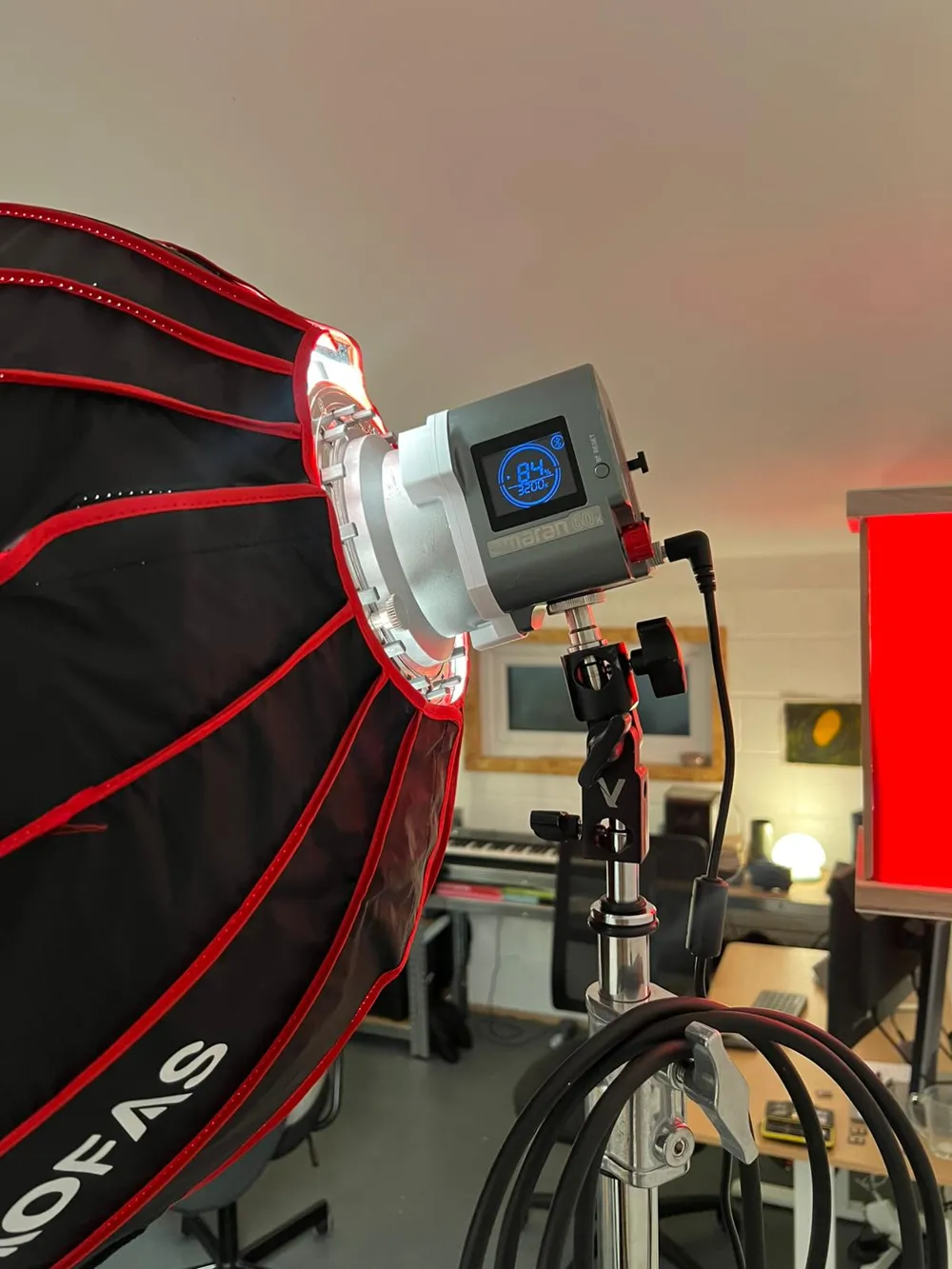

This is a 3D-printable replacement front plate designed for the Aputure Amaran 60x / 60d LED light.
It replicates the dimensions and mounting geometry of the original front faceplate that holds the protective lens and supports the Bowens-compatible adapter.

The part is intended for users whose original front plate has become cracked, warped, or broken, and provides a reliable, easy-to-print alternative to restore full functionality to the light.

Features

• Accurate mounting geometry matching the stock Amaran 60x/60d front plate
• Integrated screw posts positioned to fit the factory housing
• Reinforced perimeter structure for increased durability compared to the OEM plastic
• Optimized print orientation for strength on common FDM/FFF printers
• Maintains lens alignment and supports modifiers exactly as the original

Recommended Print Settings

• Material: PETG or ABS (for heat resistance)
• Layer height: 0.2 mm
• Infill: 40–60%, cubic or gyroid
• Supports: Yes, depending on your printer and orientation
• Perimeters: 3–4 for increased rigidity

Notes

• This design assumes use with the factory screws and diffusion elements.
• Ensure your printer tolerances are well-calibrated for best fit.
• Not officially affiliated with Aputure.
