Laser Tool Holder Laser Aid / Egg Painter

Hello everyone,

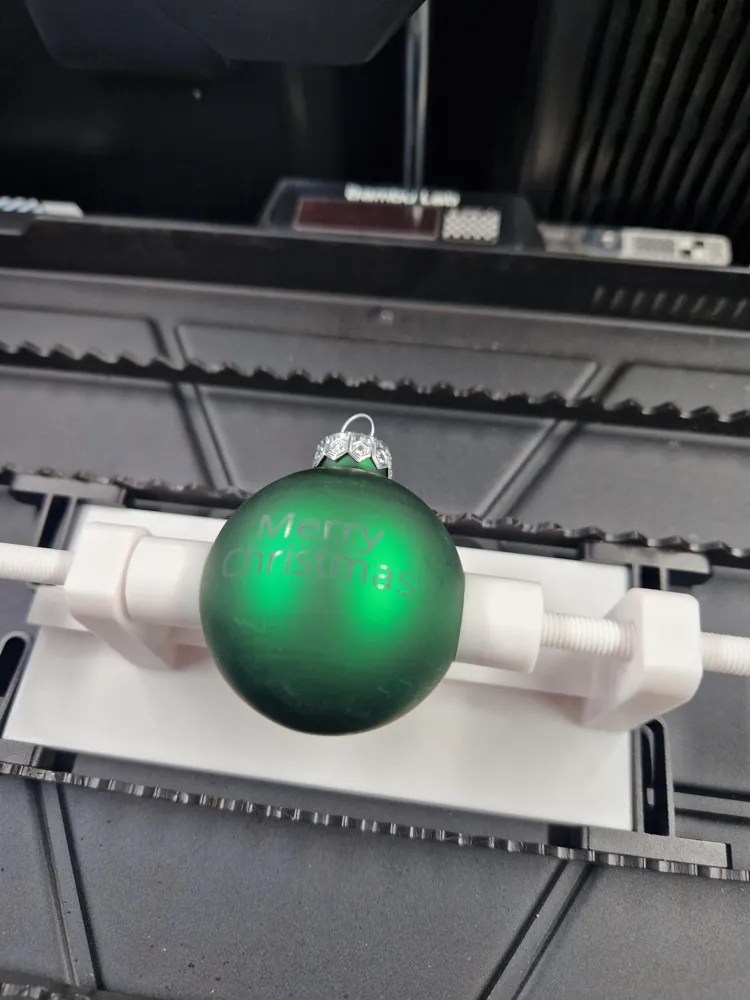

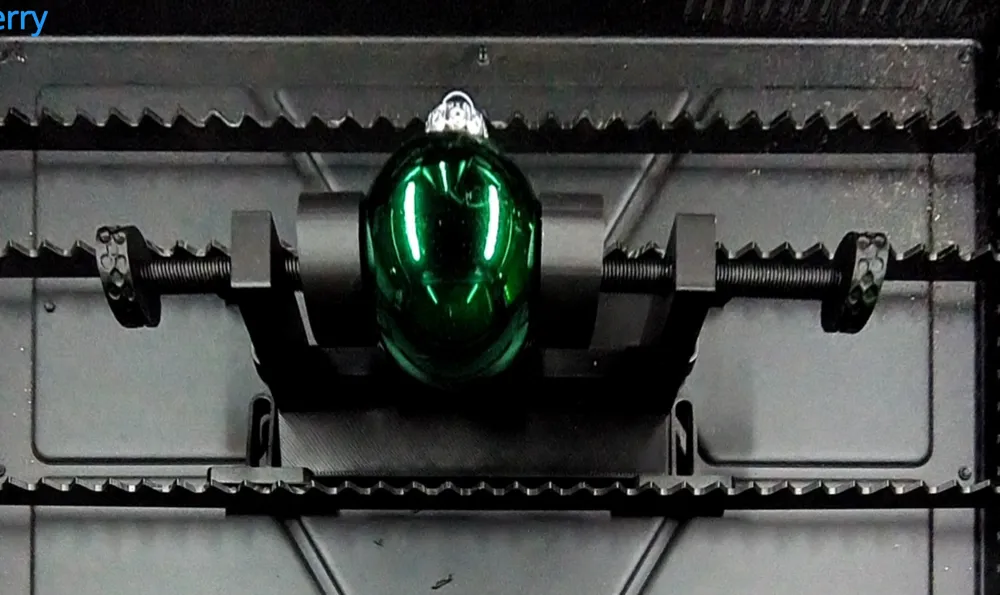

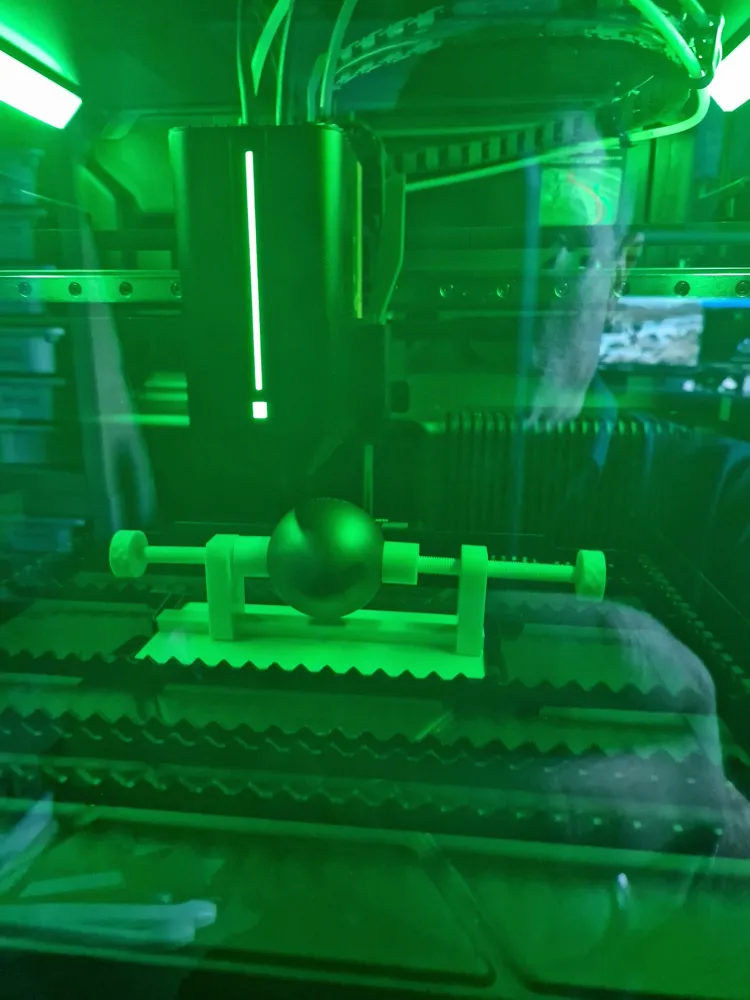

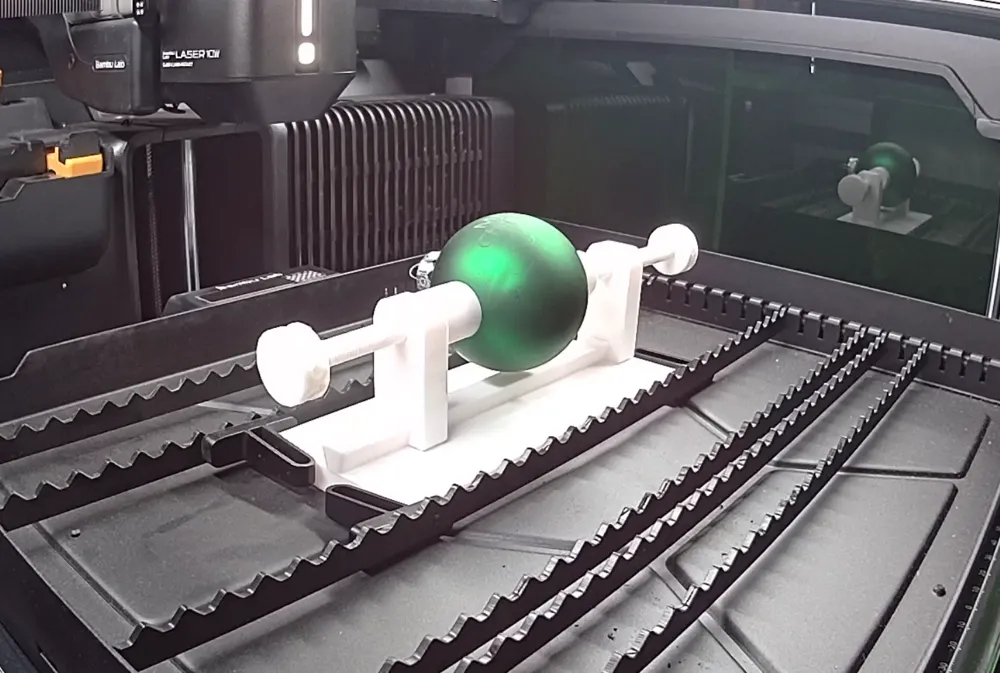

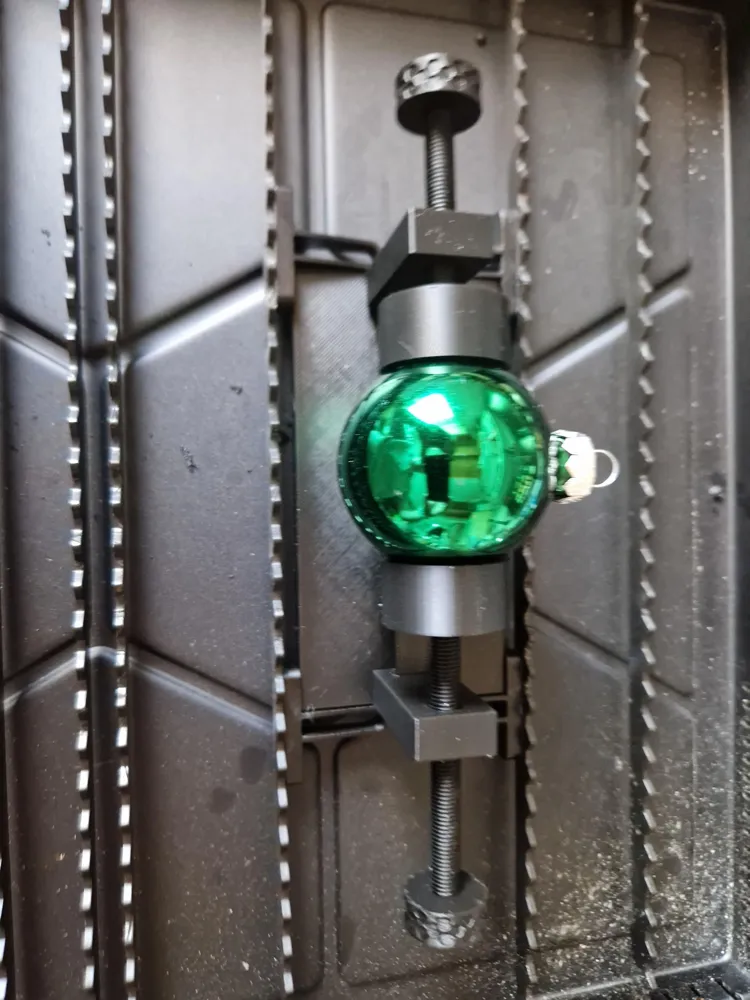

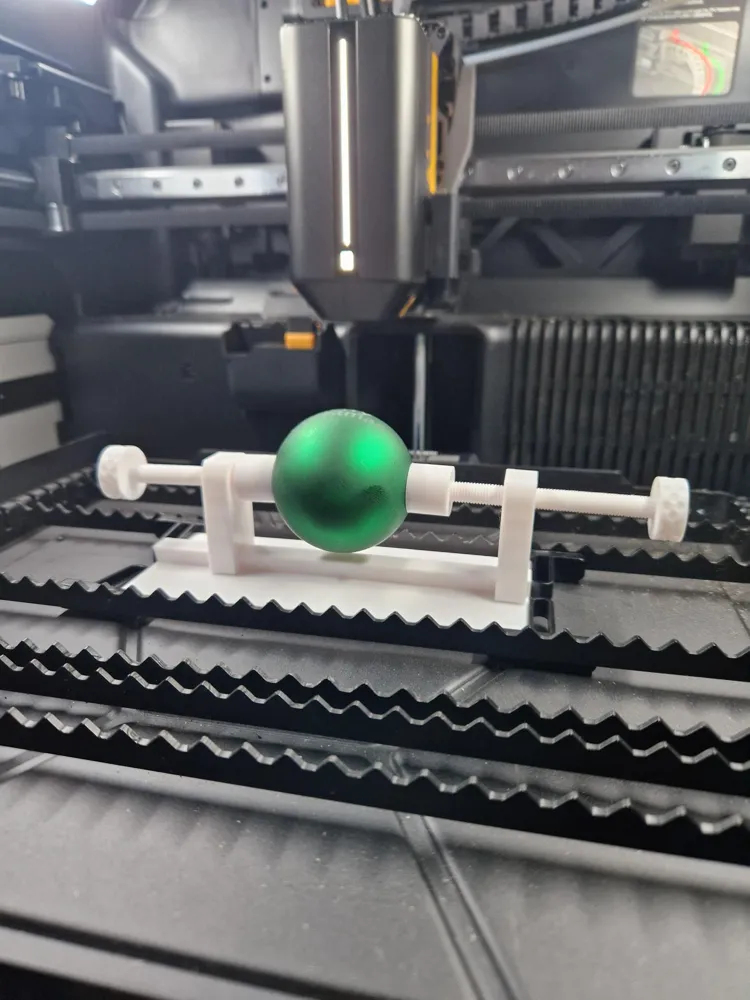

Here's a small modular laser aid, for example, to make it easier to position and laser Christmas tree baubles

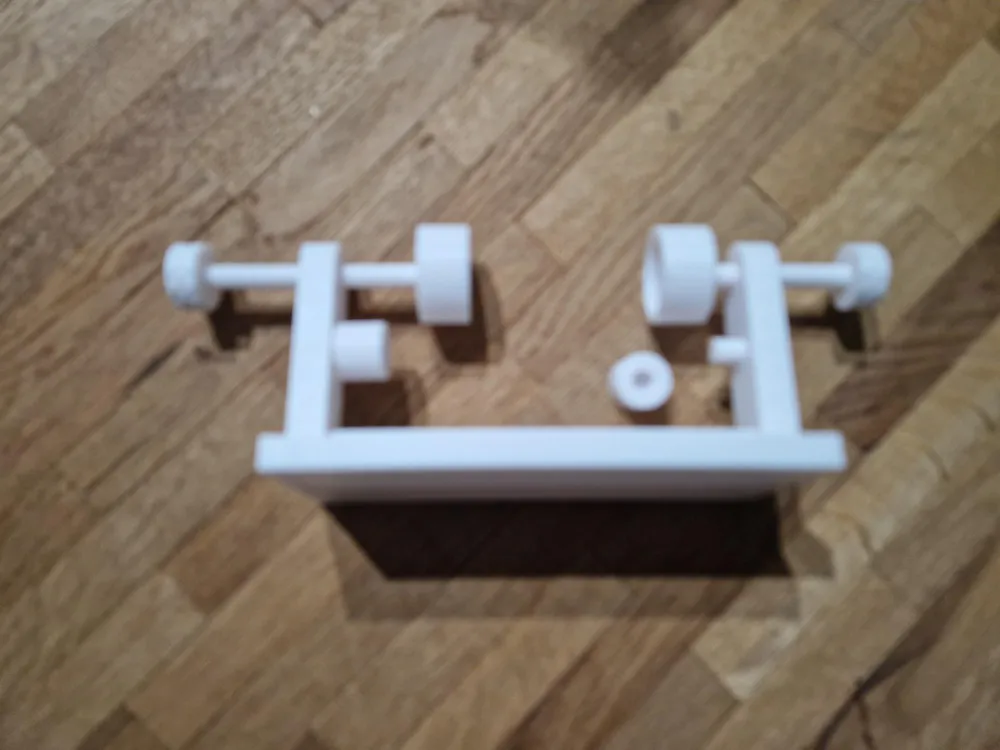

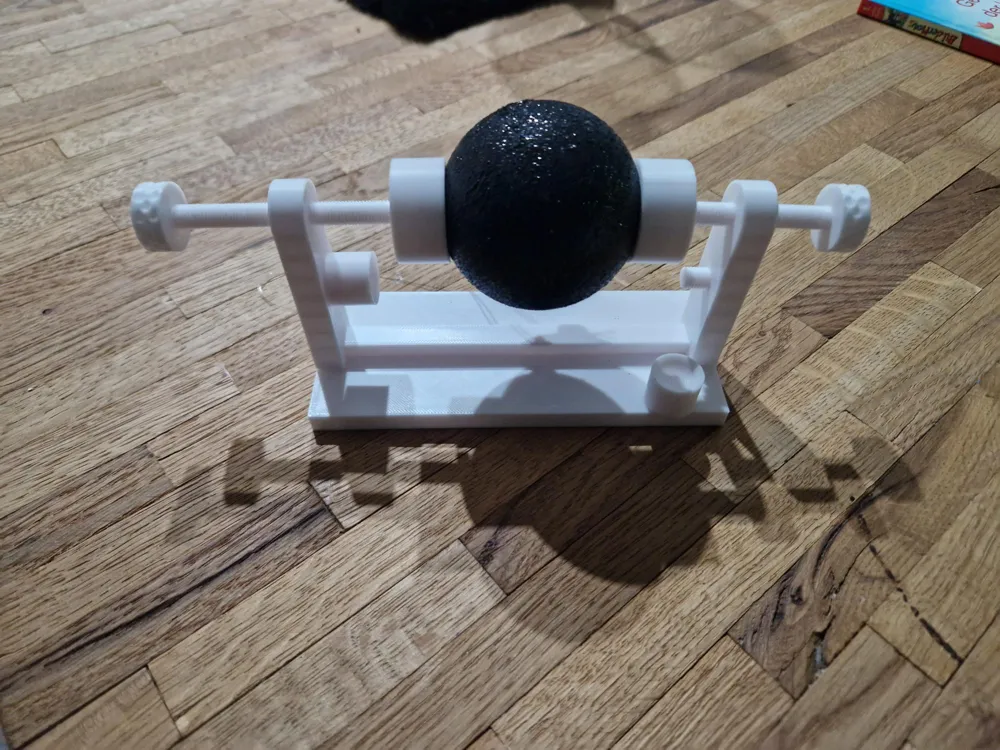

There are two sizes of adapters One for small and one for large baubles

I printed the model in PETG, but I could imagine that the jaws would be a bit more slip-resistant in TPU, but it also worked well this way Feel free to share your experiences in the comments I'm always open to improvements as well

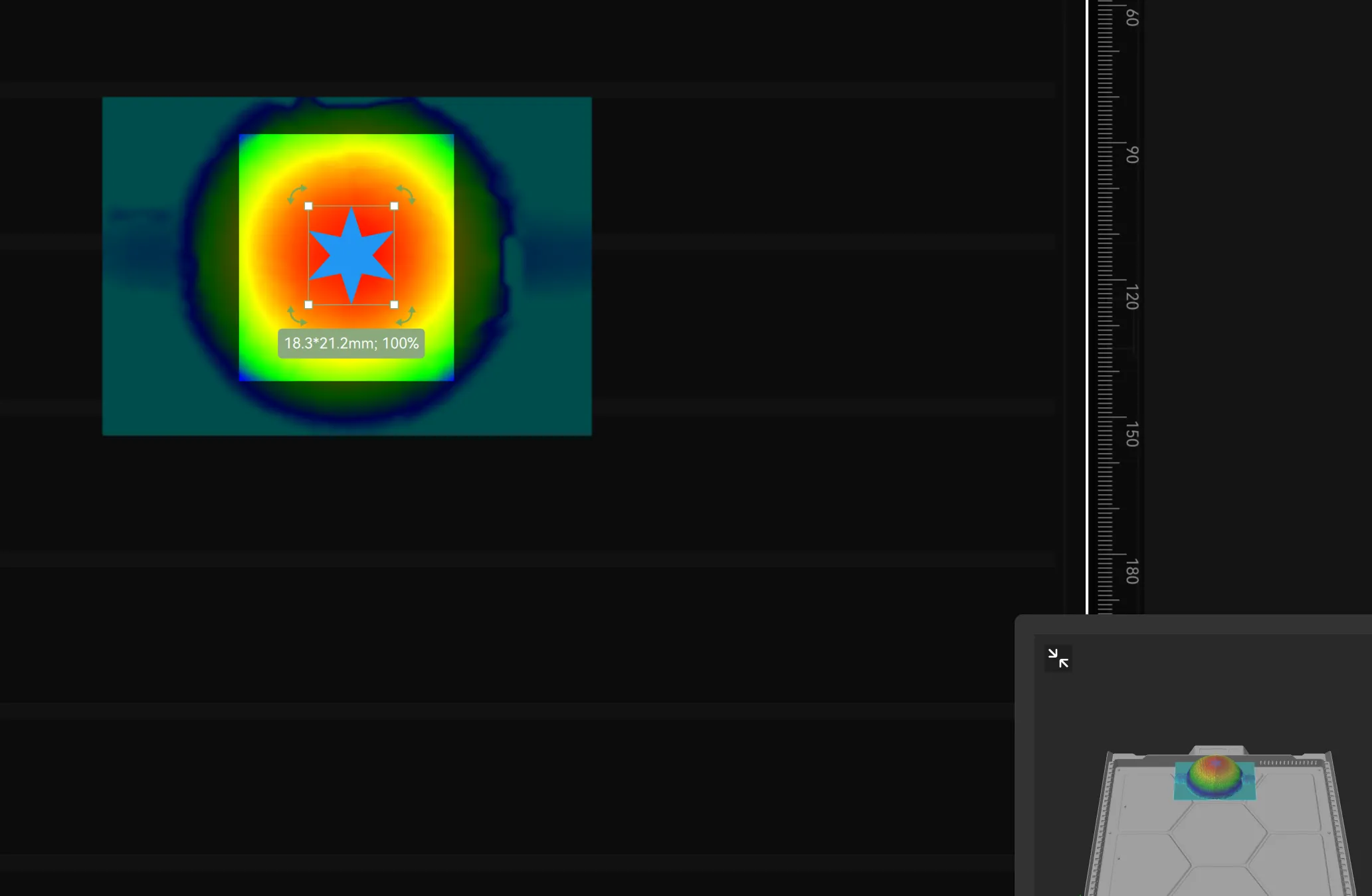

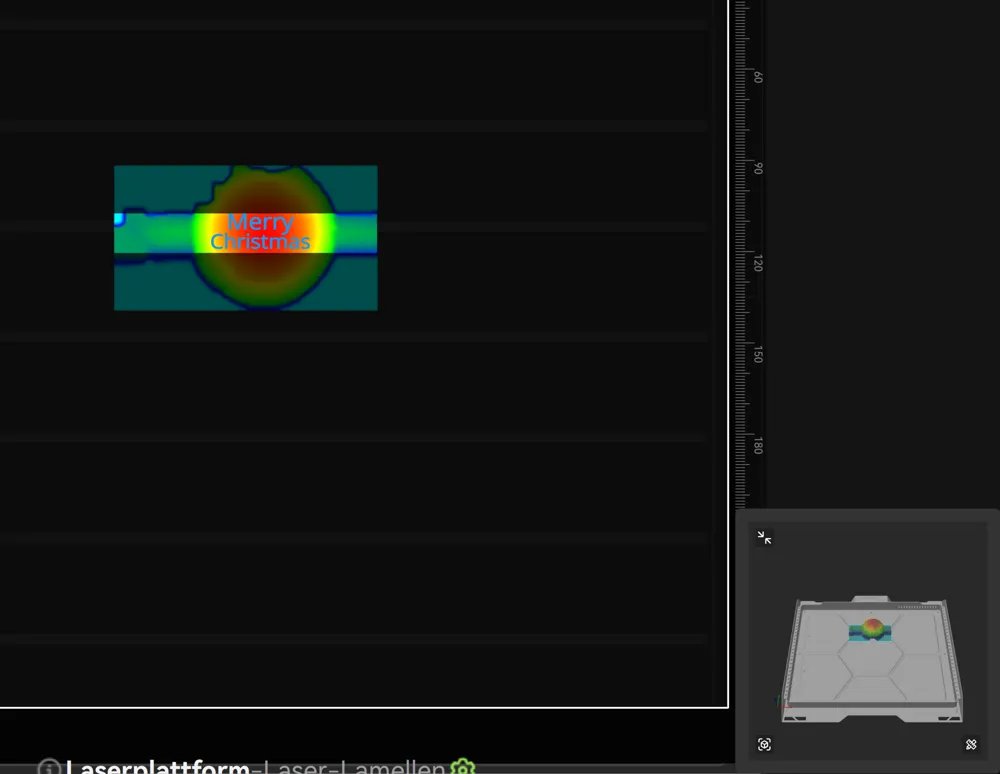

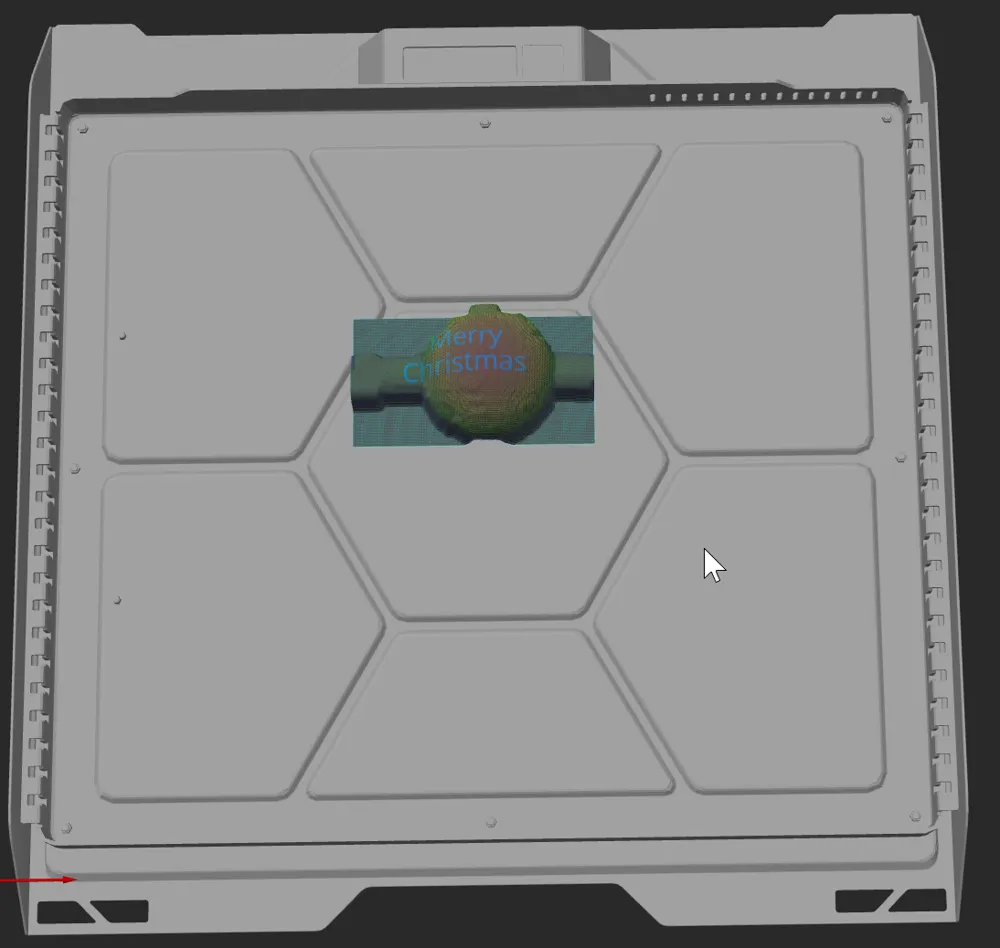

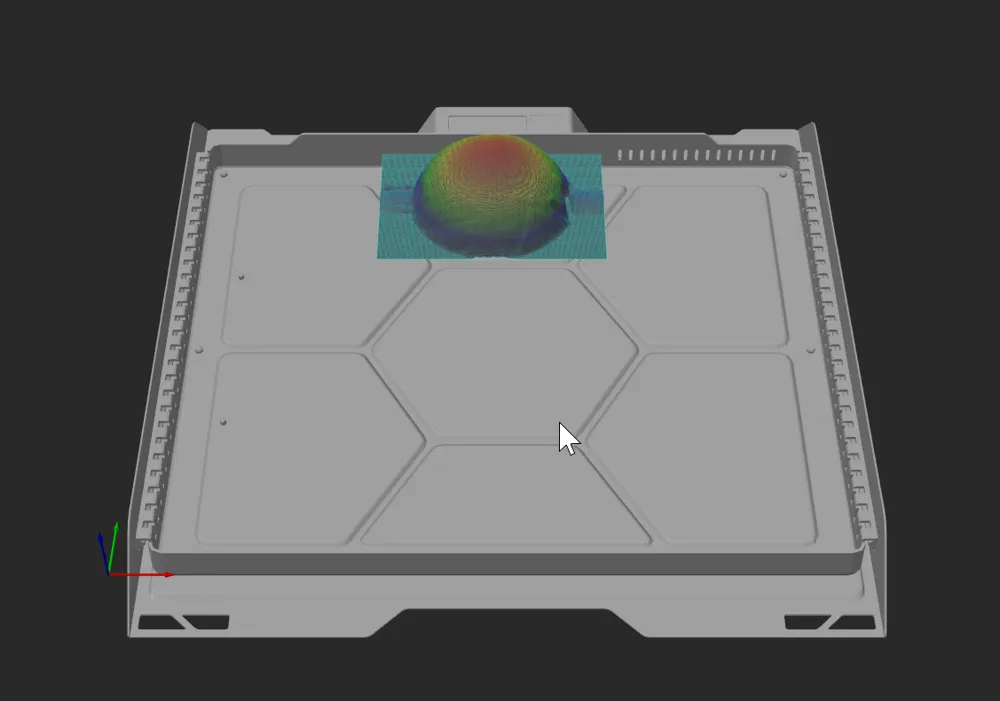

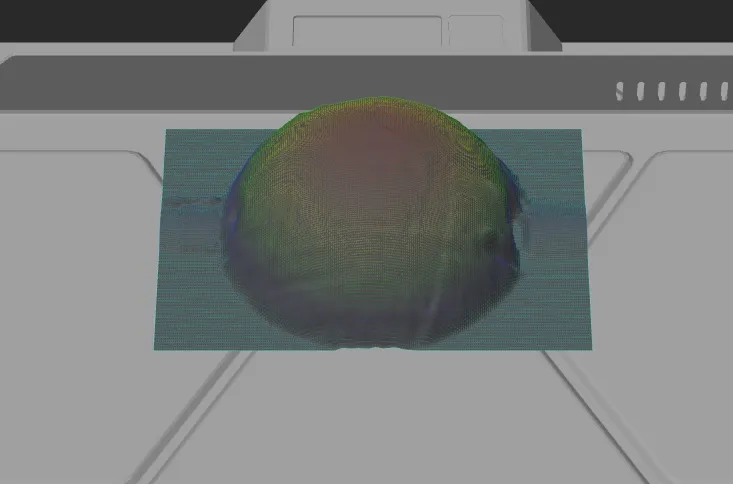

Here's a 3D scan so you can see the result

Have fun with it

PS I would be very happy about a rating and/or pictures Please also leave a boost Thank you in advance for that

Changelog:

Version 1:

• Initial Version

Version 2:

• Thread holder added

Version 3:

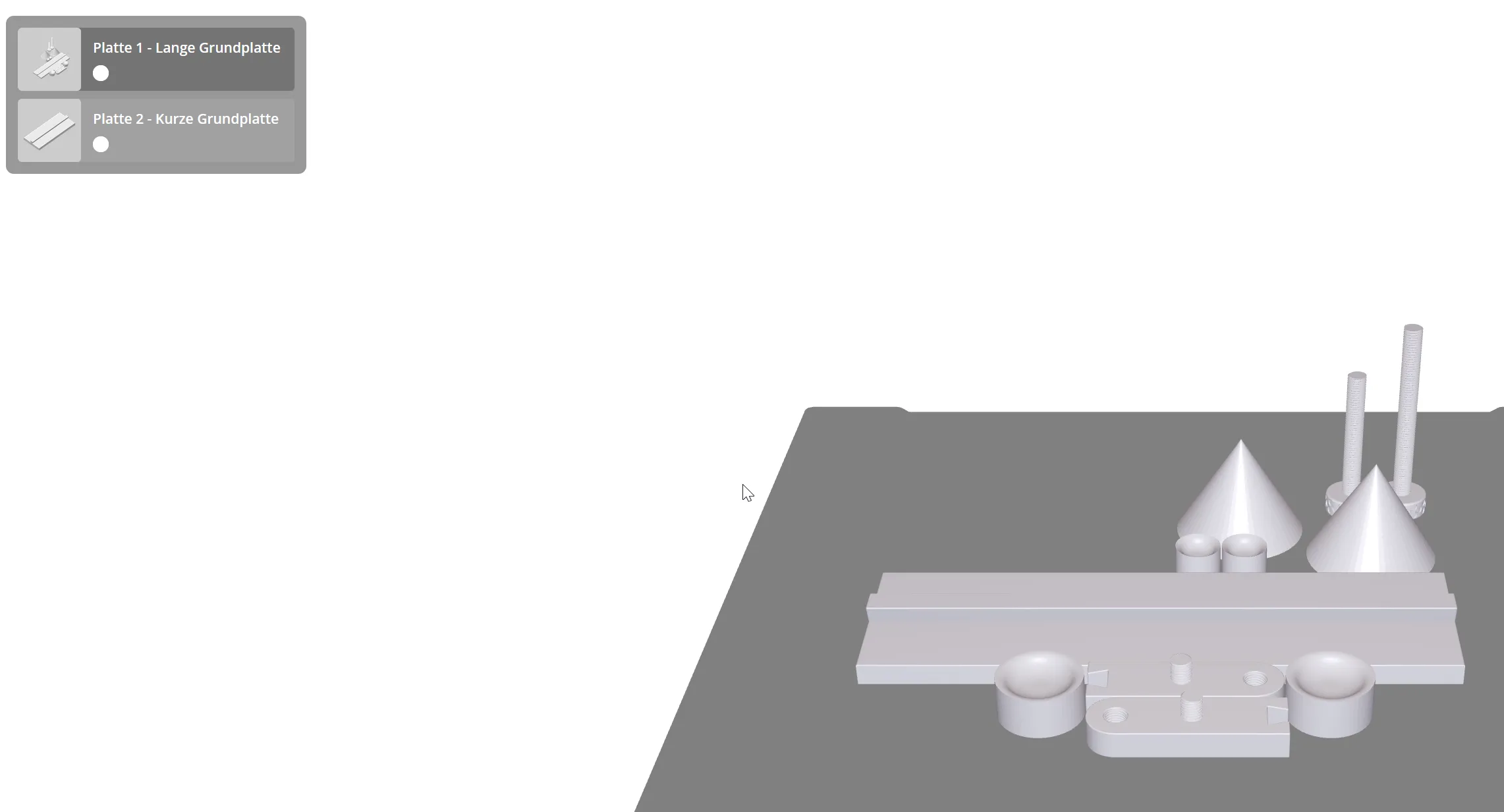

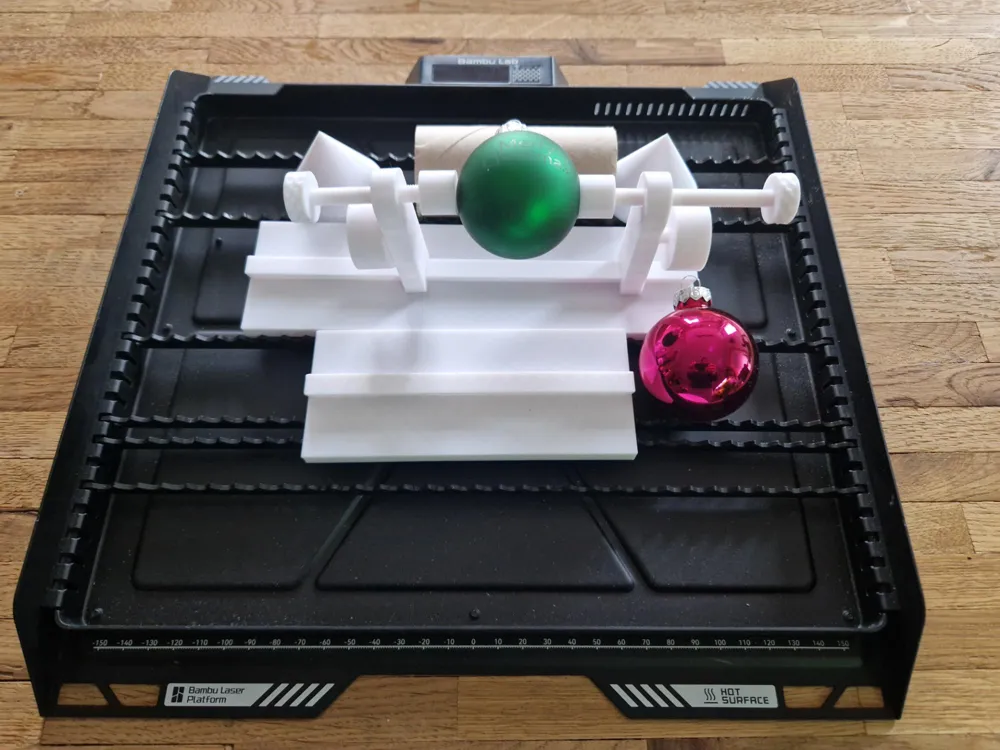

• 2 base plate sizes

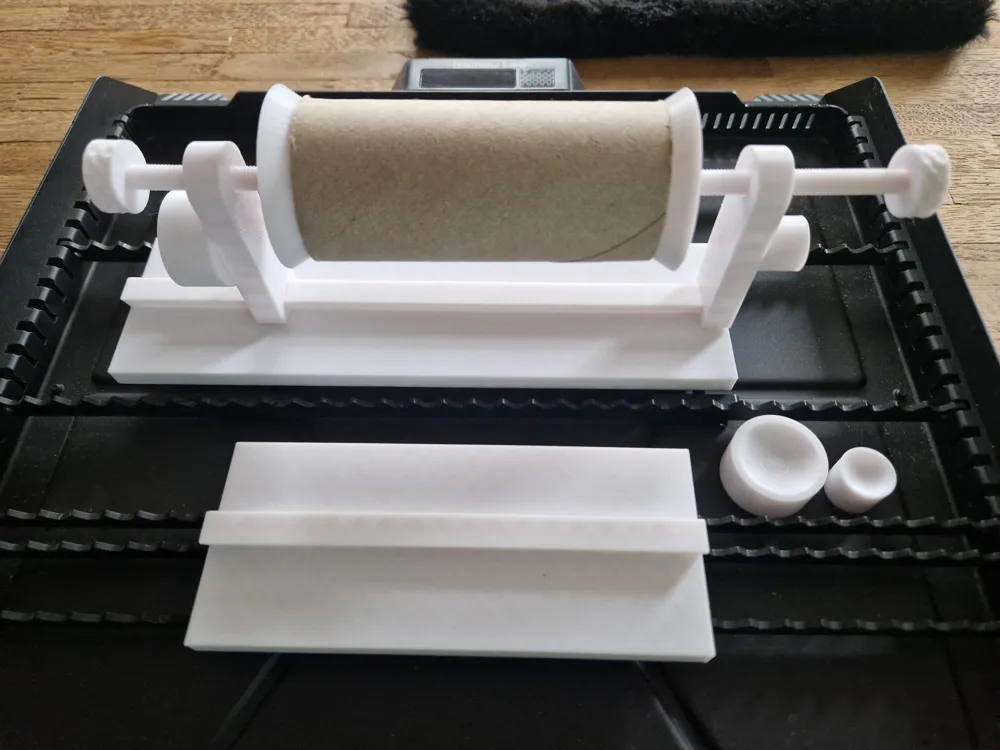

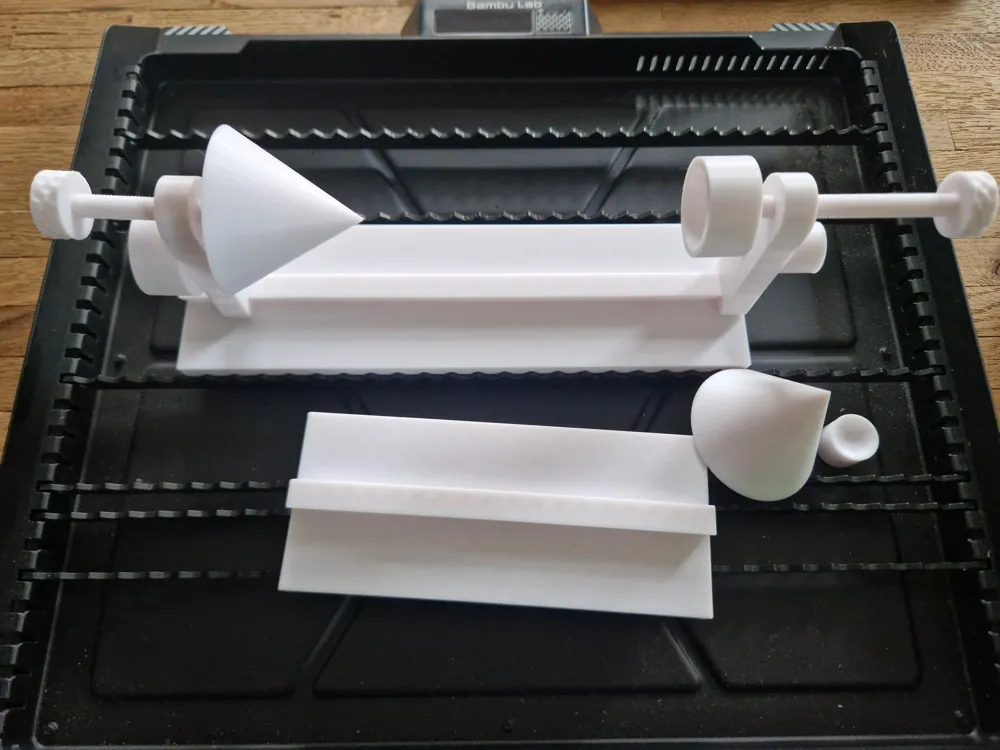

• 2 cones added to engrave rollers or glasses for example
• Infill of threaded rods increased to 70% to make them more stable

Google Translate:

Hello everyone,

Here's a small, modular laser guide to make it easier to position and laser-cut Christmas tree ornaments, for example.

There are two adapter sizes: one for small and one for large ornaments.

I printed the model in PETG, but I imagine the jaws would be a bit more slip-resistant in TPU, though it worked well this way too. Feel free to share your experiences in the comments. I'm always open to suggestions for improvement.

Here's a 3D scan so you can see the result:

Have fun with it!

PS: I would really appreciate a rating and/or pictures. Please also leave a like. Thanks in advance!

Bonjour à tous,

Voici un petit guide laser modulaire qui facilite le positionnement et la découpe laser de décorations de Noël, par exemple.

Deux adaptateurs sont fournis : un pour les petites décorations et un pour les grandes.

J’ai imprimé le modèle en PETG, mais j’imagine que les mâchoires seraient un peu plus antidérapantes en TPU, même si le résultat est satisfaisant ainsi. N’hésitez pas à partager vos impressions dans les commentaires. Je suis toujours ouvert aux suggestions d’amélioration.

Voici un scan 3D pour que vous puissiez voir le résultat :

Amusez-vous bien !

PS : Un avis et/ou des photos seraient très appréciés. Merci d’avance pour votre soutien !

大家好！

這裡介紹一款小巧的模組化雷射導軌，方便您定位和雷射切割聖誕樹裝飾品等。

它有兩種尺寸的適配器：一種適用於小型裝飾品，另一種適用於大型裝飾品。

我用PETG材質印製了這個模型，但我估計用TPU材質印製的話，夾具的防滑性會更好一些，不過目前用PETG印製的效果也不錯。歡迎在評論區分享您的使用體驗。我也非常樂意接受任何改進建議。

這裡附上3D掃描圖，您可以看看最終效果：

祝您使用愉快！

PS：如果您能給我評分或分享照片，我將不勝感激。也請點個讚。先感謝！
