Wujie 3 Laser Head Height Adjustment Bracket - Free 3D Print Model

Search models, users, collections, and posts

user_2484181683

Hobby & DIY>Other Hobby & DIY

IP Report

Print Profile(1)

All

P1S

P1P

X1E

X1 Carbon

H2D

H2C

H2S

H2D Pro

P2S

A1 mini

X2D

A2L

0.2mm layer, 2 walls, 15% infill

Designer

41 min

1 plate

5.0(1)

Open in Bambu Studio

Boost

Released

Description

Content has been automatically translated.

Show original

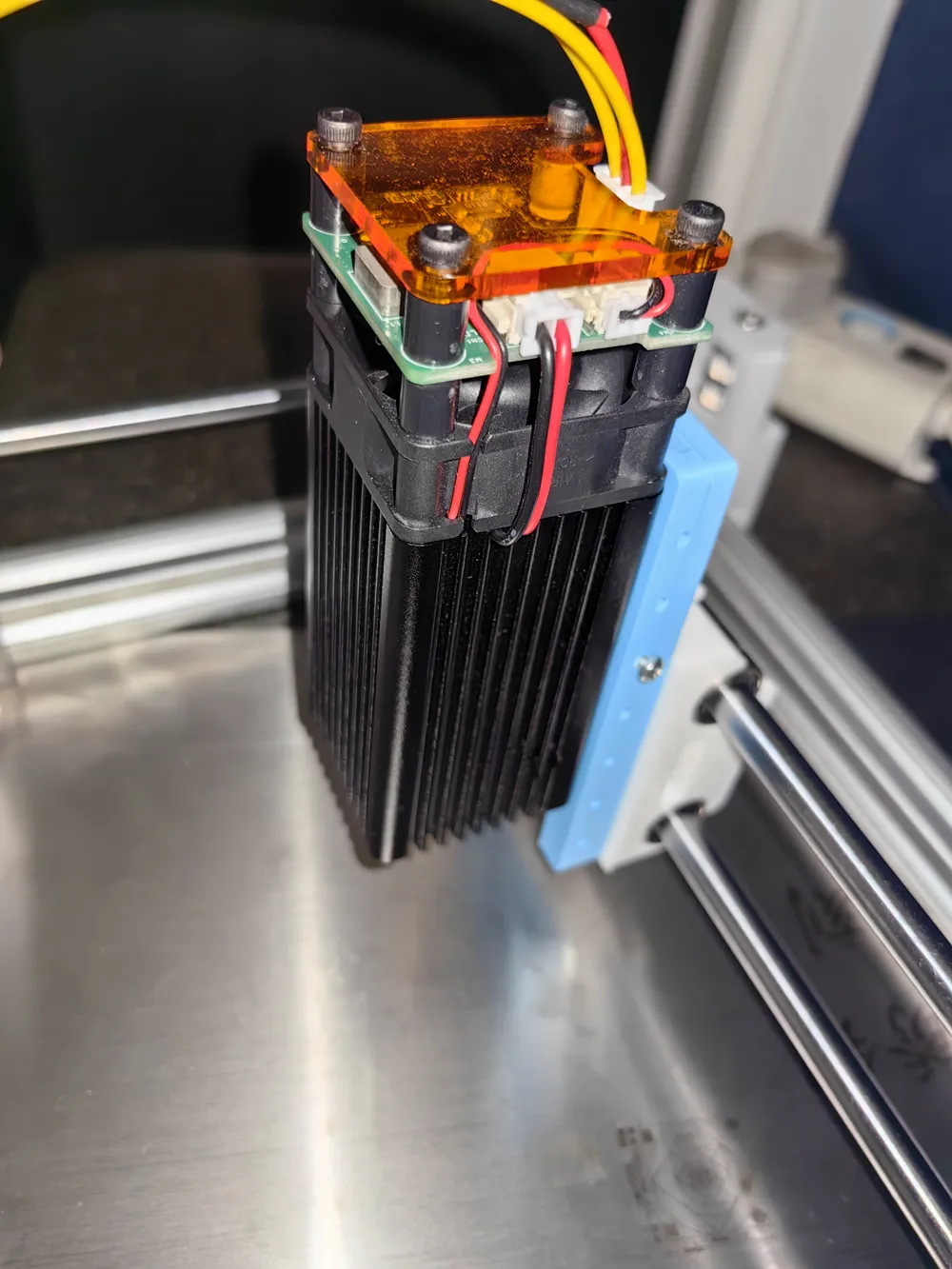

When using the laser engraving function of Wujie 3, support legs need to be installed on the aluminum profile frame. Due to dimensional deviations in each batch of aluminum profiles, the support legs may either not fit or be too loose. Therefore, a laser head height adjustment bracket has been redesigned, which eliminates the need to install support legs on the aluminum profile and also facilitates the focal length adjustment of the laser head.

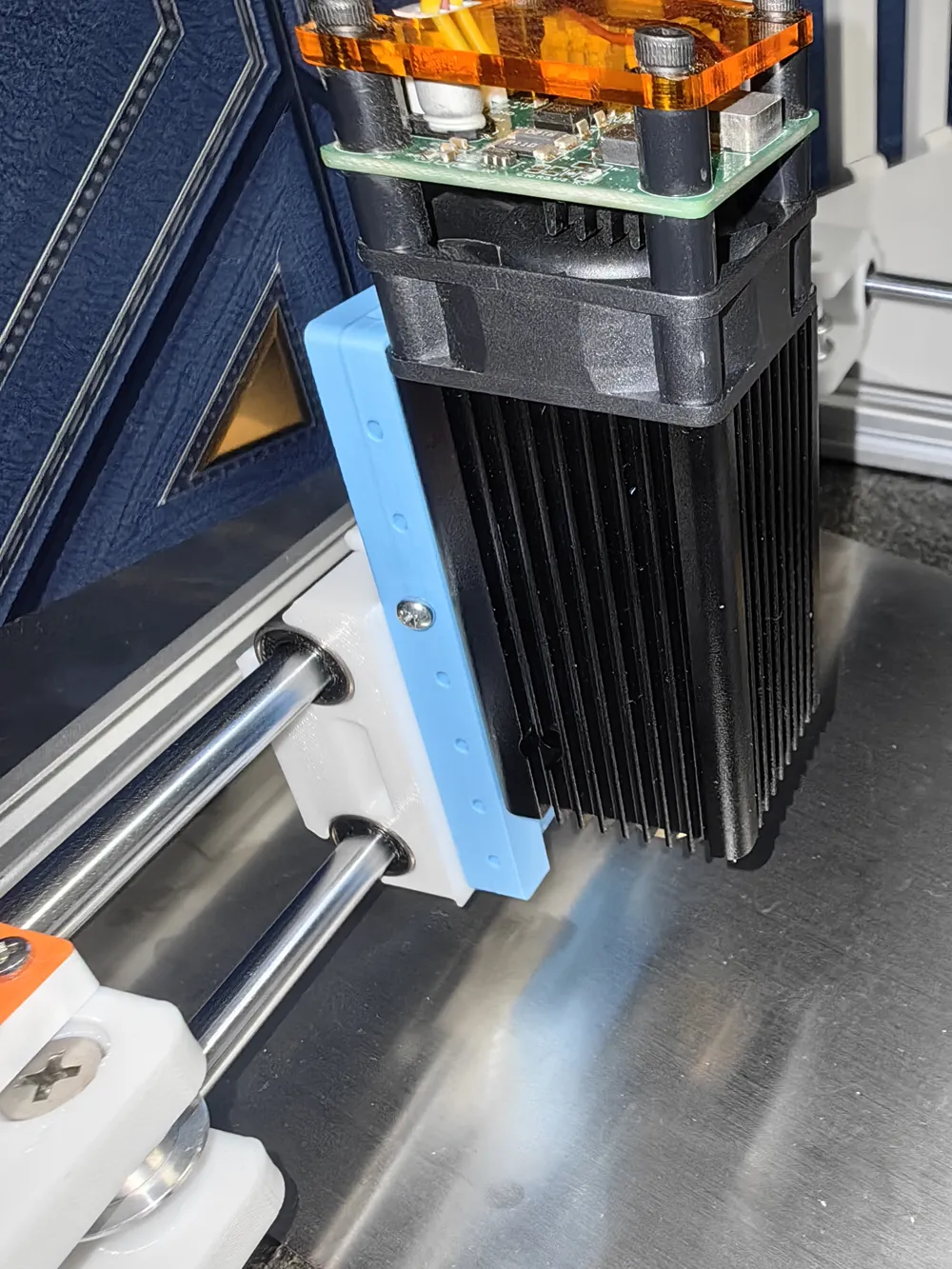

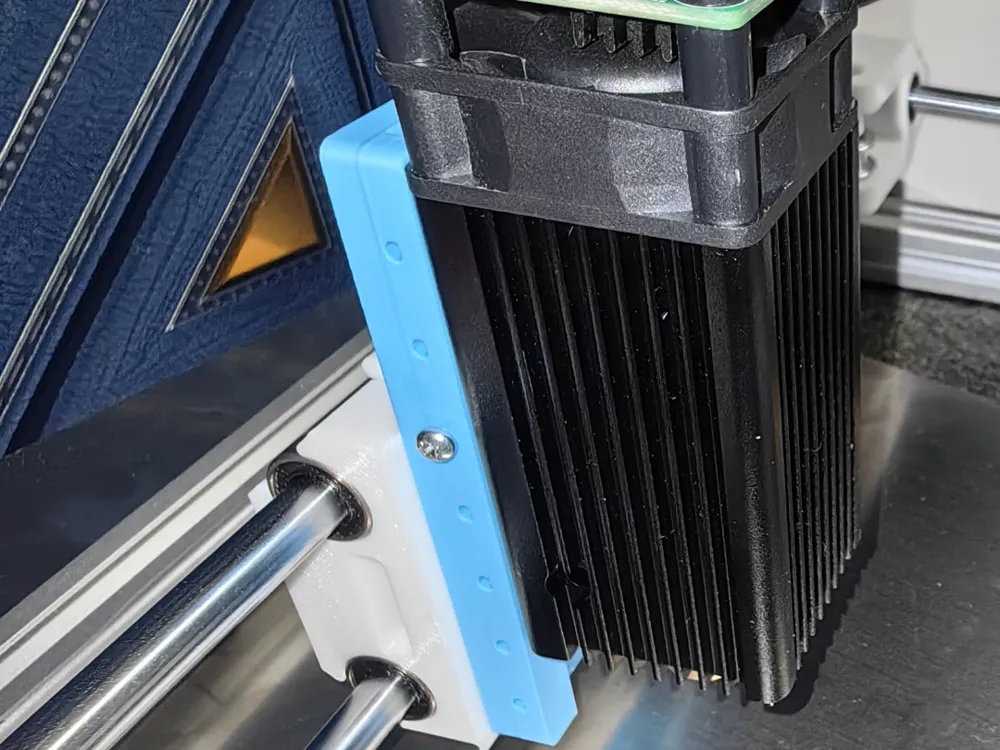

After the bracket height is adjusted, install an M2.5*6 screw on each side to fix the slider and prevent its position from changing.
