【SRU Universe】Hard Worker's Lifeline Device (Clock + Rest Reminder)

I feel like it's been a long, long time since I seriously participated in a competition, probably because the competition theme wasn't very relevant to me~

But this time, the feeling of being a 'worker' is quite interesting~ How about... I make one~~

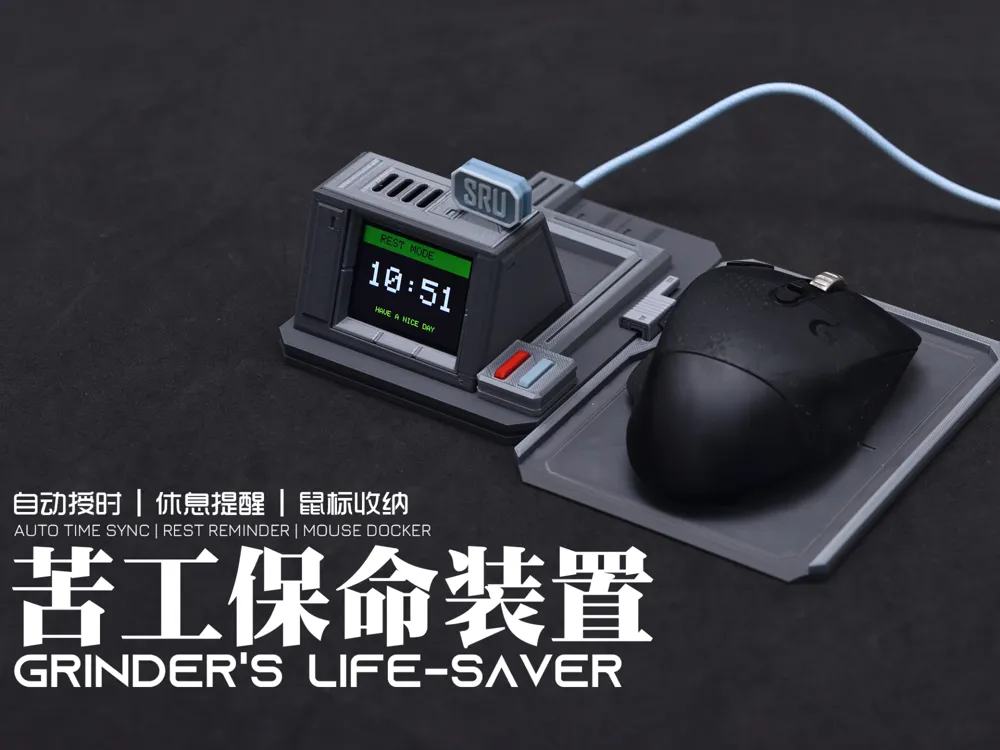

I call it the Magical Laborer's Life-Saving Device

Its main purpose is to remind you to take a break in time and not overwork yourself~~

Time for a tea break!

Features

• Still in the SRU Rock Universe style
• It's a small desk accessory

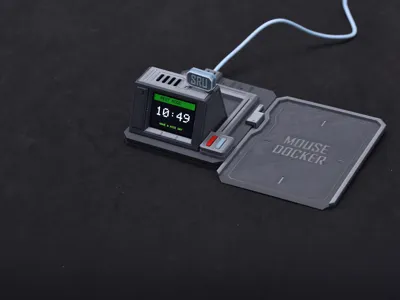

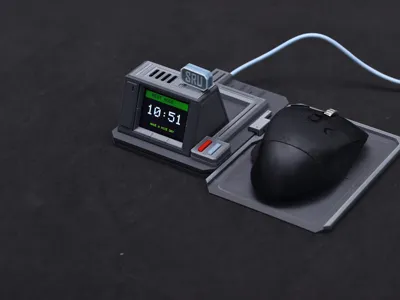

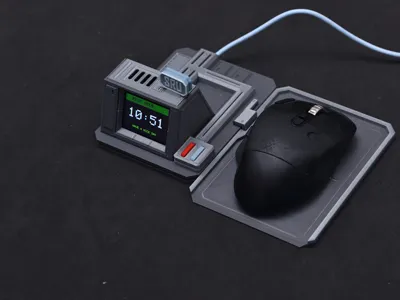

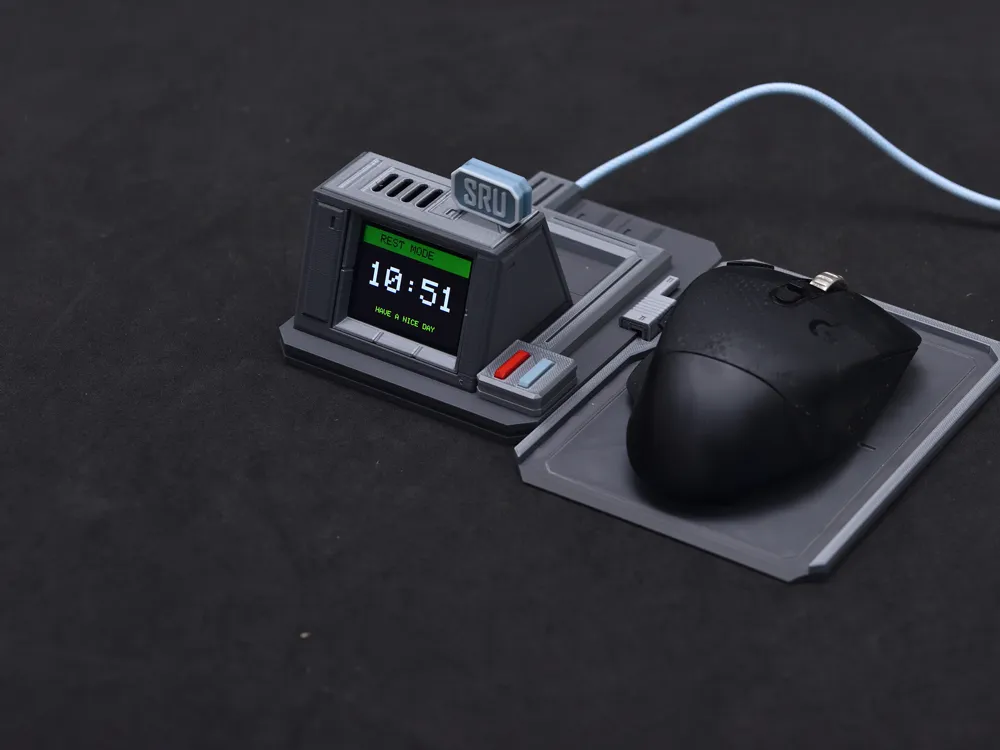

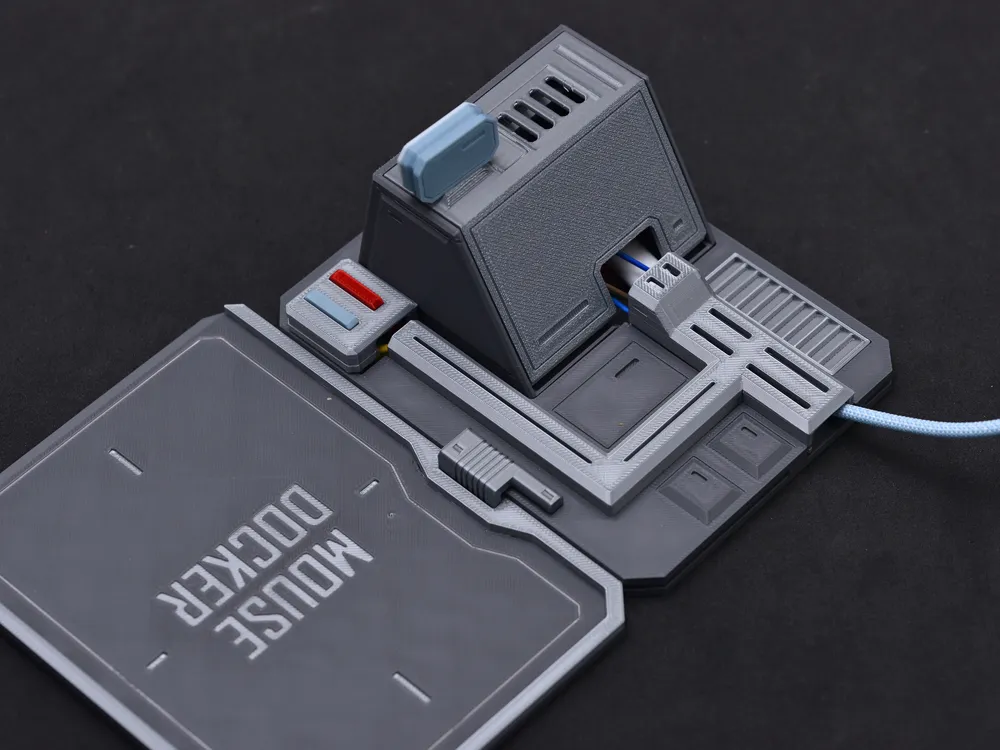

• Comes with a Mouse Docker for storing a mouse
• Requires USB power supply
• Basic function: Clock (requires pre-entering your WIFI information for automatic time synchronization)
• Additional functions: Mode switching

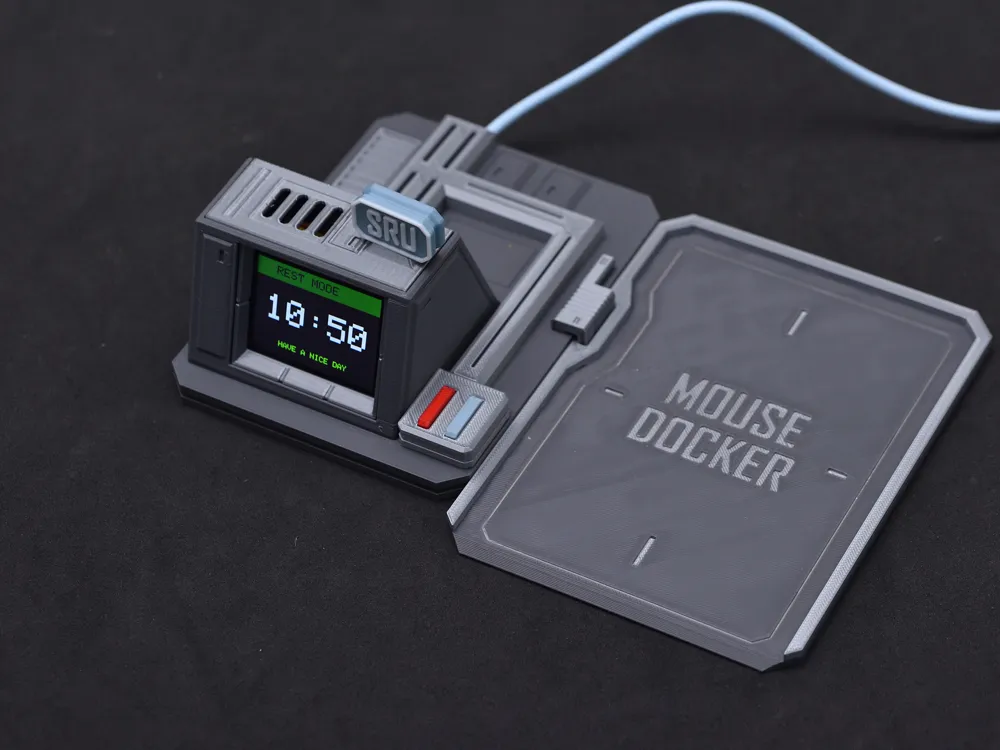

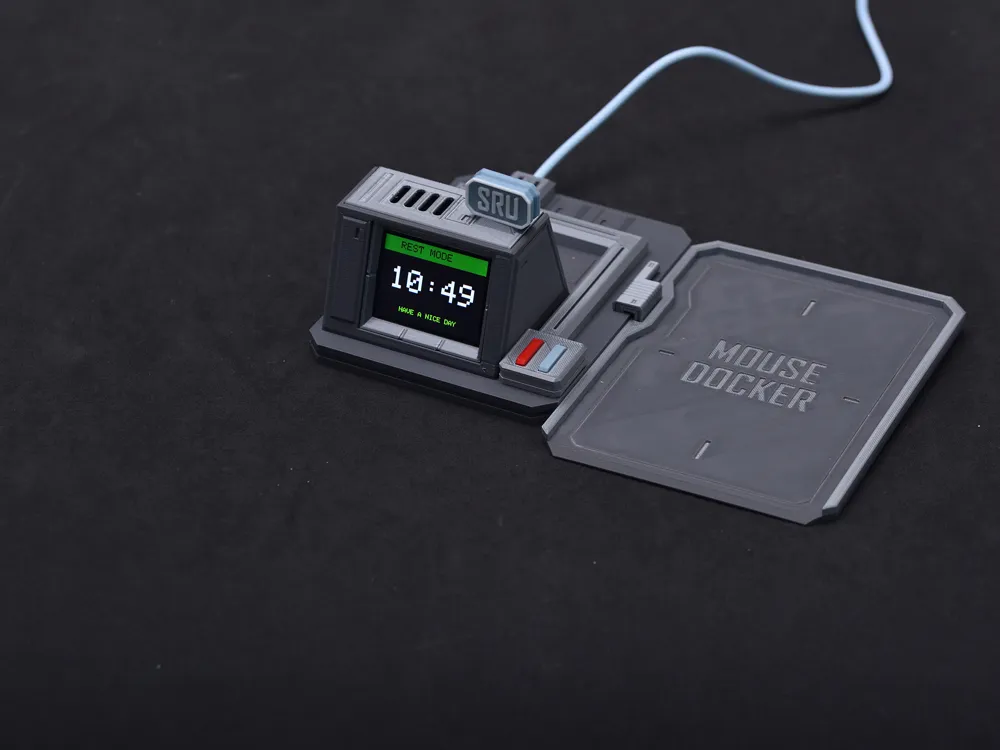

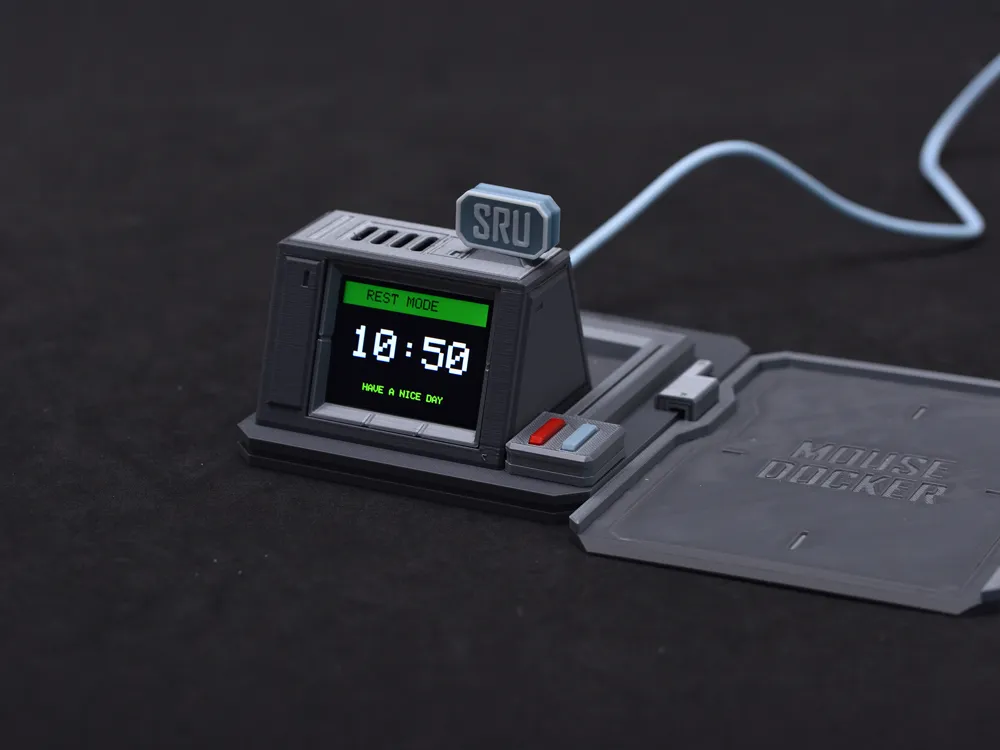

  • Rest Mode: Default state, will only be used as a clock

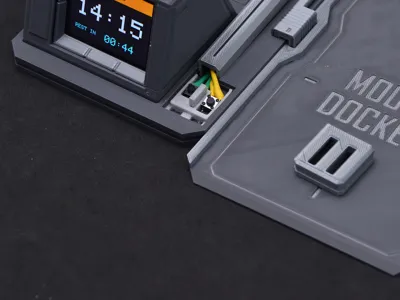

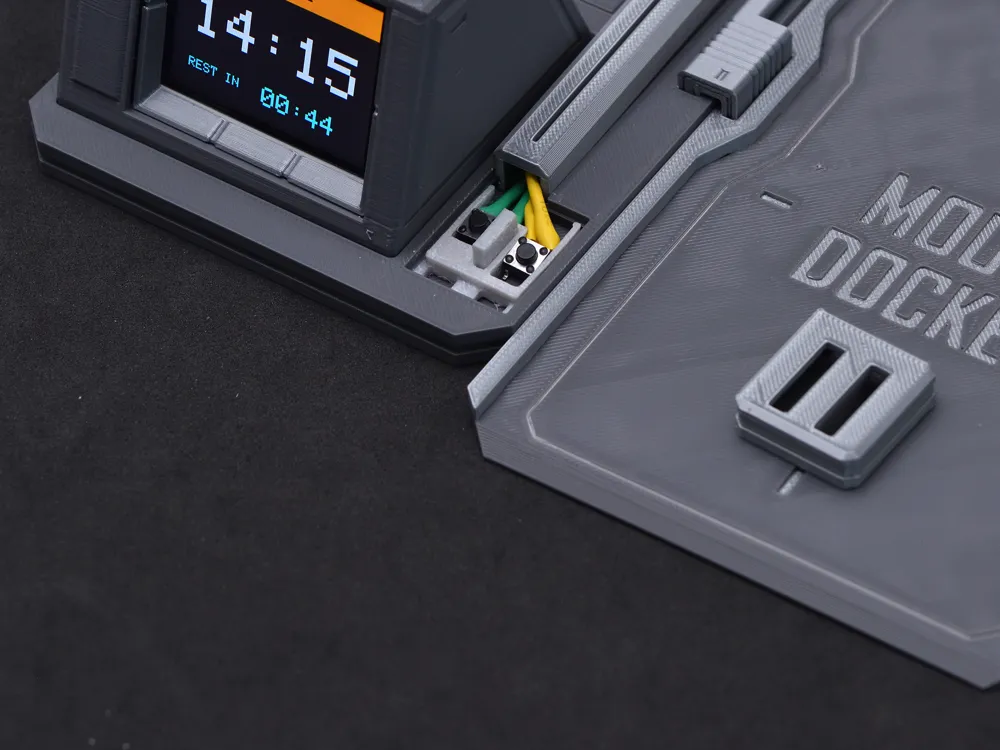

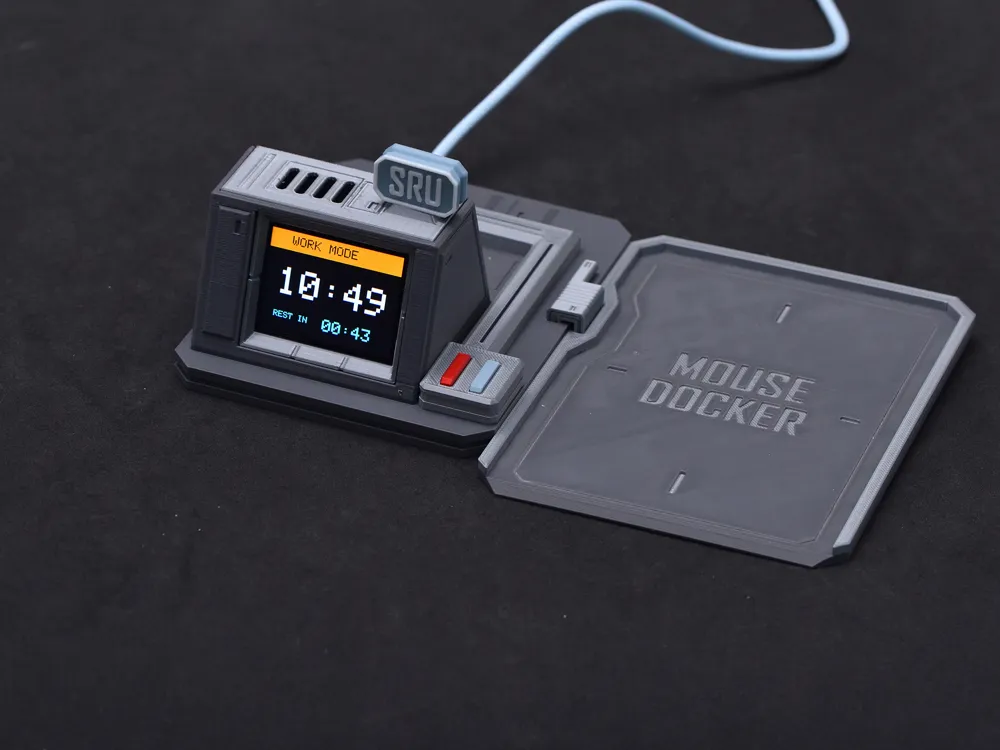

  • Work Mode: After activating this mode, a 45-minute countdown will appear in the lower right corner of the screen. When the countdown ends, the lower part will continuously scroll and flash a red warning strip, reminding you to rest immediately! At this point, you can place your mouse into the [Mouse Docker] and get up to move around, drink some water, go to the restroom, etc. Afterwards, you can either press the [Reset button] to reset the countdown, or press the [Mode Switch button] to directly switch to Rest Mode and clock out on the spot~
• Requires multi-color printing (Mouse Docker and SRU decorative plate are required)

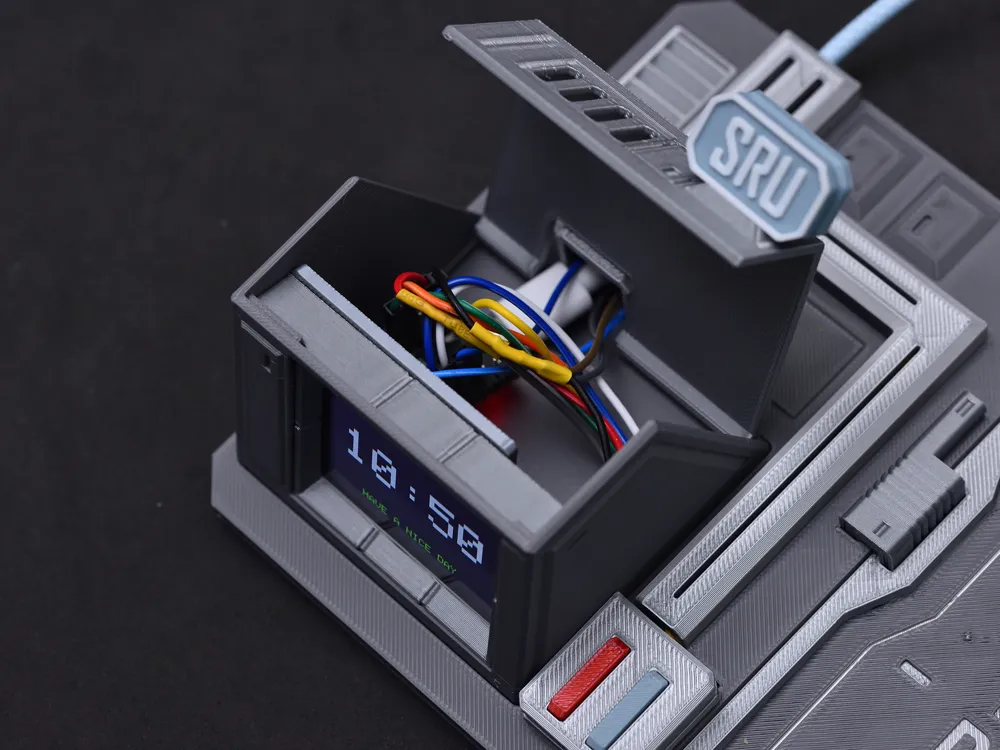

• Very easy to assemble
• Color scheme reference:
  • Main body: Bambu Lab PLA Dark Gray
  • Details: Bambu Lab PLA Silver
• For code details, see Attachment 1 - Code
• For wiring diagram details, see Attachment 2 - Wiring

• Non-Printed Materials List:

  • ESP32C3 SUPERMINI microcontroller
  • 2-inch ST7789V3 TFT screen
  • 6*6*4mm square tactile switch * 2 (button height approx 2mm)
  • Female-to-female Dupont wires approx 12 pieces
  • 4mm*2mm round magnets 2 pieces
  • 6mm*2mm round magnets 4 pieces (optional)
