Rope Tensioner DILIKILI

This is a rope tensioner suitable for 2mm to 5mm nylon ropes, which can be used for:

This is a rope tensioner suitable for nylon ropes ranging from 2mm to 5mm in diameter, which can be used for:

Fix cargo✅Fix cargo

Fix clothesline✅Fix clothesline

Fix the tent✅Fix the tent

Hang a living body❎Hanging a live body

One is that it might loosen if too heavy, and the other is that it might loosen with violent shaking

one concern is that it might become loose due to its weight, and the other is that it might become loose due to violent shaking

Two to five M3*18 and one M5*18 locking bolts are required for fixation | Two to five M3*18 and one M5*18 locking bolts are required for fixation
The extra through-holes at both ends can be threaded with rope and hung on a schoolbag as an ornament | The extra through-holes at both ends can be used to thread ropes, which can be hung on a schoolbag as an ornament

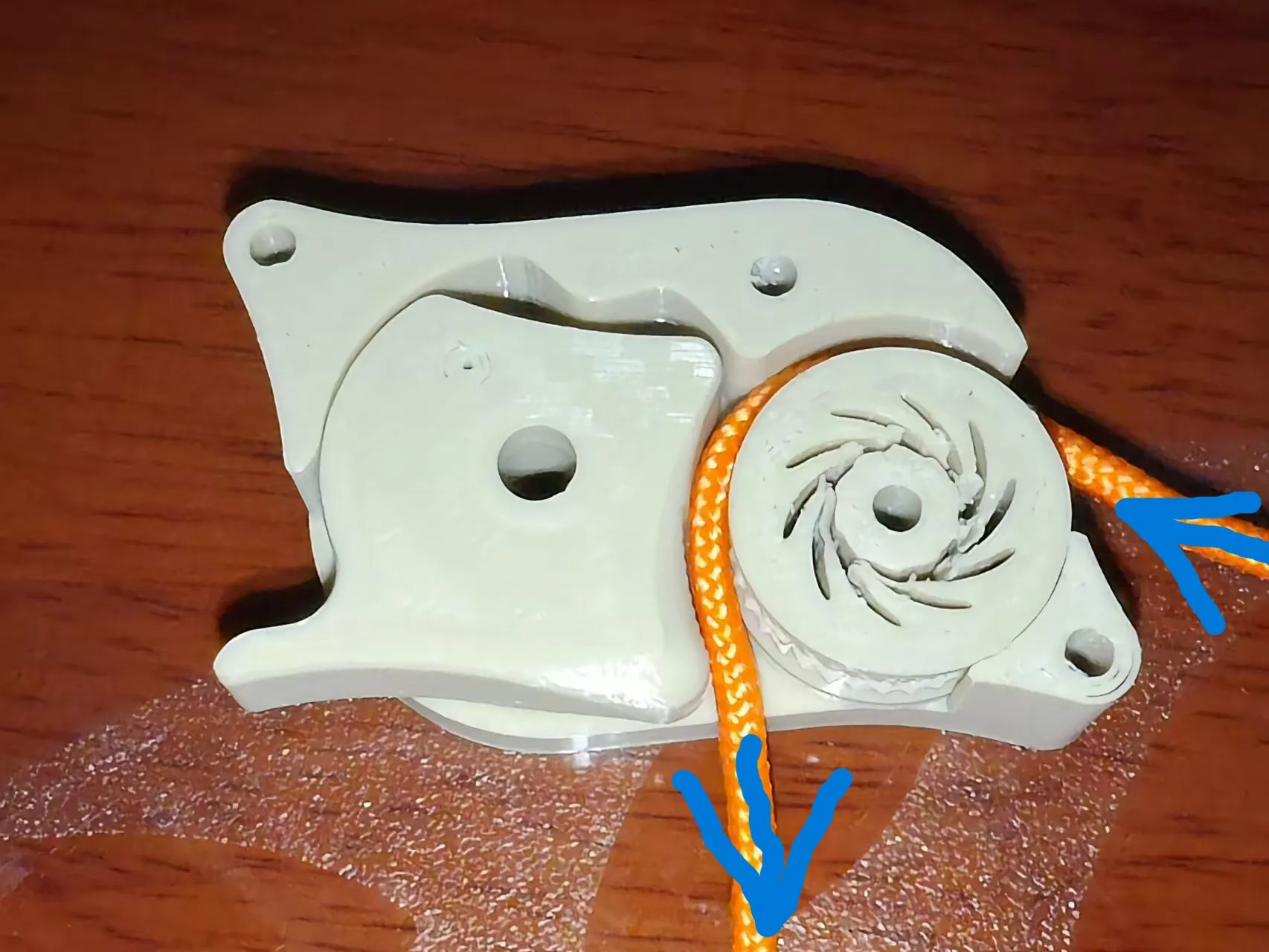

Below is the first generation, which was eliminated due to poor printing quality of the ratchet part. The installation method for subsequent versions is similar, so the first generation is used for an assembly demonstration

The image below shows the first generation of experimental product, which was eliminated due to poor printing quality of the ratchet part. The installation method for subsequent versions is similar, so we use the first generation as an assembly demonstration

The left movable part has a spring embedded (link at the end), and the right ratchet wheel is installed as shown in the diagram (the latest version has reduced the number of teeth and thickened them to be relatively tighter without interfering with rotation). Finally, cover it with the cover plate and secure the three middle holes with bolts. The holes at both ends can be used for bolts or threaded with rope. The nylon rope is inserted according to the arrow in the diagram. When the left trigger is pressed, the nylon rope can only move in one direction. Pressing the trigger allows the nylon rope to be withdrawn.

The left movable part is embedded with a spring (linked at the end), and the right ratchet wheel is installed as shown in the diagram (the latest version has reduced the number of teeth and thickened it to be relatively tighter without interfering with rotation). Finally, cover the cover plate and fix the middle three holes with bolts. The holes on both ends can be used for bolts or ropes. The nylon rope is threaded through as shown by the arrow in the diagram. When the left trigger is pressed, the nylon rope can only move in one direction. Pressing the trigger can withdraw the nylon rope.

This rope tensioner can reduce slack after the rope is fixed, and it is easy to operate, eliminating the need to tie knots while tightening the rope.

This rope tensioner can reduce the slack after the rope is fixed, and it's easy to operate. No more need to tie knots while tightening the rope.

However, only the basic body was designed here. Originally, I also planned to design decorations or some hard surface details to make it look better, but I have too many plans, so I uploaded the original file. Everyone is free to edit the surface, and I will continue to update it later. The ratchet wheel and trigger in the middle can also be freely designed to find a feel that suits you.

However, only the basic body is designed here. Originally, I planned to add decorations or some hard surface details to make it look better, but there are too many plans, so I uploaded the original file. Everyone can freely edit the surface, and I will continue to update it in the future. The ratchet and wrench in the middle can also be freely designed to find a suitable feel for you.

Boost Me (for free)

😽If you like my project, please leave a ❤️ or boost the project. This will accumulate my focus on this project and speed up its updates. Everyone is welcome to create secondary creations and update print profiles🥳

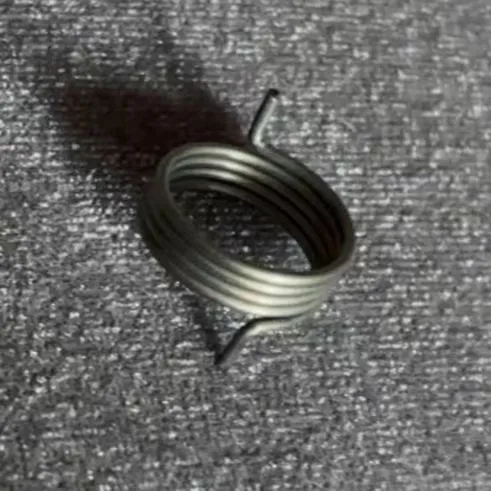

Remember to select springs with wire diameter 1, outer diameter 15, leg length 4, and total height 13 from the link. Springs of the same model are also acceptable.

When selecting springs, please remember to choose the model with wire diameter 1, outer diameter 15, leg length 4, and total height 13 from the link. Of course, springs of the same model are also acceptable.
