Modular Cutting Stand/Training Stand

Main filament: Bing PA + ABS (10%) Bing Nylon, low warp, high strength.

Base filament: kexcelled TPU85A soft rubber material. Anti-slip, shock-absorbing, adaptable to various surfaces.

Other materials needed: 4 pieces of 1-meter long 6-point (25mm diameter) PPR pipes, 2 pieces of 0.5-meter long and 1 piece of 1-meter long 4-point (20mm diameter) PPR pipes,

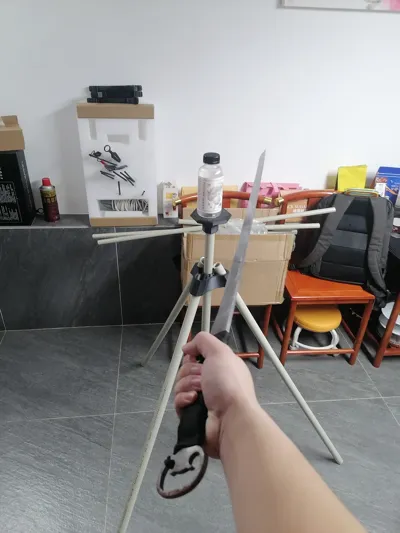

Purpose: Serves as a support stand for cutting targets, while also providing a certain simulation of stance and posture to approximate a real sword fighting experience. It can also be used as a line training rack for daily practice.

Assembly and Usage:

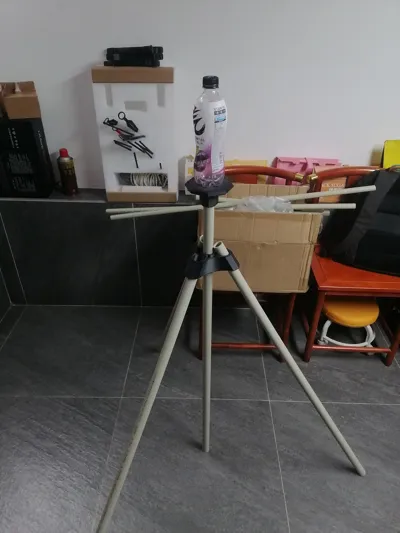

1. The legs are 3 pieces of 1-meter long 6-point (25mm diameter) PPR pipes; just insert them into the [Center Component] slightly protruding. Install the [Flexible Feet] at the ground contact ends.

2. The central support column is 1 piece of 1-meter long 6-point (25mm diameter) PPR pipe; insert it into the [Center Component] and let it protrude. Tighten the legs against it to lock the extension length.

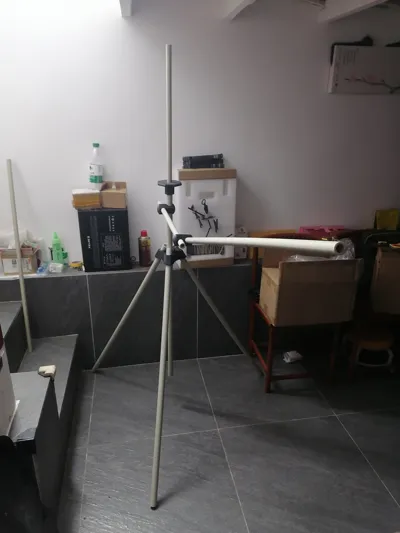

3. There are 2 [Arm] corner connectors in total, requiring one 1-meter long and one 0.5-meter long 4-point (20mm diameter) PPR pipe. First, install the 90° [Arm] corner connector on the central support column, then insert the 0.5-meter 4-point pipe simulating a forearm. After inserting it until it protrudes, install the 30° [Arm] corner connector, then insert the 1-meter 4-point pipe simulating a weapon.

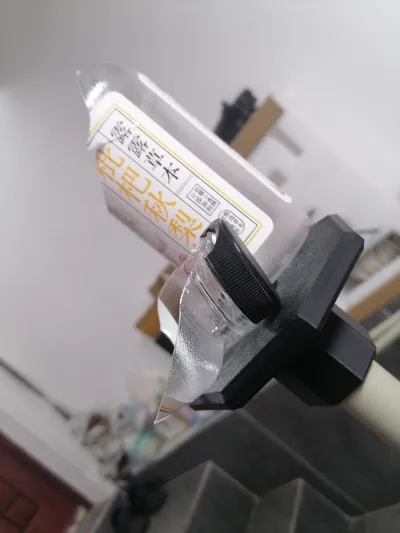

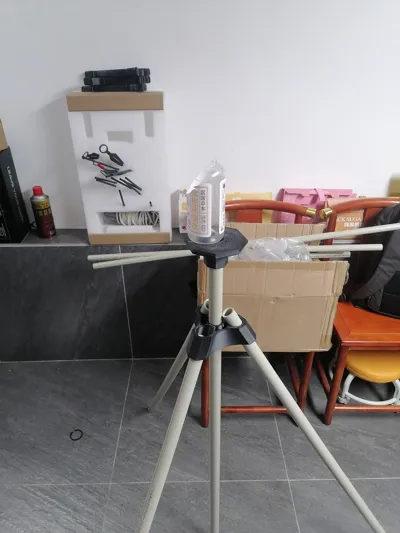

4. Finally, install the [Cutting Platform Top Surface Component] on the central support column, and then place the cutting material for practice cutting.

5. If you need to practice cutting long rolled targets such as newspaper rolls or mat sheets, you can insert a 0.5-meter long 4-point (20mm diameter) PPR pipe into the center, and then install it on the [Cutting Platform Top Surface Component] to perform the practice cut.
