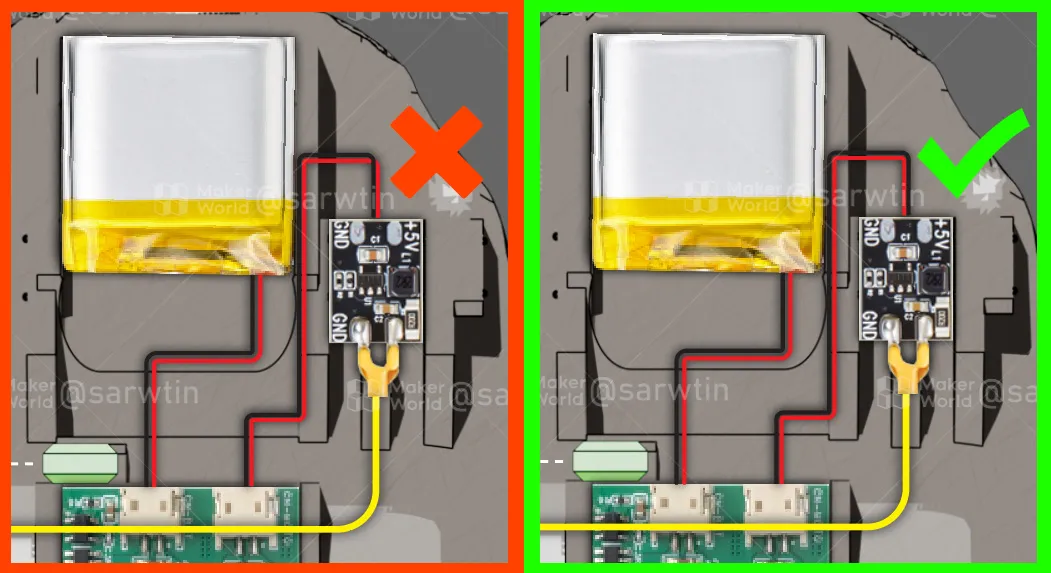

----2025.12.19 Assembly Guide Correction: The positive and negative markings on the previous LED strip connectors were reversed. Please note that the terminals have polarity. Correct installation should not require excessive force.
----2025.11.25 Congratulations to Nayreel for being the world's first!
----

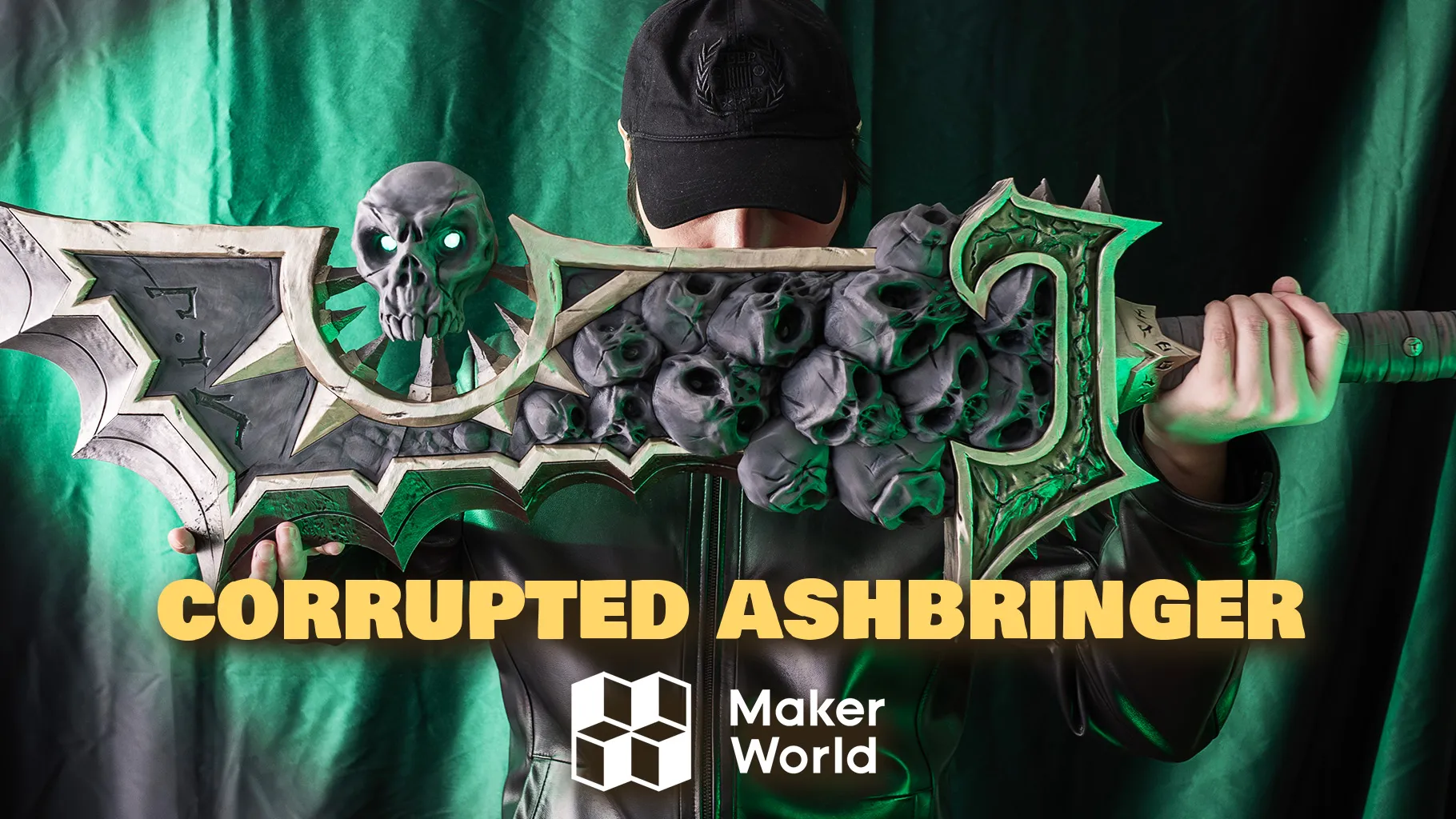

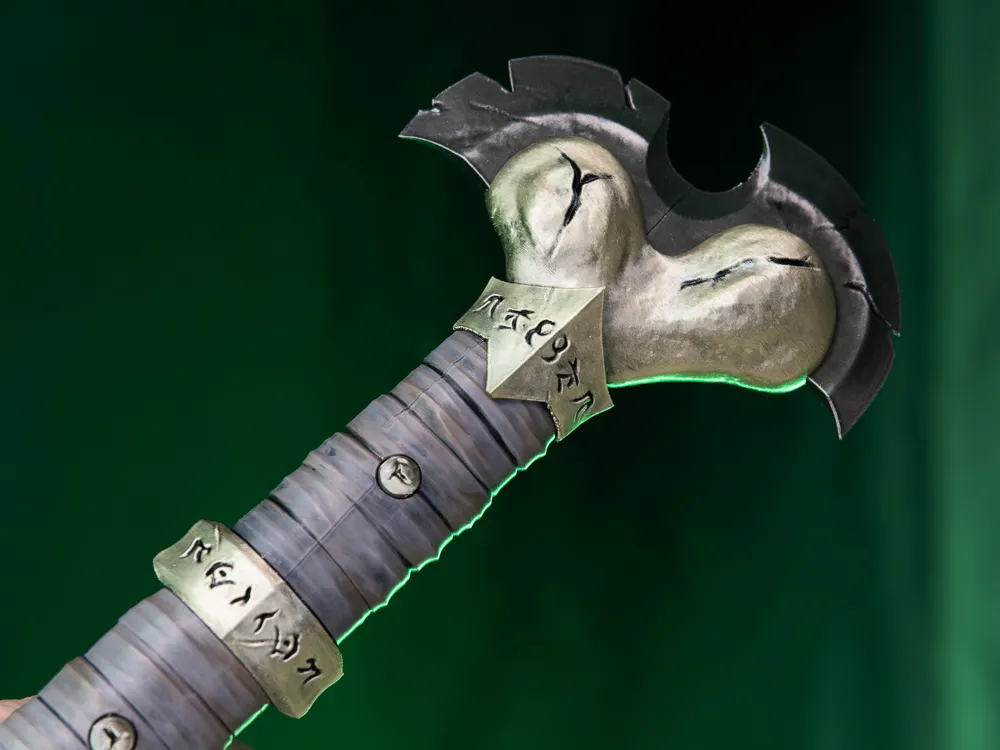

This is Ashbringer's Corrupted Remembrance appearance in WOW 7.0 Legion, as it's a remake of the original from classic, I still call it —— Corrupted Ashbringer.
- Whole new design for FDM printing based on the in-game look.

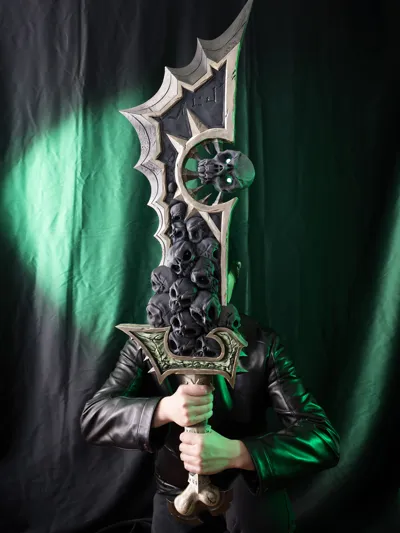

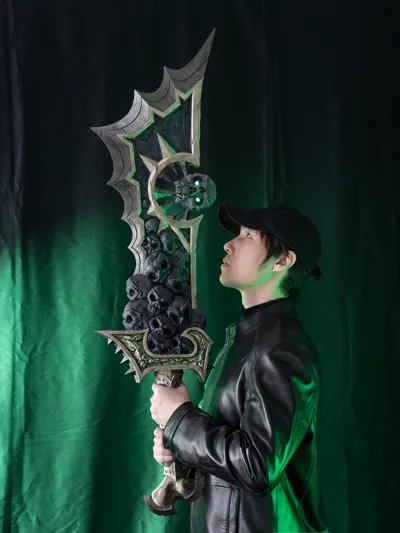

- The Full Size version is 115cm long, compatible with A1 and above.
- The 72% Size version is 82cm long, compatible with A1mini.

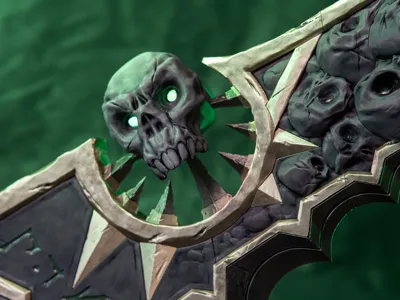

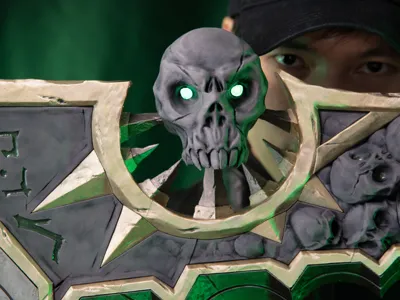

- The Full Size skull can be equipped with the following kit to make both eyes glow, requiring only one LED strip. However, I've reserved space for two strips and included ample extra room, so you can also install other types of light sources:
KA007 (10cm LED) x1 XC007 (wires) x1 ZC003 (battery module) x1
About Print Profile:
- All pieces have passed the non-glued plate test.
- All profiles are pre-supported and can be printed directly.
- There is no significant difference between PETG and PLA, I recommend to use PETG for the stiffener and small teeth to enhance toughness. Using PETG for the teeth that connect to the skull also makes installation easier.
About Assembly：
- See attached assembly guide for installation sequence, no screw or glue needed. However, I suggest to glue the blade section to prevent loosening during swinging.
About Color:
- Color references are preset in all profiles. It is recommended to print directly with metallic PETG.
- Dark Gray: PLA-Bambulab Silk+ Titan Gray, PETG-Tinmorry Metallic Space Grey
- Gold: PLA-Bambulab Silk+ Gold, PETG-Tinmorry Metallic Champagne Gold
- Silver: PLA-Bambulab Silk+ Silver, PETG-Tinmorry Metallic Silver
- Green: PLA-Bambulab Silk+ Candy Green, PETG-Tinmorry Metallic Green
- Transparent: PETG-Bambulab Translucent Olive, or PETG-Tinmorry Transparent Green
- *Grayish Purple: Although I've included this color in the profile, I haven't actually found suitable filament for it. It serves only as a reference color. I think it could be any dark shade, such as dark red or dark gray.

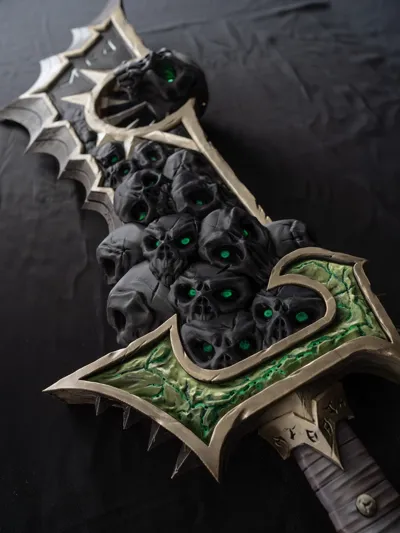

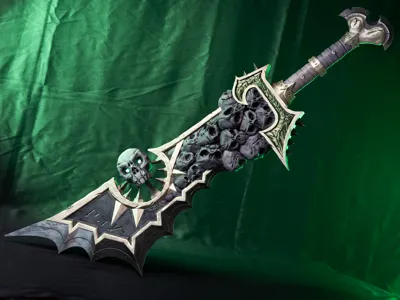

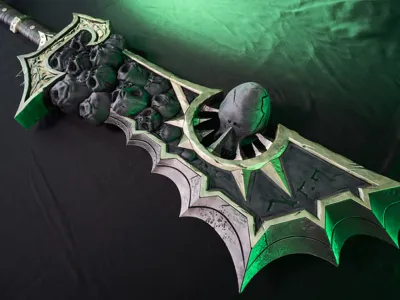

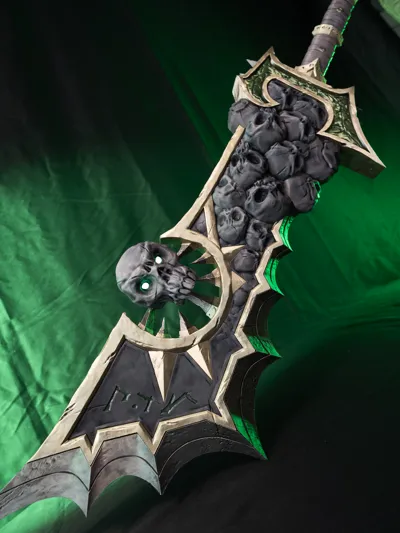

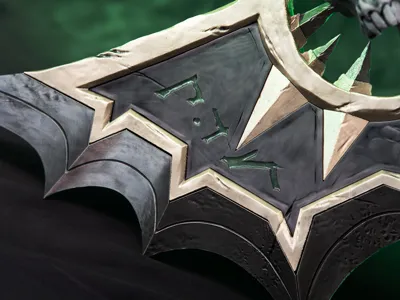

- P.S: Due to the sword's extremely complex design, which I enjoy it very much, the entire shown piece was hand-painted to achieve a superior finish. For the glowing runes on the blade and the eyes of all the small skulls, I used luminescent paint rather than multi-color printing with glow filament.
