Parametric Drawer Front Mounting Jig
Print Profile(1)
Description
📢 Want to sell prints of this model or just say thanks?
Merchant and Coffee Tiers available on my Patreon
Overview

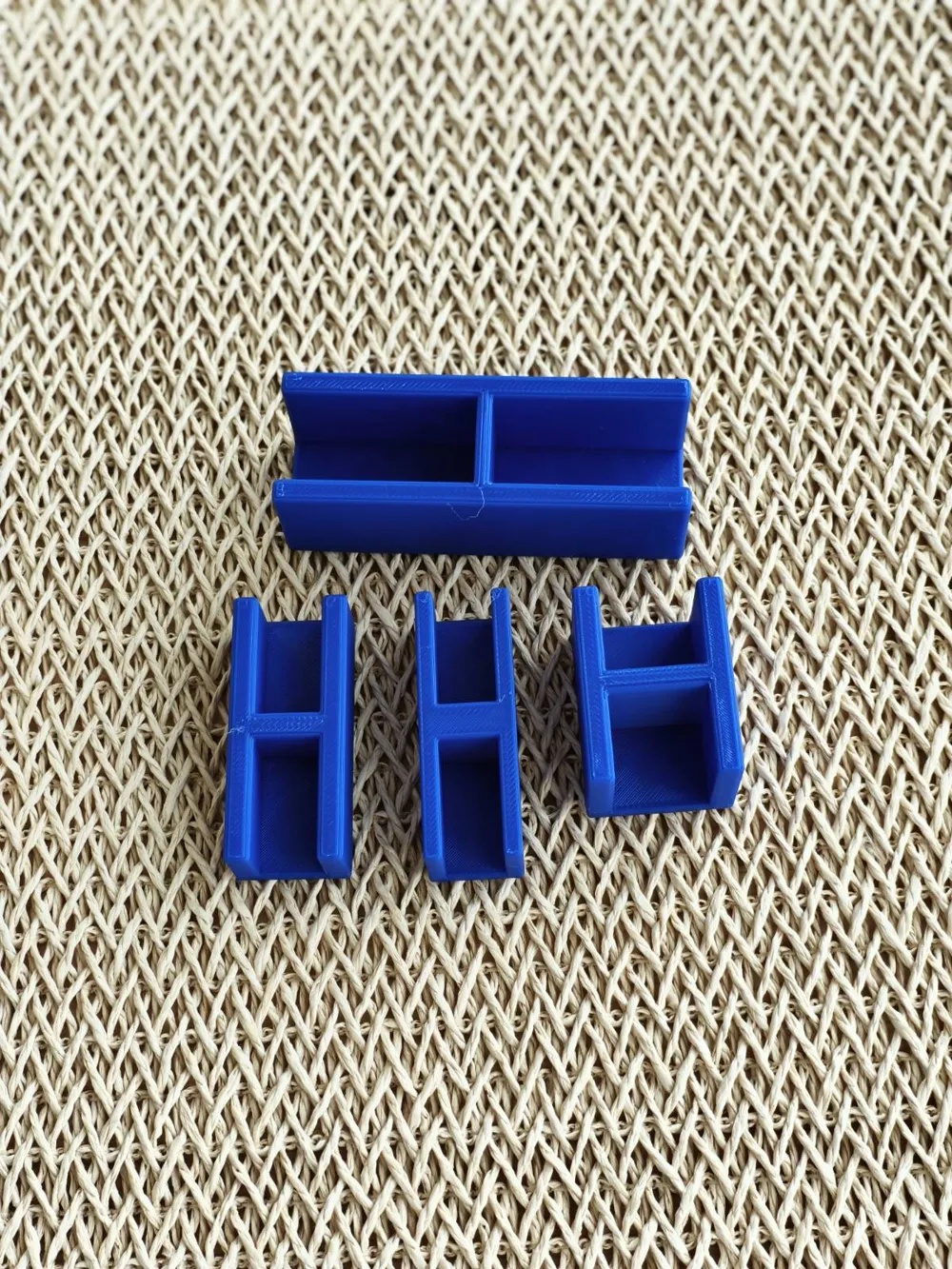

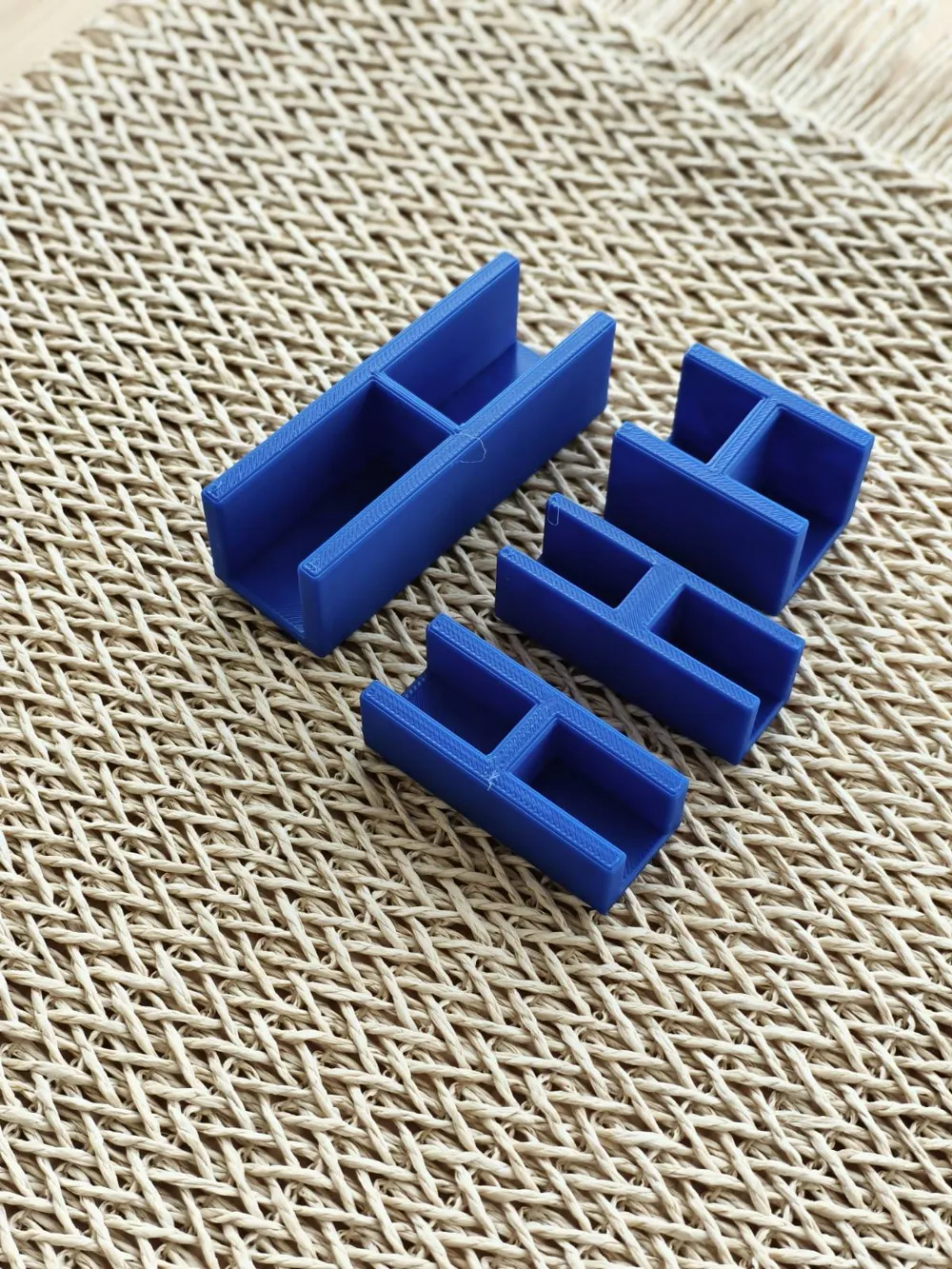

This is a robust and fully parametric mounting jig designed to take the guesswork out of installing drawer fronts perfectly. Achieve professional, consistent results every time, regardless of your woodworking skill level. Say goodbye to uneven gaps and frustrating alignments!
Key Features
- Fully Parametric Design: Easily adjustable to accommodate various drawer front thicknesses and required spacing (gaps) between the front and the cabinet frame.
- Perfect Alignment: Ensures the drawer front is perfectly plumb, level, and centered before you screw it in, guaranteeing even spacing around the perimeter.
- Durable & Reusable: Print it once and use it for all your cabinet and furniture projects.
- Universal Use: Compatible with most standard drawer slide systems (e.g., full extension, undermount).
How to Use It
- Prepare the Jig: Adjust the parametric settings (if customized) or ensure your printed jig is the correct size for your project.
- Position the Jig: Place the assembled drawer front onto the jig's resting surface.
- Align & Clamp: Use the jig to quickly position the drawer front against the drawer box. Secure the assembly with two clamps (one on each side) to hold the front firmly to the box.
- Screw: Open the drawer box and screw the front to the box from the inside.
- Remove the Jig: Once secure, remove the clamps and the jig. Enjoy your perfectly aligned drawer front!
If you have any questions – feel free to reach out!
Happy printing and building!
💖 Support my work on Patreon
If you find this model useful, you can support my work in two ways:
☕ Just say "Thanks!" Join my "Coffee Tier" on Patreon for the price of a small coffee.
It helps me cover filament costs and design more free models for the community!
💼 Commercial License. Want to sell physical prints of this model? Join the "Merchant Tier".
Boost Me (for free)
If you don't want to pay, please consider Boosting me for free! :)
