538 Motor Replacement 1st Gear - Power Wheels
Print Profile(1)
Description

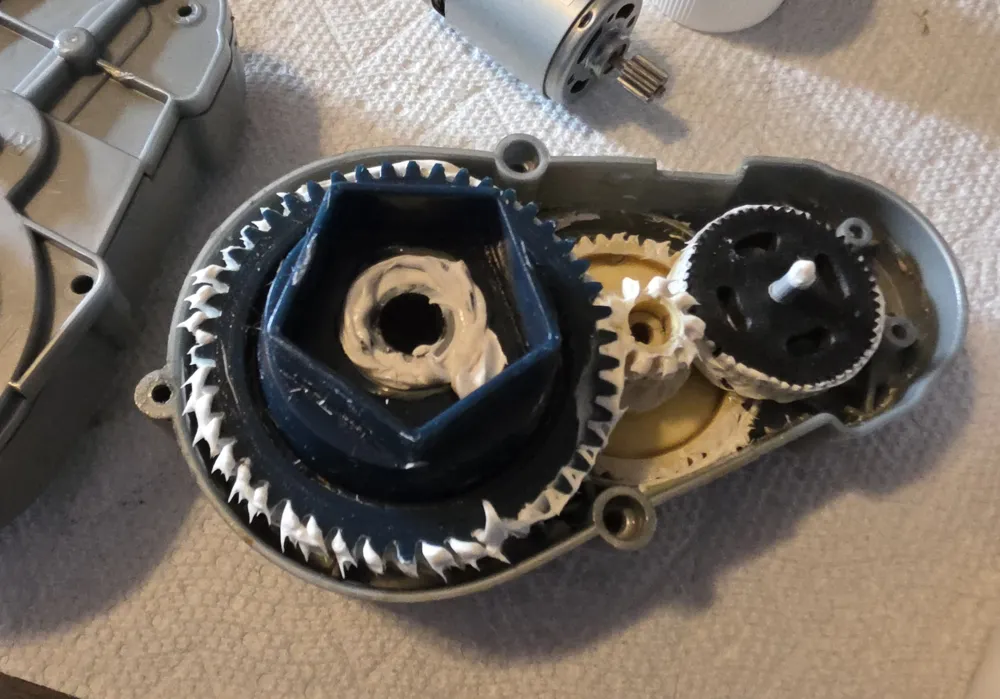

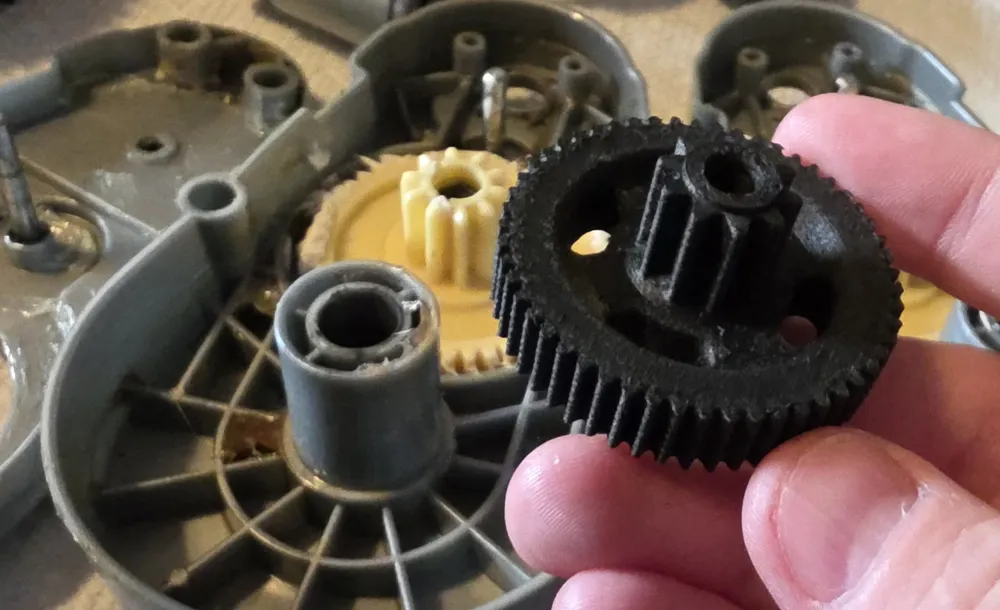

Replacement 1st gear (one that engages the motor) for the 538 gearbox for power wheels and the such. Usually the 10 tooth gear shears teeth when you overpower the motors : )

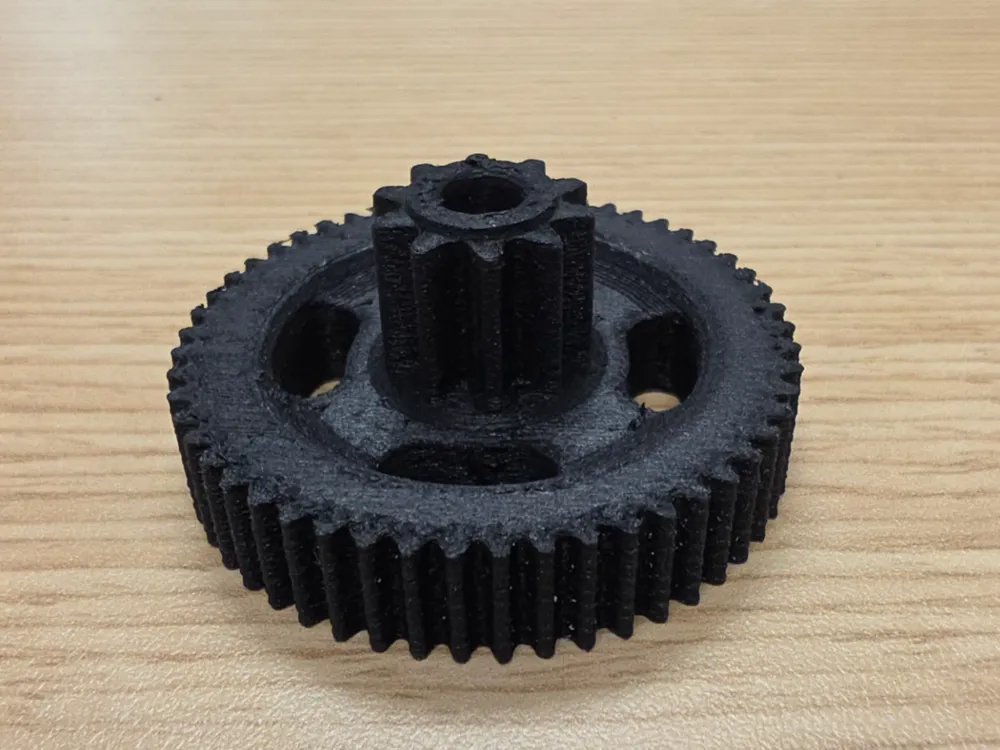

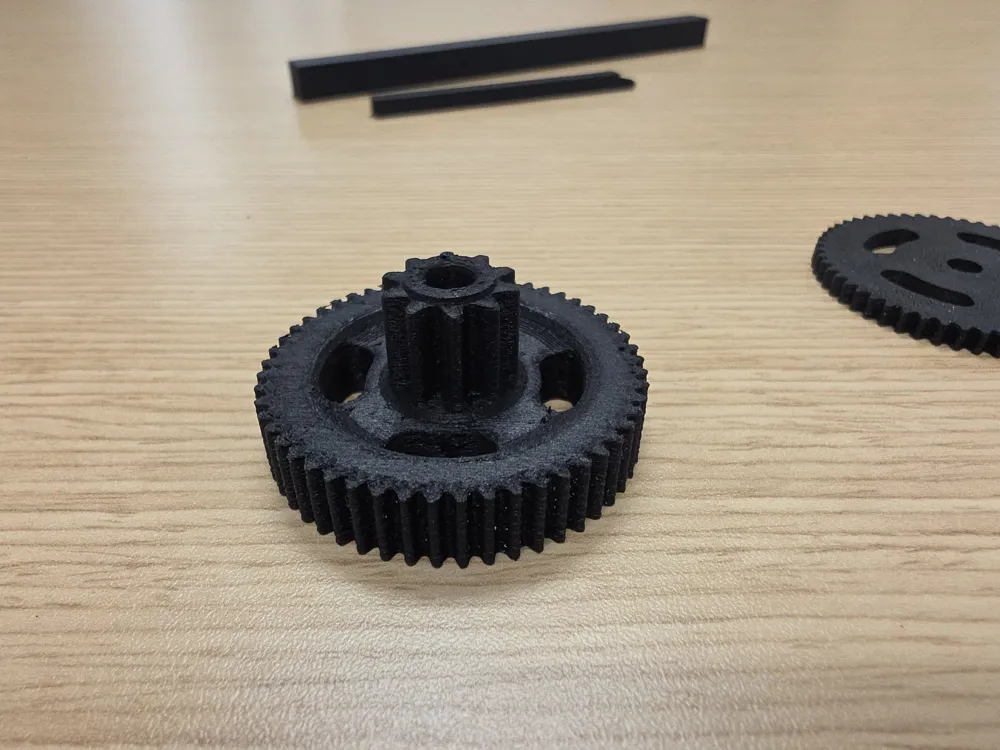

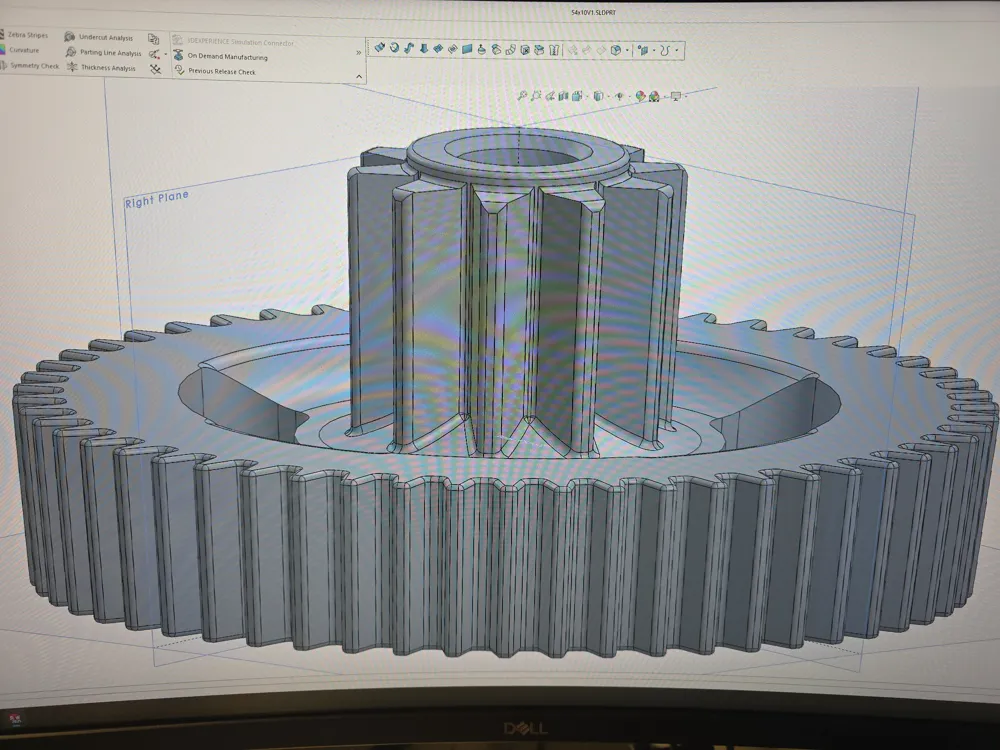

53 x 10 tooth gear. total O.D is 43.7mm. Total width is 20.1mm. 10 tooth gear is 15.1mm OD. thickness of the 53 tooth gear is 9mm.
Bore diameter is setup to land around 5.1mm once printed. It is actually 5.4mm to account for shrinkage. If this is too loose once printed, adjust the X-Y Hole contour to your material or fill the hole and place a new in bambu studio.
MATERIAL: this needs to be from Nylon or PAHT-CF or PPA-CF or PPS-CF. experiment at your discretion : )

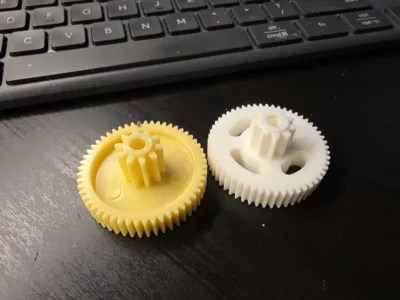

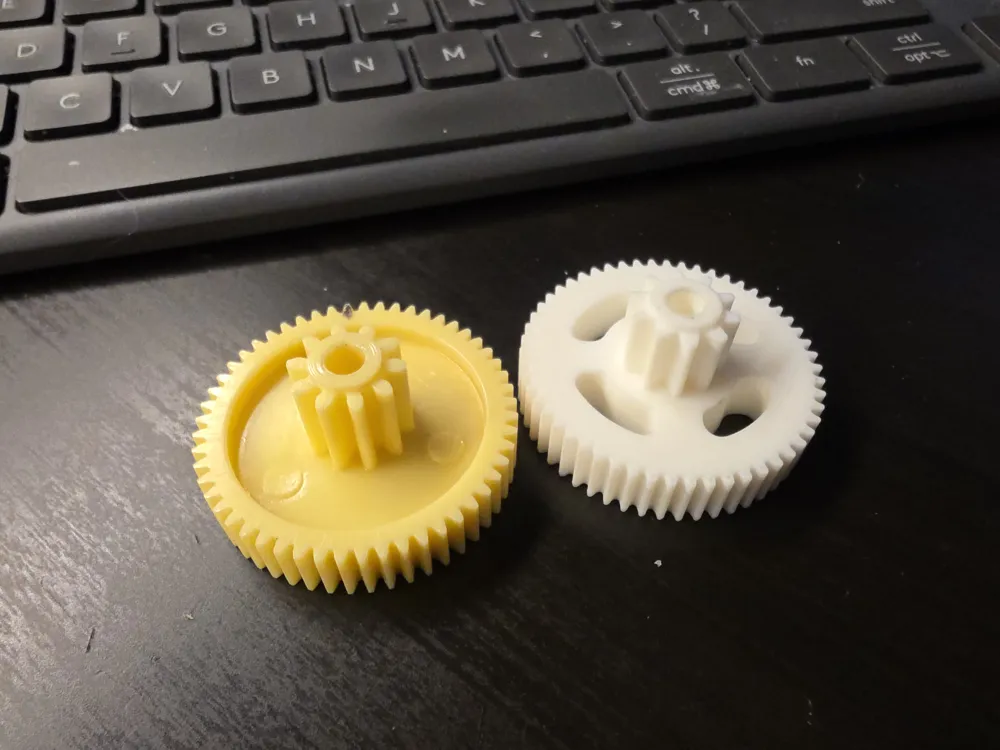

*Yellow gear in the photo is the OEM.
