This is a mount for the 4-channel AMS hub, which is normally used on the X1 and PS1.

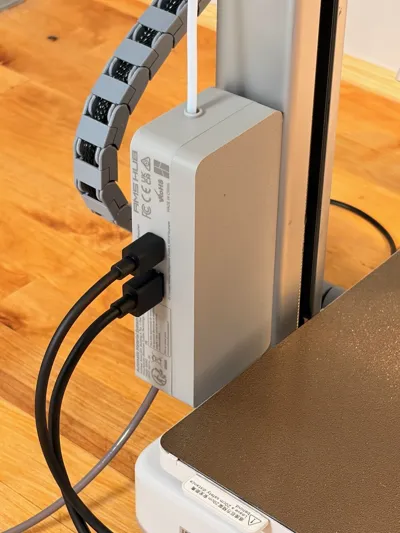

With this mount, the hub can be mounted and used on an A1 or A1 mini.

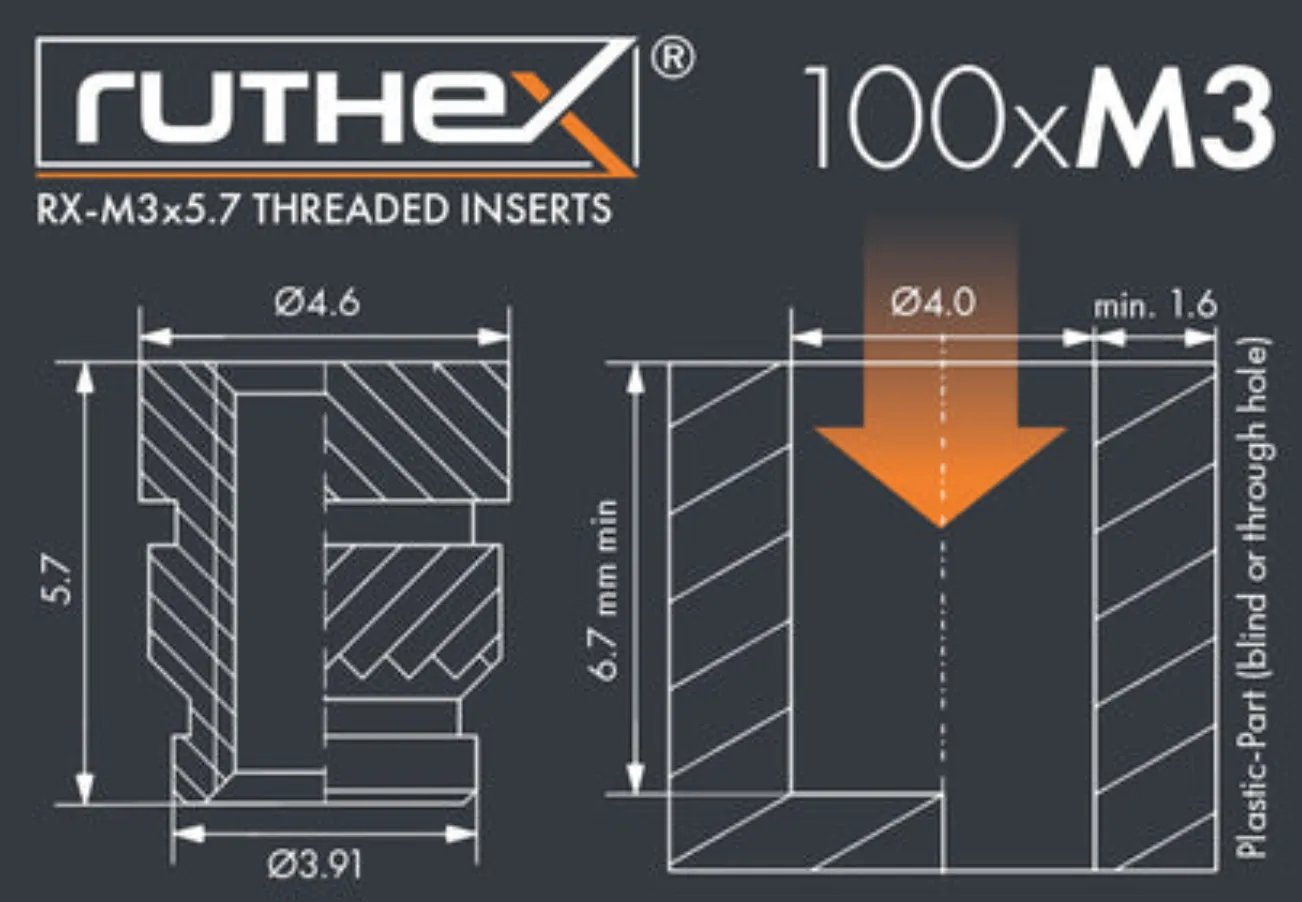

Two M3 screws and two M3 threaded inserts (Ruthex) are required for installation.

Installation instructions

First, glue the two M3 threaded inserts (Ruthex) into the pressure part.

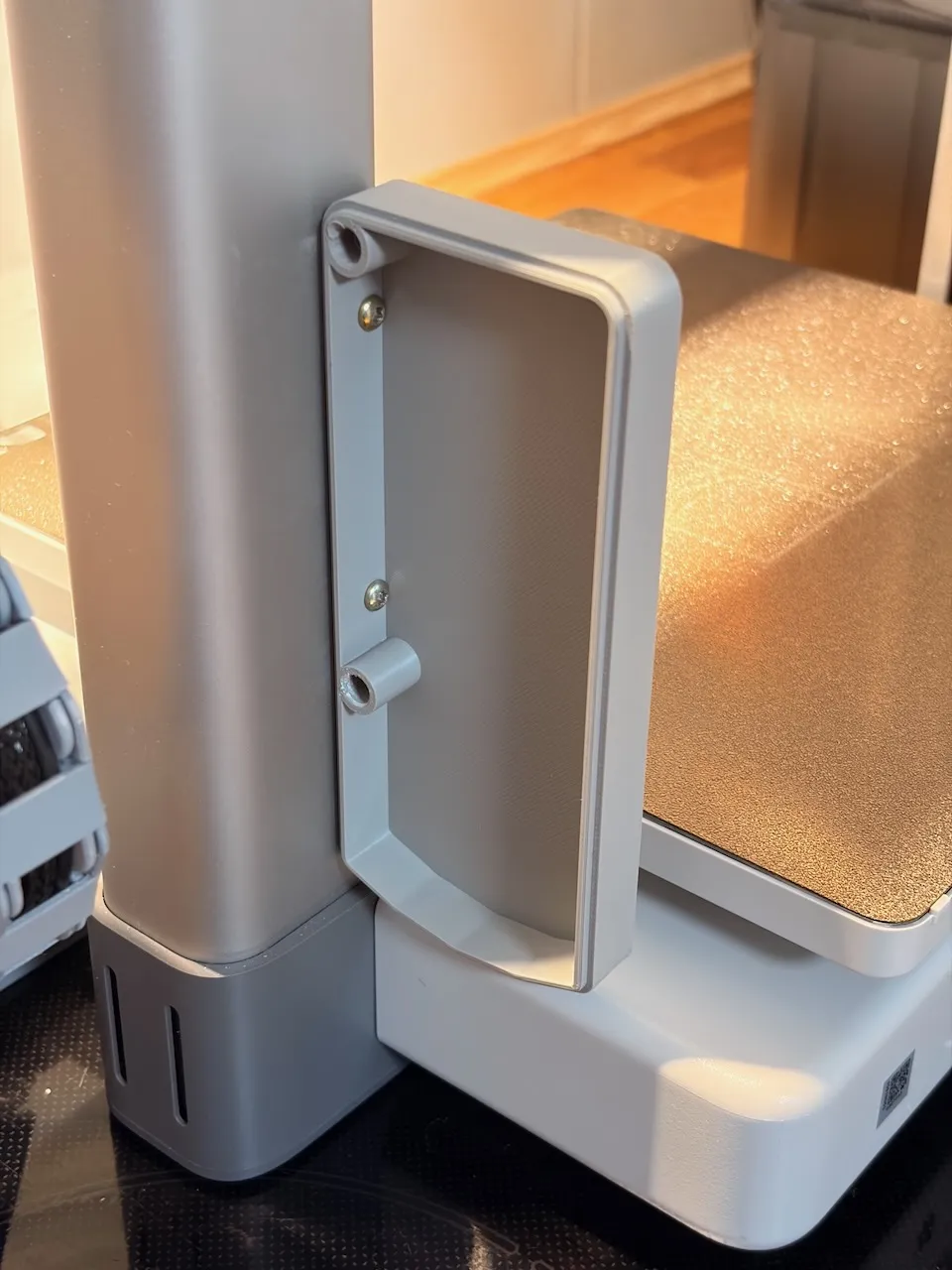

Mount the printed part on the rear side of the Z-axis beam.
(You can either use the lower two threads on the beam or the upper two.)

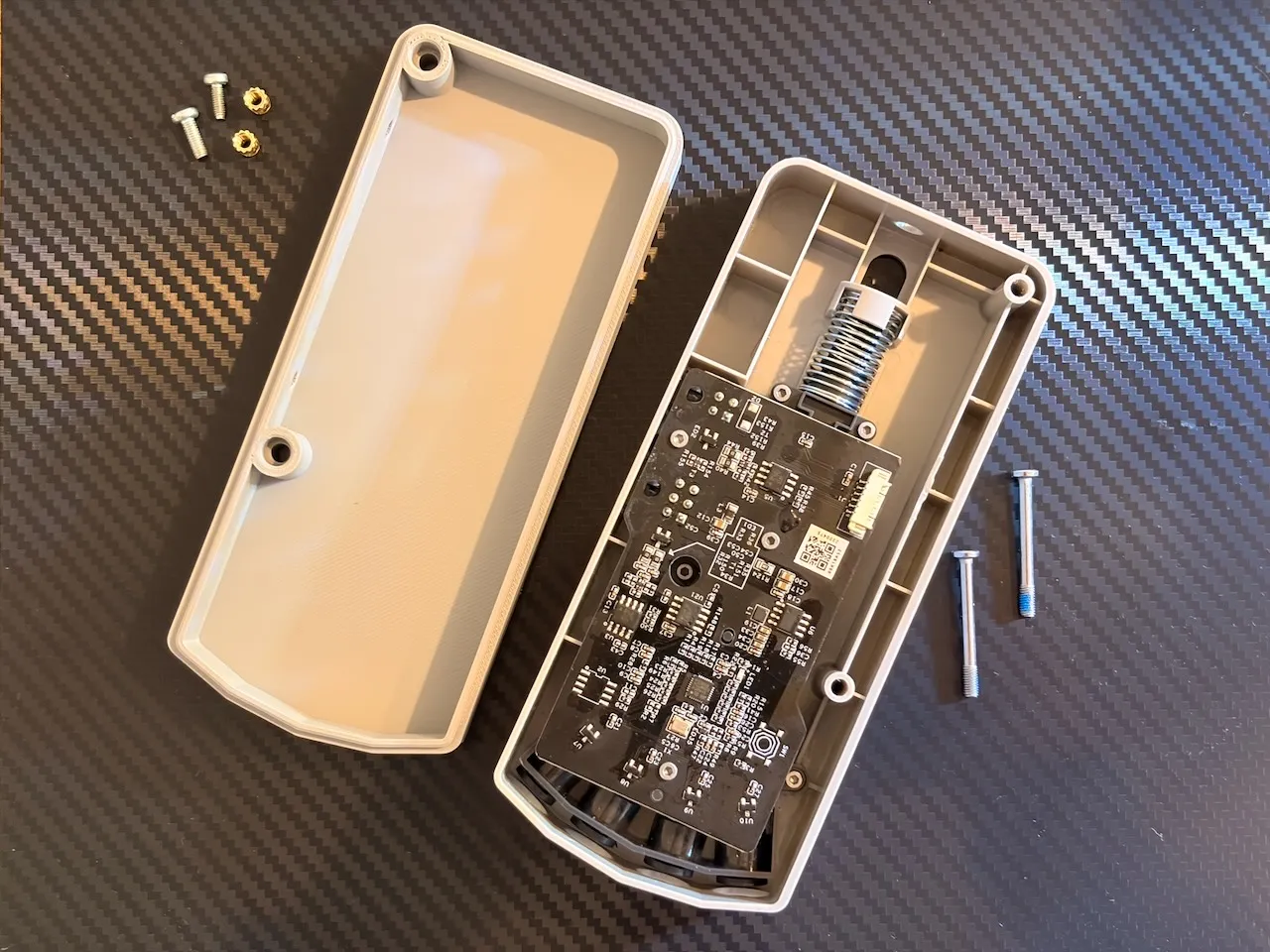

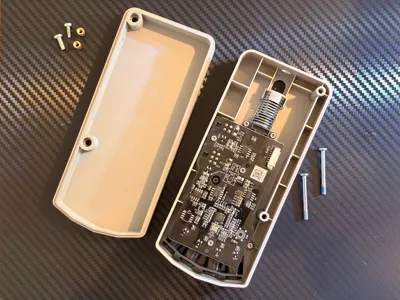

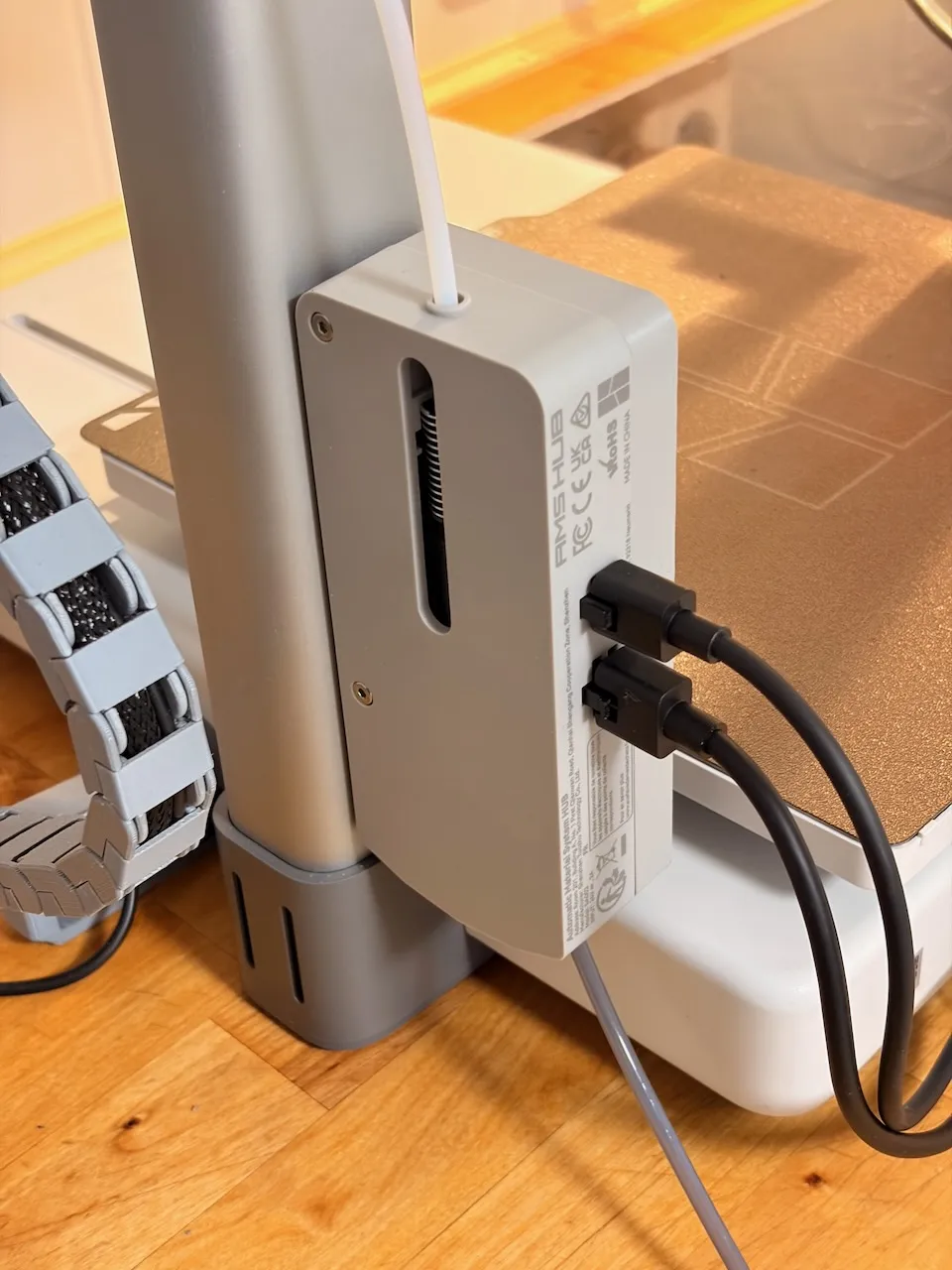

Screw the hub to the printed holder using the hub's original screws.
