Fan-to-Radiator Static Pressure Balancing Chamber
IP Report
Print Profile(10)
PSync Chamber 120x4mm 0.2mm layer, 2 walls, 15% infill
Designer
2.7 h
3 plates
PSync Chamber 120x8mm 0.2mm layer, 2 walls, 15% infill
Designer
2.9 h
3 plates
PSync Chamber 120x12mm 0.2mm layer, 2 walls, 15% infill
Designer
3.4 h
3 plates
PSync Chamber 120x16mm 0.2mm layer, 2 walls, 15% infill
Designer
3.9 h
3 plates
Click to see more
Open in Bambu Studio
Boost
79
223
3
0
148
53
Released
Description

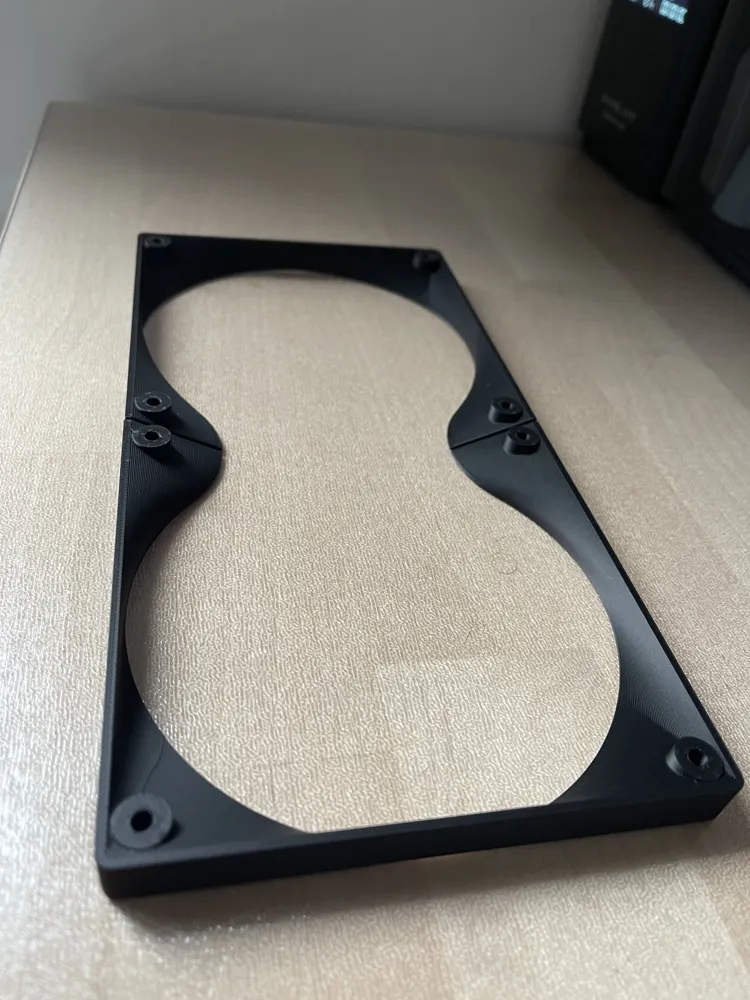

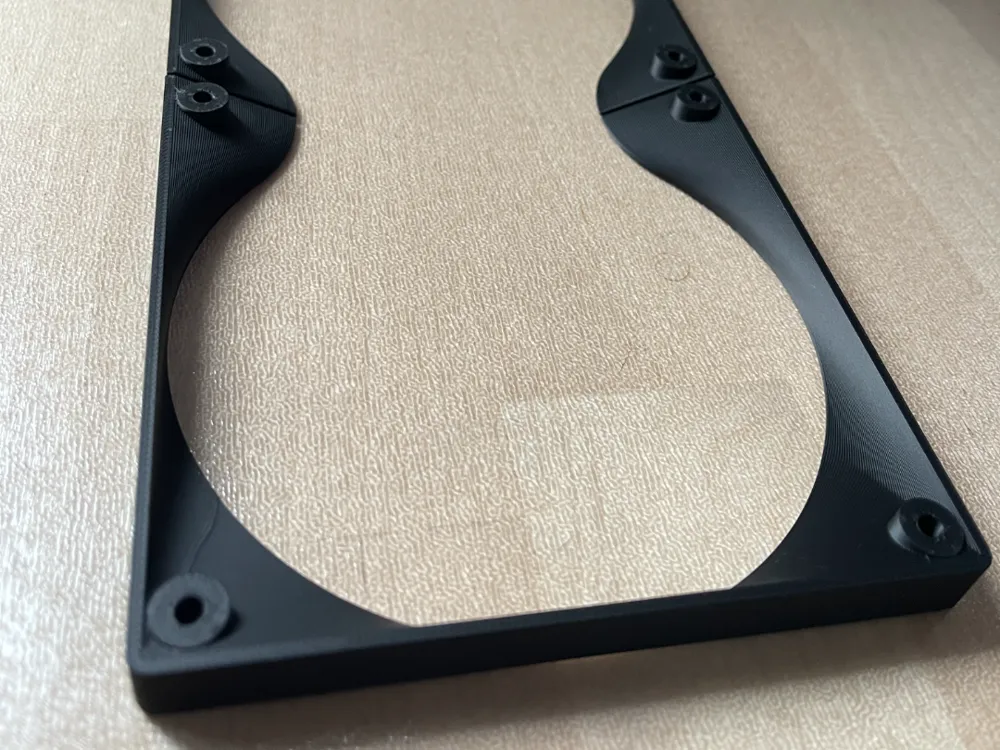

This is a airflow chamber placed between the PC fan and the radiator. It increases the distance between the fan blades and the fins while smoothing and equalizing the airflow before it reaches the radiator.
Key Advantages
- Lower Noise by reducing turbulence between the fan and the radiator.
- More Even Static Pressure, allowing the entire radiator surface to be used effectively.
- Improved Cooling Efficiency thanks to smoother airflow and the elimination of dead zones.
- Higher Performance at Lower RPM, enabling quieter operation without sacrificing thermal performance.
- Fan : 120mm fan or 140mm fan
Chamber thickness :
- 4 mm chamber thickness - M4 36mm screw needed
- 8 mm chamber thickness - M4 40mm screw needed
- 12 mm chamber thickness - M4 44mm screw needed
- 16 mm chamber thickness - M4 48mm screw needed
- 20 mm chamber thickness - M4 52mm screw needed
