Camera Mount for Creality Falcon 2 - LightBurn

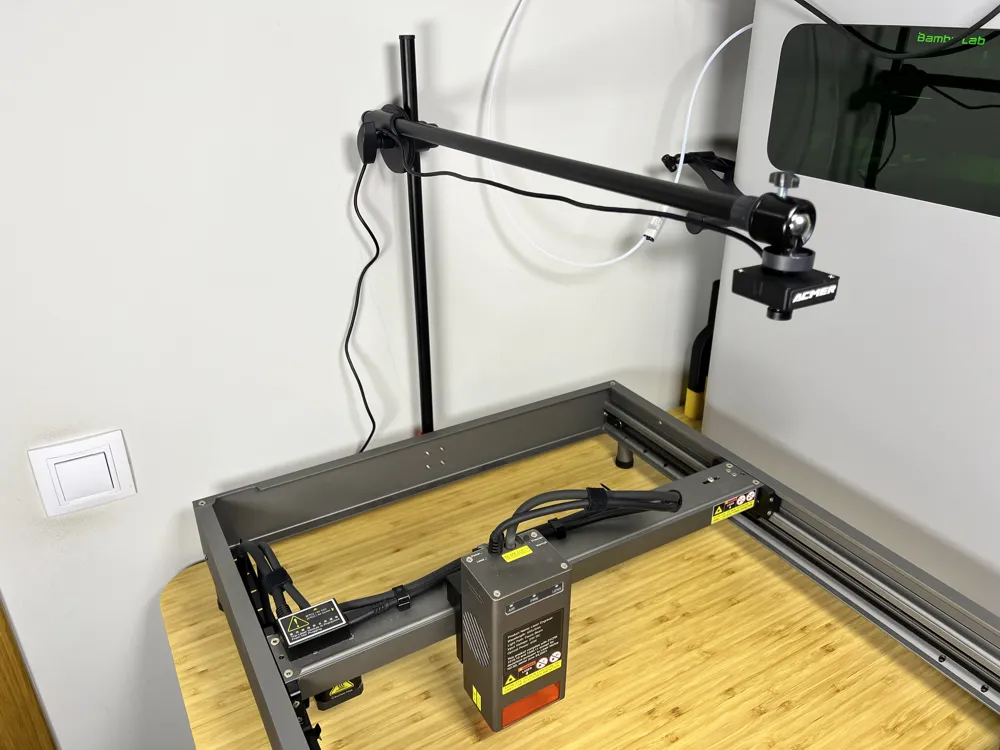

This custom mount integrates the ACMER A500 Camera directly onto the Creality Falcon 2 laser engraver frame.

By securing the camera to the machine chassis, this upgrade maximizes the camera's potential and ensures consistent calibration, unlocking the following benefits:

• Precise Positioning: Achieve millimeter-perfect alignment. Perfect for batch production or engraving on specific items like Wood Blanks, Metal Sheet Cards, and Wooden Keys.
• Visual Preview & Intuitive Workflow: Provides a stable overhead view, making the "Camera Control" feature in software much more reliable and easier to use.
• Compatible with LightBurn: Optimized to keep your LightBurn camera alignment locked in, even if you move the machine.

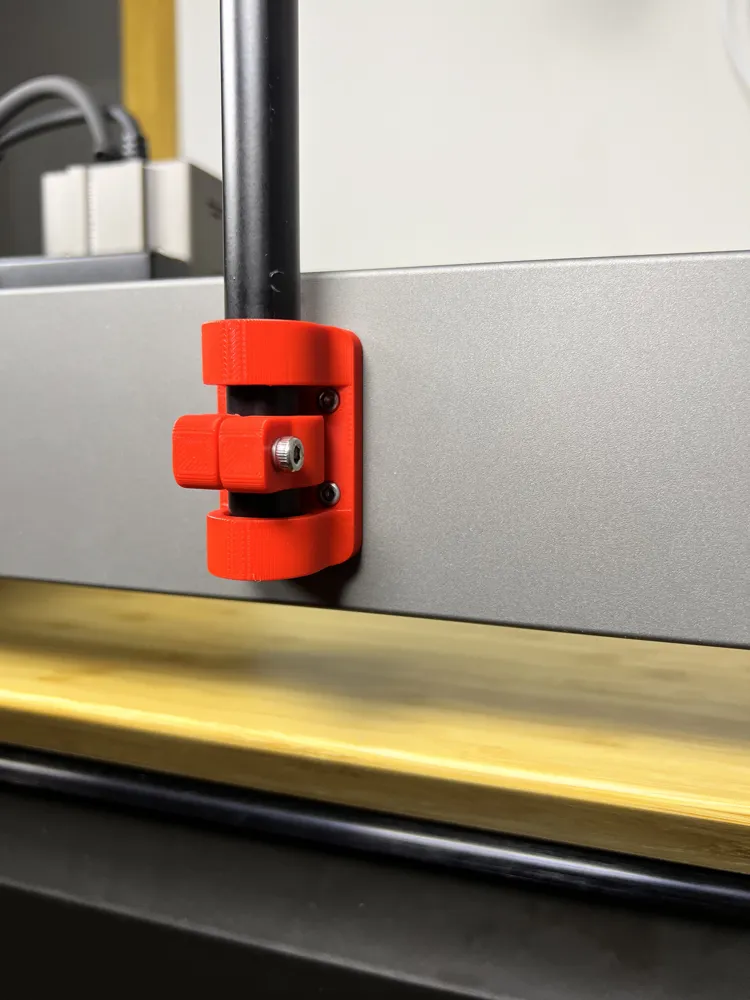

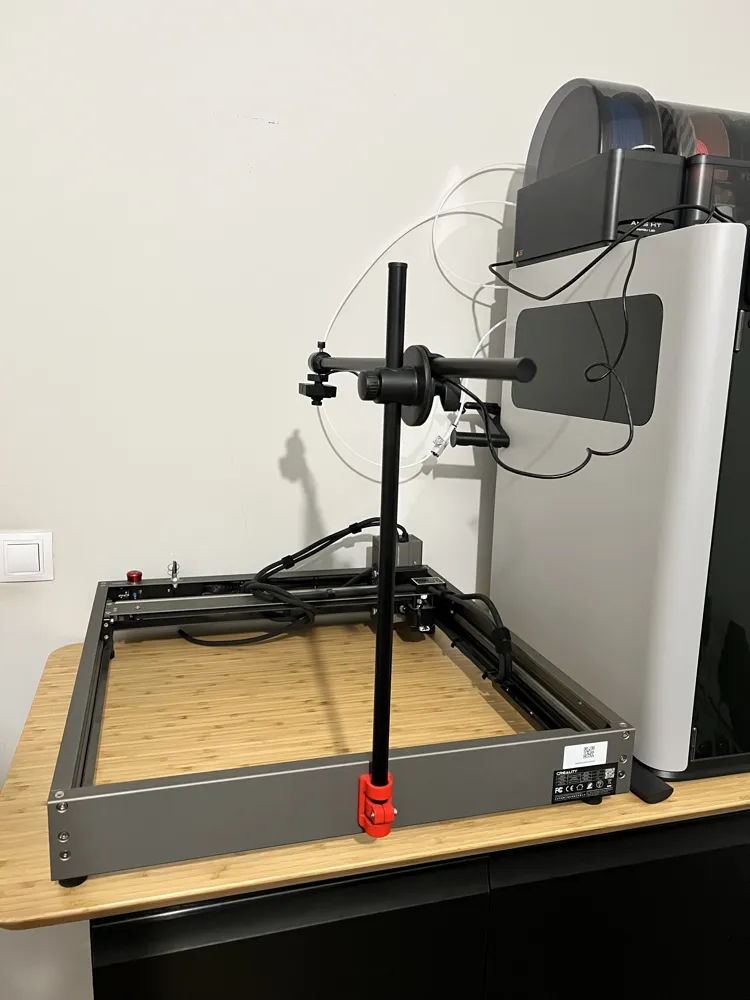

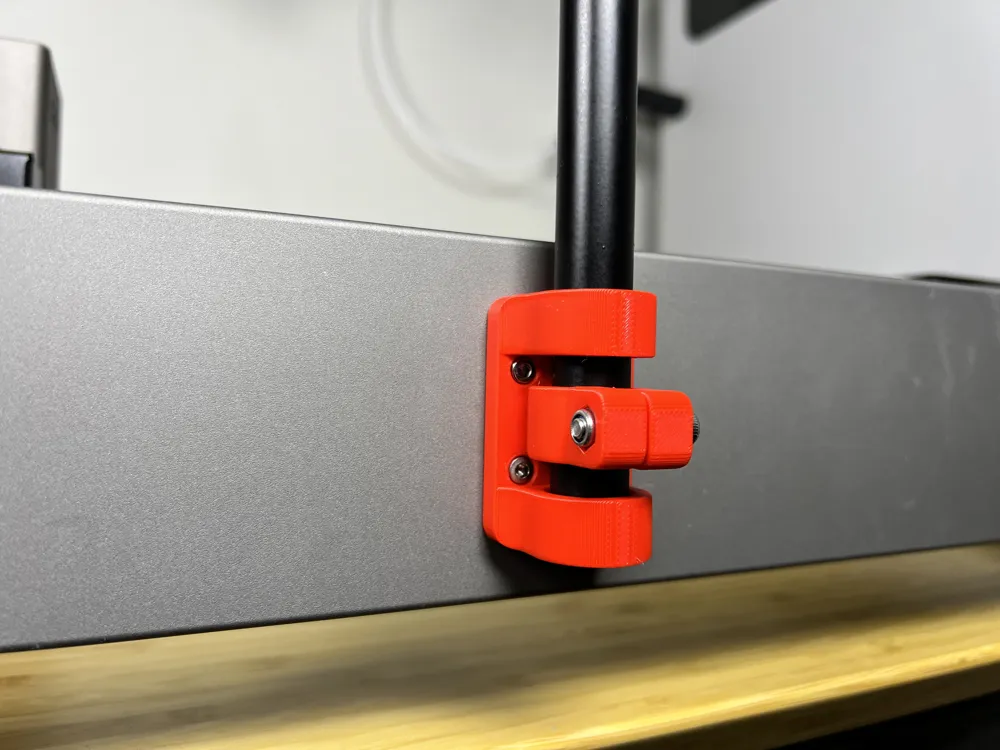

• Simple Assembly: Designed to fit the original ACMER mast and clamp onto the Falcon 2 rear profile effortlessly using standard screws.

Bill of Materials (BOM):

• ACMER A500 Camera Kit (Original vertical rod).
• Required Hardware:
  • 4x M3 DIN912 (Allen) Screws, 8mm length.
  • 1x M4 DIN912 (Allen) Screw, 20mm length.
  • 1x M4 DIN985 (Nyloc) Nut.
