External Wall Vent Grille Exhaust Fan 4 duct size
Print Profile(4)
Bill of Materials
Description

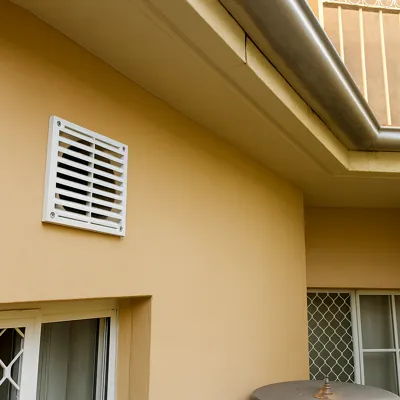

External Wall Vent with Angled Louvres
Designed for efficient airflow and weather protection, this external wall vent is ideal for use with exhaust fans in kitchens, bathrooms, and utility spaces. It features a robust, construction and angled louvres that help deflect rain and debris while allowing free air passage.
• Duct Compatibility: Fits standard 100mm (4"), 125mm (5"), 150mm (6") and 200mm (8") round ducting.
• Louvre Design: Fixed angled louvres for effective weather shielding and airflow
• Material: Durable plastic like ABS or ASA, suitable for outdoor installation
• Mounting: Surface-mount flange with pre-drilled holes for secure wall attachment
• Application: Suitable for domestic and light commercial exhaust systems
3 Sizes to choose from:
Size:1 - 100mm Duct (4 inch duct), 131mm x 131mm Fascia
Size:2 - 125mm Duct (5 inch duct), 164mm x 164mm Fascia
Size:3 - 150mm Duct (6 inch duct), 195mm x 195mm Fascia
Size:4 - 200mm Duct (8 inch duct), 262mm x 262mm Fascia
Boost Me (for free)
Please support me for more great models like this one
BENEFITS:
- No Brims
- Designed for FDM Printing
Free to Download!
TIPS:
- Glue stick can help condition the print bed for proper adhesion/release and is recommended.
- ASA filament would be the best choice filament for this item.
TESTED PRINT DETAILS:
- Glue Stick: Yes (without is at your own risk)
- Support: Enabled
- Walls: 2
- Brims: No
- Nozzle: 0.4mm
- Layer Height: 0.2mm
- Layers 4 top, 5 bottom
- Infill: 10% Gyroid
ENJOY:
- If you like my model please send me a Boost, leave a Comment and like!. Thank you
Boost Me (for free)
Please support me for more great models like this one
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
