Compressed Air Venturi Nozzle
Print Profile(1)
Description

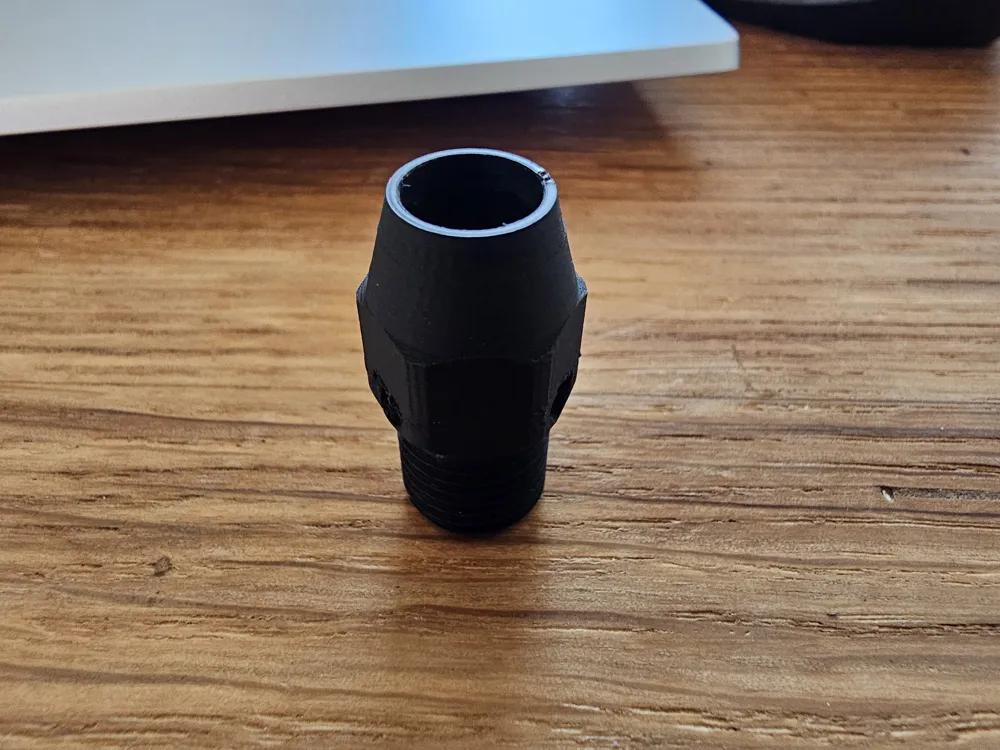

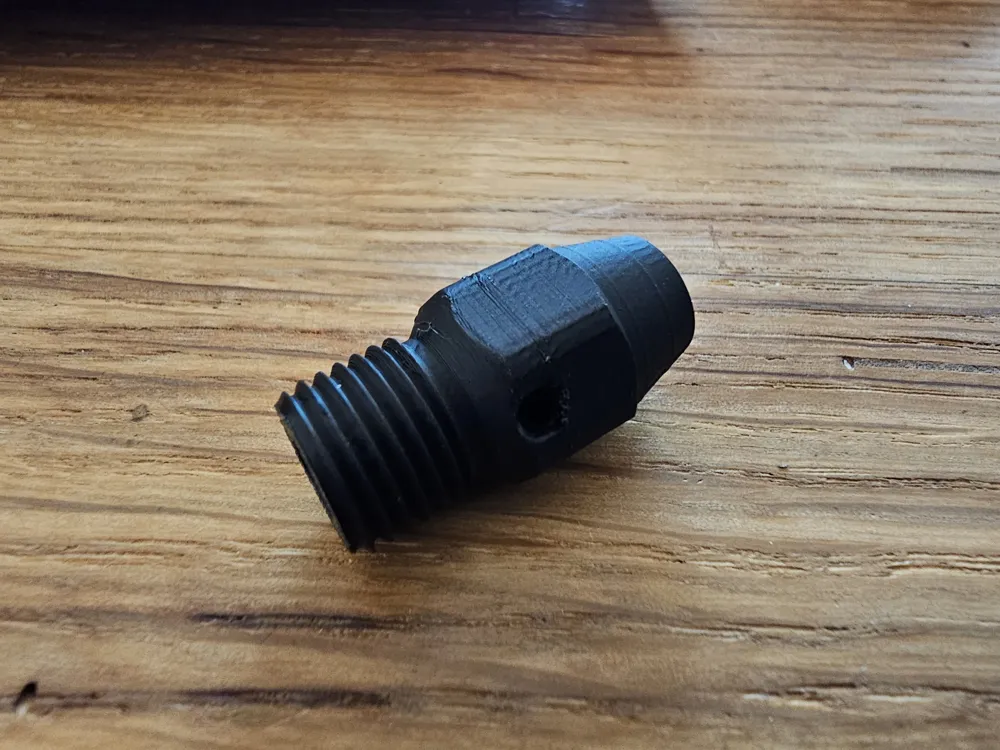

This specially developed Venturi nozzle is compatible with common compressed air guns and generates a strong vacuum or airflow through the Venturi effect. Ideal for cooling, cleaning applications, or experiments with compressed air.

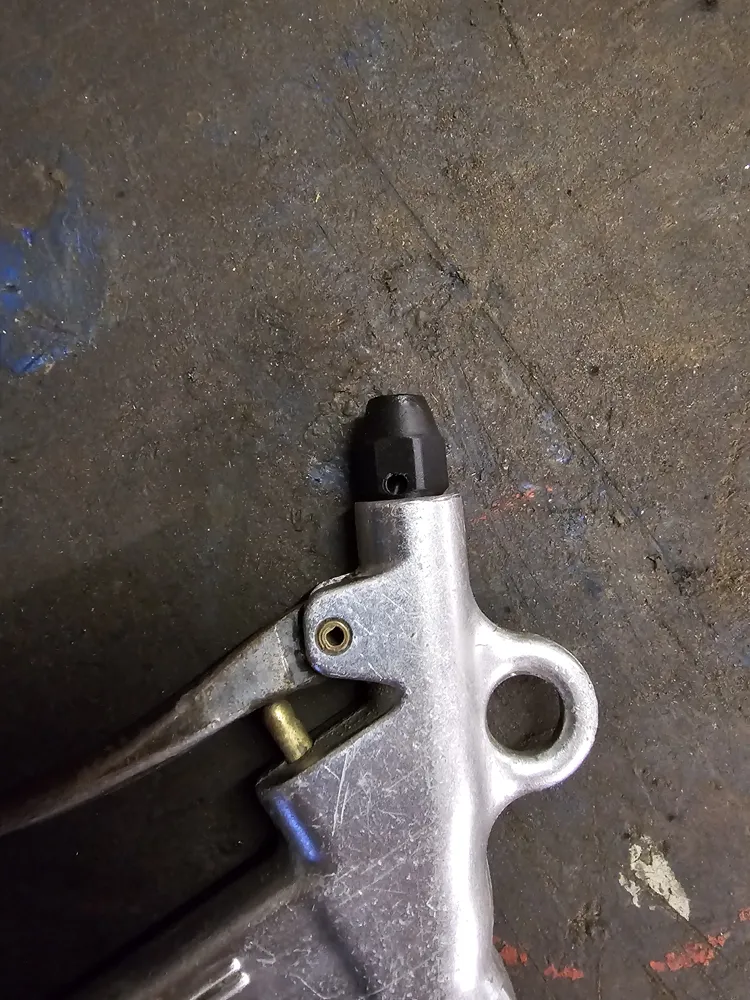

The model is completely printable without supports and has been successfully tested with ABS and PETG HF (High Flow). The geometry is optimized for high flow efficiency and allows for easy mounting directly onto the gun connection.
Highlights:
- suitable for standard compressed air guns
- printable without support structures
- tested with ABS and PETG HF
- efficient Venturi effect for strong vacuum/airflow
- robust, compact design
Print recommendations:
0.4 mm nozzle · 0.08 mm layer height
