HPA Buttstock 13ci QD Mount
Print Profile(0)
Description

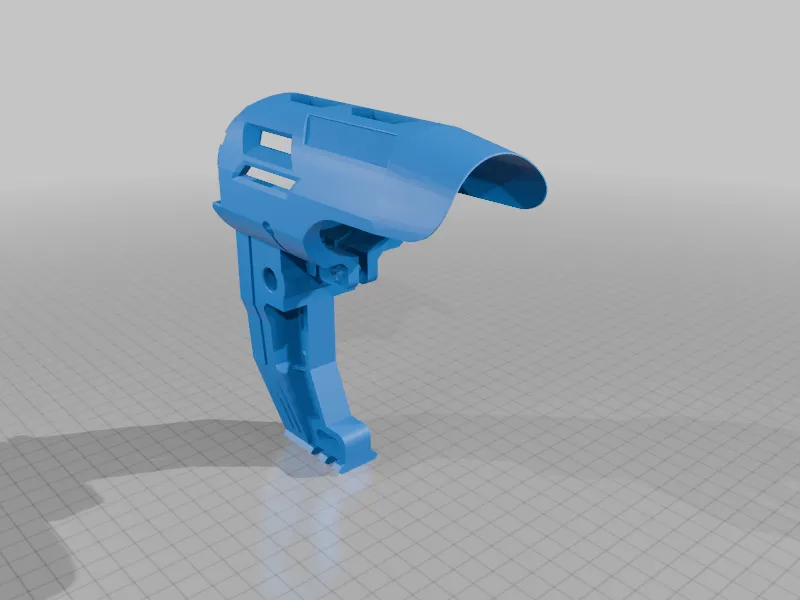

Remixed and improved the original Version
V1
- Cut in the rear bottle area to save over 90min print time and ~10g Material
- Fixed the M5 screw hole so that an actual M5 screw fits through, including a small tolerance for the printer.
V2
- Small recess added to reduce tension on the part during clamping. It broke easily.
- Bottles can now be inserted a little deeper. Just a few mm.
The Stock fits quite precisely on 200 Bar Ultrair 13ci HPA and Powair Tactical Line RS 330Bar bottles with ~50mm diameter.

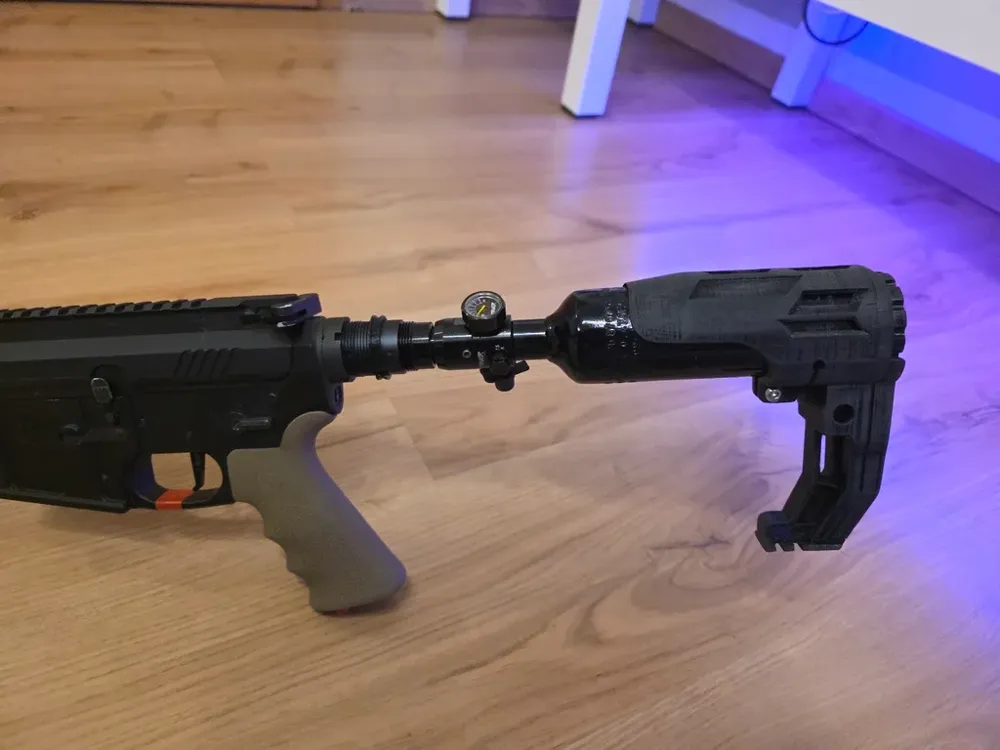

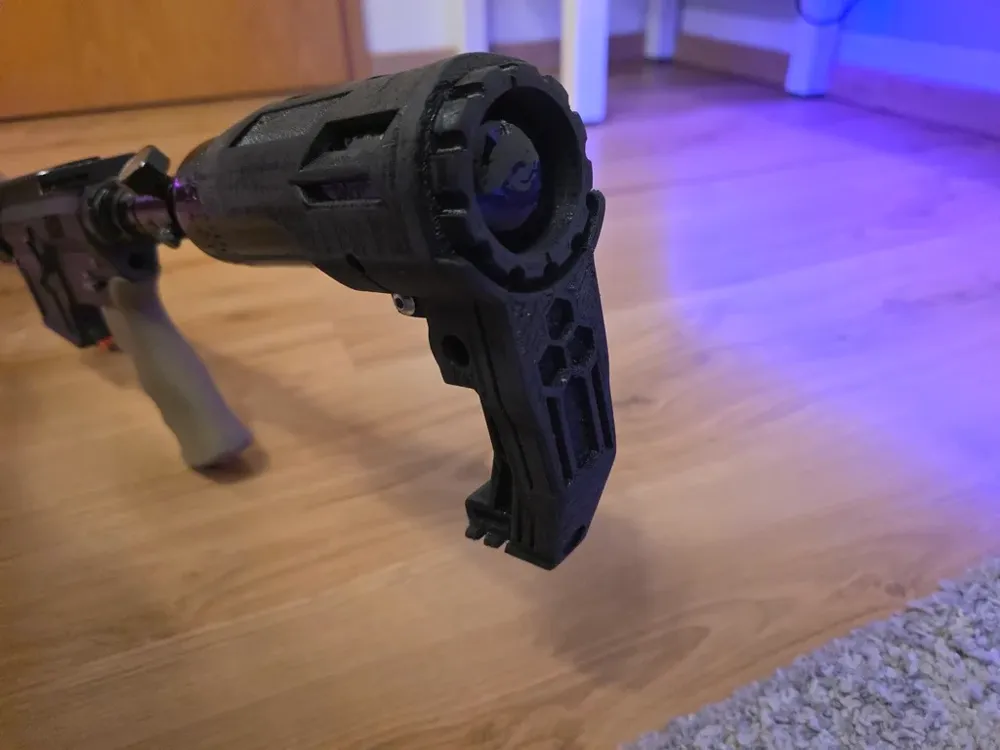

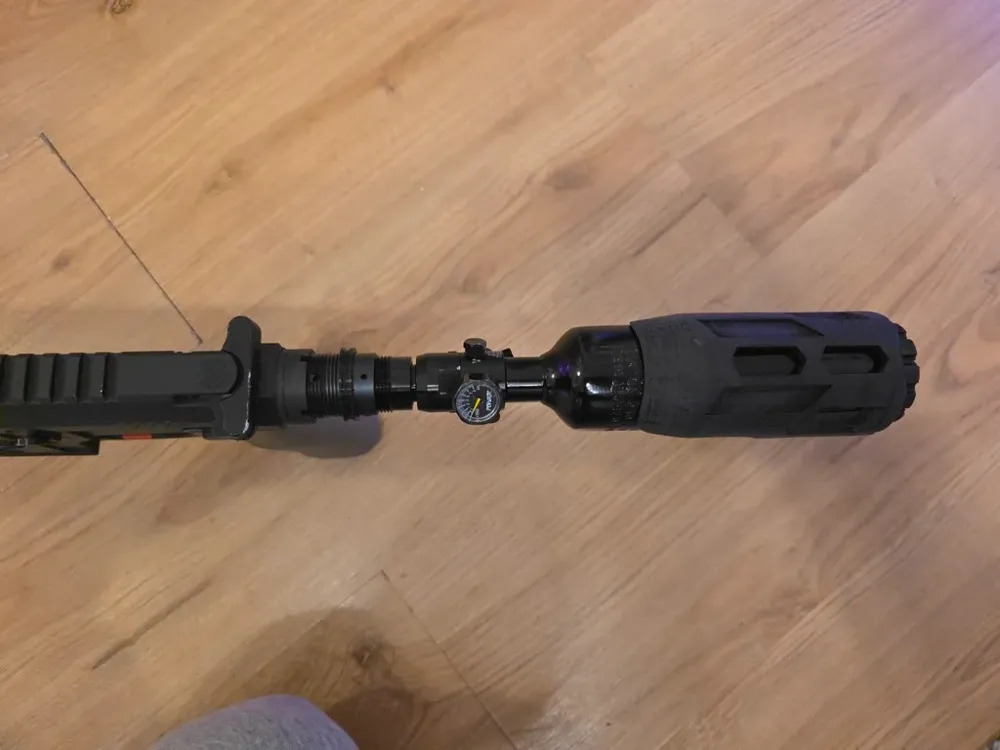

The pictures show a 300Bar Powair Tactical RS bottle
You need to print at least 4 walls for stability. and 15% infill with gyronoid
Requieres:
M5 Nut and M5x16mm Screw for clamping
