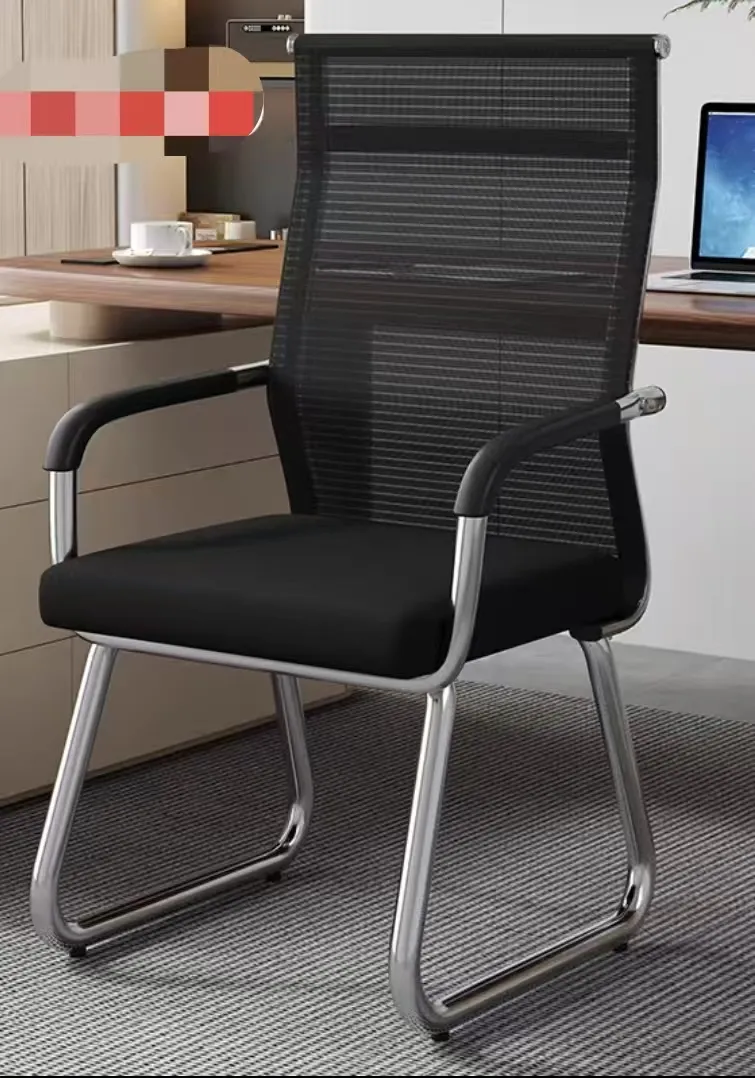

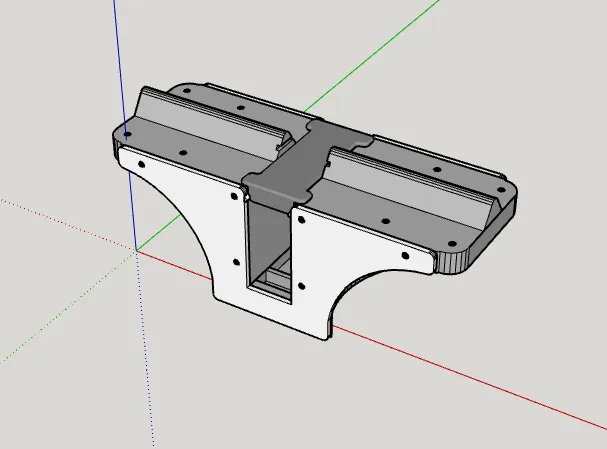

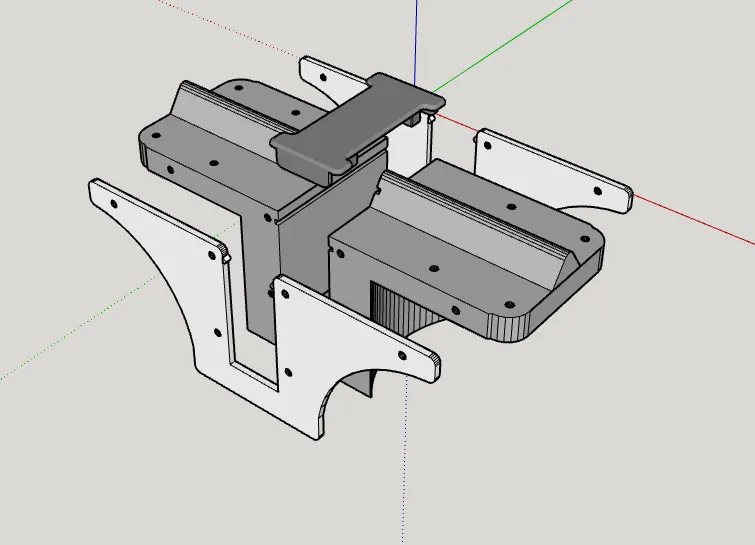

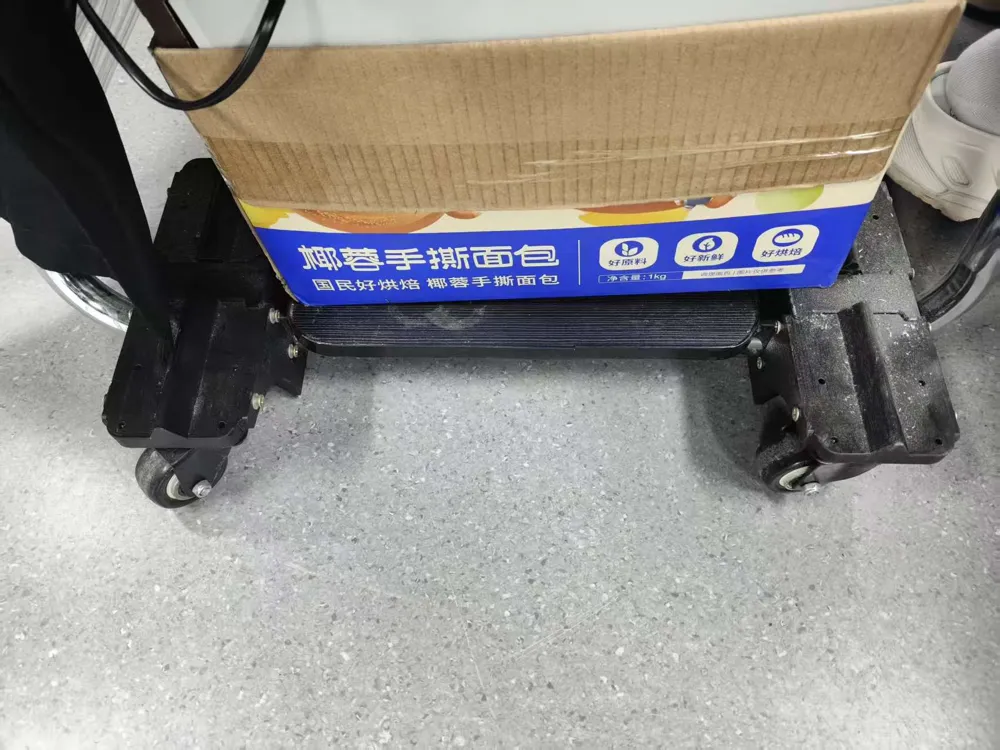

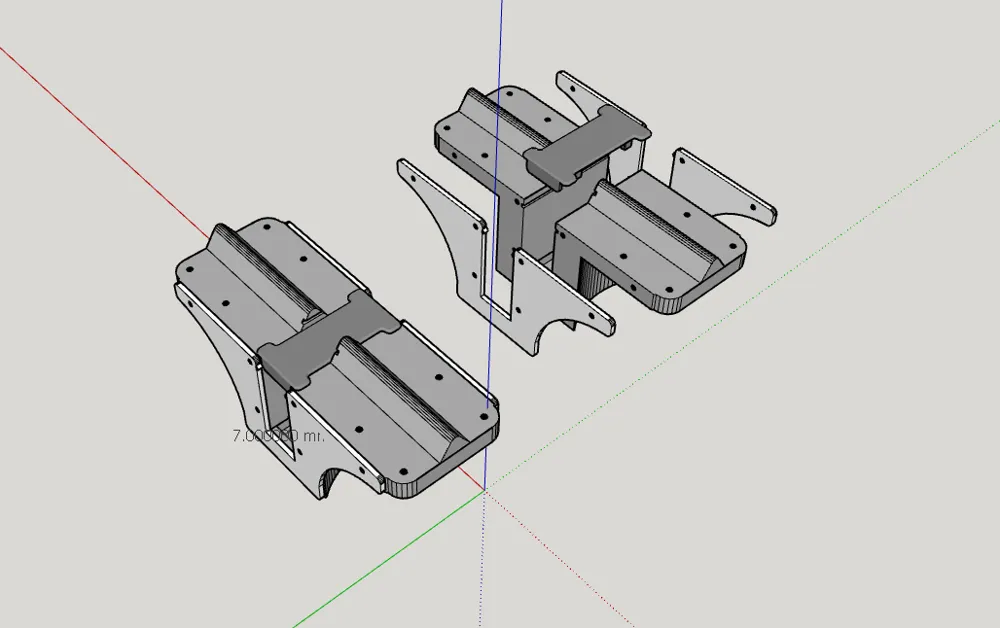

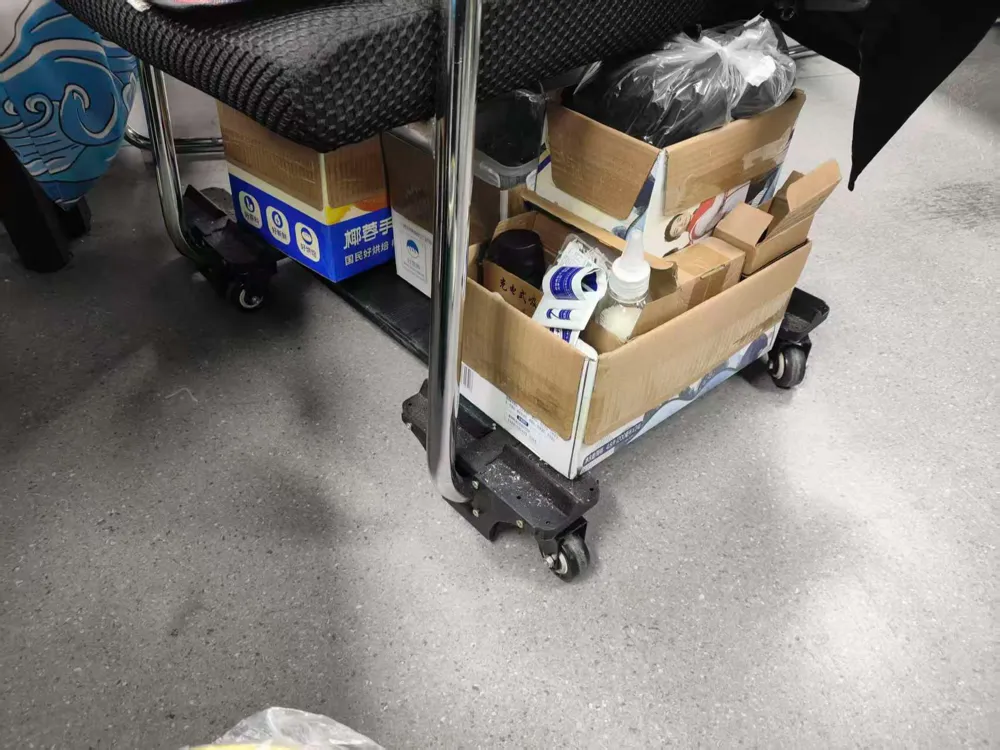

My office chair has no wheels, and I'm used to chairs that can slide back and forth easily. I modified it by adding wheels

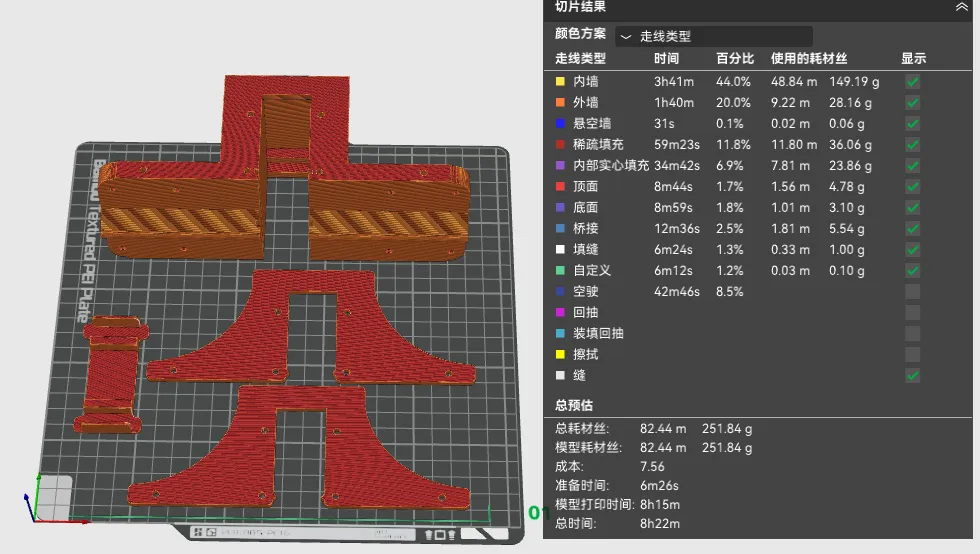

It requires a total of 1kg filament, PETG (I used refilled filament costing 25) or ABS is better. The PETG has been used for half a year

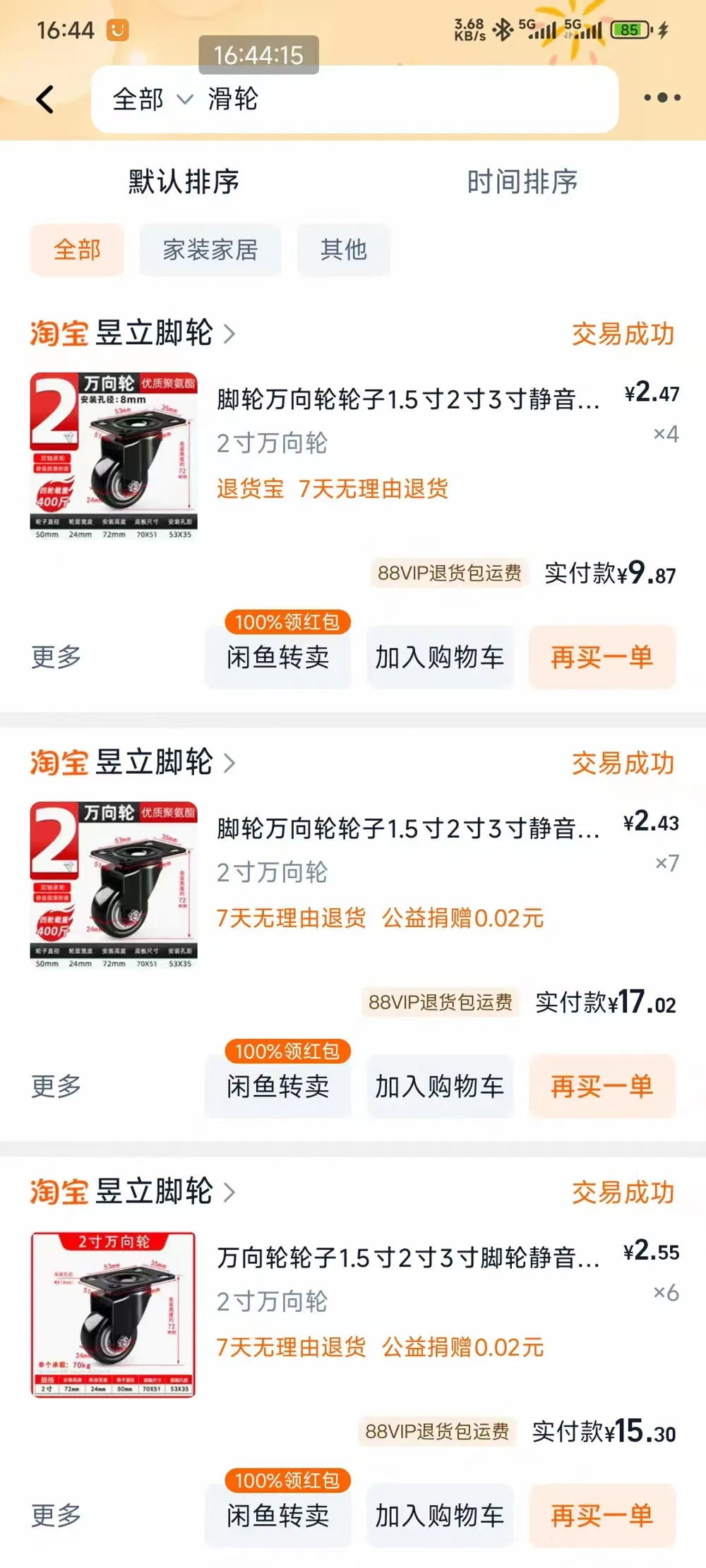

Eight 2-inch swivel casters cost around 20 CNY
Including casters, screws, etc., the total cost is 50-55 CNY

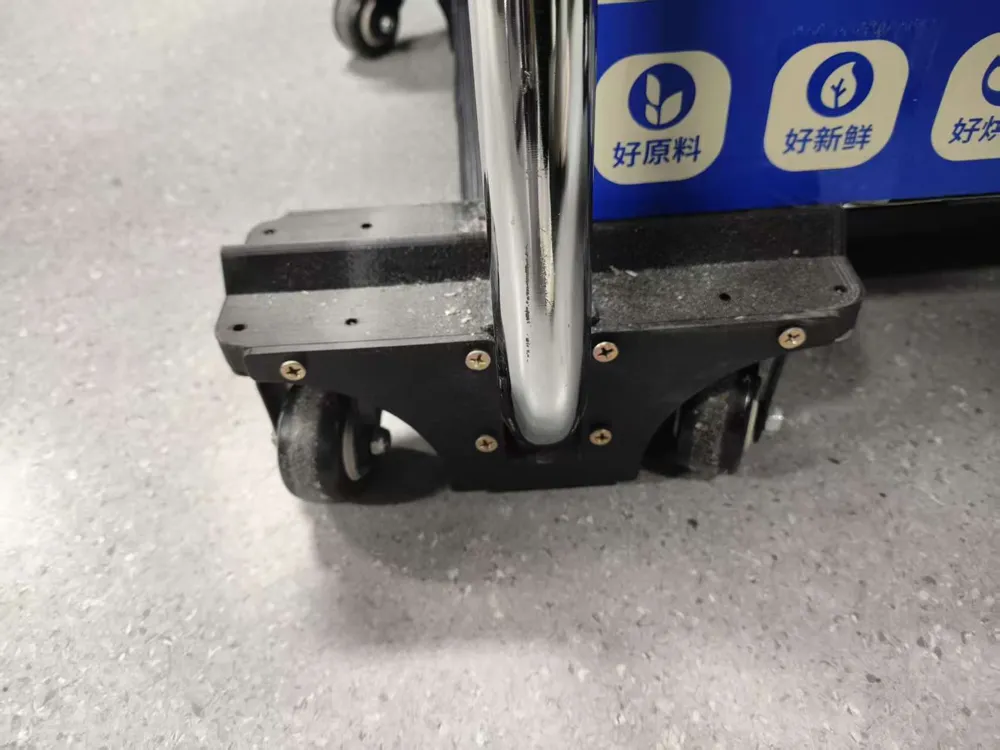

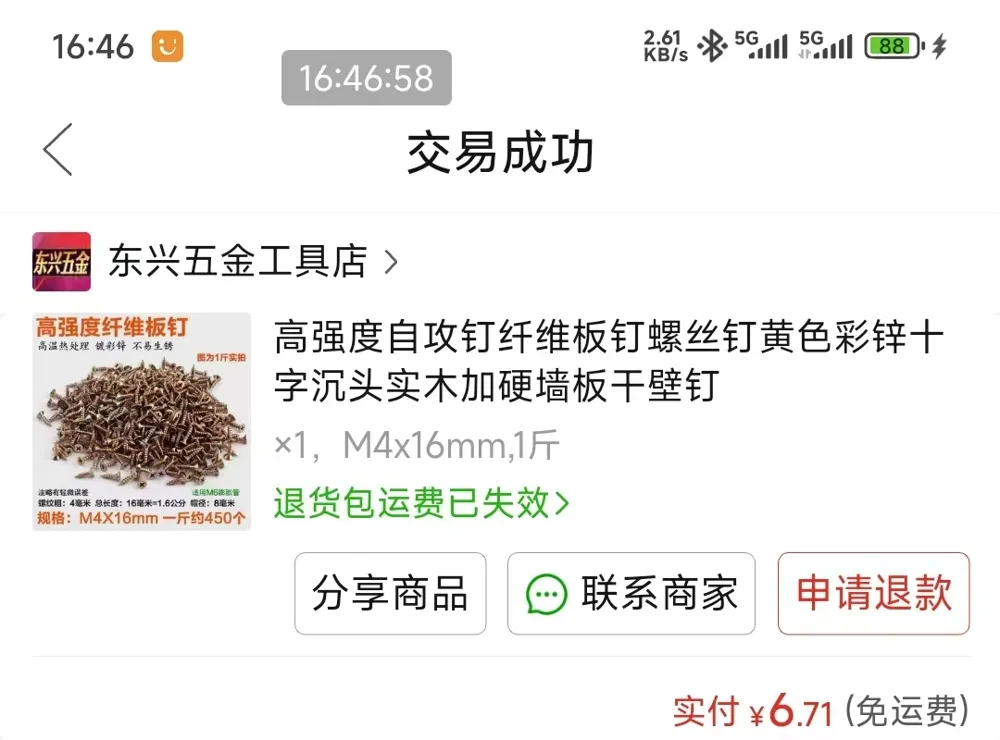

Requires 16-32 M4*16 self-tapping screws. I was lazy and only used 16. (Requires washers with inner diameter 4-6 and outer diameter 15-20)

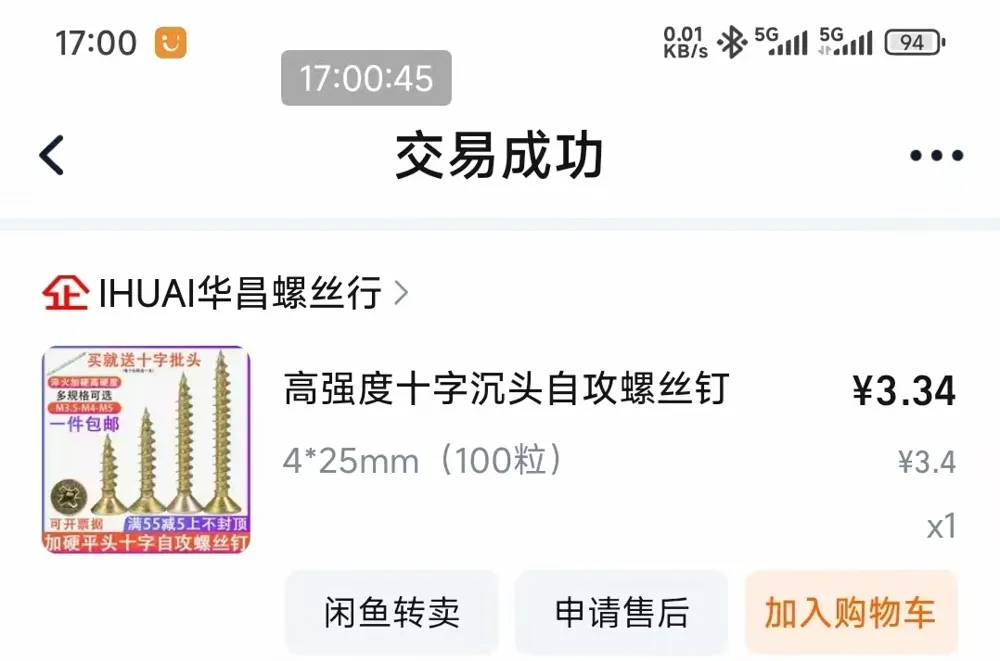

48 M4*30 self-tapping screws (no shortcuts here... all must be used, lengths from 16-40 are fine)

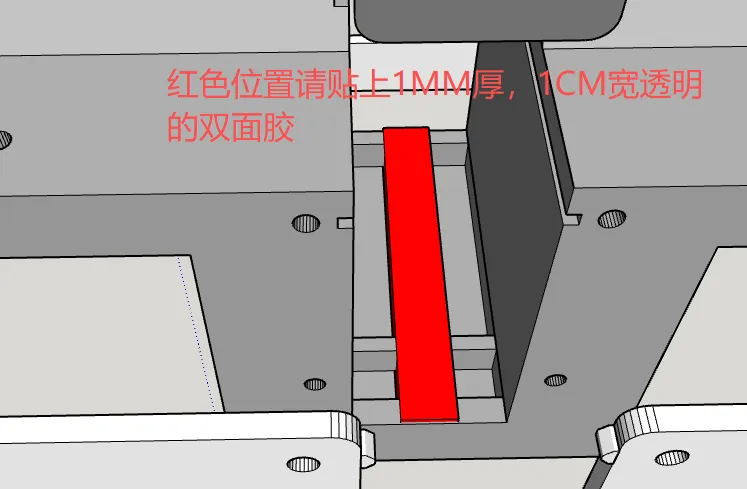

Swivel casters, screws, screw washers, double-sided tape, PETG filament, buy from whoever is cheapest
Boost Me (for free)
If it's useful, please boost it
