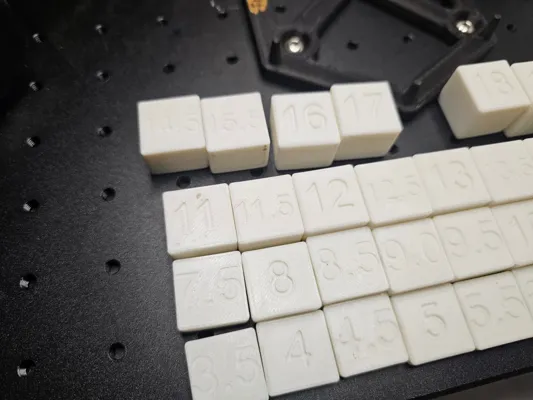

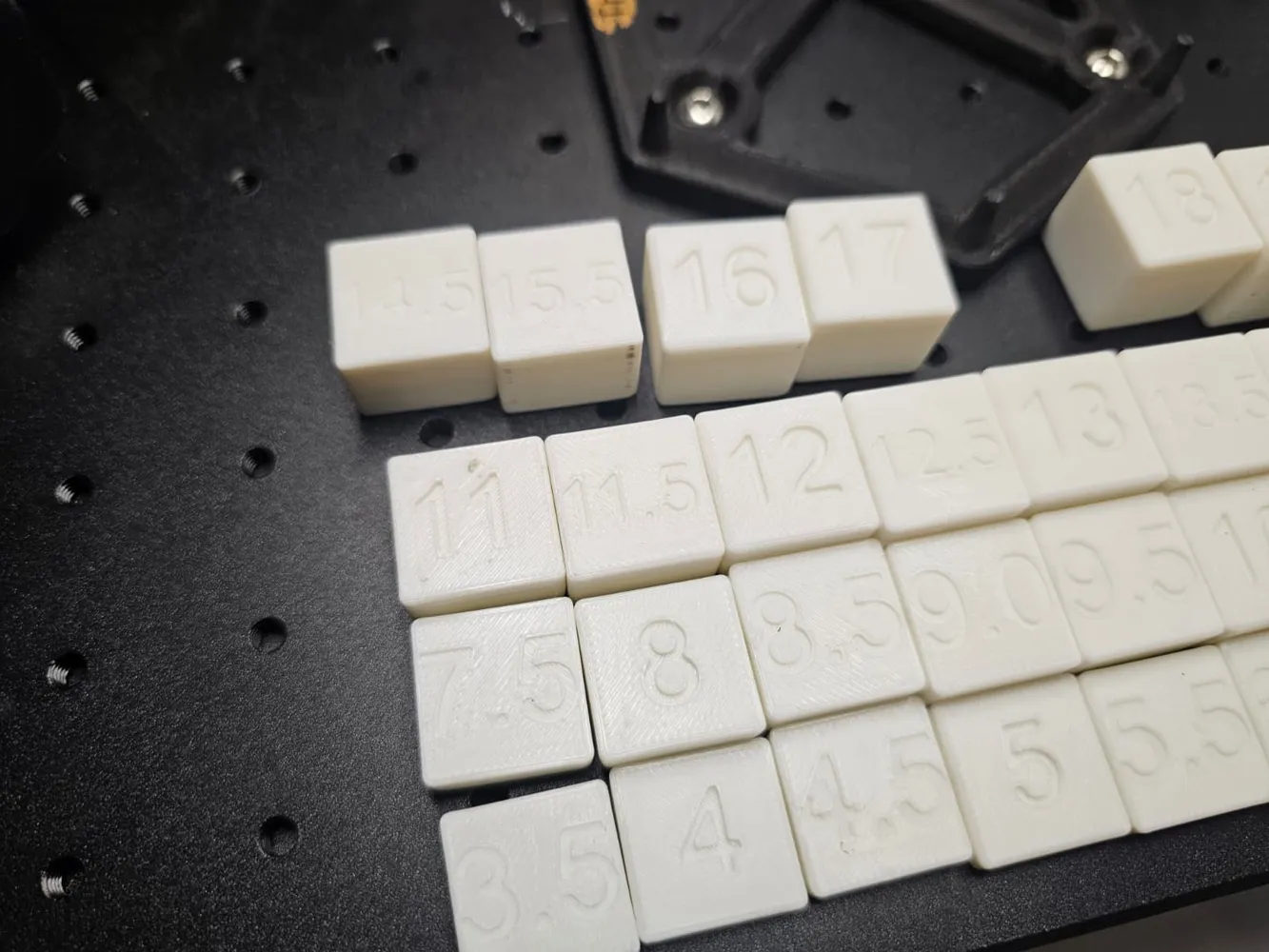

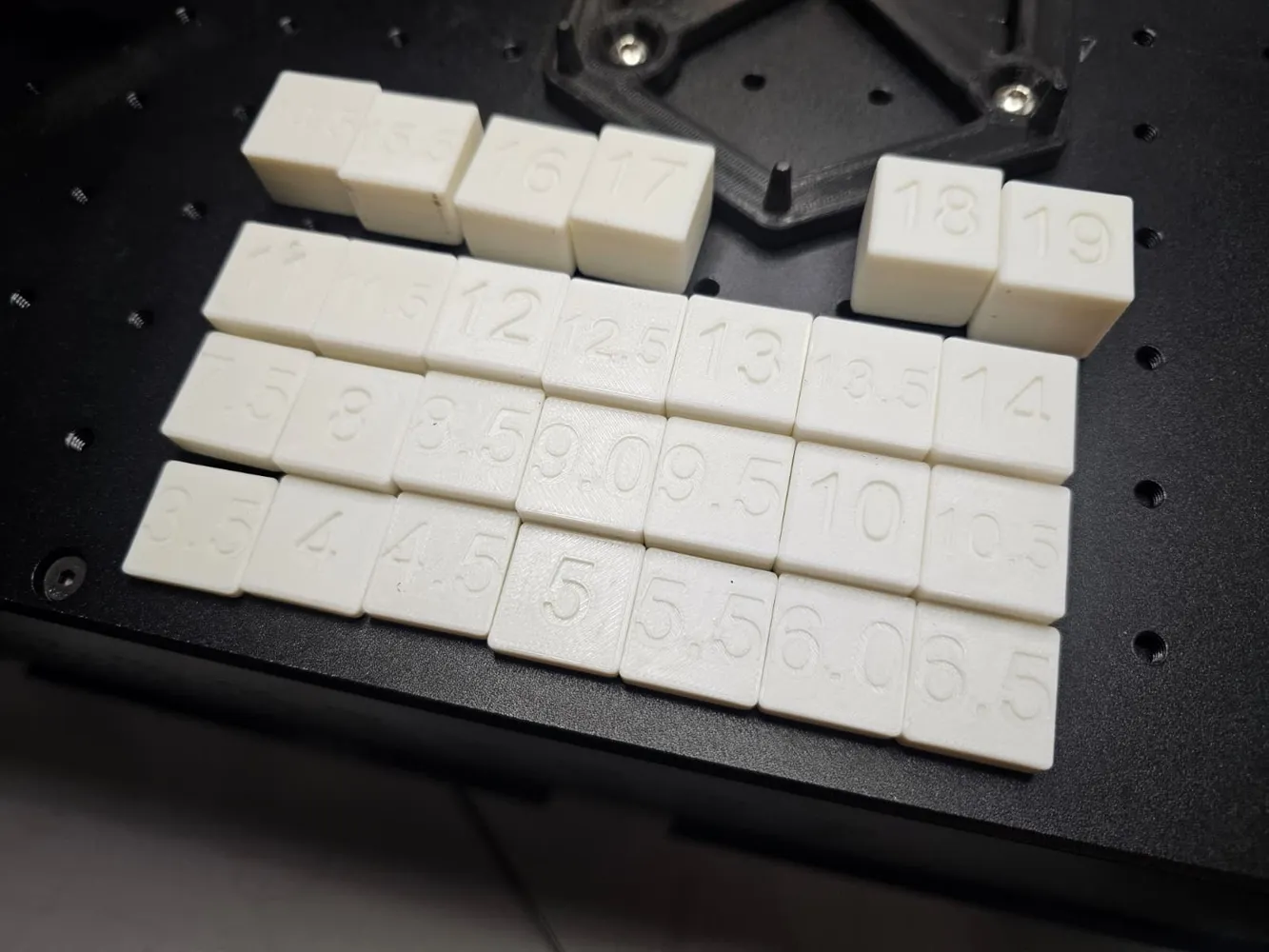

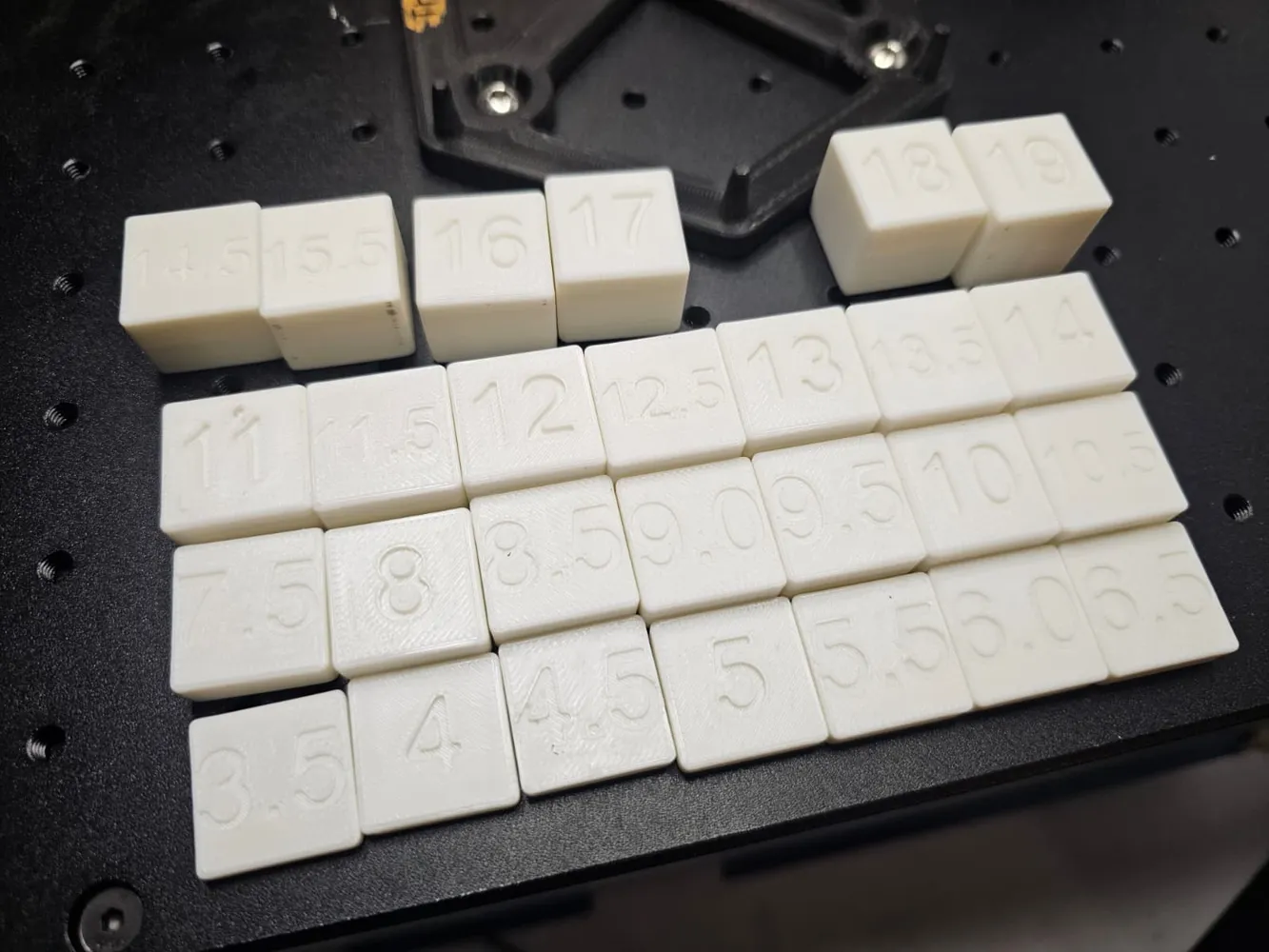

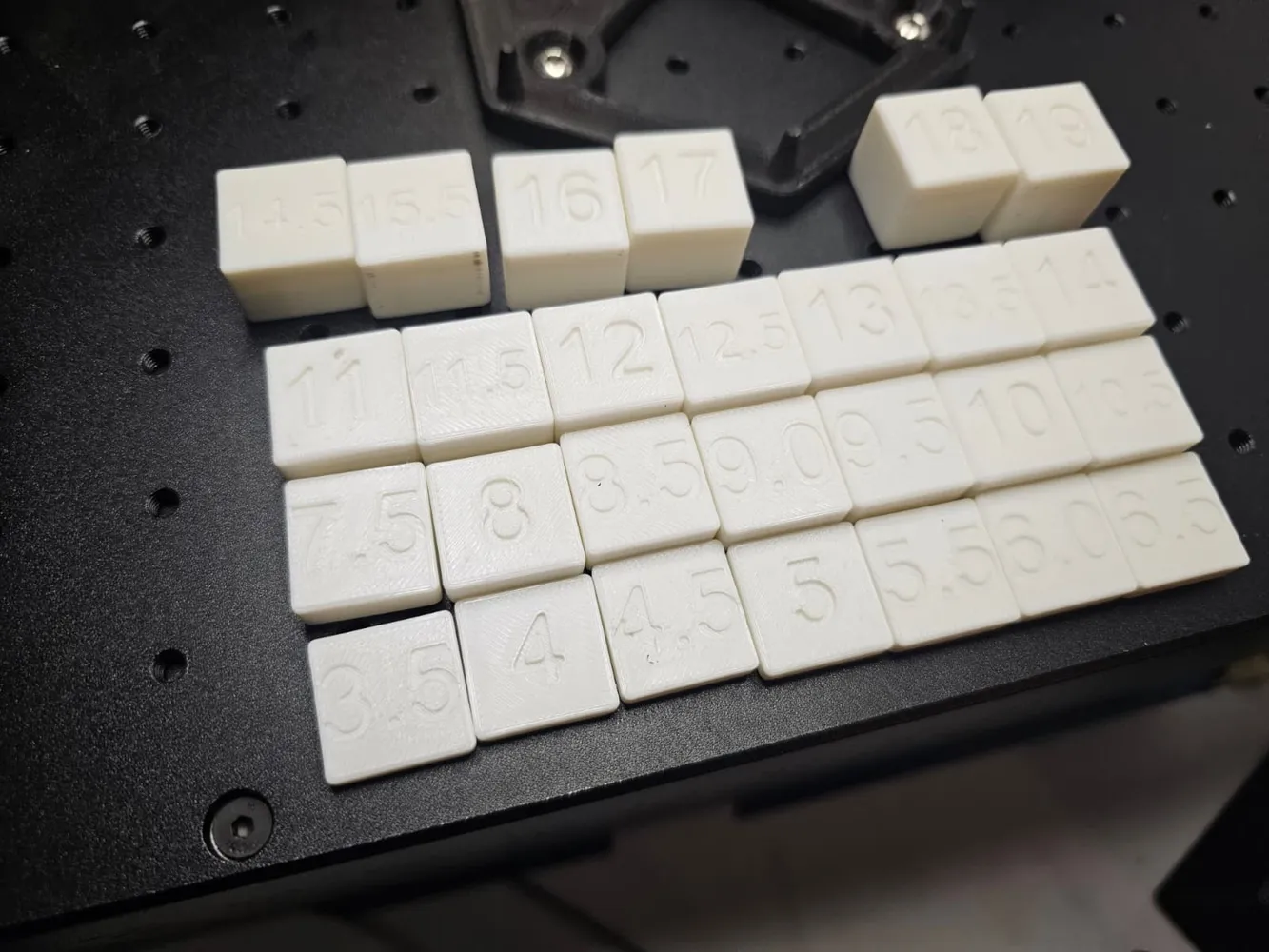

3D Printed Gauge Block Set (3.5–19 mm, 20×20 mm)

This set consists of 3D-printed gauge blocks with uniform outer dimensions of 20 × 20 mm and individual heights ranging from 3.5 mm to 19 mm. The steps increase in 0.5 mm increments up to 16 mm, followed by 1 mm increments up to 19 mm.
The blocks are suitable for alignment and positioning tasks – ideal for aligning workpieces on laser machines, setting up doors, and for general assembly and adjustment work.

Each block has its respective thickness clearly marked directly on the model, making the sizes easy to identify and sort in a storage box.

For use with 1064 nm laser machines (fiber lasers), it is recommended to use white filament, as it reacts the least to this wavelength.


There is also a second, finer set available that uses a different layer height.

Please keep in mind that these gauge blocks are NOT precise to hundredths of a millimeter.
Depending on filament and printer condition, FDM printers can deviate by up to a few tenths of a millimeter.
A layer height of 0.16 mm does NOT always guarantee perfect dimensional accuracy!

Features

Heights from 3.5 mm to 19 mm

Uniform outer dimensions: 20 × 20 mm

Not stackable – optimized for precise single placement

Ideal for positioning and alignment of workpieces

Perfect for laser machines, assembly tasks, and door alignment

Recommendation: white filament for 1064 nm laser applications

Clear size markings directly on the model

Durable and functional design for regular workshop use
