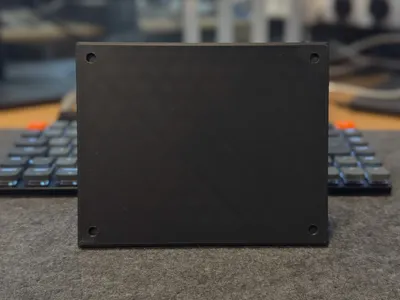

Prototype Blank Faceplate for Valves Steam Machine.

I made this so you can put any design on the reverse for yourself.

It allows for 4 x 6x3mm magnets but this can of course be adapted for any ferrous metal as the Steam Machines inbuilt magnets will likely do the trick on their own.

This has been made with the very short time I had with one of the machines. I'll likely update the model once the CAD files are out so, bookmark the model for your own future reference and check back.

Print Tips:

If larger flat objects ever peel up for you, make sure to use brim ears in your sliver software.
https://wiki.bambulab.com/en/software/bambu-studio/brim-ears

Alternatively, if you can't be bothered or you're using the Bambu Handy app, choose the ‘original brim ears’ profile
