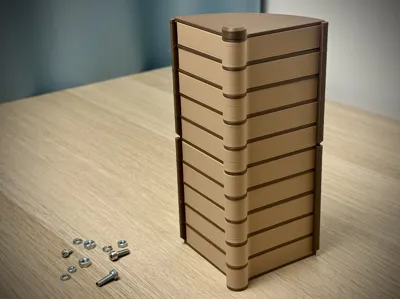

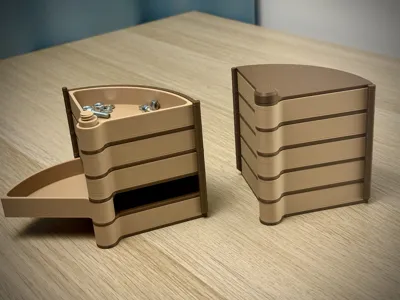

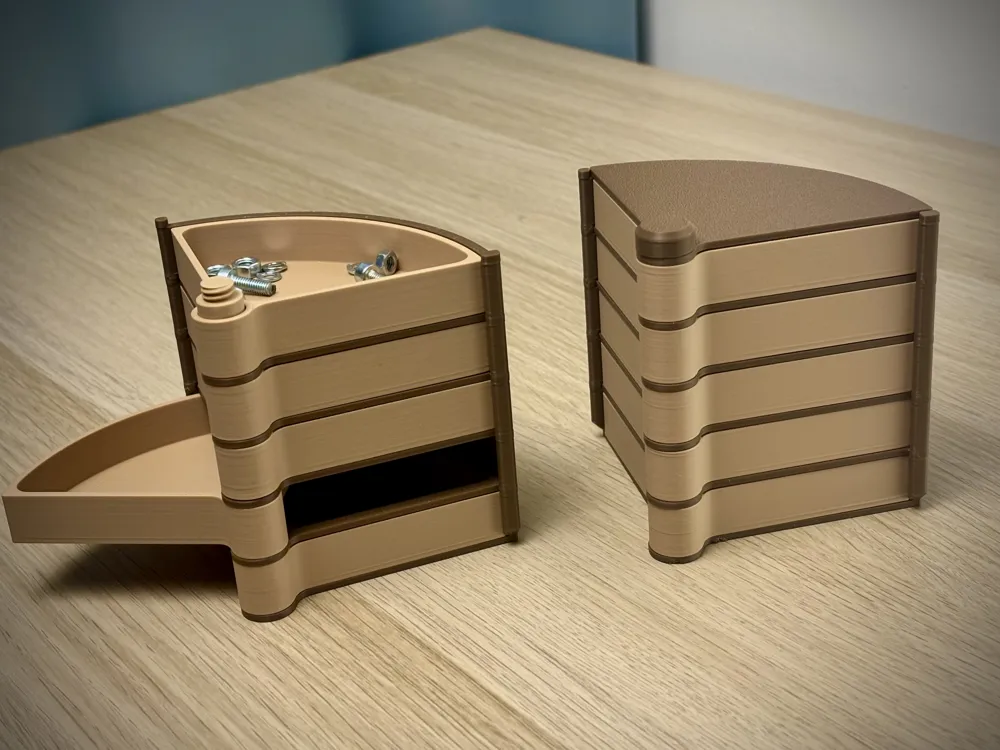

Storage Tower Organizer is a modular, stackable storage system with a simple, clean design that’s efficient, space-saving, and perfect for sorting small hardware like screws, nuts, and bits ✨ Build it to any height, keep everything neatly separated, and enjoy smooth, easy access to every box.

• Fully modular design – stack as many tiers as you need

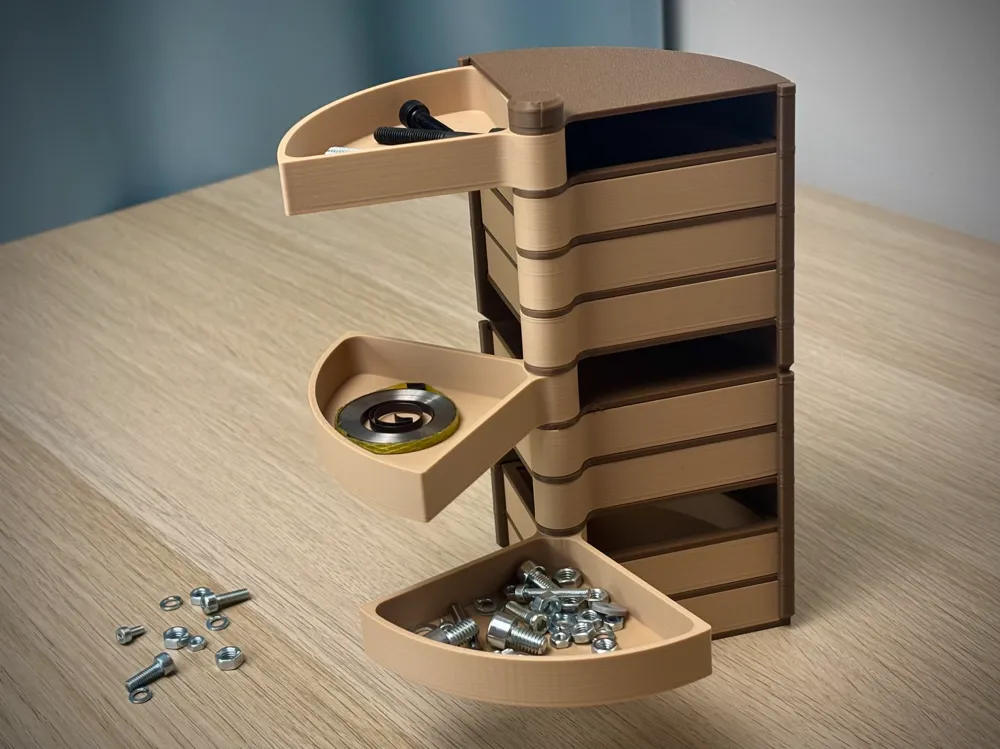

• Smooth pivot mechanism for quick, easy access
• Two printing profiles available:
  • Boxes Without Label - 04_Box for a clean, minimal look ✨

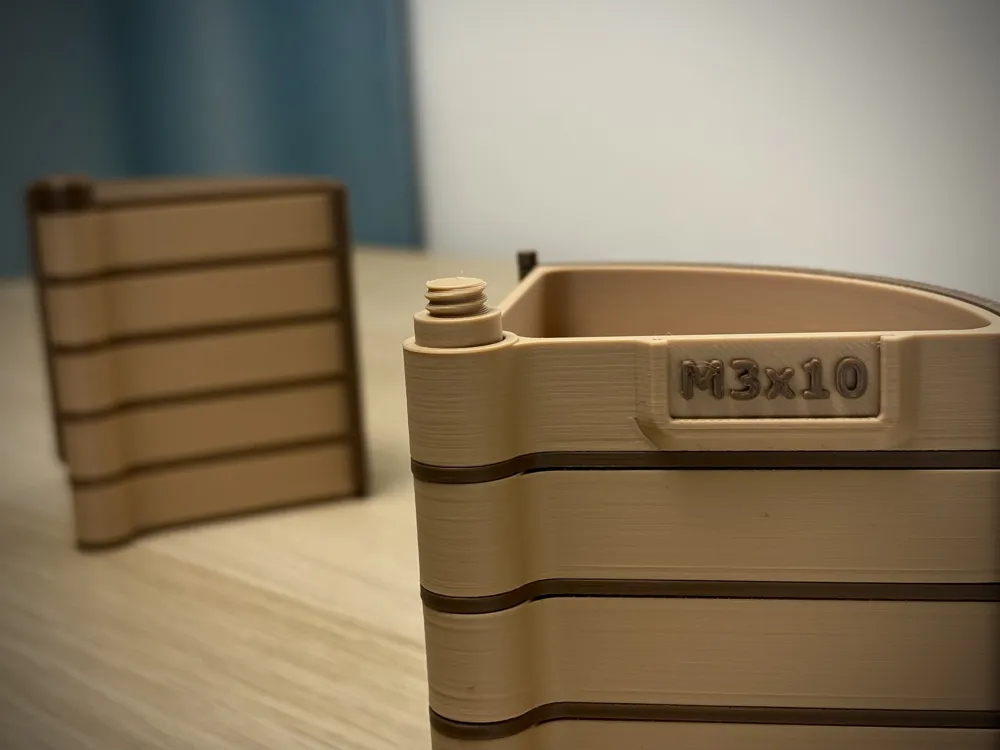

  • Boxes With Label - 08_Box_Label for easy item identification 🏷️ (editable in slicer or with 29×12 mm paper labels)
• Sizes of tier: 89 mm total size, 73 mm radius, Each tier includes 5 boxes.

🔧 How to Build the Main Tier

1. Start with 01_Base – this is always the foundation of your tower.
2. Begin stacking: place 04_Box on the base, then add 03_Floor on top of it.
3. Repeat this sequence (04_Box → 03_Floor) until all 5 boxes are used.
4. Insert 02_Pivot through the center and screw it into the base to lock the whole tier together 🔩.
5. Place 05_Roof on the very top.
6. Finish by attaching 06_Plug – screw it onto the Pivot to secure the entire organizer

🔧 How to Add a Second Tier

1. Instead of 01_Base, print 07_Base_Modular for the next level!!
2. Place 07_Base_Modular directly on top of your completed first tier.
3. For each additional tier, print again:
   • 5× 04_Box
   • 4× 03_Floor
   • 1× 02_Pivot
4. Build it the same way as the main tier and close it with 05_Roof + 06_Plug on top.

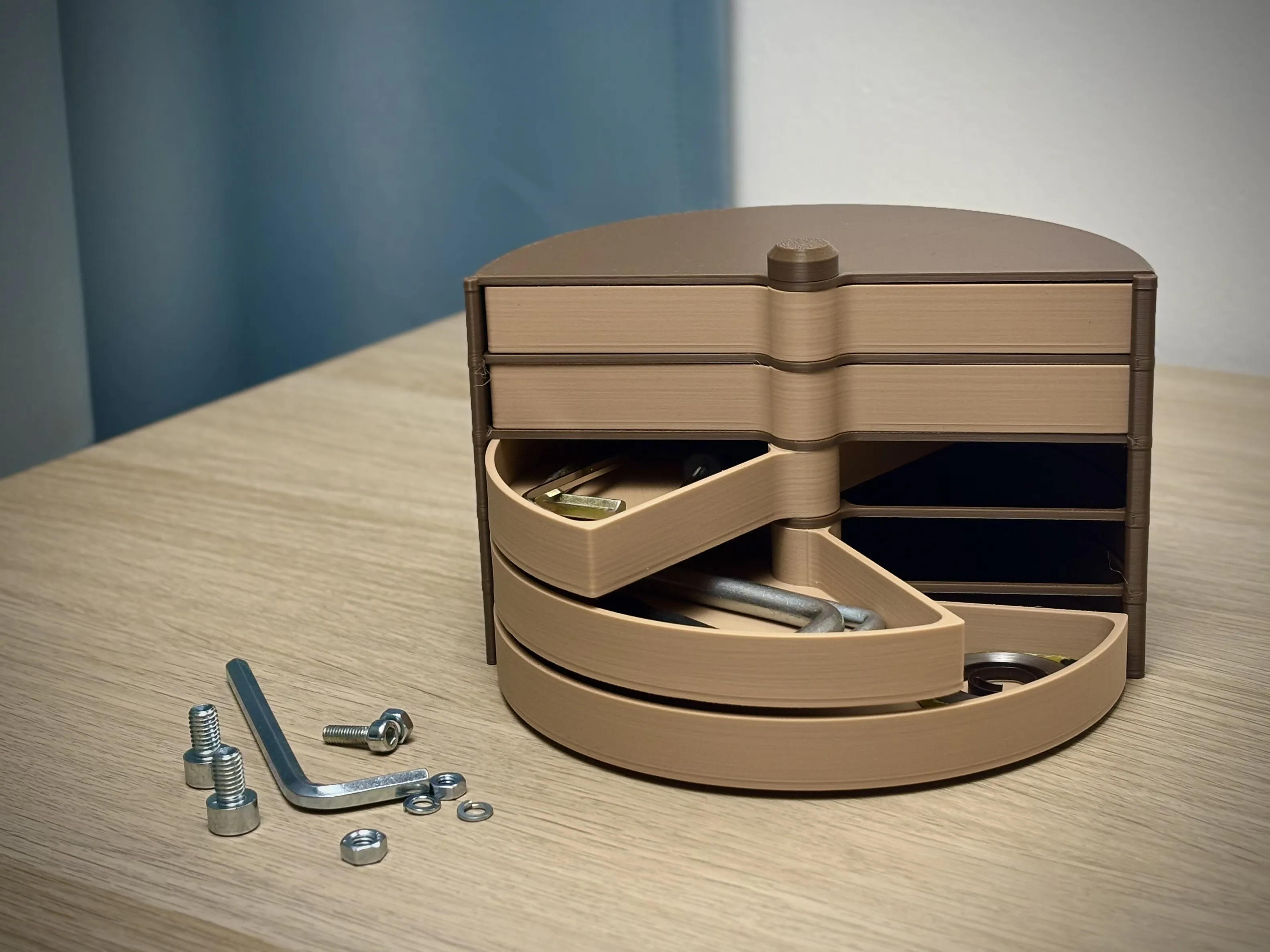

👇The Storage Tower Organizer – Semicircle  (Click)👇
