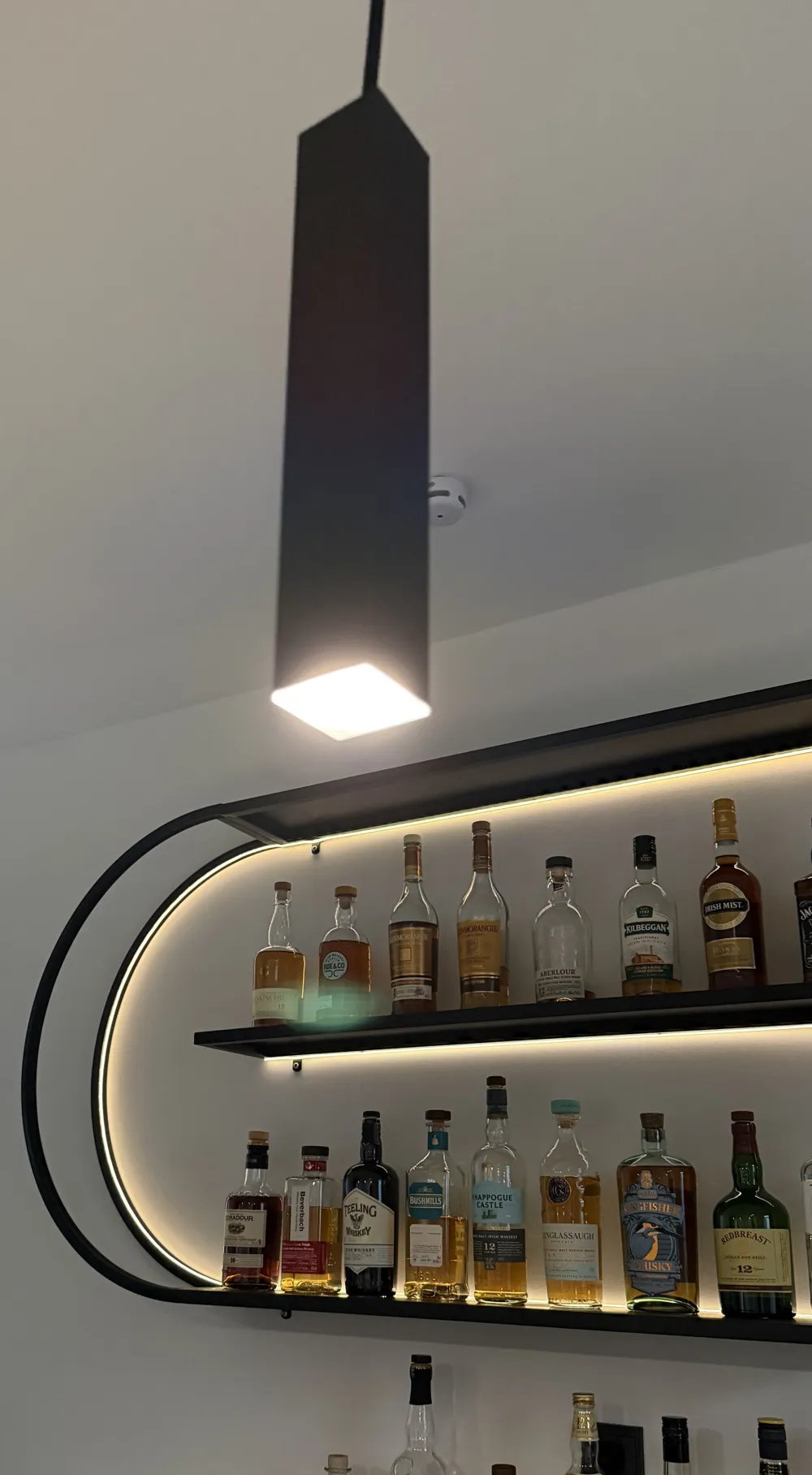

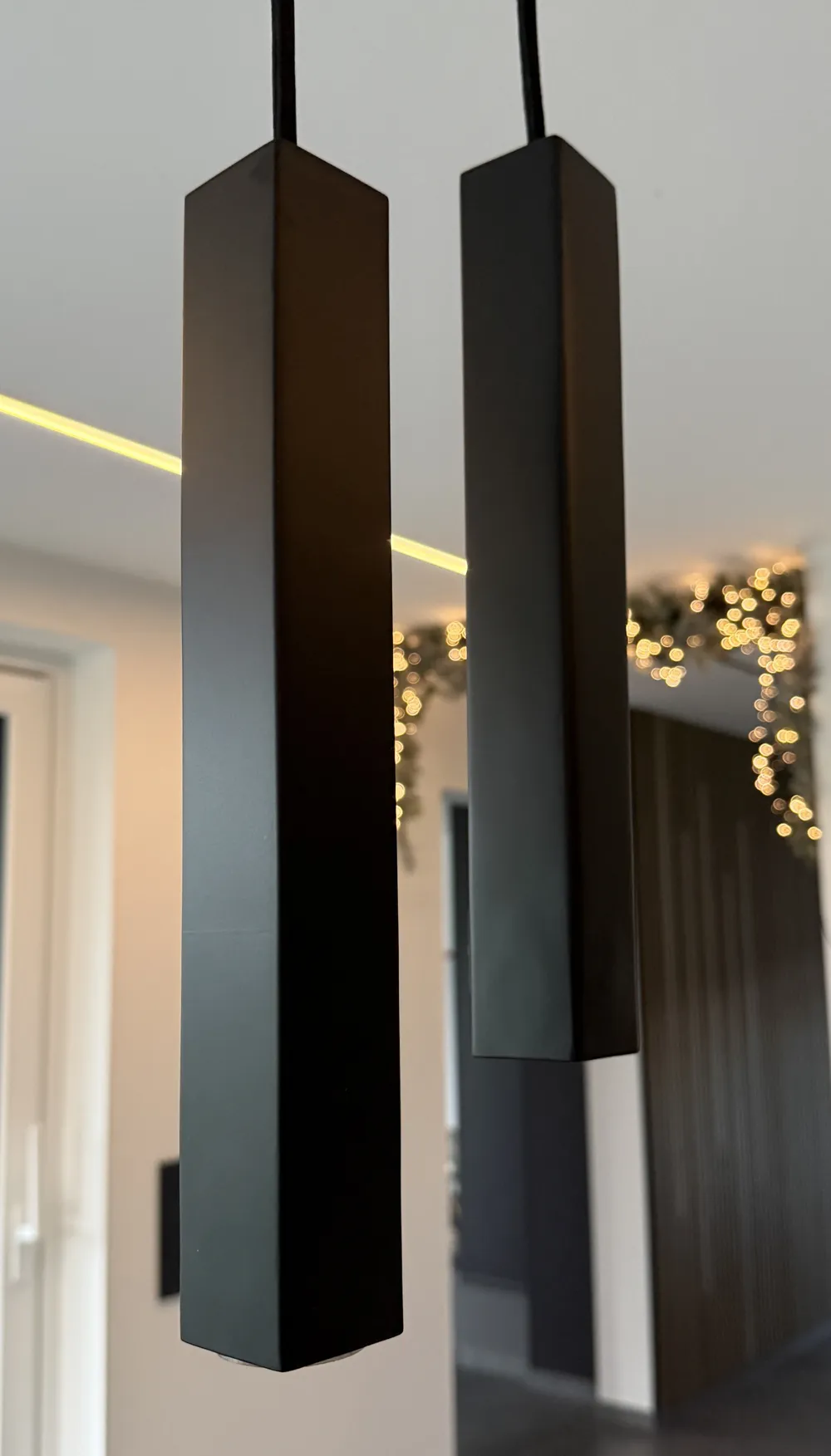

LED Pendant Lamp
A minimalist 3D printed pendant lamp.
Dimensions:
Width: 40 mm
Length: 40 mm
Height: 250 mm
Hole for cable entry: 8mm
If you like the model, I would appreciate a boost:
Boost Me (for free)
If you like the model, feel free to leave a comment or a like. I would be very happy about a boost! Thanks for your support!

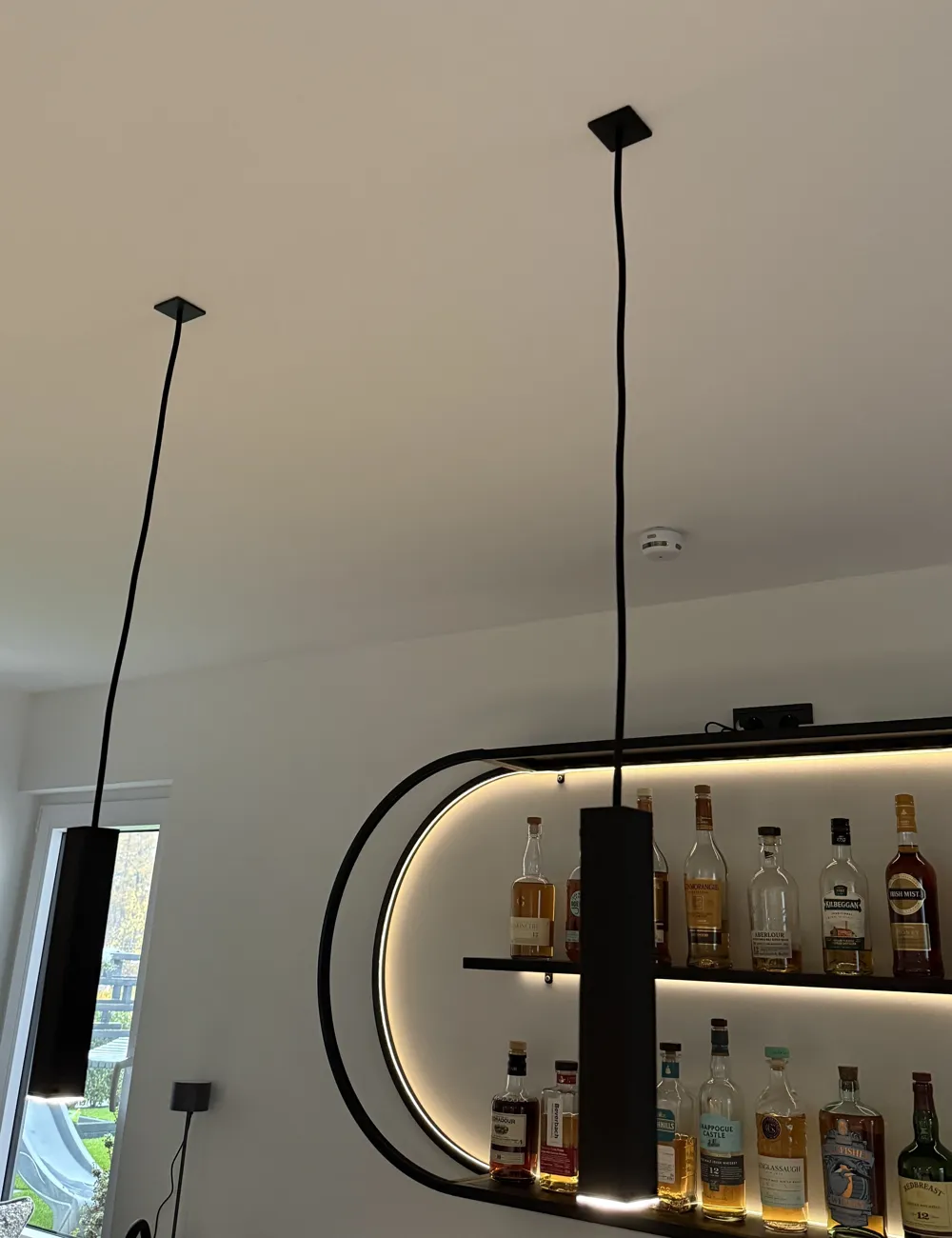

A matching canopy can also be found in the print files.
This can be used in a "hollow wall ceiling," for example, made of plasterboard. A 32mm hole is required for this, and the cable feed-through is 7.1mm. A 3-core (3x1.5mm²) textile-sleeved cable fits quite snugly here, so the light fixture can be held by it alone due to its low weight. The canopy itself has dimensions of 45mm x 45mm

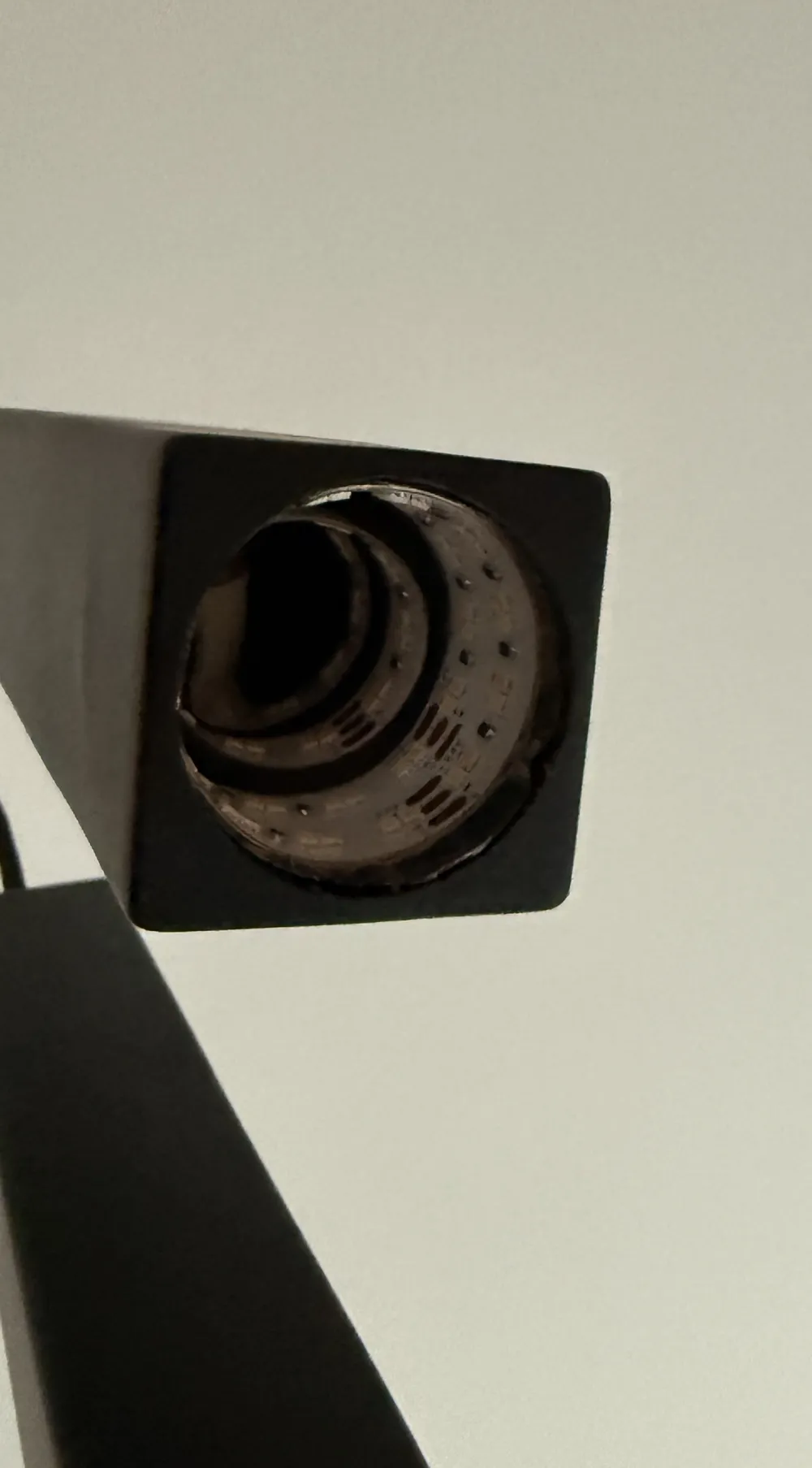

In the lower part of the lamp, I glued in a short LED strip; for better reflection, a piece of aluminum tape can be glued to the inside beforehand. (see pictures)
There is enough space in the upper part of the lamp for the connection to the power supply cable.
Print the light diffusion cover from transparent material.
