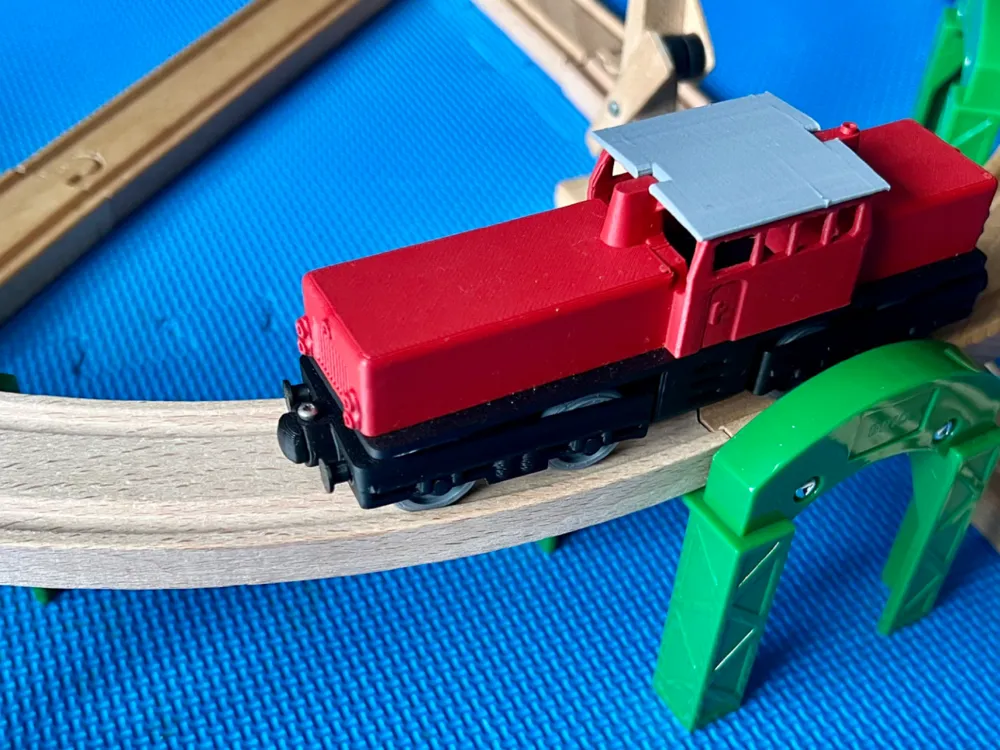

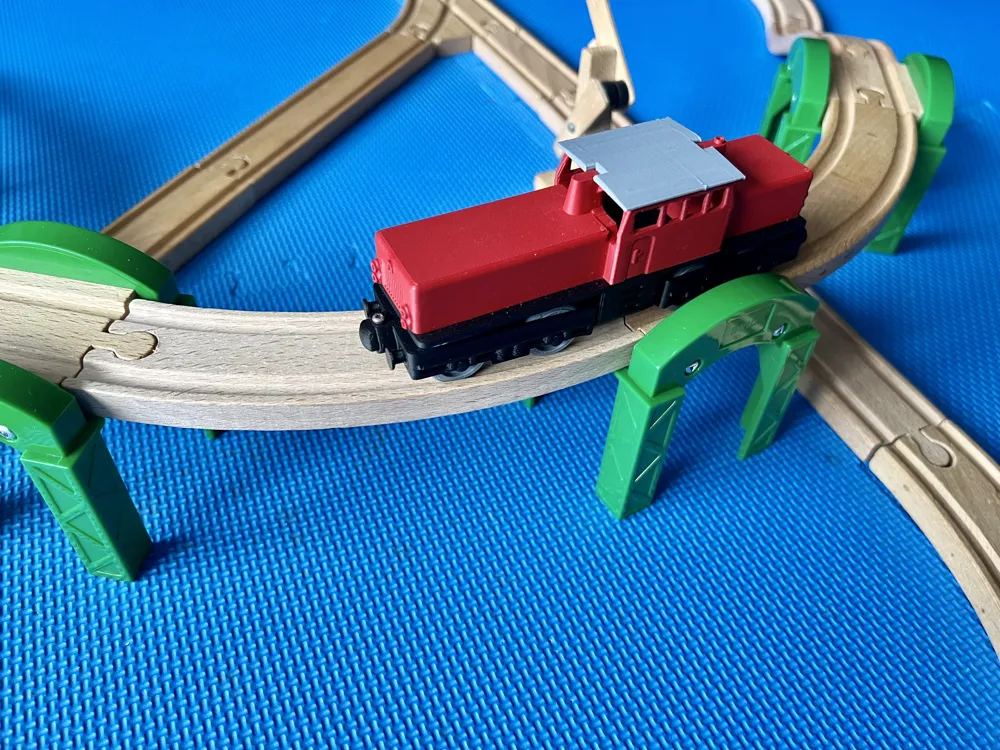

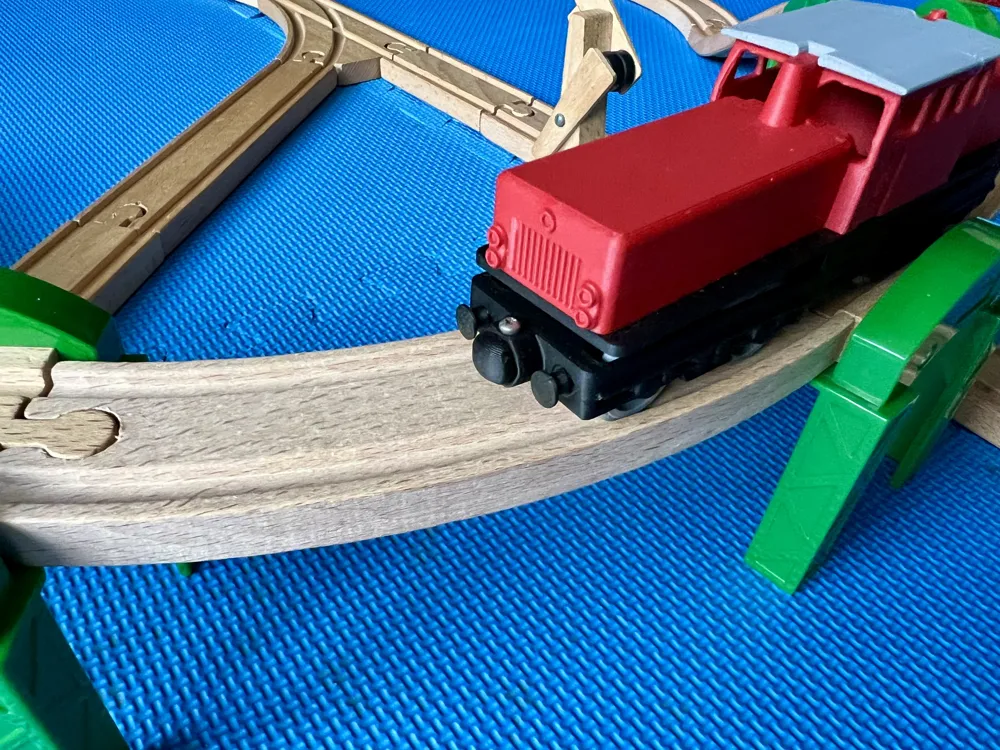

V100 for wooden railway, Brio compatible

Bring authentic railway charm to your wooden train world with the V100 locomotive. Inspired by the classic diesel engine design, this model is perfectly scaled for wooden railway systems and fully compatible with Brio tracks.

Brio compatible: Fits seamlessly with all standard wooden railway tracks.

Classic V100 design: A faithful representation of the iconic diesel locomotive.

Detailed finish: Realistic colors and design details for an authentic railway experience.

With the V100 locomotive, your wooden railway comes to life—combining timeless design with endless play possibilities.

Parts required:

2x magnet Ø 6mm x 3mm

2x M2 x 10mm screw

9x M2 x 4mm screw

Building instructions

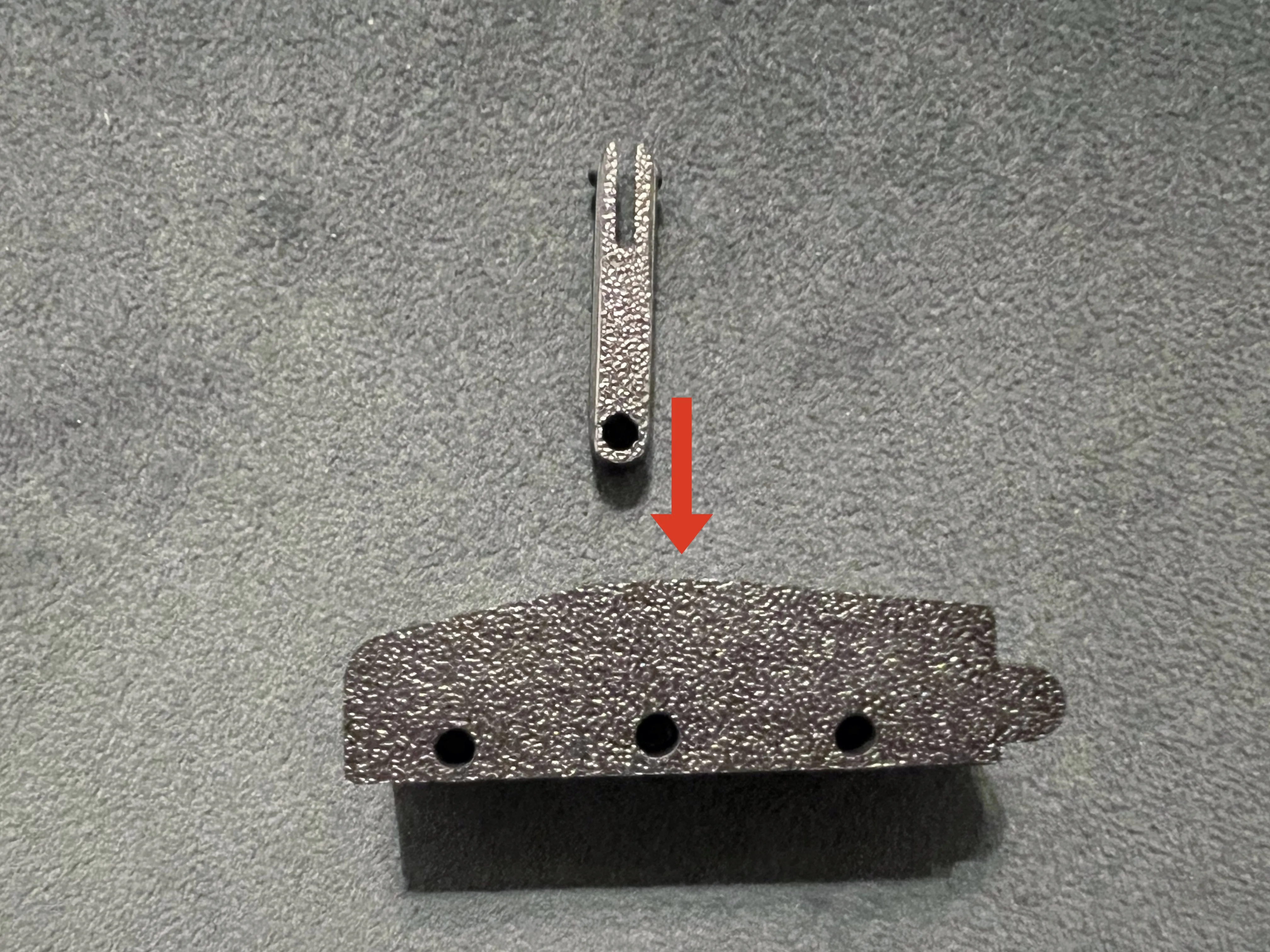

Step 1: Install the rotation axis for the boogie

Step 2: Fix the rotation axis by use of a pentagon axis.

Step 3: Add more axis and the wheels

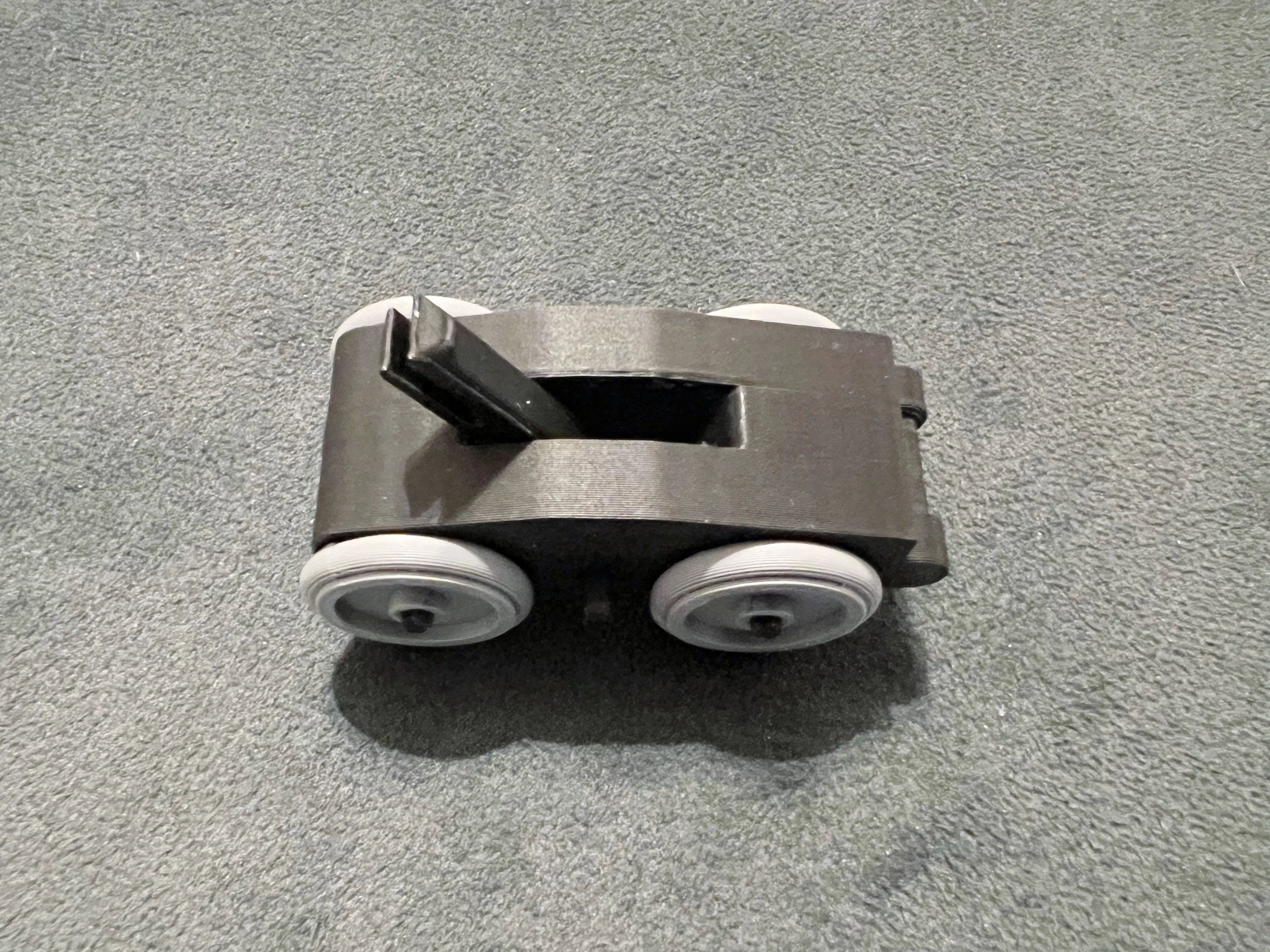

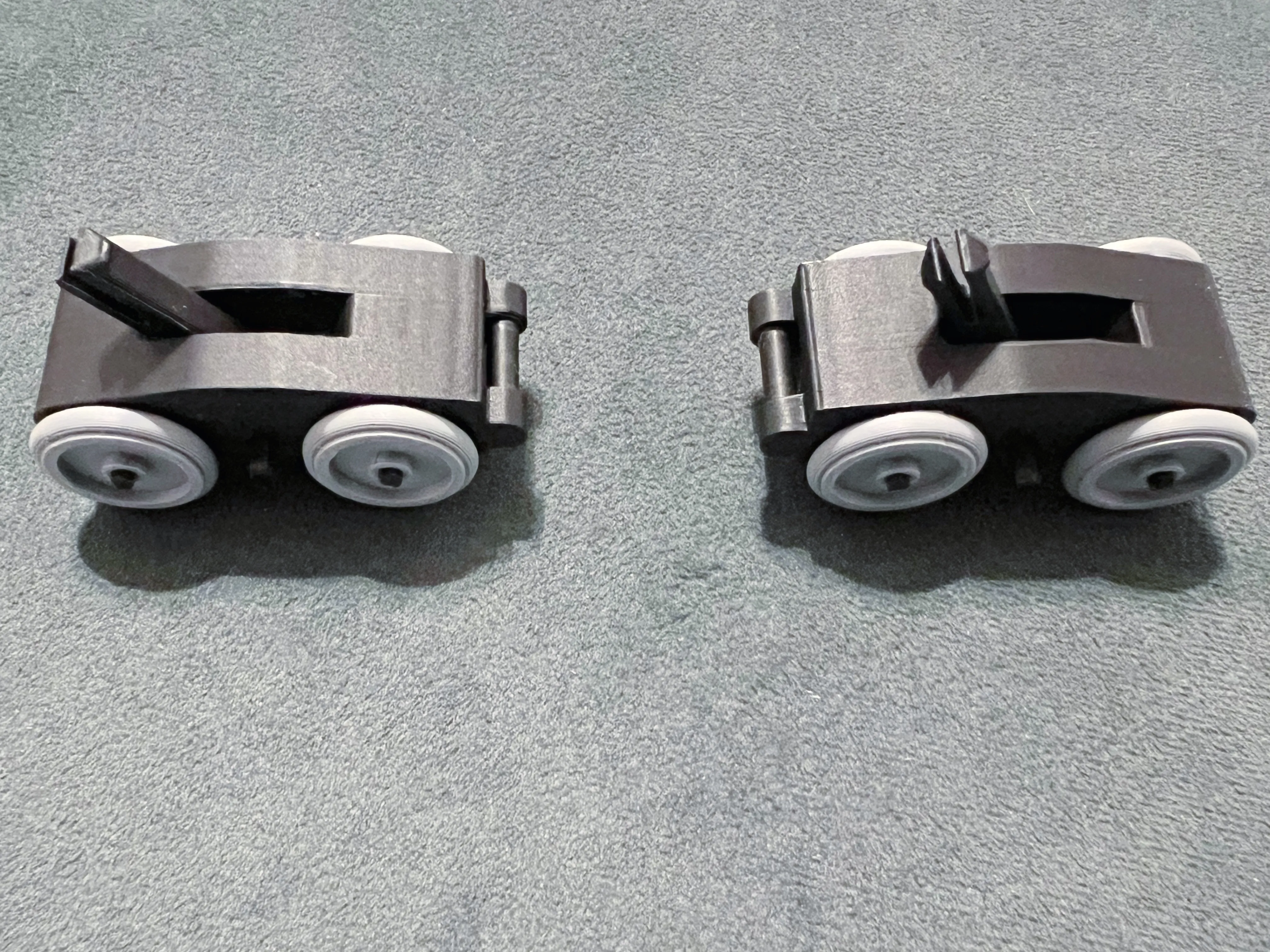

Step 4: Prepare both boogies

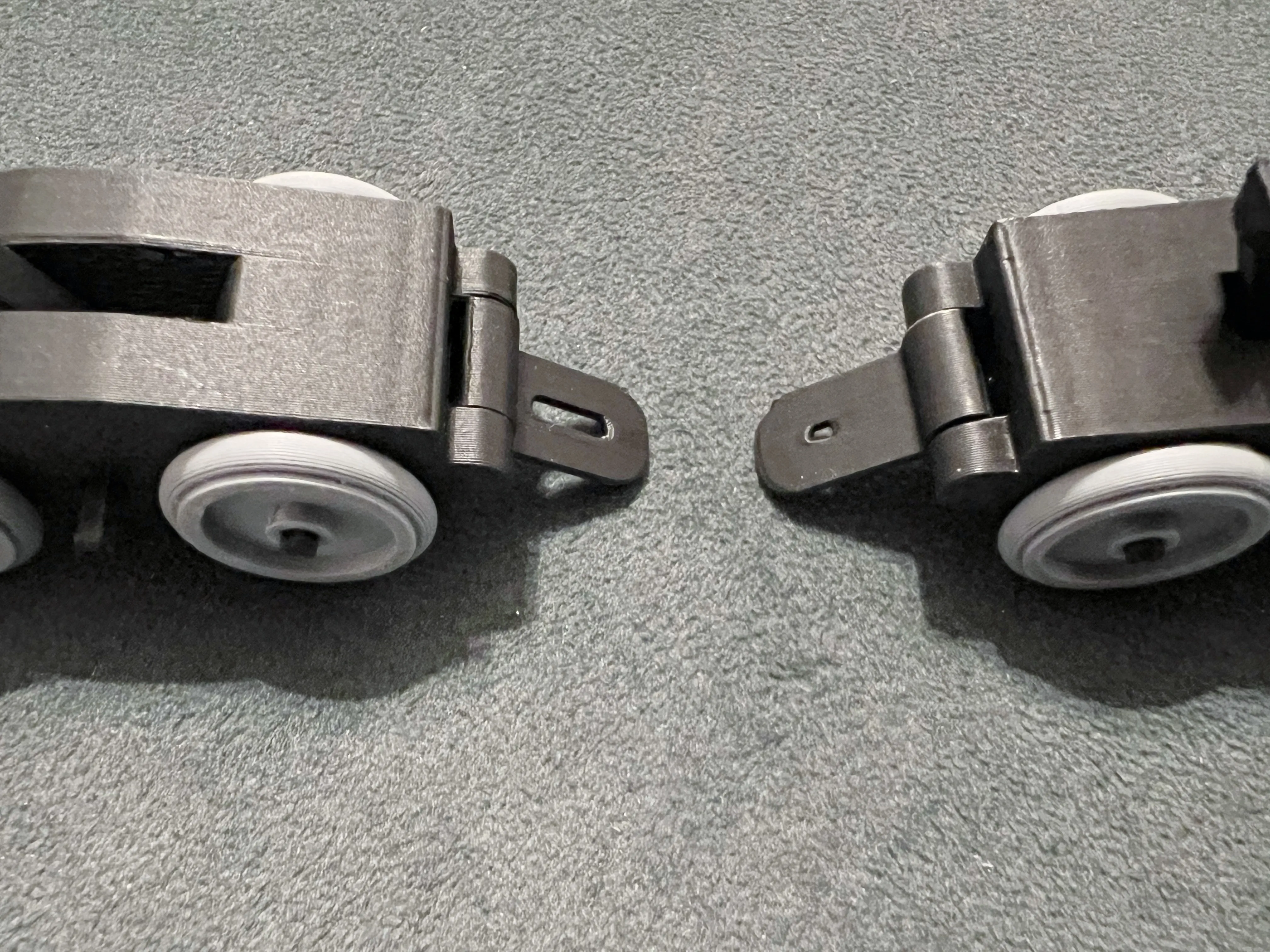

Step 5: Add the tracking frame

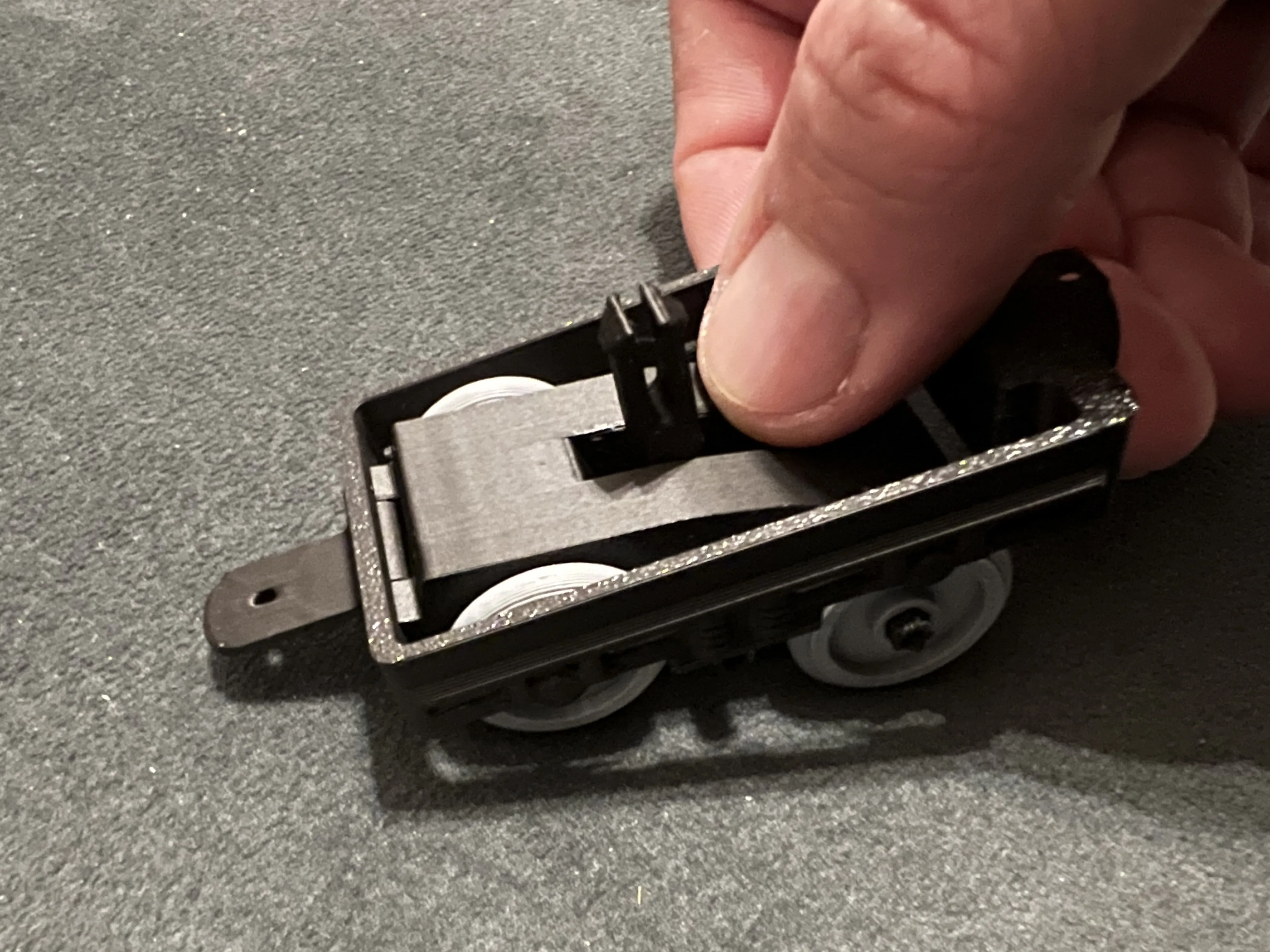

Step 6: Add the boogie chassis

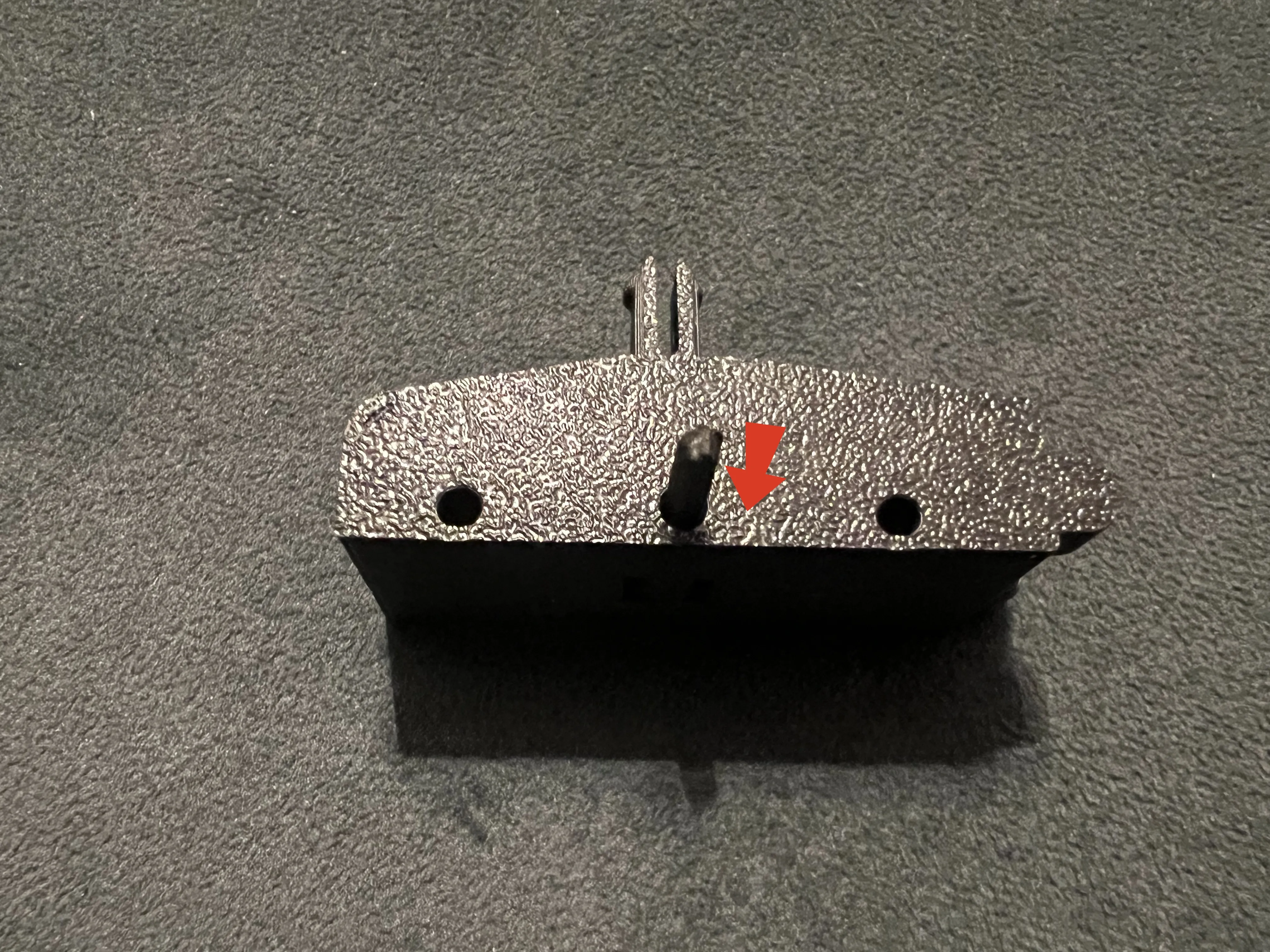

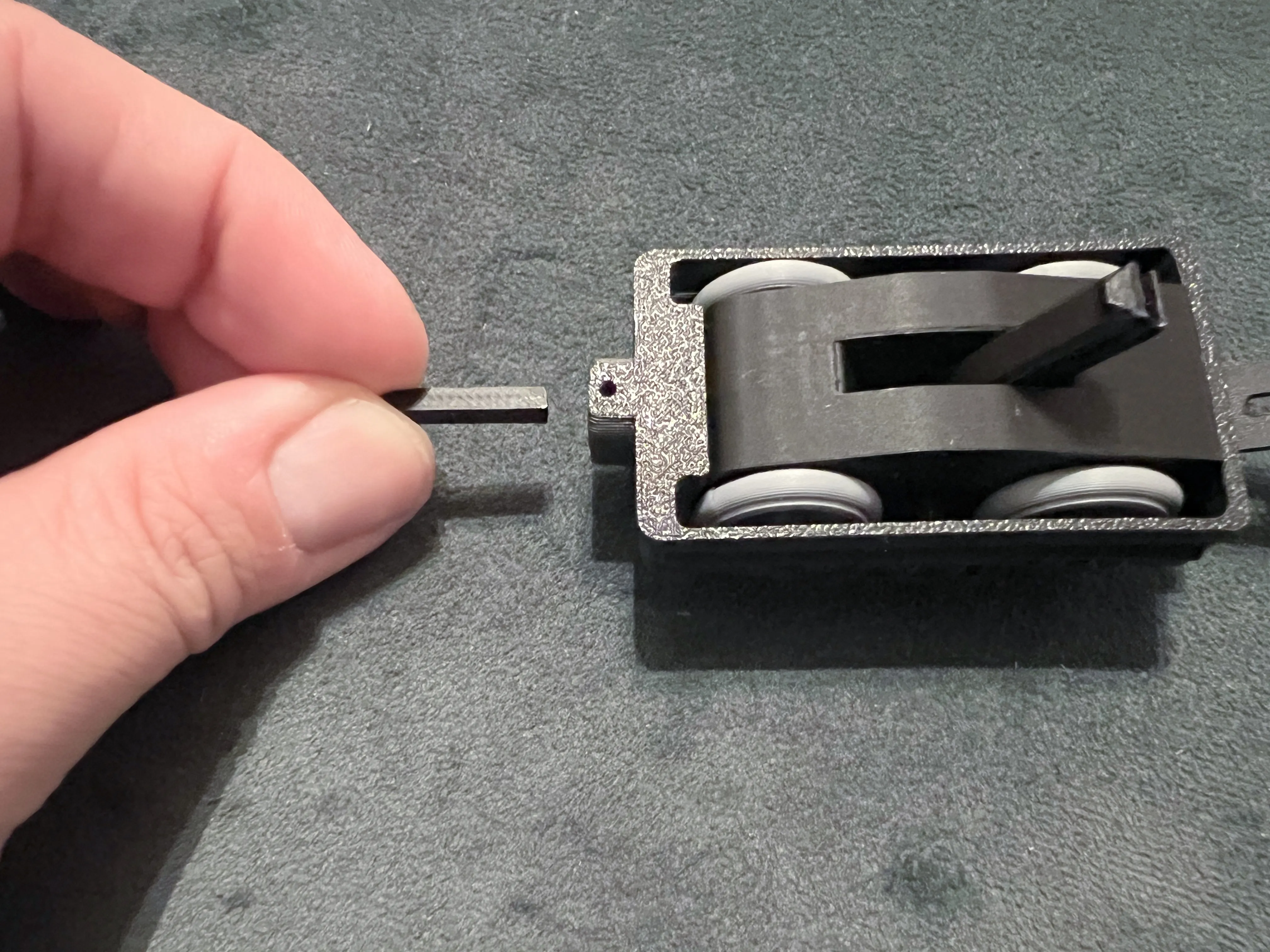

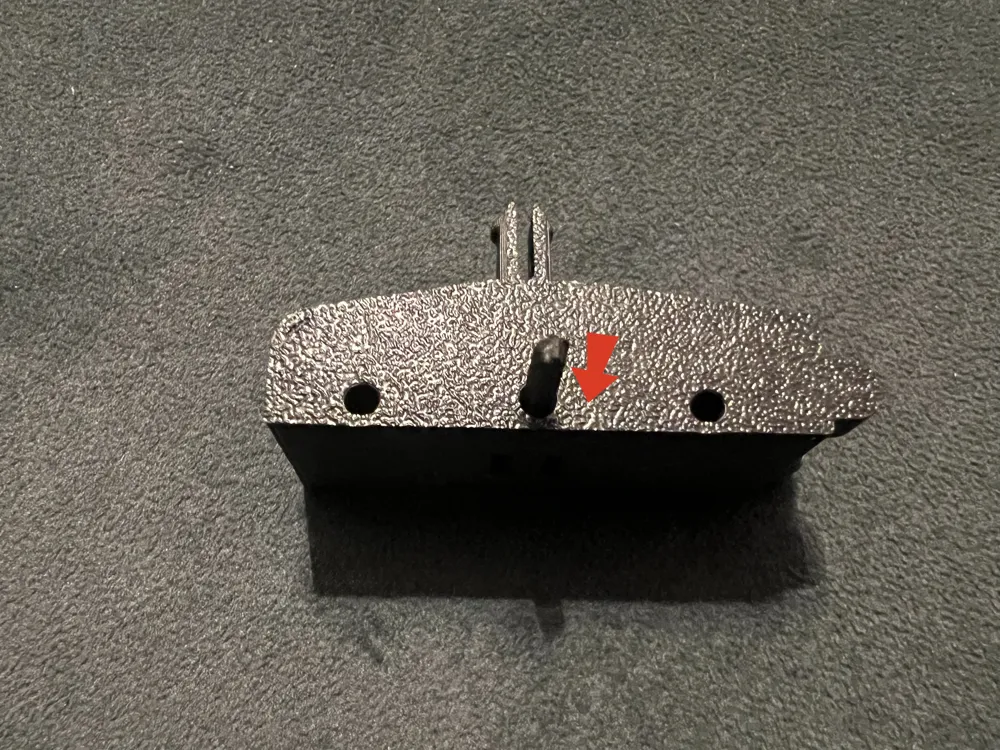

Step 7: Fix the chassis with the bolt. You can use a screwdriver to press it inside. Make sure the hole in the bold is visible. To remove the bolt, a M2 screw can be used.

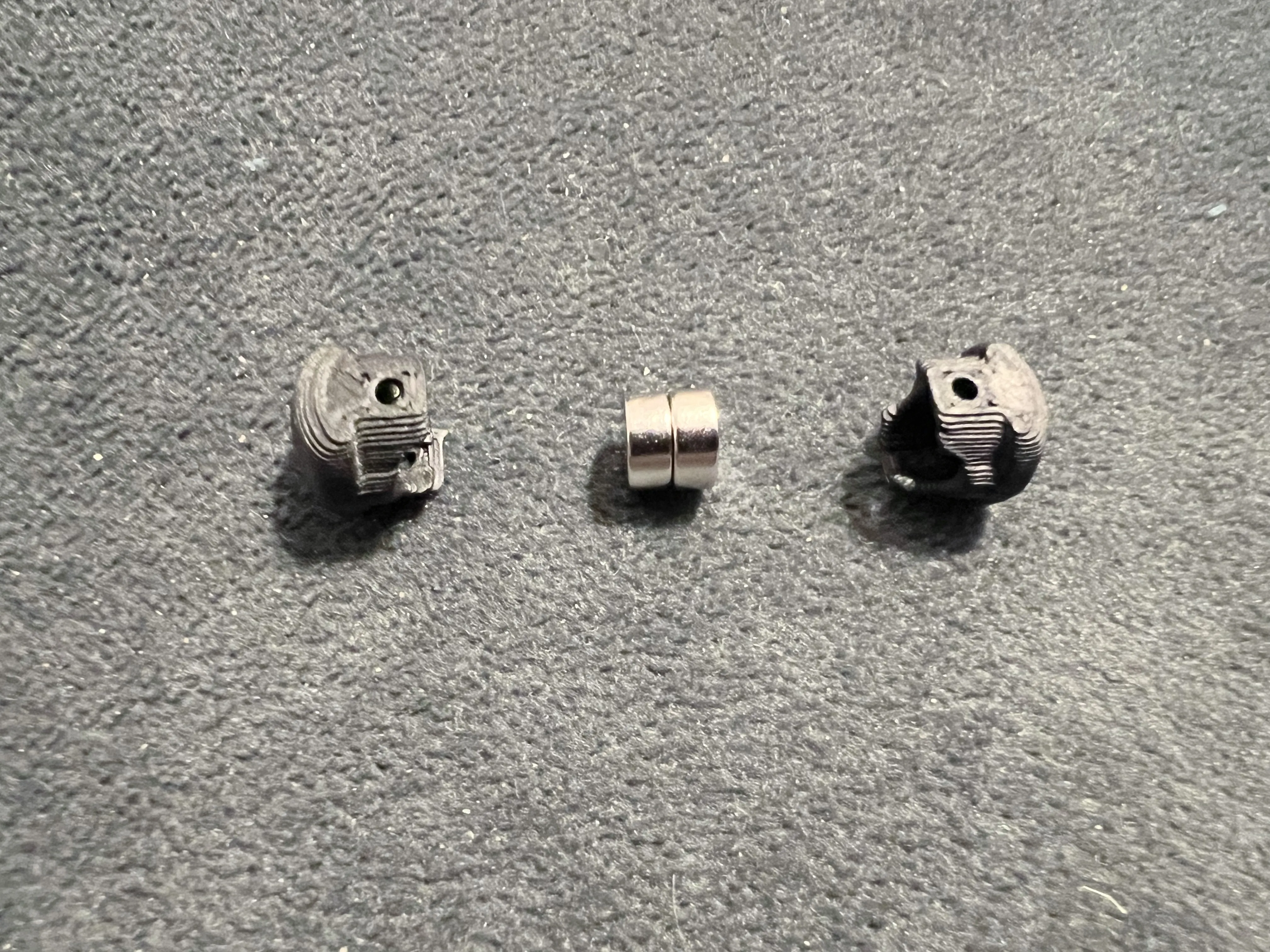

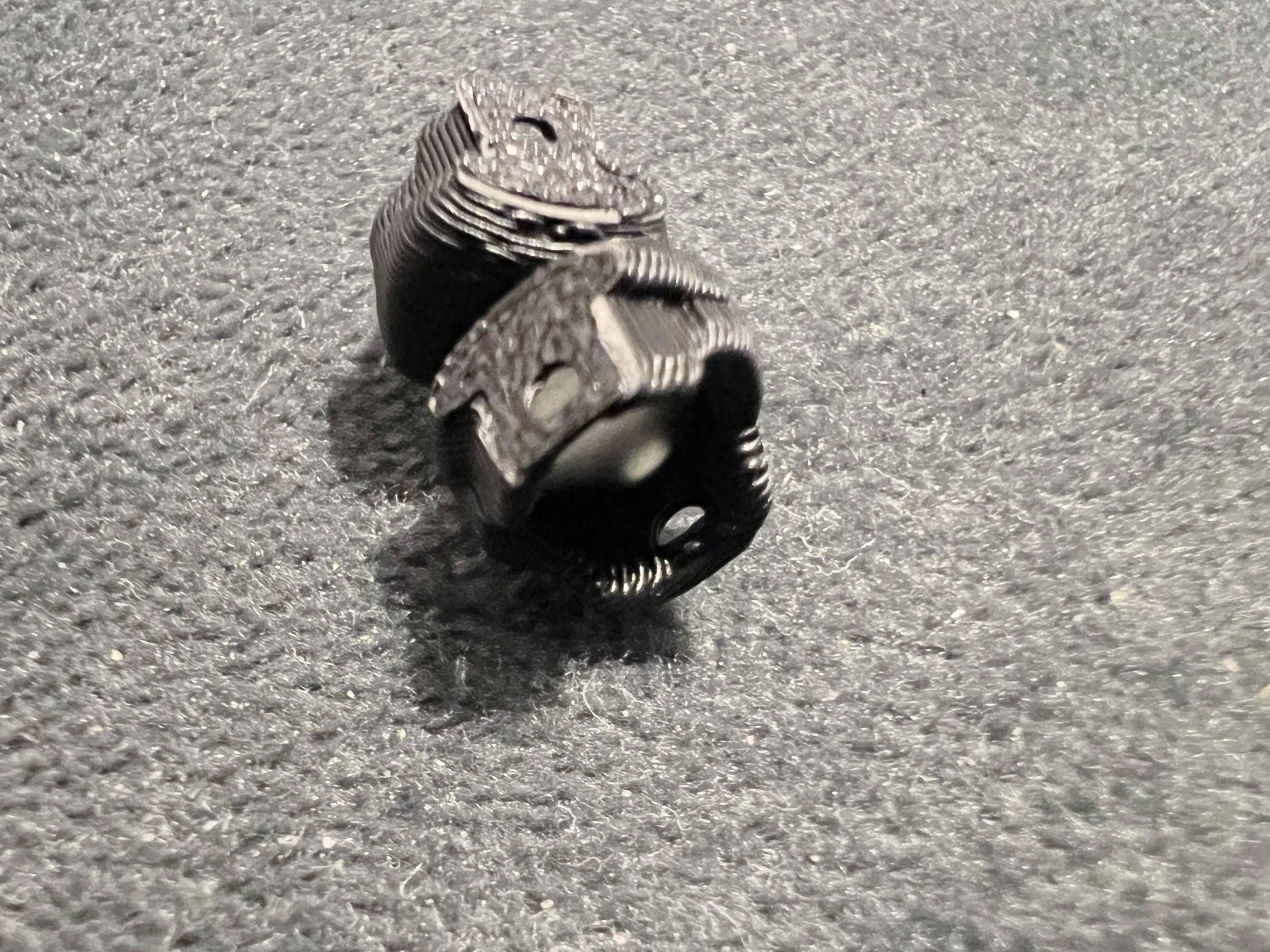

Step 8 + 9: Put the magnets into the magnet caps, so polarity is differently for each cap.

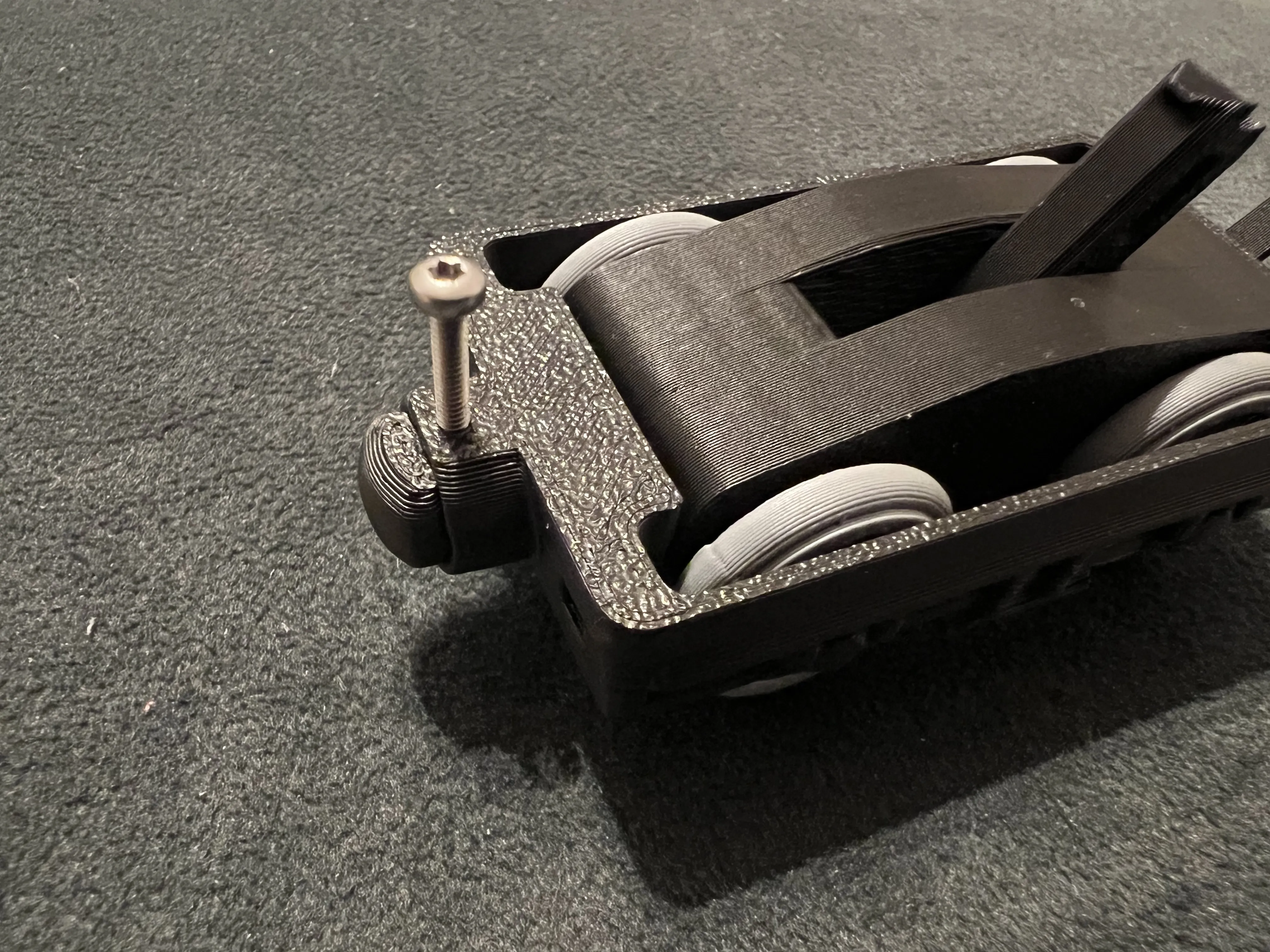

Step 10: Fix the magnet cap with M2 x 10mm.

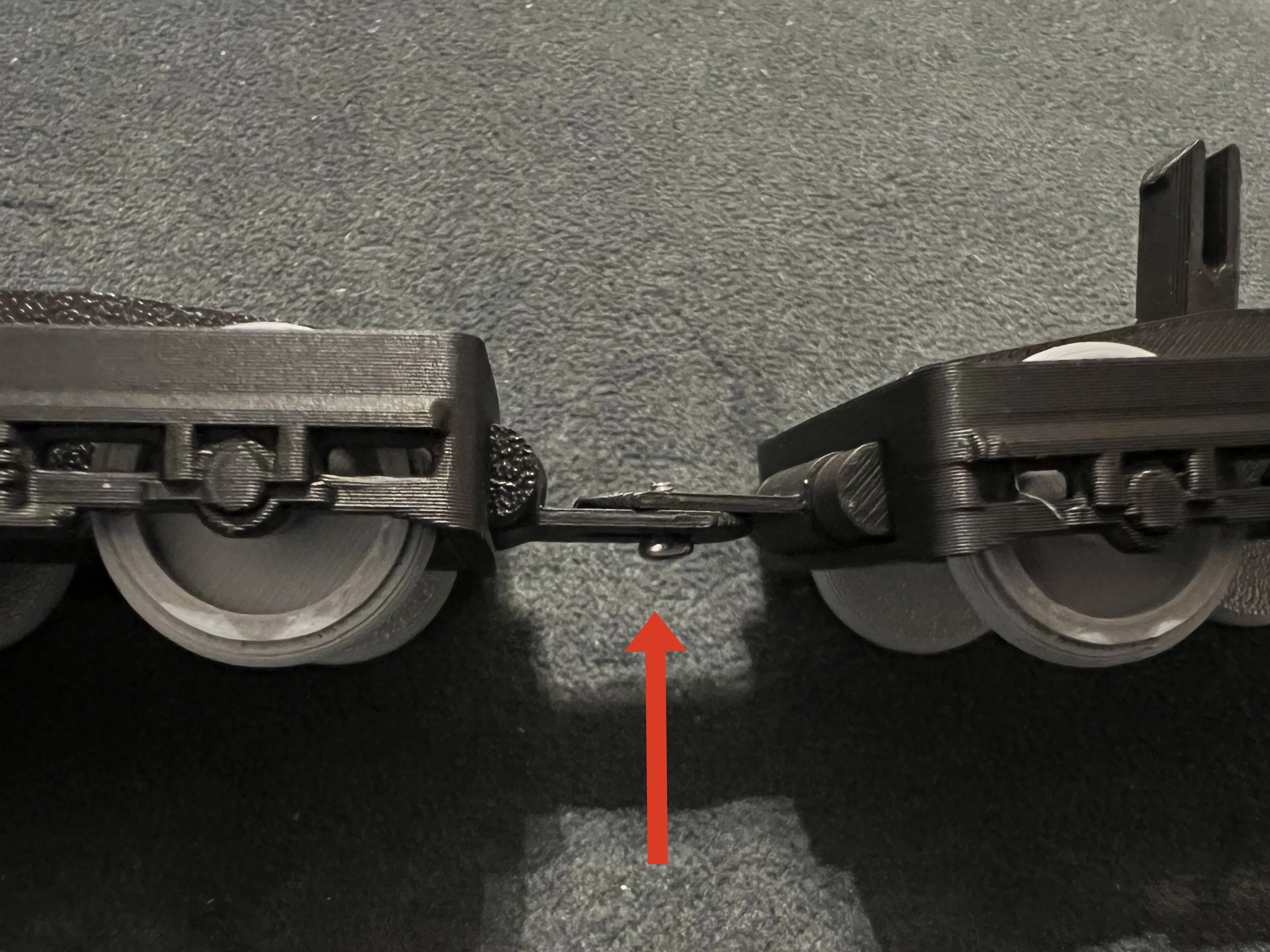

Step 11: Install 1x M2x4mm for the boogie tracking mechanism.

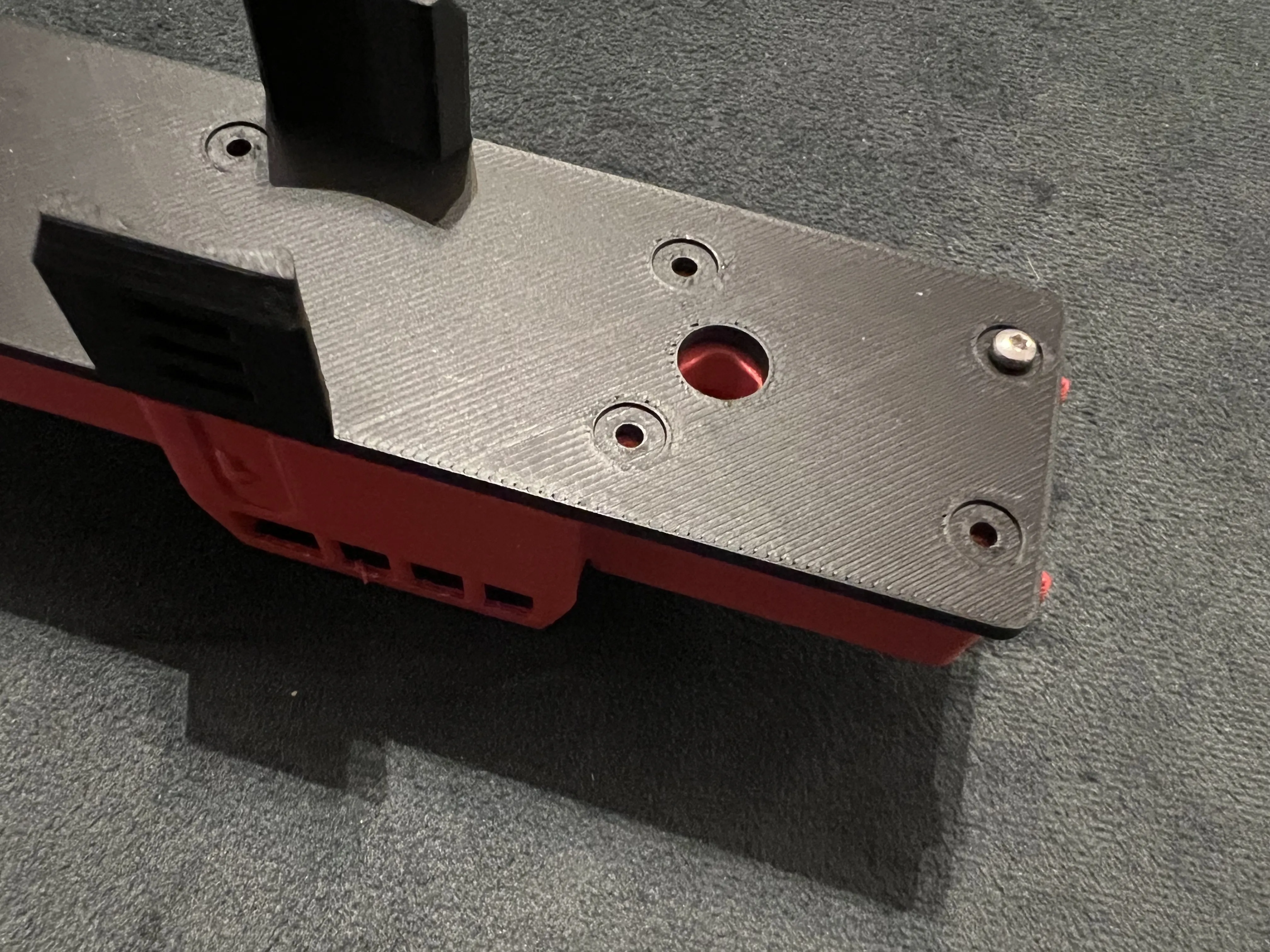

Step 12: Install 8x M2x4mm screws to fix the bottom part to the upper parts

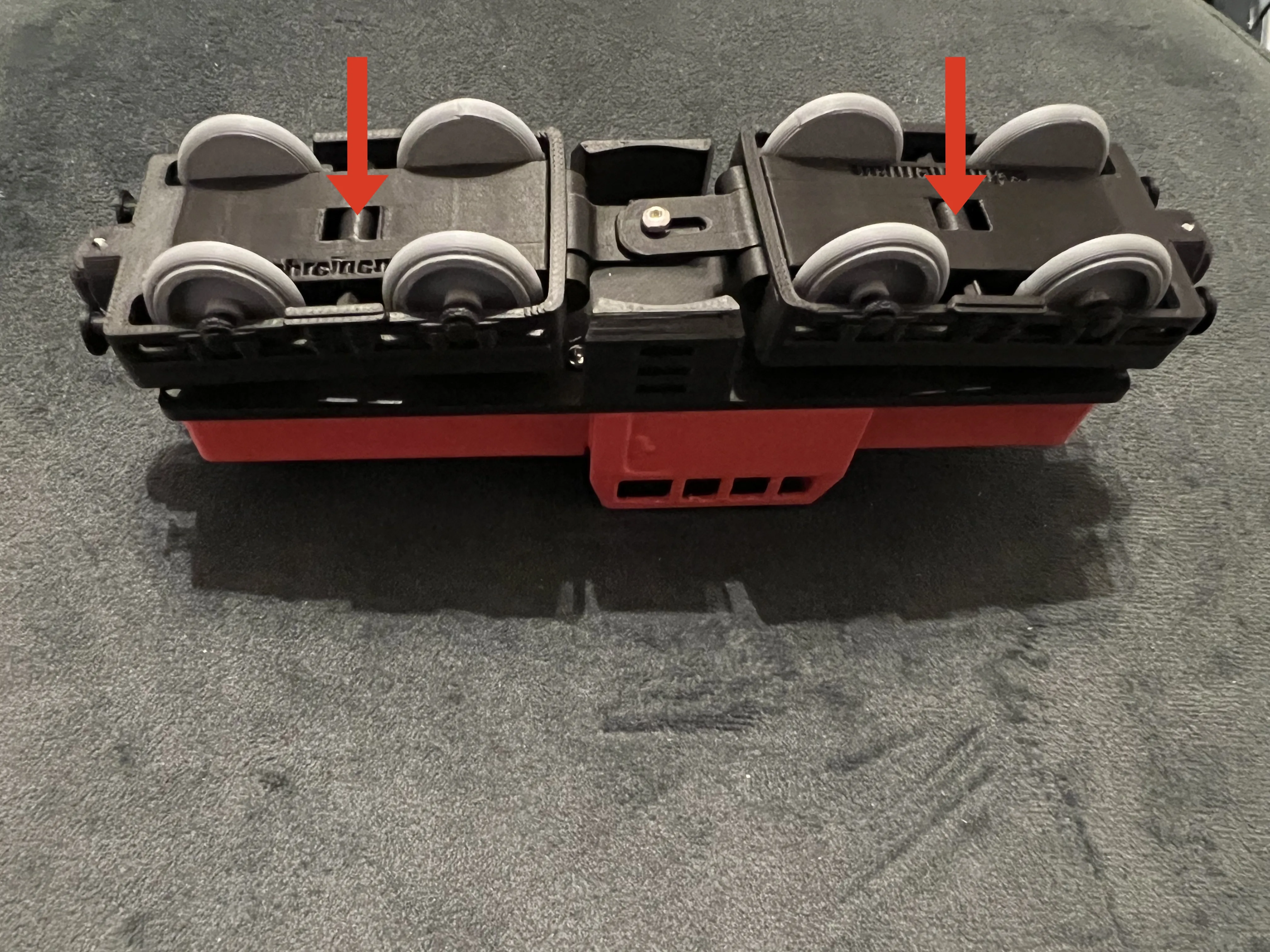

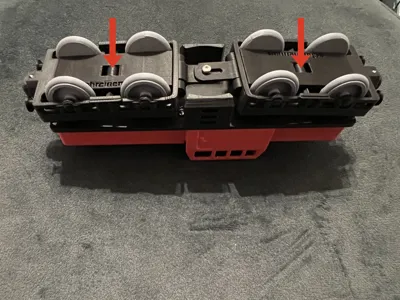

Step 13: Install boggies to the top part

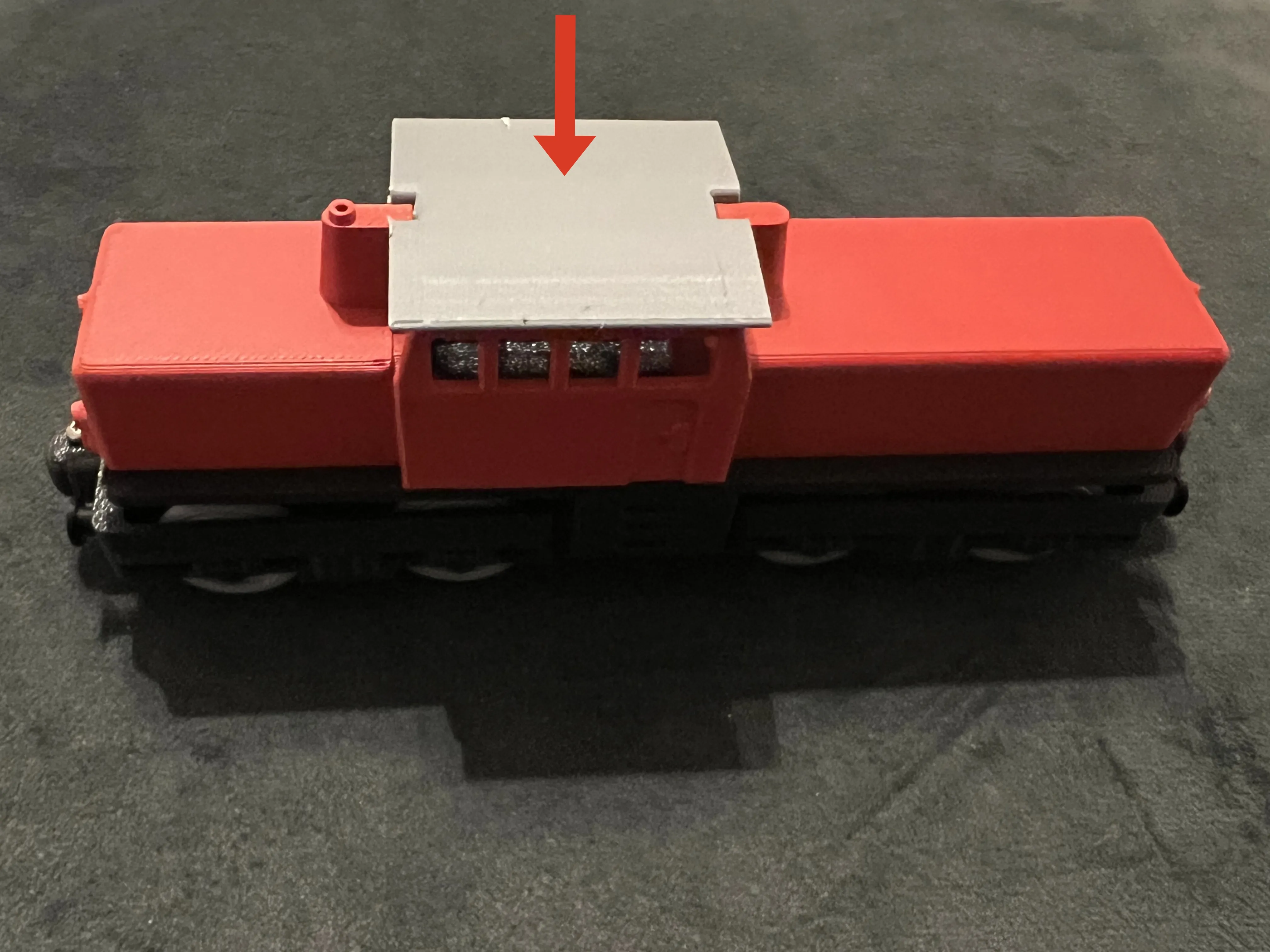

Step 14: Install the roof
