Bending jig for electronics components
Print Profile(1)
Description

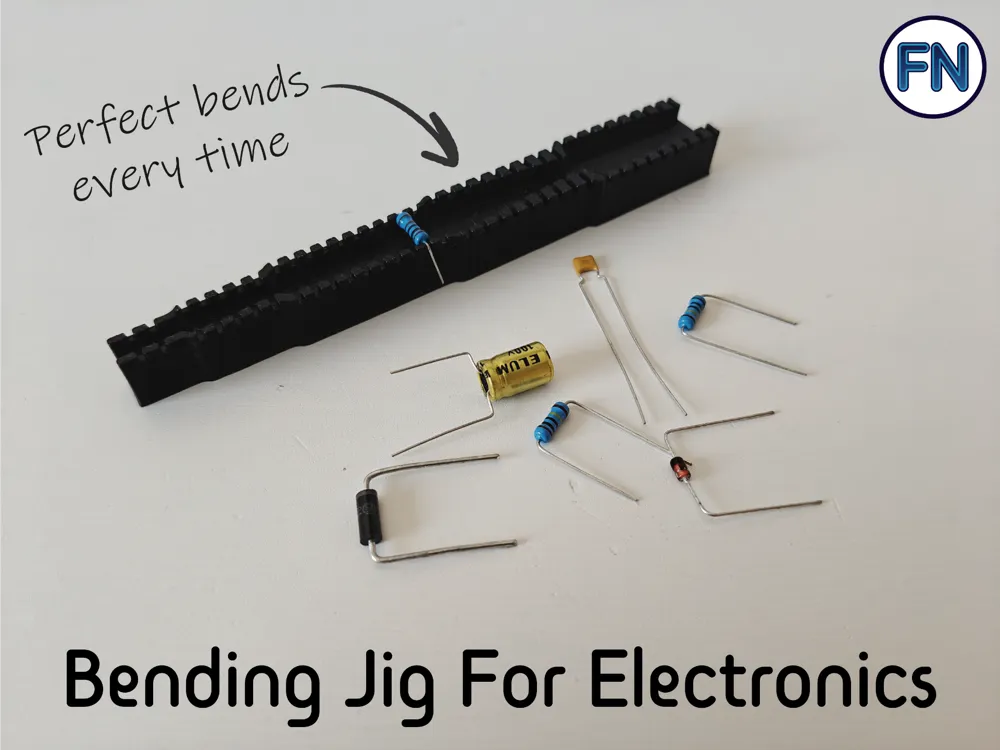

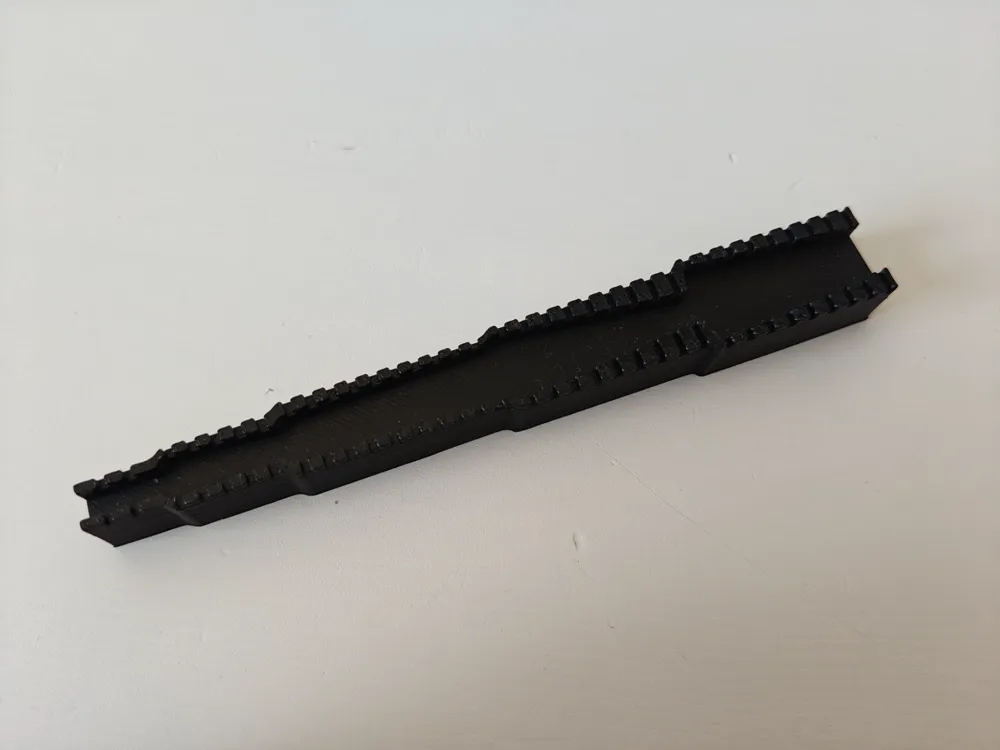

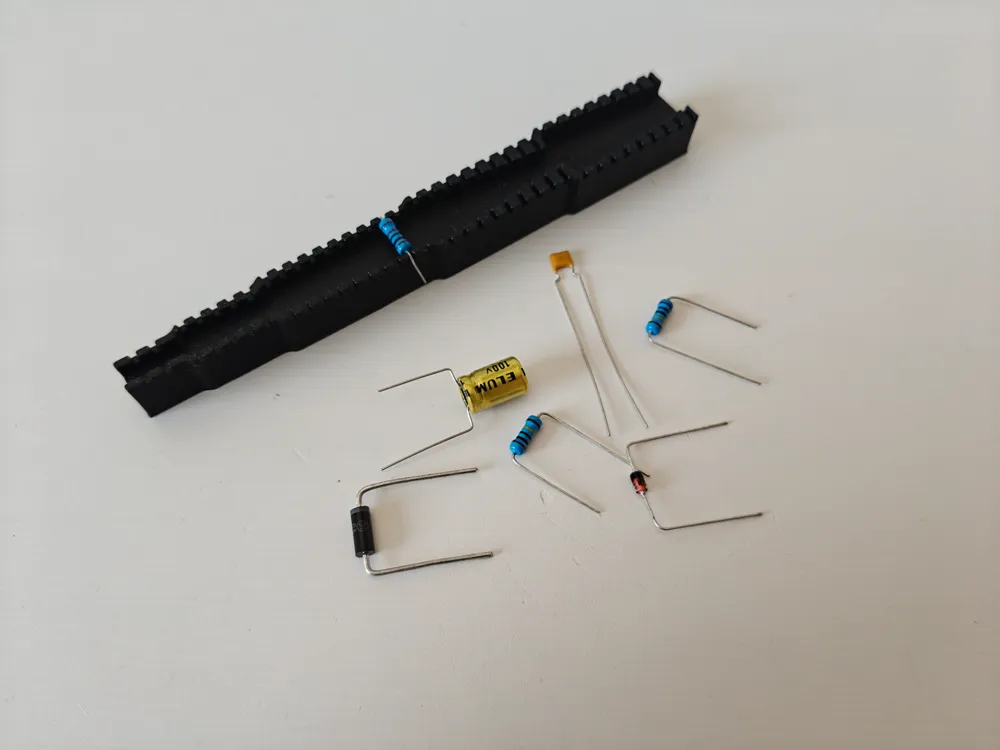

Bending jig for electronic components making it easier to get perfect bends on common through-hole components like resistors, diodes, capacitors etc.
The jig can bend the following widths:
- 7.5 mm
- 10.0 mm
- 12.5 mm
- 15.0 mm
- 17.5 mm
The jig can also be used for single-sided components like capacitors. The leads are then be bent along the sides of the jig.
Print time: 32 min
Material usage: 11 g
