Spiral Lamp E27

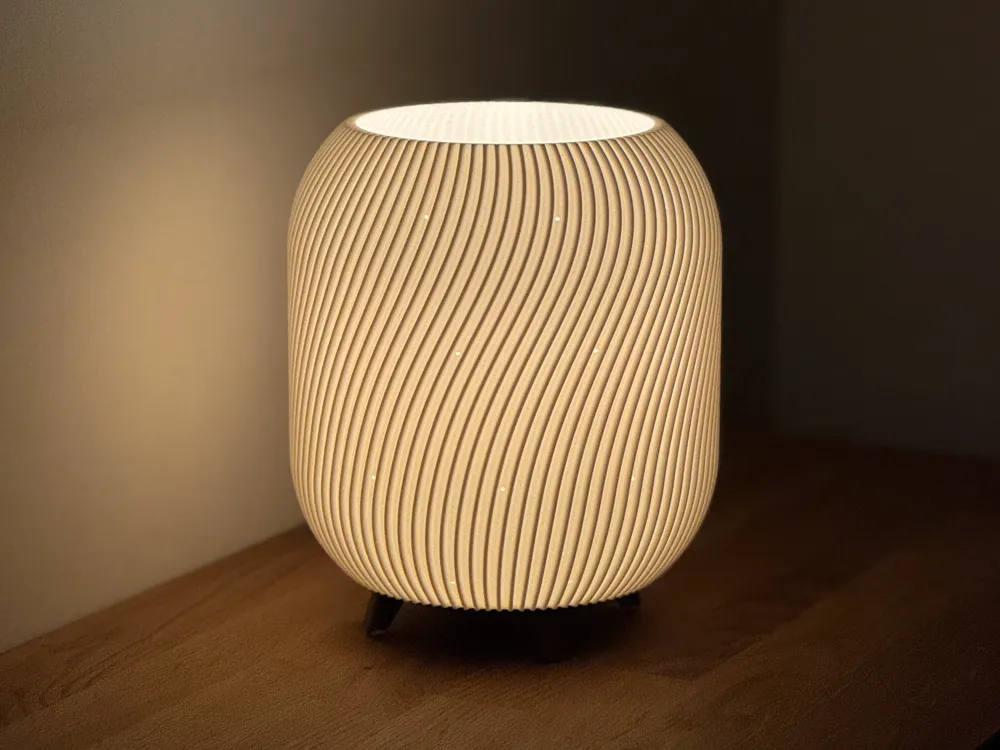

Although there are already several lamps available here, I thought my design might also attract interest. This lamp features a swirl design with small holes, allowing light to shine through

Measuring 190 mm in diameter and approximately 230 mm in total height, this lamp can be printed on all machines except the A1 mini. For printing, I used standard settings and only enabled support structures. While there is certainly room for further optimization, I was personally very satisfied with the lamp's quality

In addition to the filament, only an E27 lamp holder is required. These are readily available at any hardware store. I opted for a white holder for my lamp, which typically costs around 3-4 €

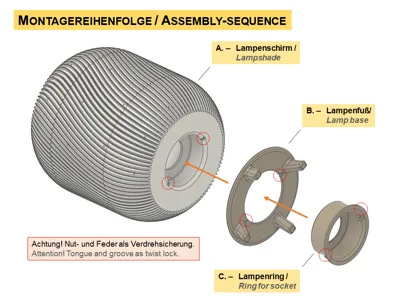

Components:

A. Lampshade

B. Lamp Base

C. Socket Ring

Assembly Instructions:

1. Assuming the cable is already connected to the lamp holder and its corresponding nut is fastened, guide the entire assembly through ring [C]. Inside the ring, there is a hook to secure the cable

2. Before attaching the lamp base [B] to ring [C], you can optionally glue a rubber pad into the recessed area on the base's feet. When sliding the lamp base [B] onto ring [C], ensure to align the two “noses” that prevent rotation

3. Finally, insert the lamp holder with ring [C] and the lamp base [B] through the hole in the lampshade [A], then screw the nut on from the top. A suitable bulb can then be screwed into the holder, completing the assembly

Bulb Selection Note:

Only LED bulbs should be used. Conventional incandescent bulbs are not recommended due to heat generation

Happy printing

Version History:

31.01.2026 - Lamp adapted for A1 mini

21.12.2025 - Model without holes added

16.11.2025 - Initial model
