Customizable Ribbed Tea Light Holder kc008 Tool

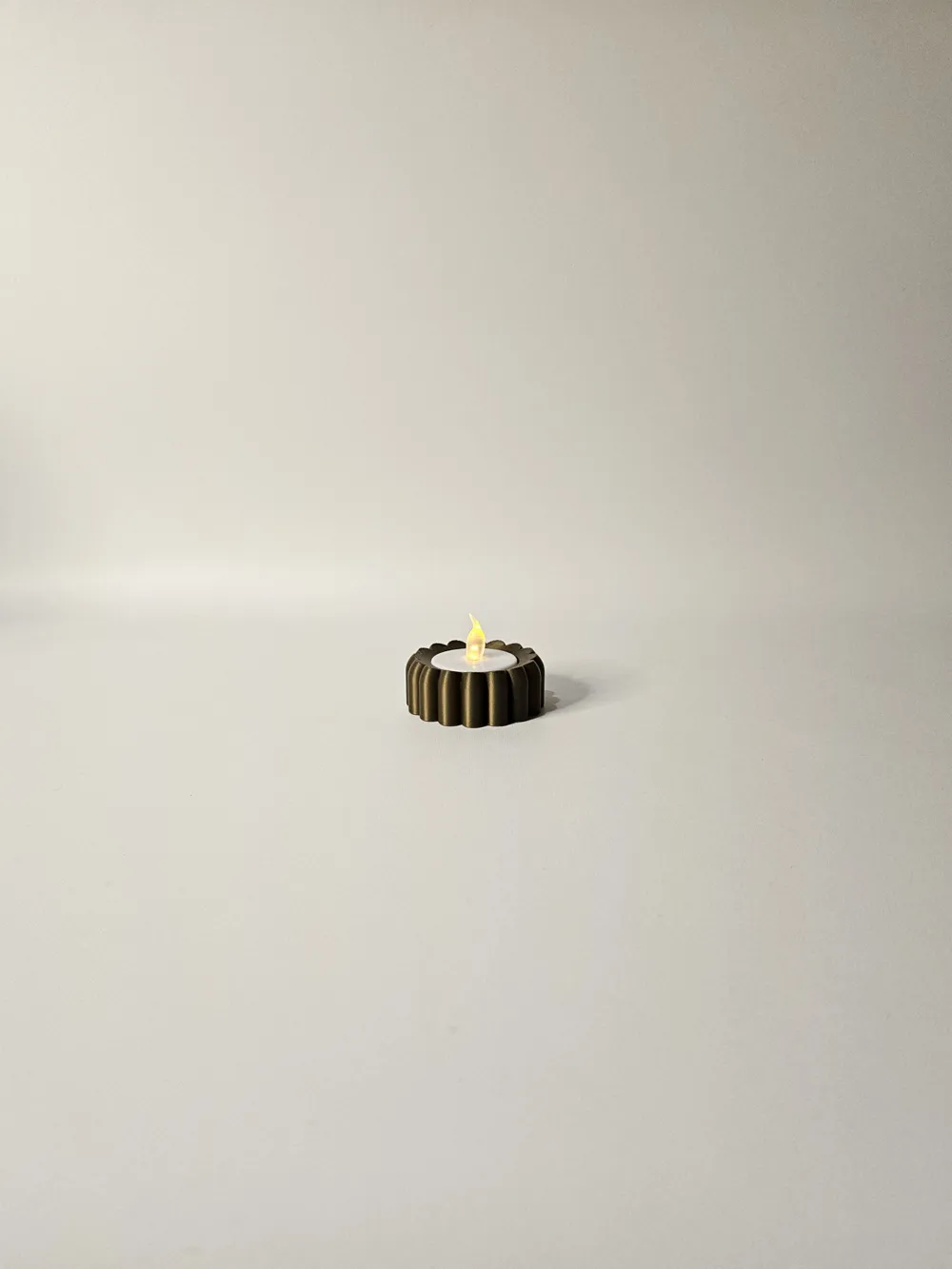

I designed this decorative tea light holder in Fusion 360 to be both highly customizable and functionally correct. It is sized to fit the industry standard 38 mm tea light (both wax and LED versions). While the model is robust, it gives makers control over three core parameters to generate a wide variety of looks from a single file.

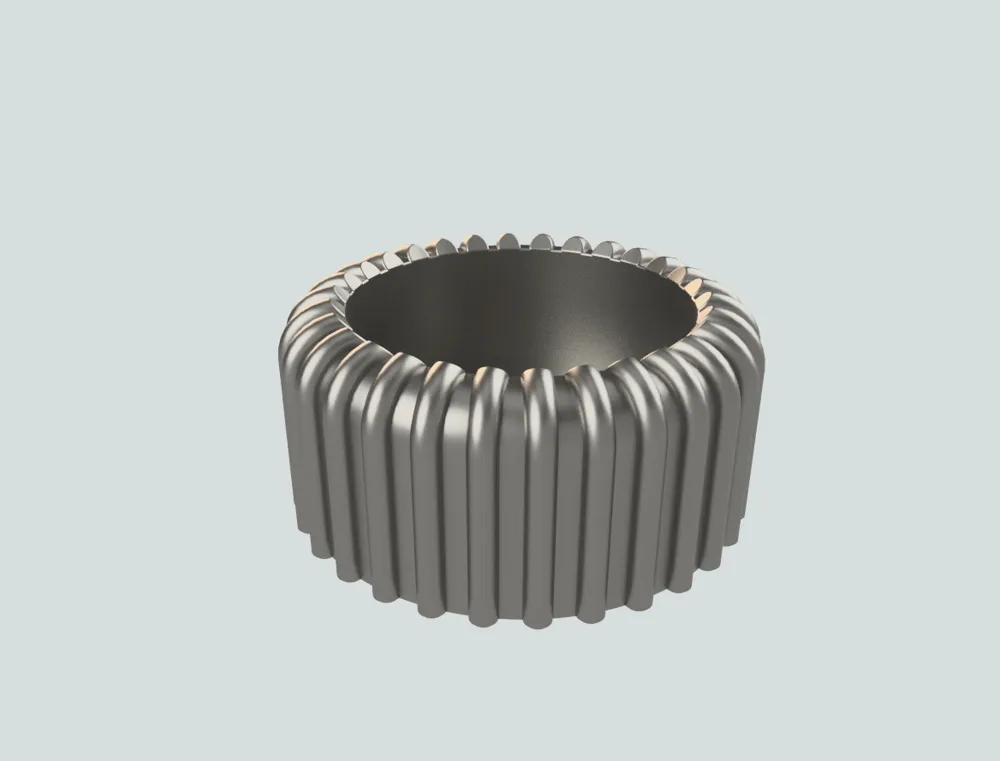

The resulting ribbed design is simple, prints reliably, and looks great in any filament.

You can easily modify the following three variables

1. Height: Adjustable from a subtle 25 mm up to the maximum printing height your 3D printer can handle.
2. Rib Amount: Set the number of vertical ribs from 1 bold rib up to 100 fine ribs for a textured look.
3. Rib Thickness/Depth: Control the prominence of the ribs, ranging from a slight 2 mm depth to a dramatic 10 mm feature.

• Perfect Fit: Designed around the common 38 mm tealight size for hassle-free use.
• High Versatility: Easily create matching or contrasting sets by adjusting just the height and rib settings.

• Tested Limits: The parameters have been tested to work across a huge range of settings.
