Dowel jig - 90-degree/right-angle joint
Print Profile(5)
Description
Dowel jig for 90 degree dowel joint!
- no additional parts

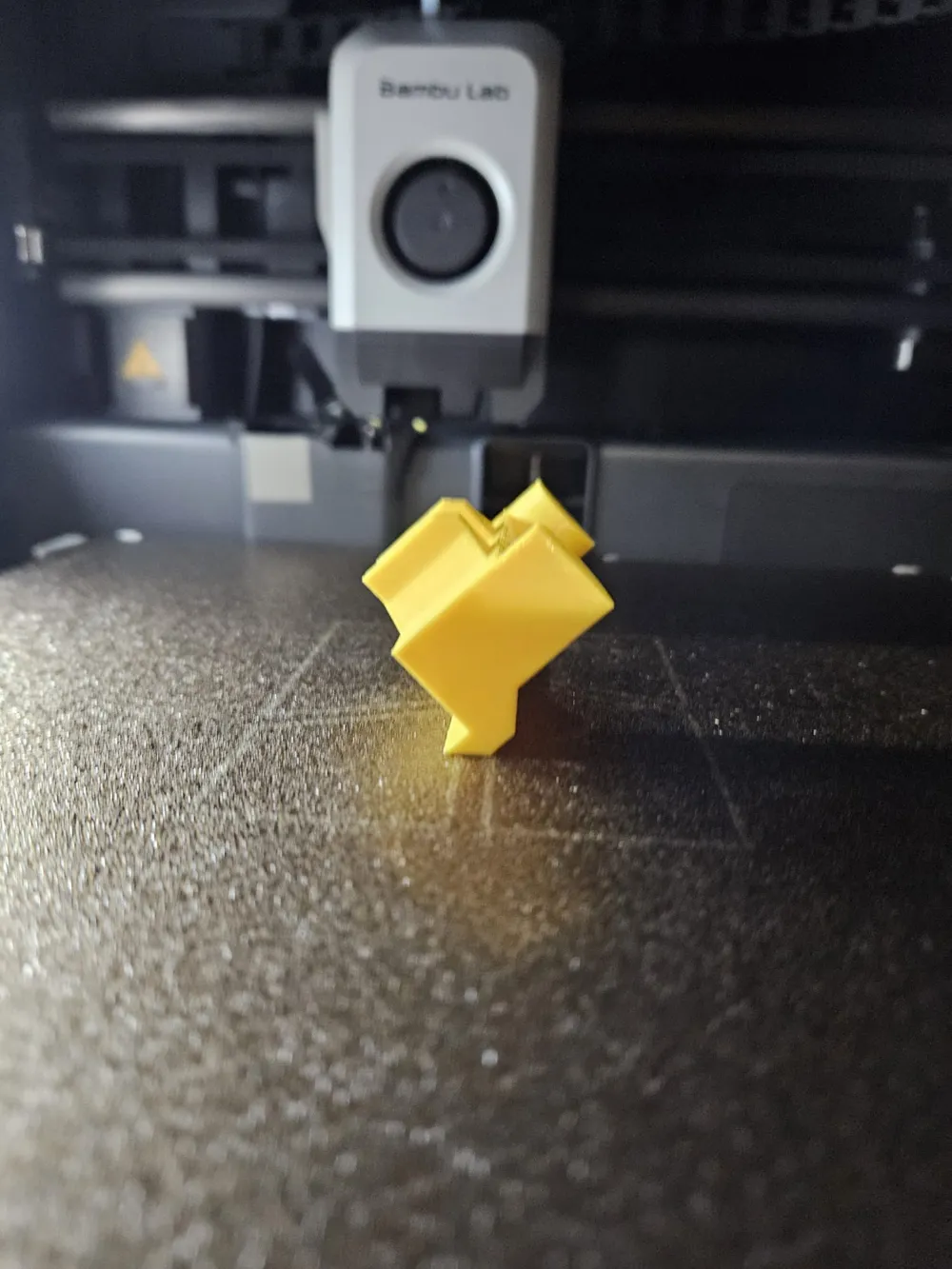

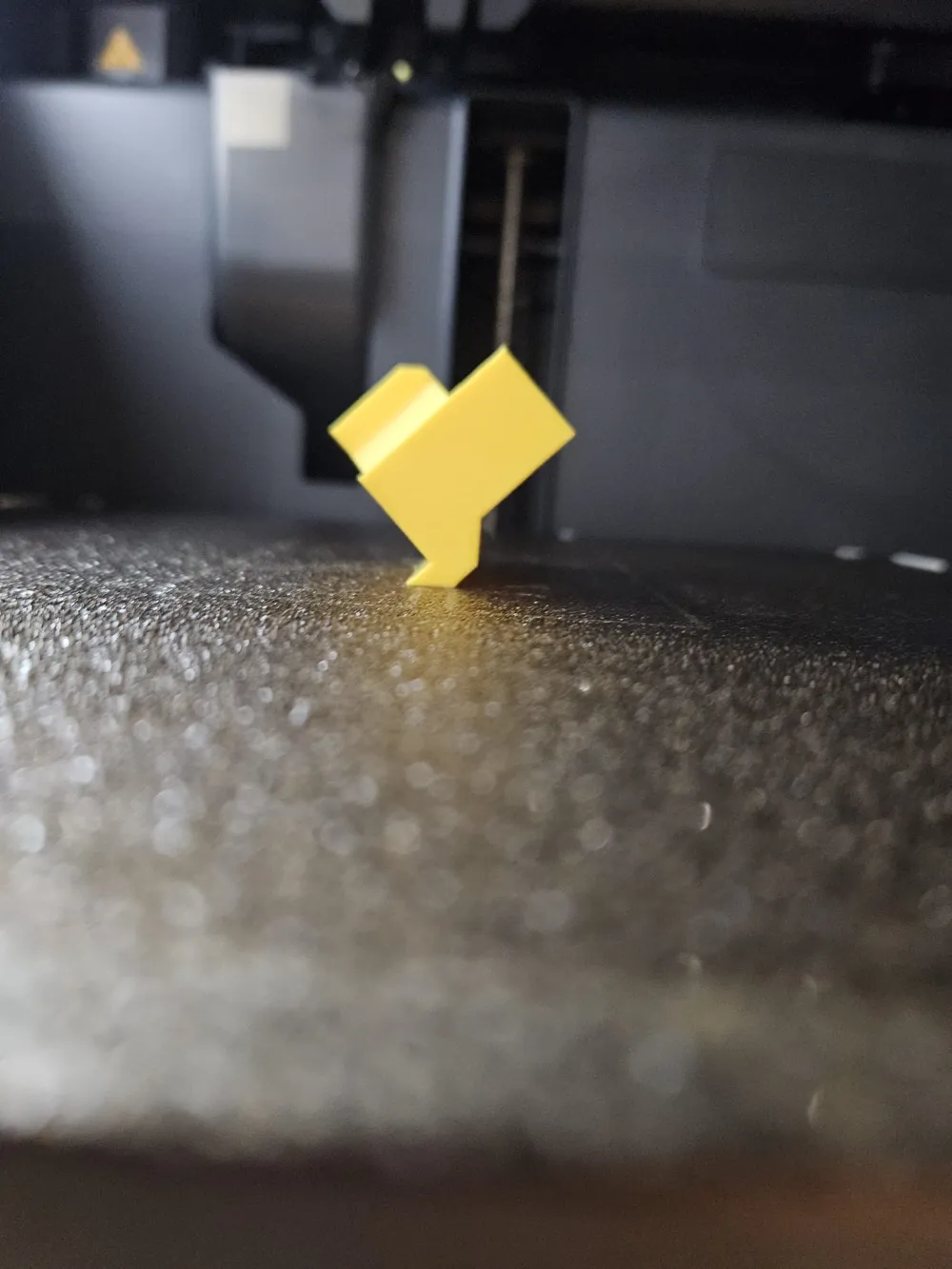

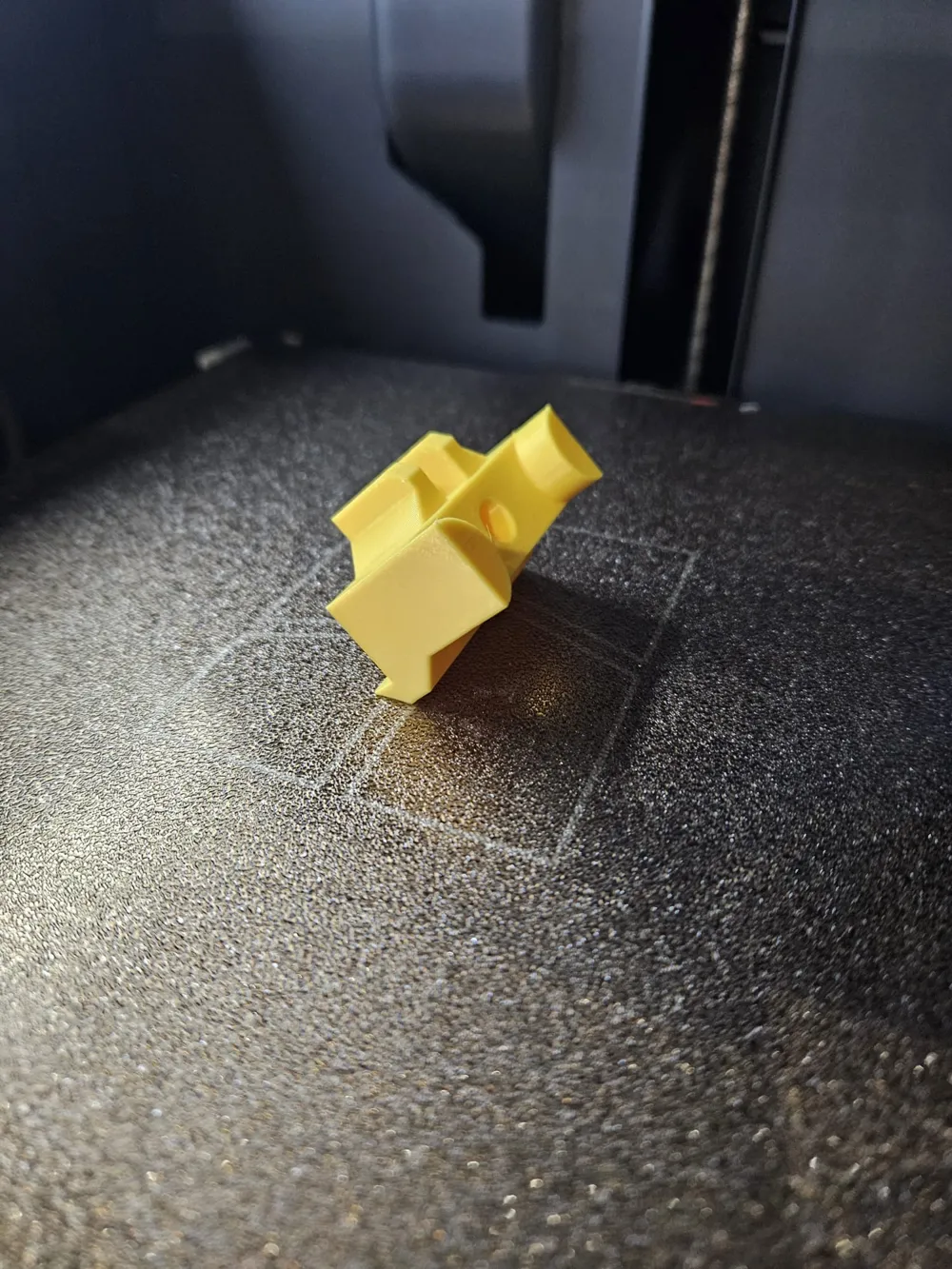

- print in 40 minutes (no supports) - no reason to waste time for trip to store
- just do the job :)
If predefined models are not enough you can generate model with dimensions that you need.
Use case:

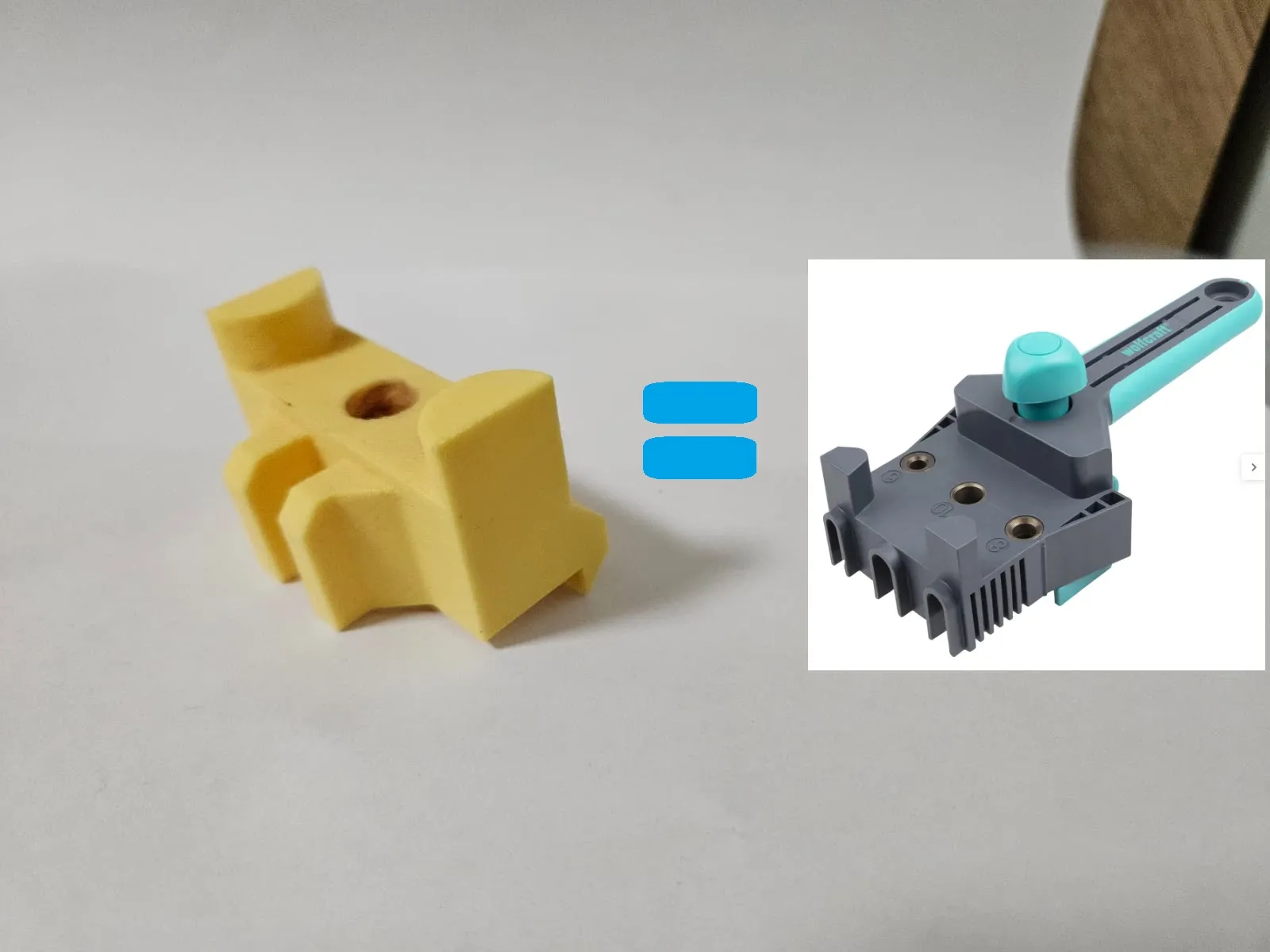

This is the equivalent of the device available on the market and allows for accurate drilling of holes for 90 deg dowel joint.
Instruction:

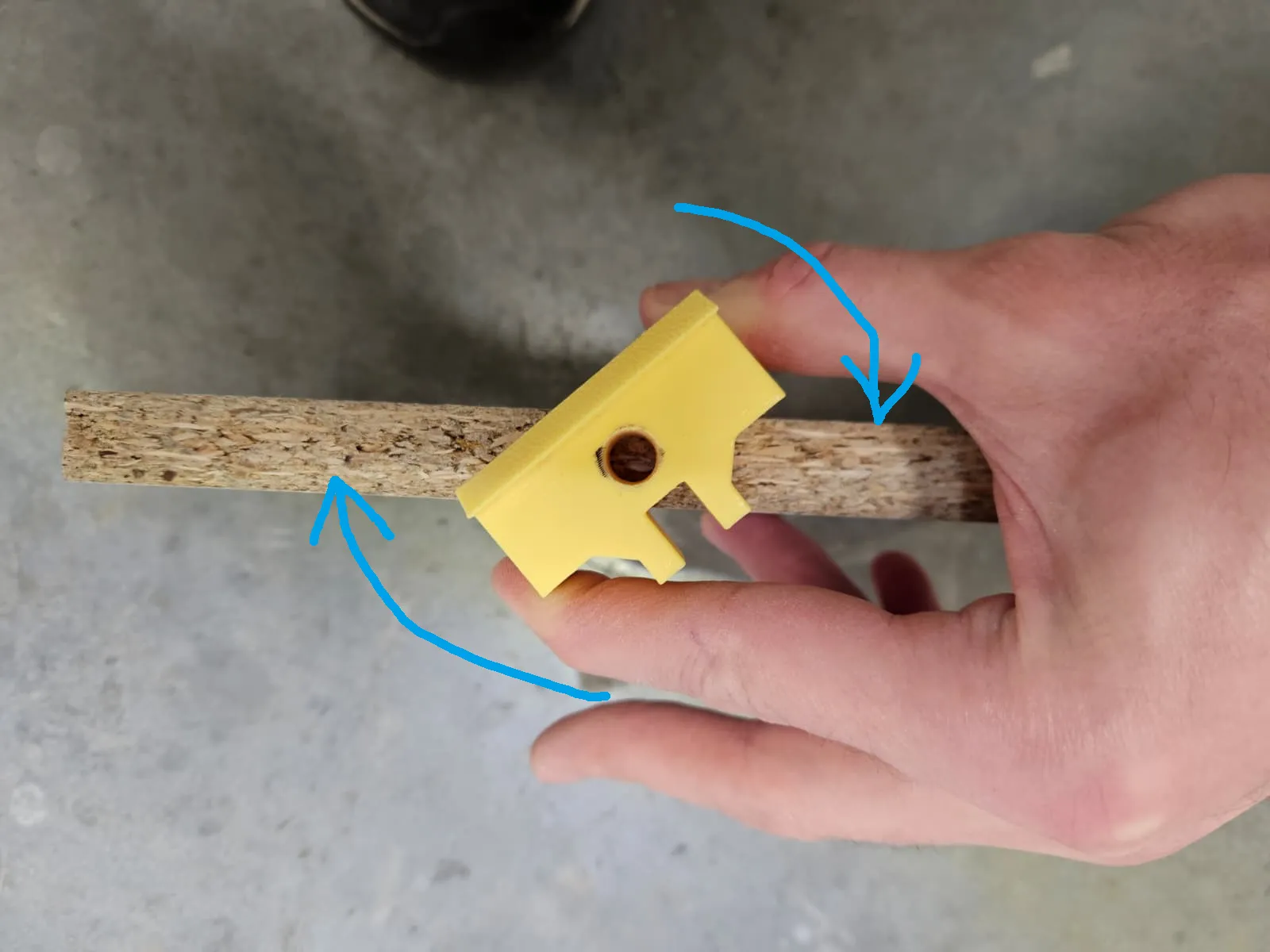

- Center hole:

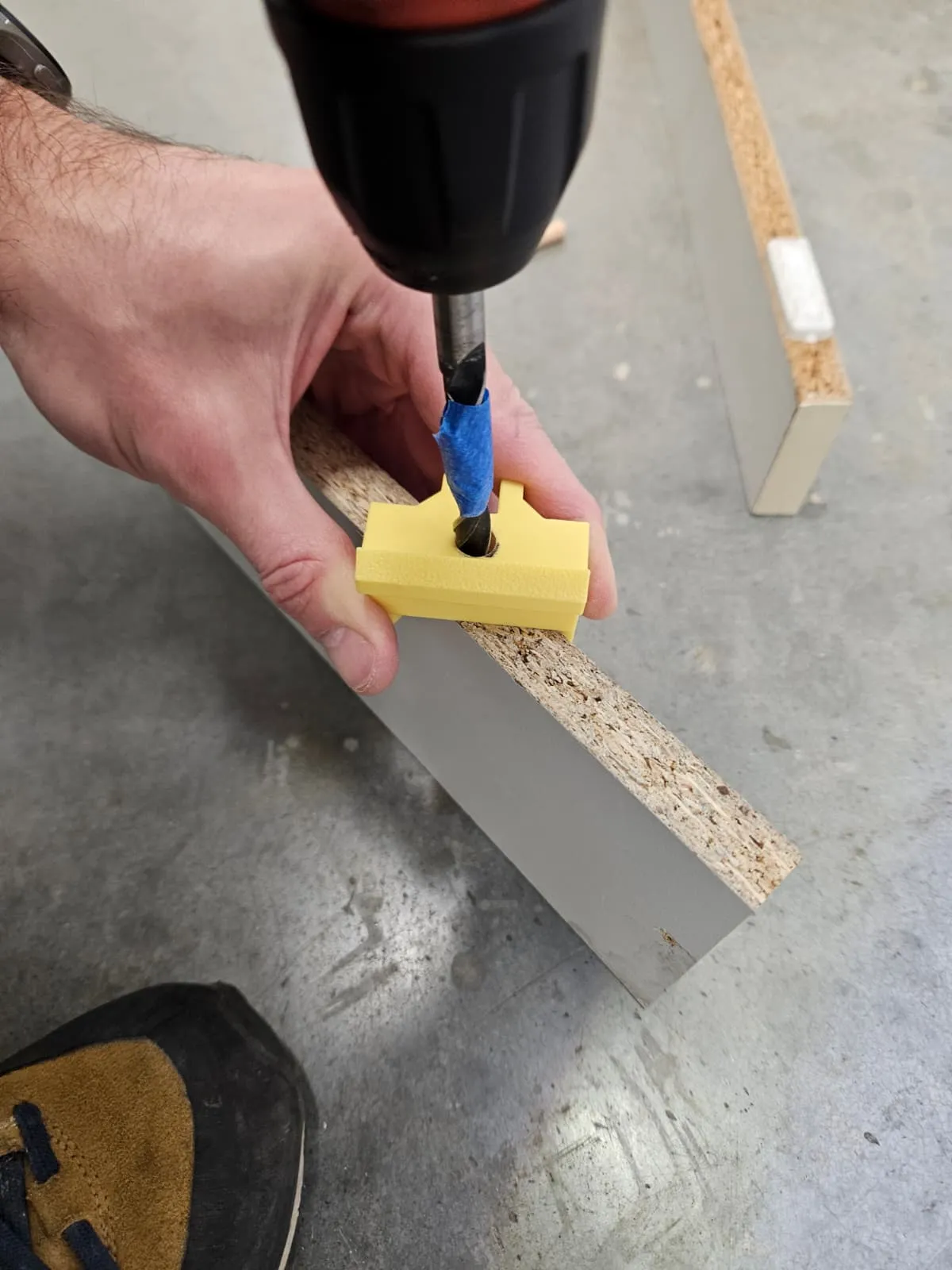

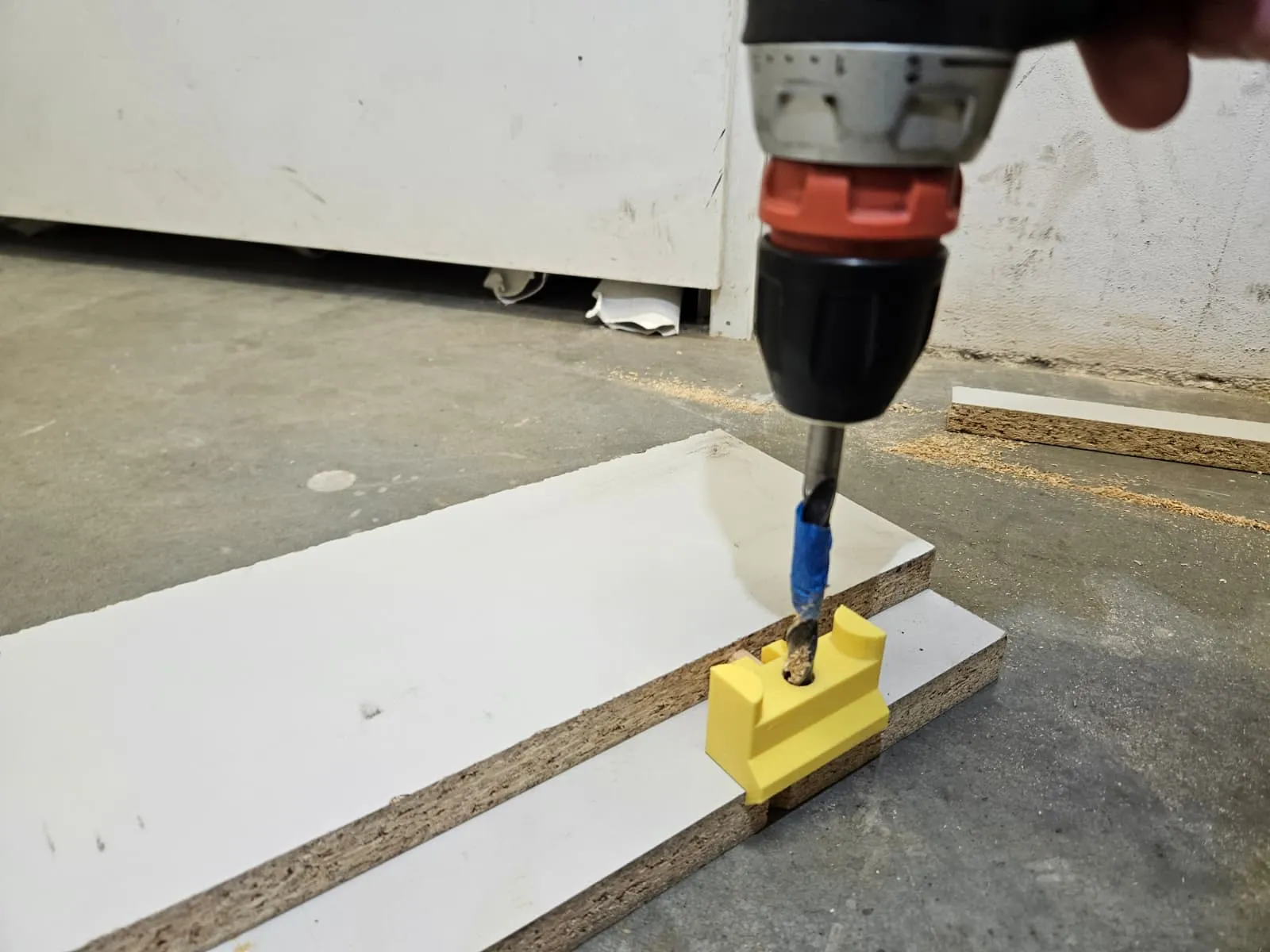

2. Drill:

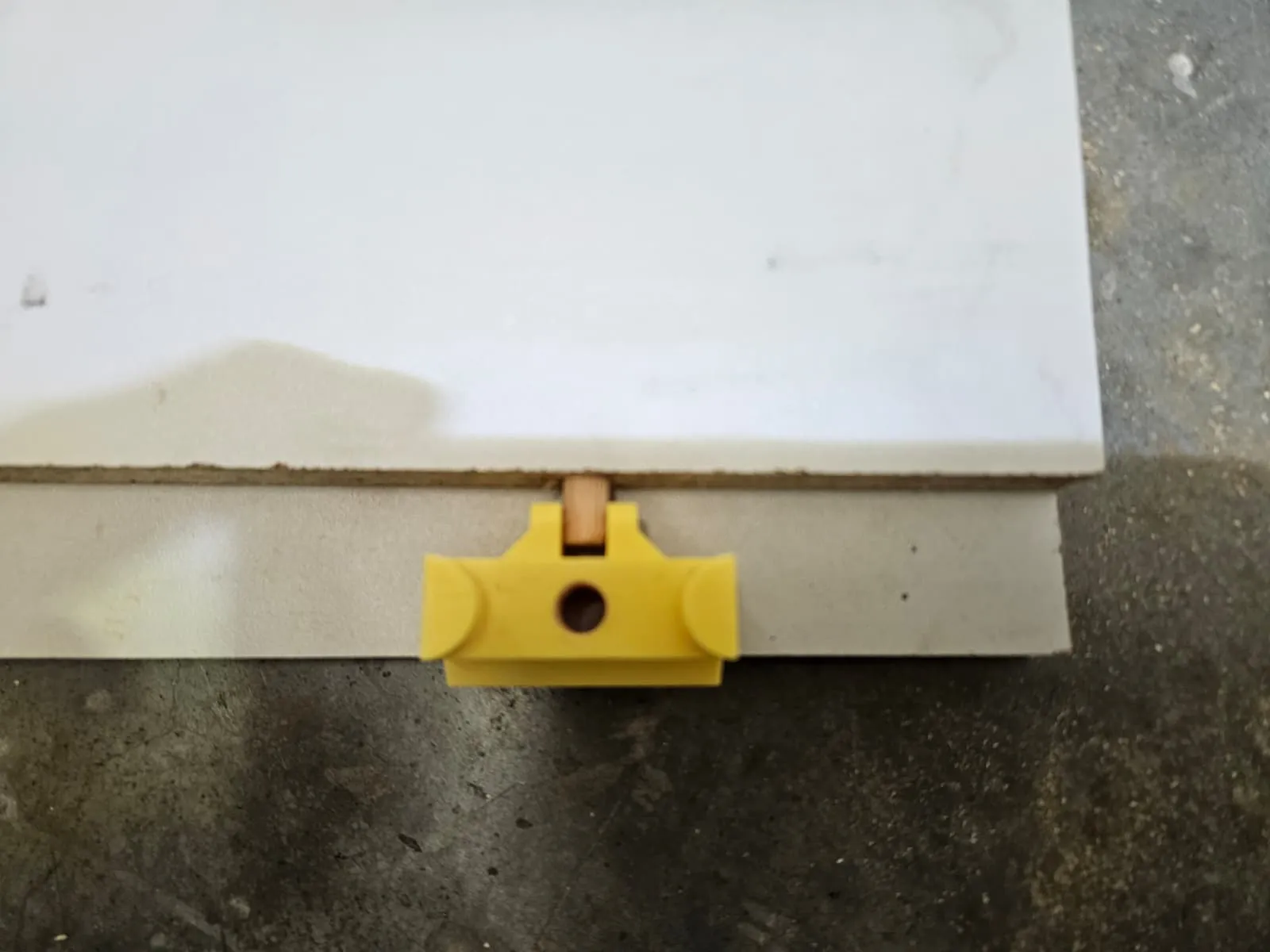

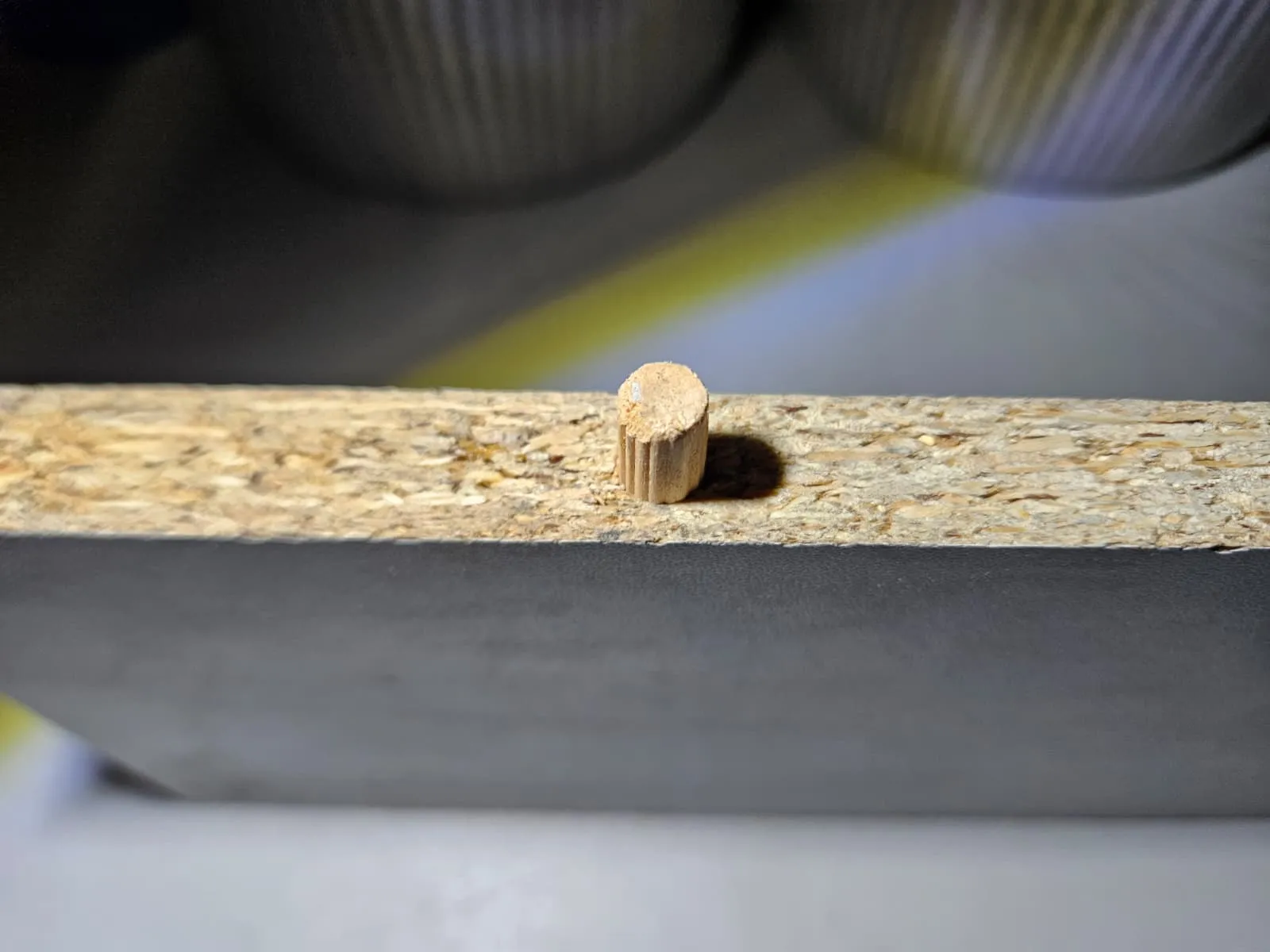

3. Insert dowel:

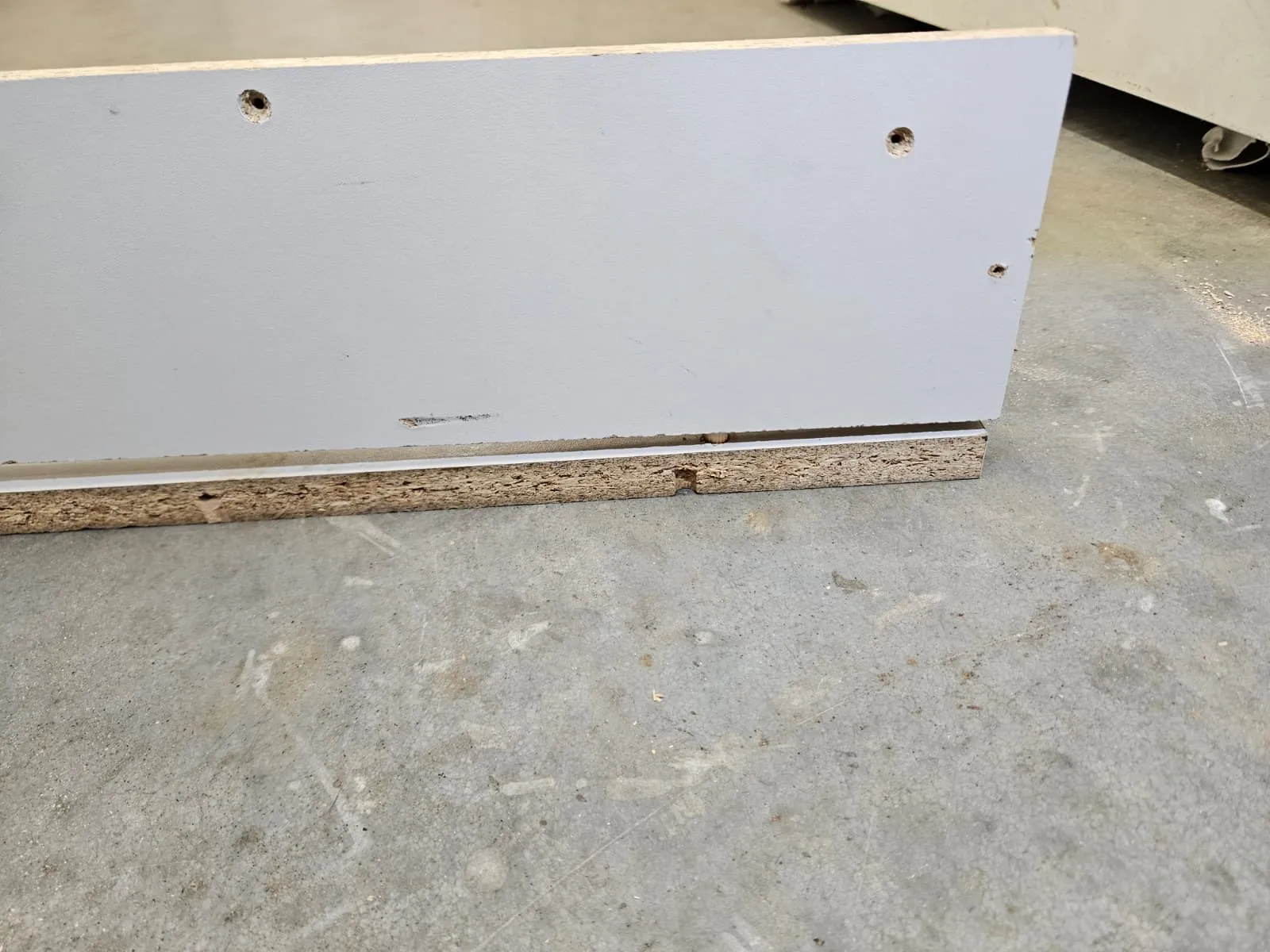

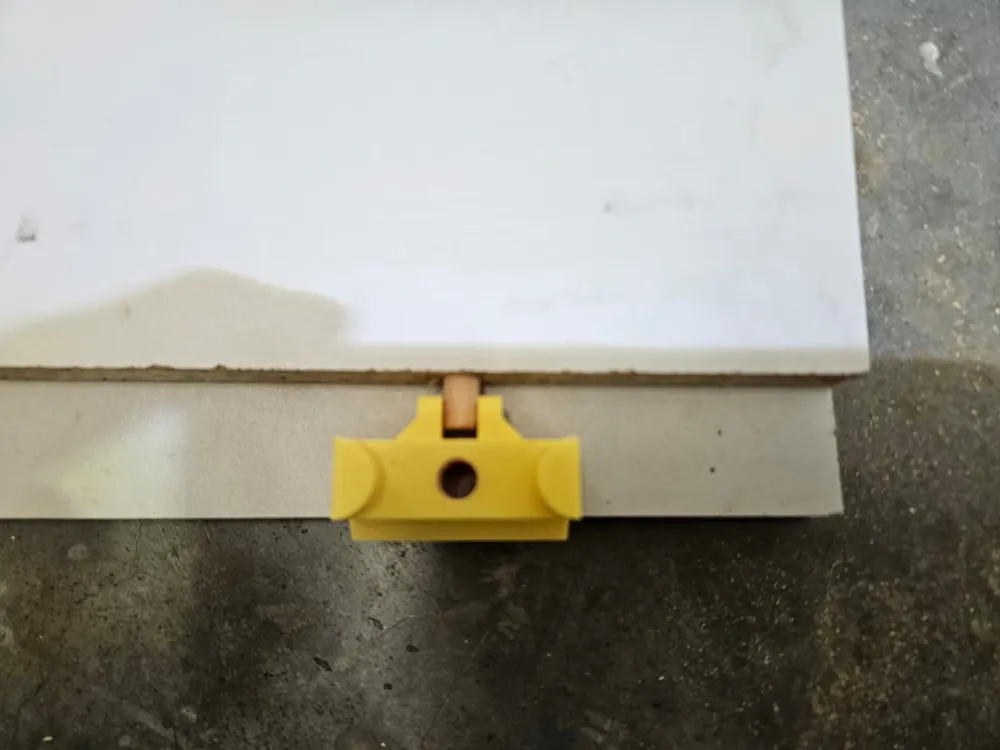

4. Stick one plate to another one

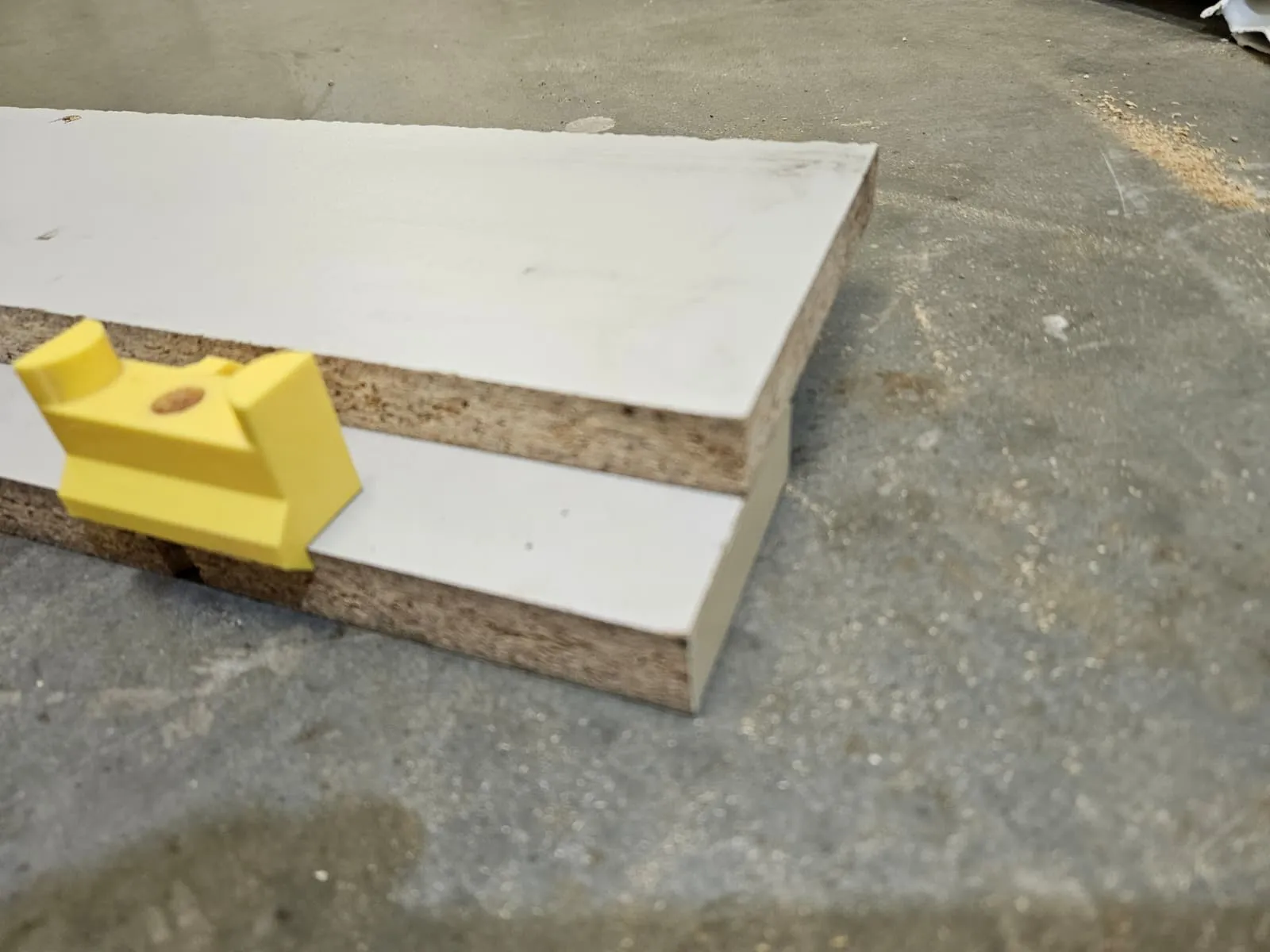

5. Drill

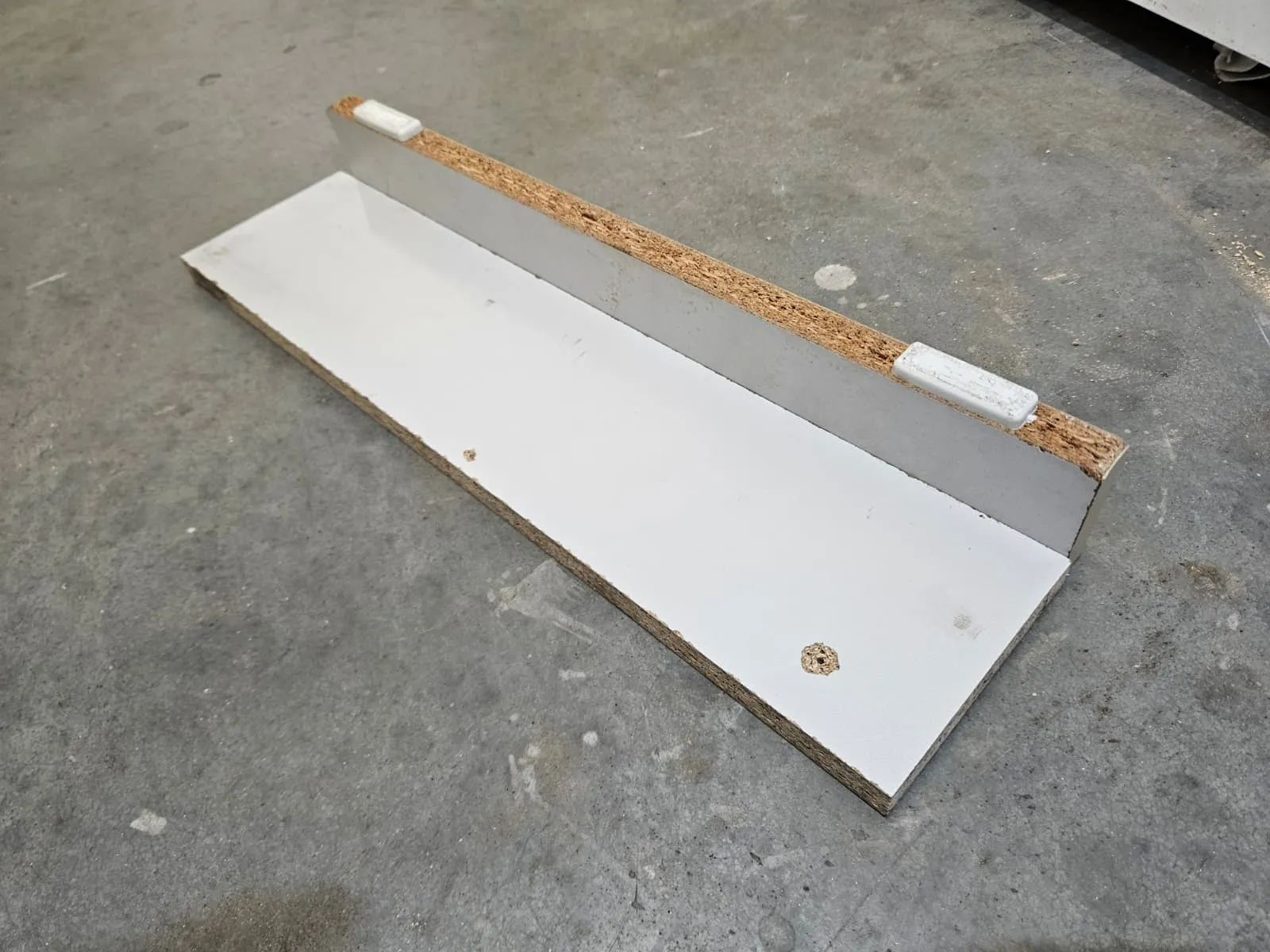

6. Connect 2 parts:
7. Good job!
