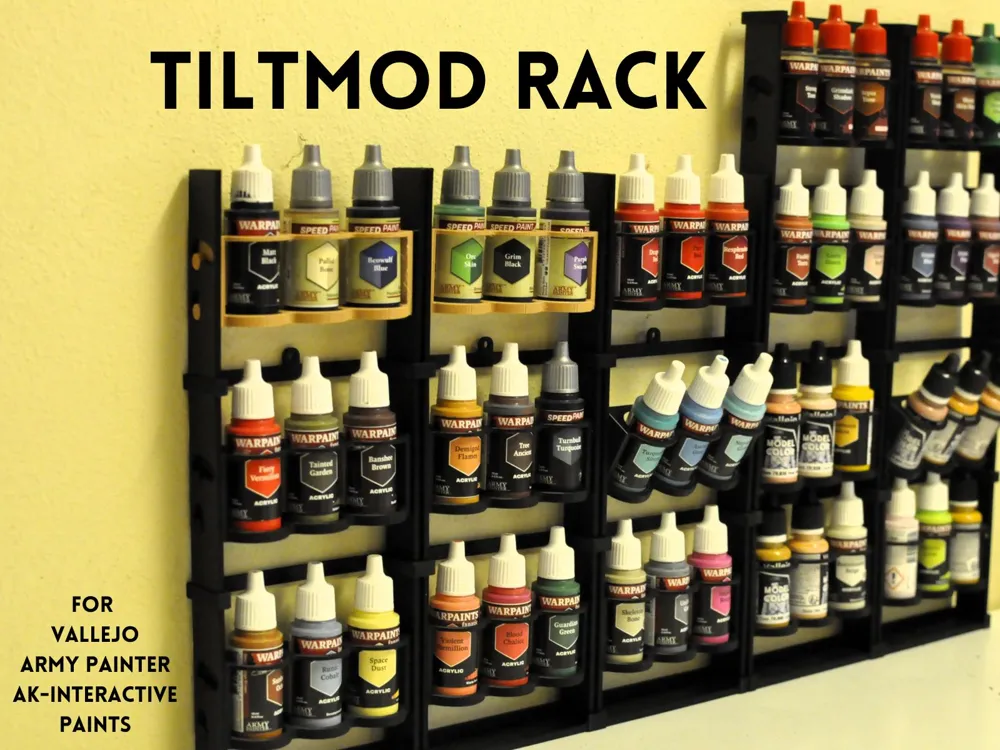

TiltMod Rack - Modular Tiltable Paint Holder

🎨 TiltMod Rack – Compact & Scalable Organization for Miniature Paints

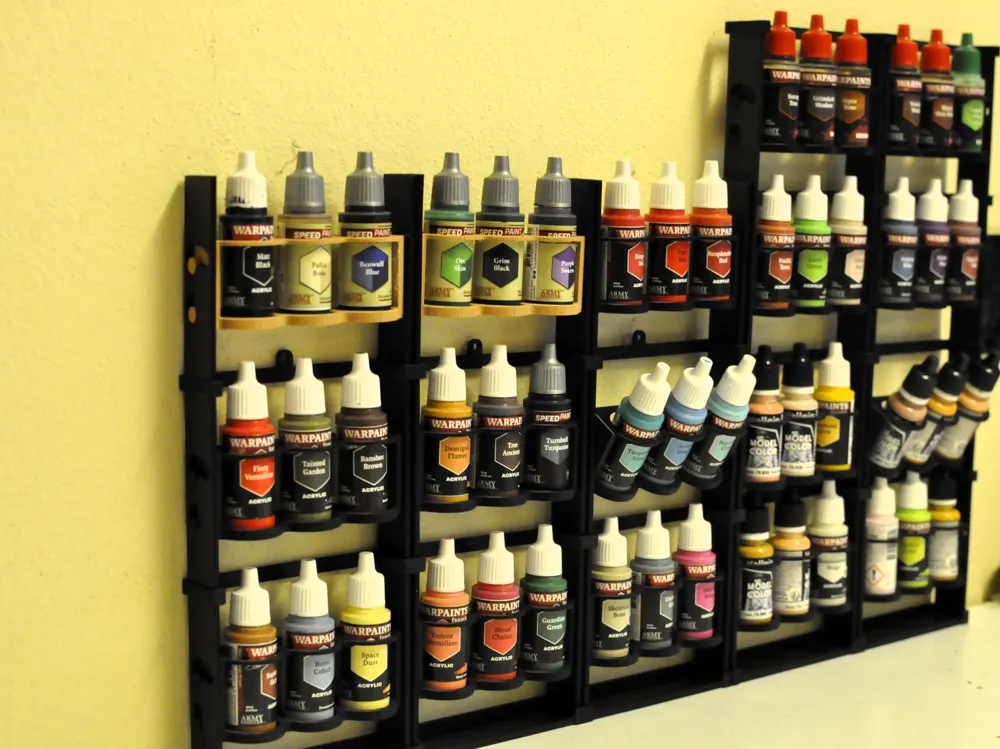

Designed for 17-18ml dropper bottles (Vallejo, Army Painter, AK Interactive, and compatibles), the TiltMod Rack is 100% tabletop, modular, and tiltable. No screws: just print, snap together, and paint!

🚀 How It Works

1. Base Module → 3 slots + 2 side supports
   • Print as many as you need (3, 6, 9… paints per row)
2. Modular Stacks → choose the right base:
   • 1 module (X1C, P1S, P2S)
   • 2 modules (X1C, P1S, P2S)
   • 3 modules (H2D, H2S)

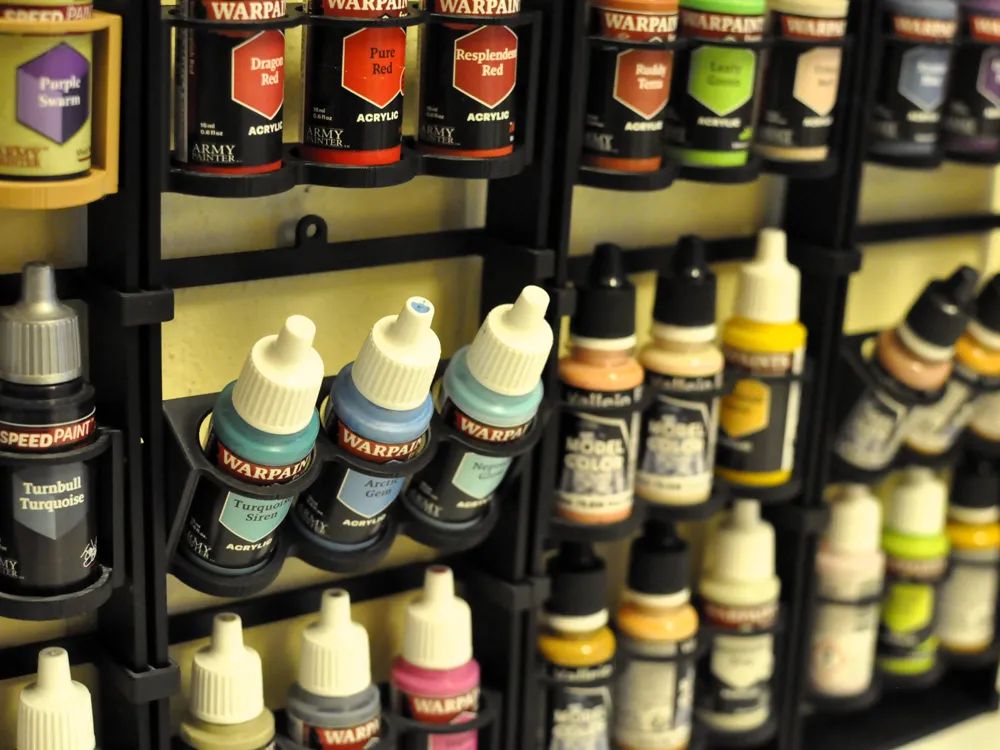

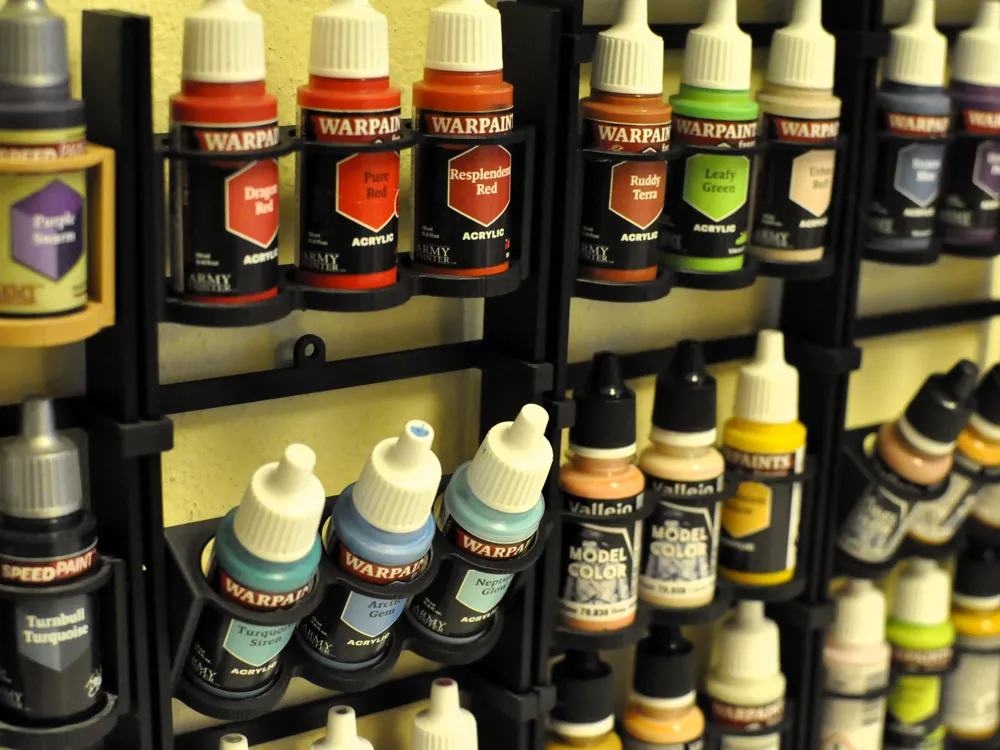

3. 45° Tilt → tiltable trays for easy access and full visibility
4. Perfect Snap-Fit → side supports lock into bases with a solid click

🔧 Assembly (1 minute)

1. Print the Base Modules
   • Open the base module file (includes 1 row of 3 slots + 2 side supports)
   • Duplicate in your slicer and print as many copies as needed
2. Print the Stack Base
   • Choose one plate based on stack height:
     • 1-columns plate
     • 2-columns  plate
     • 3-columns plate (ONLY FOR H2D AND H2S)
   • Each plate includes tabletop base + top connector
3. Optional Wall-Mount Connectors (for tall stacks)
   • Print the wall-mount connector variants (1, 2, or 3 rows)
   • These replace standard top connectors and include M3/M4 screw holes for wall mounting
   • Recommended for 3+ rows to prevent tipping

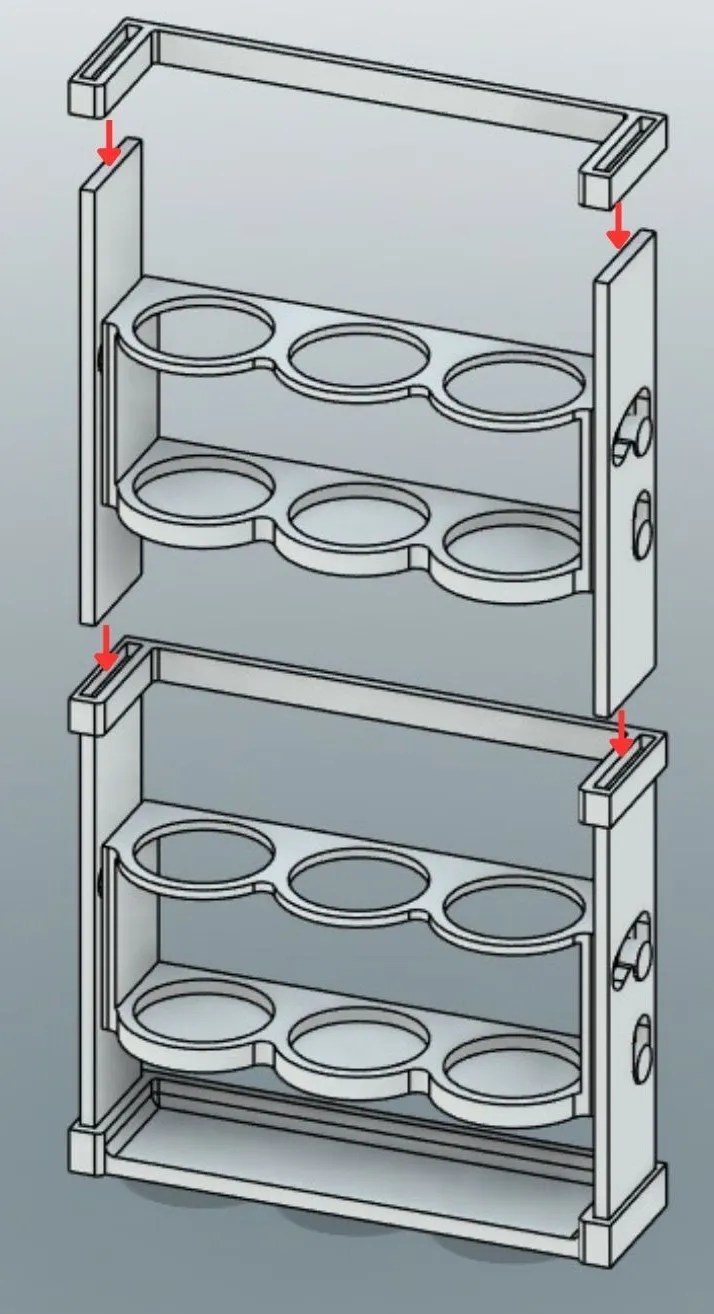

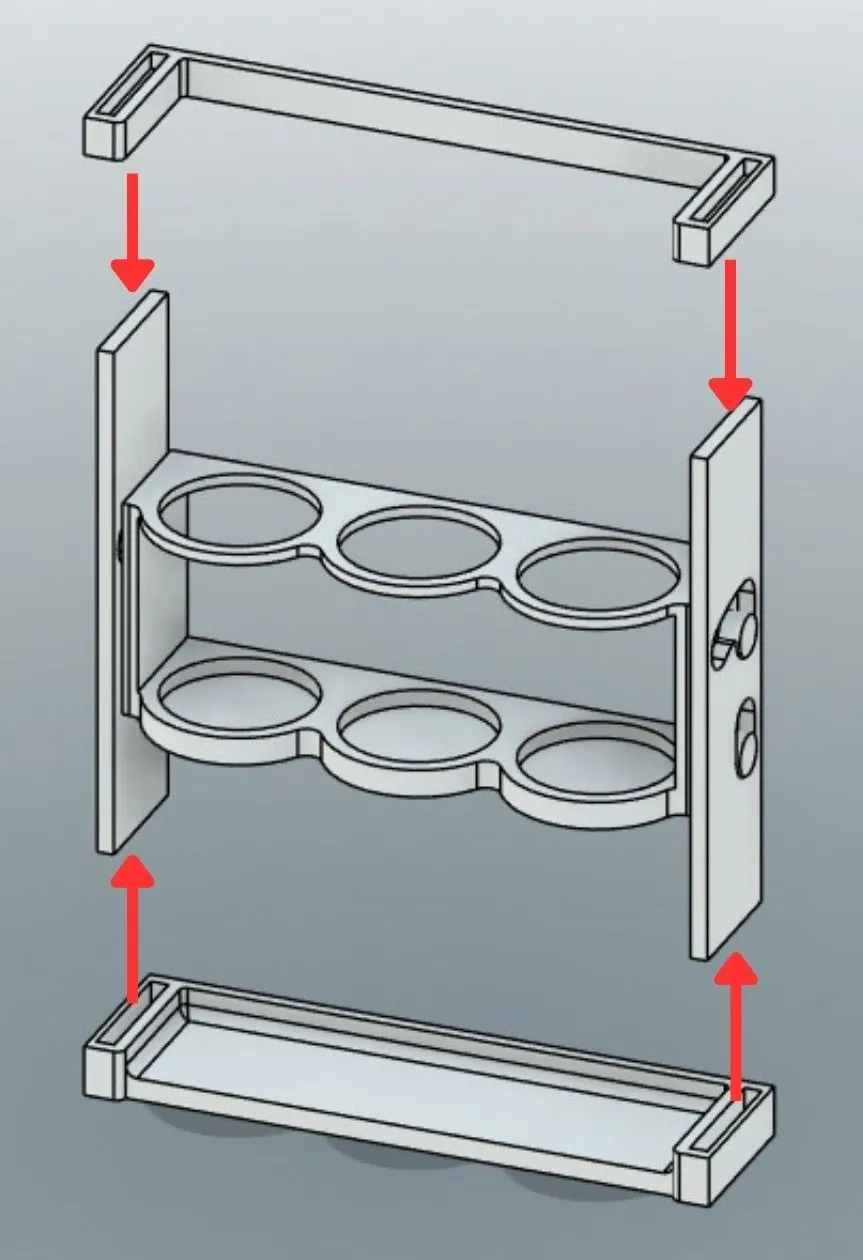

4. Snap Together

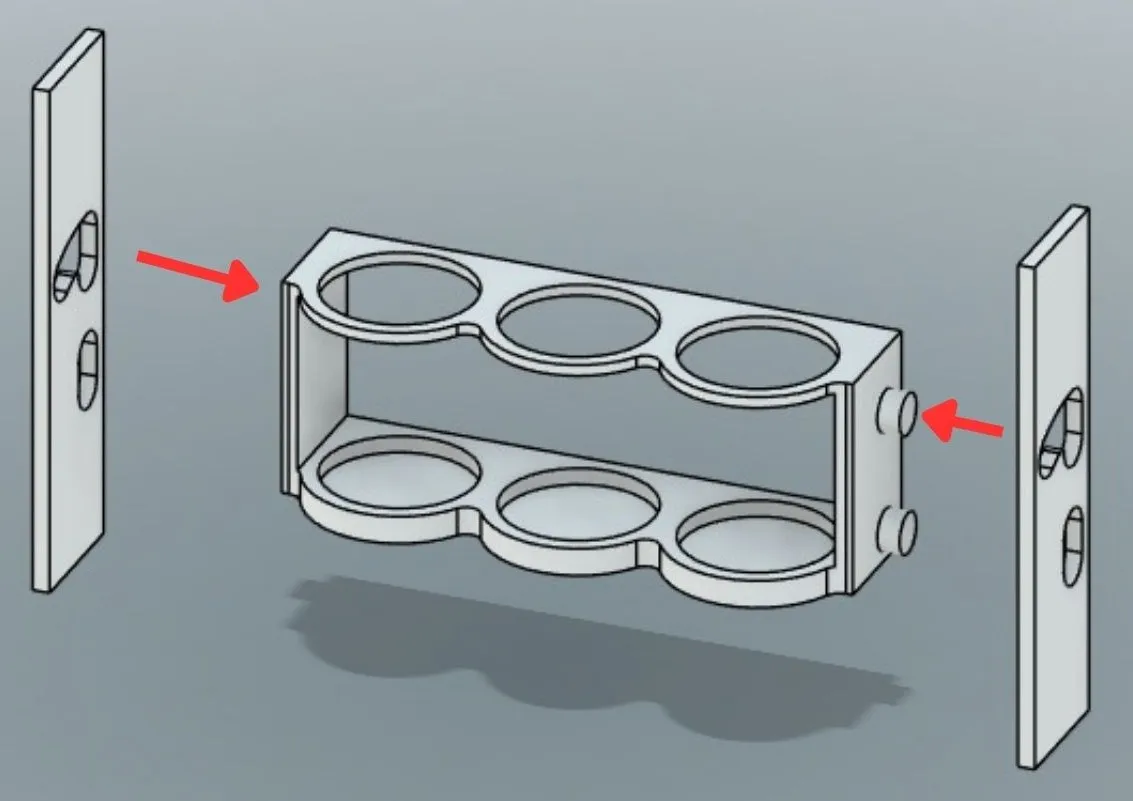

   • Insert side supports into base connectors
   • Stack additional rows on top connectors
   • Tilt trays to 45° → ready to use!

WARNING: As long as you stack 4 rows, there are no particular problems. If you plan to exceed this threshold, the weight of the paint becomes significant, so I recommend wall brackets for the end connector and an intermediate one and using a little glue on the brackets (you don't need to glue everything; just glue the two outermost sides to give the structure a little more rigidity).
