Rack Mount for Beelink EQi12, EQi13 Pro , GL-RM1PE

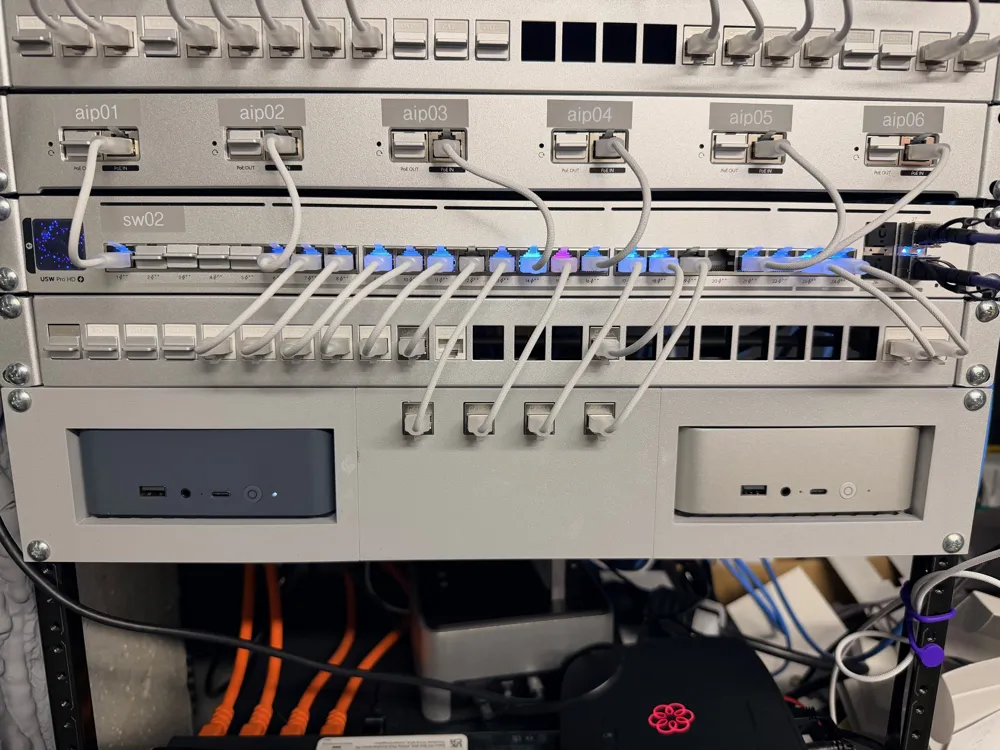

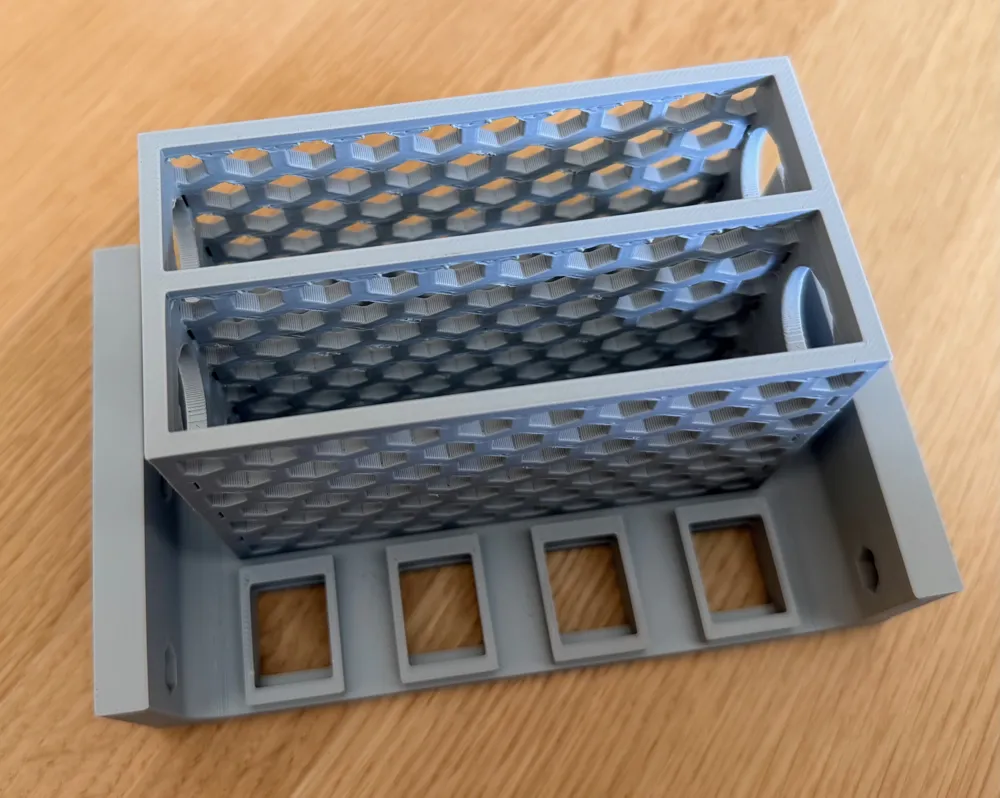

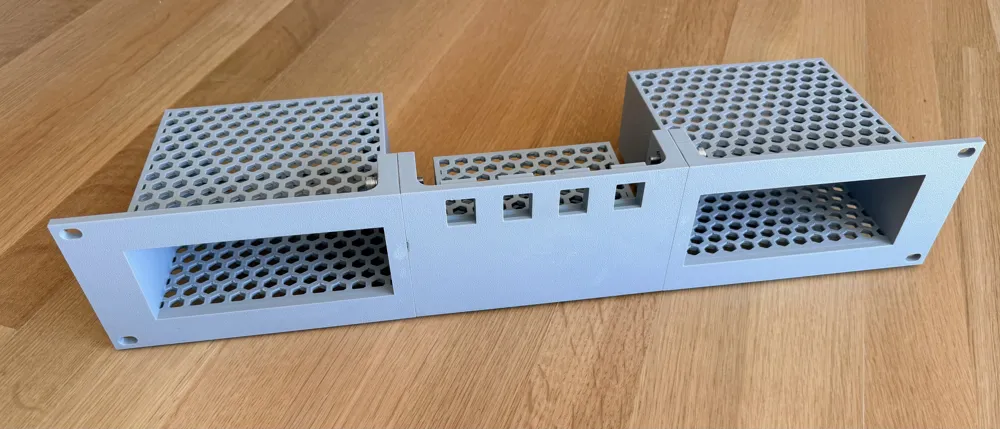

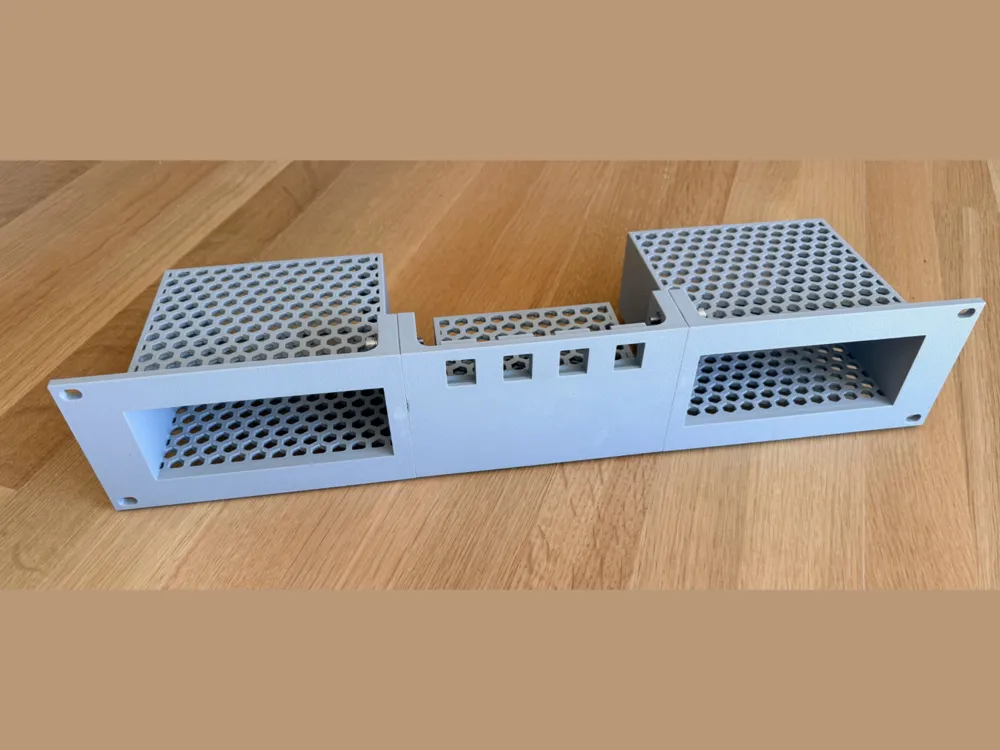

19" rack mount for Beelink EQi12, Beelink EQi13, and two GL.iNet Comet KVM PoE. Has four front mounted keystone jacks for Ethernet passthrough so you can plug your PCs and the KVMs into ports on the rack.

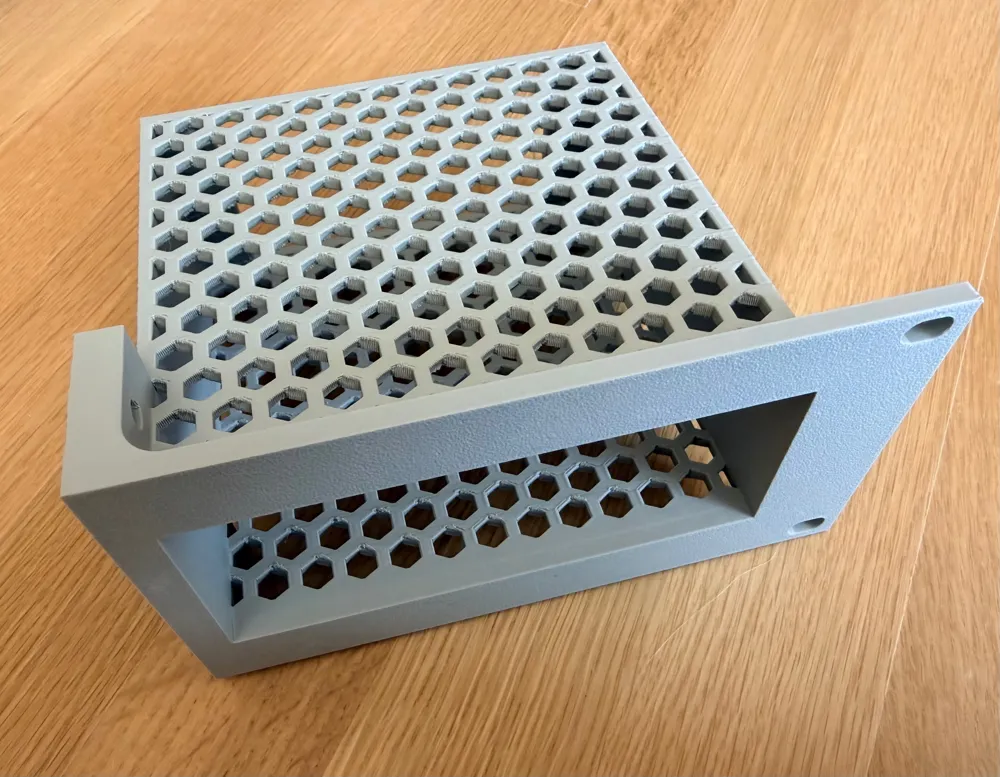

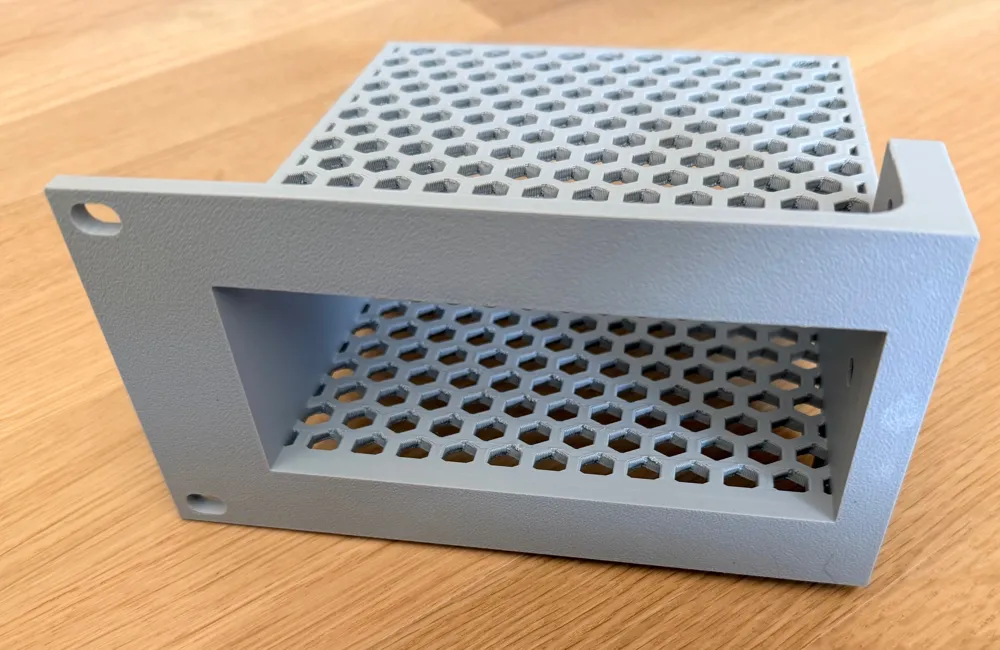

The sides are interchangeable, so you can use two of the same, or two different like I did.

I printed this in Bambu PETG HF Grey, which is nearly perfect match for Unifi's grey aluminium.

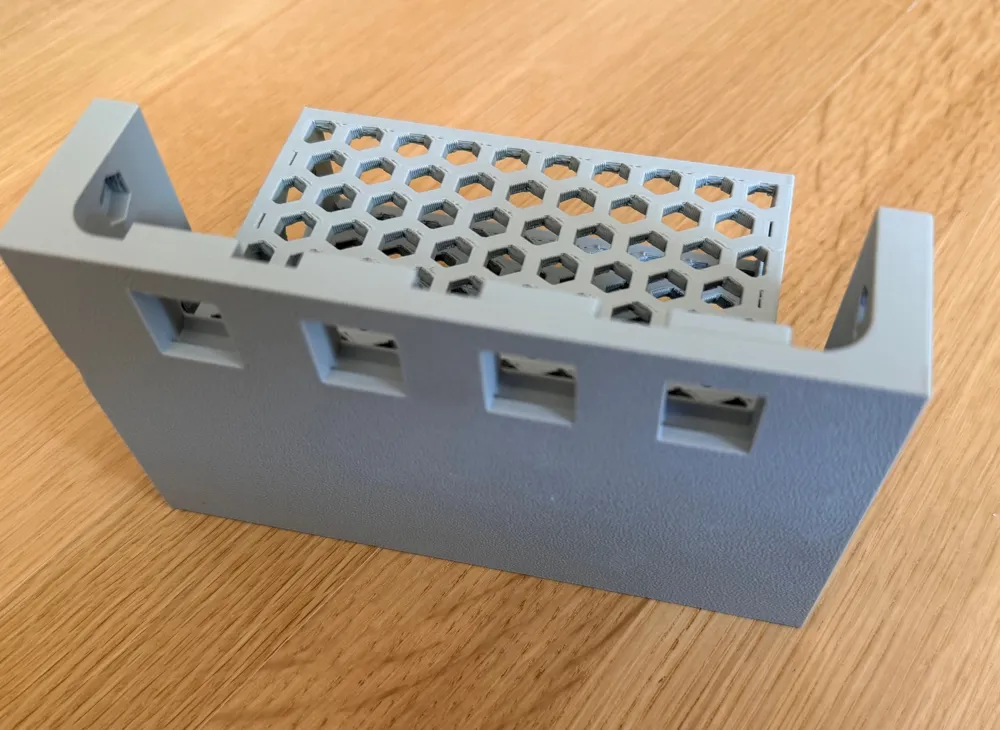

You'll need four 20mm or 25mm M5 bolts and hex nuts to connected the pieces together. The M5 nuts press fit into holes on the middle, KVM section, to make installation easier. 20mm bolts fit perfectly. If you like to add washers or lock washers, use 25mm bolts. The is a third hole in the middle on each side that I ended up not using. To maintain clearance for the PC, you'd need to use an M5 grub screw here.

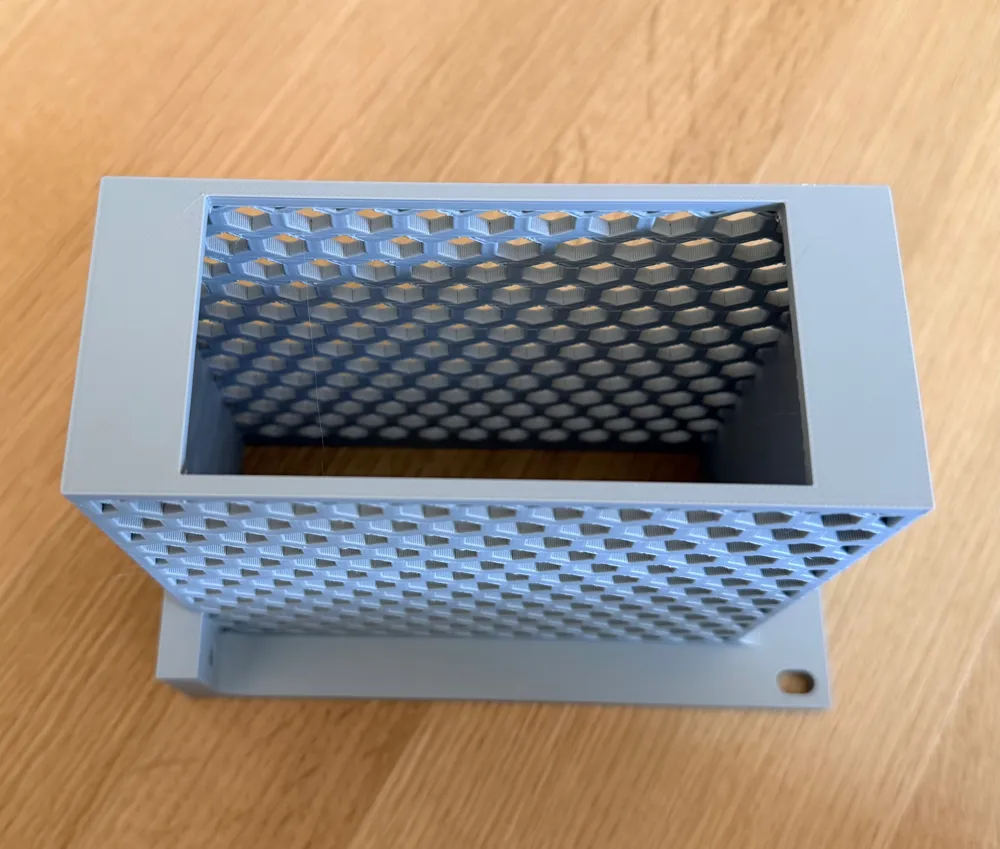

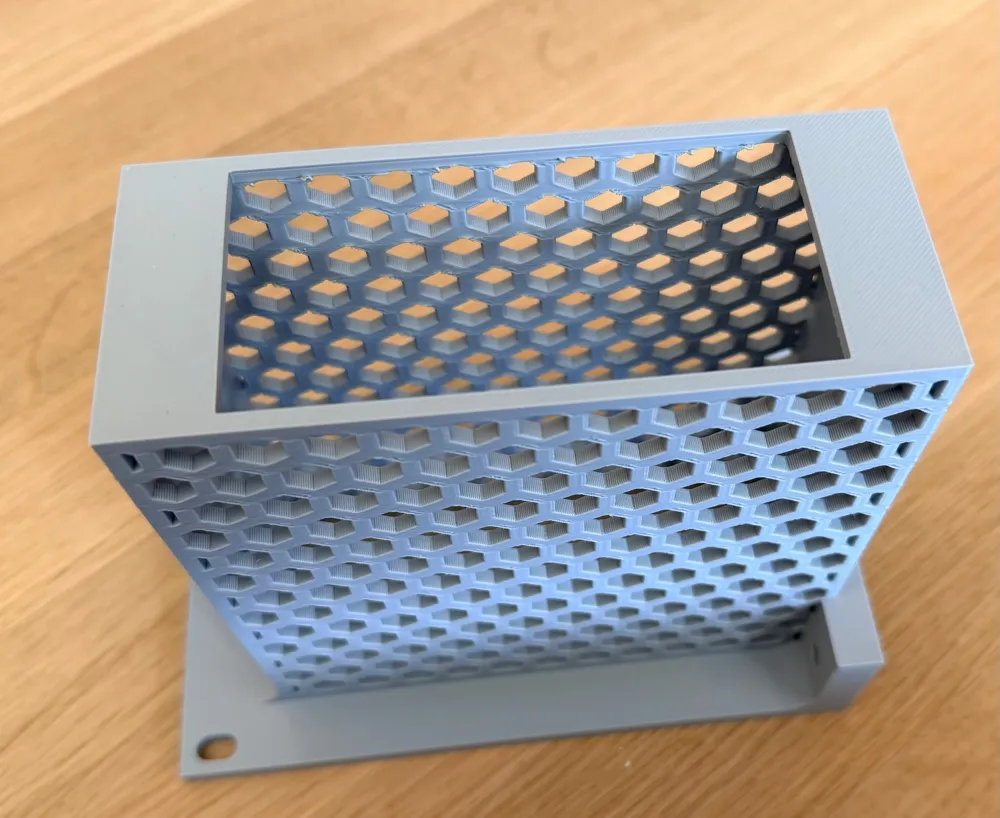

Your should only need support for the flat sections on the back of the PC sides.

The Fusion project is parametric, so you can change the size of the PC to match yours.
