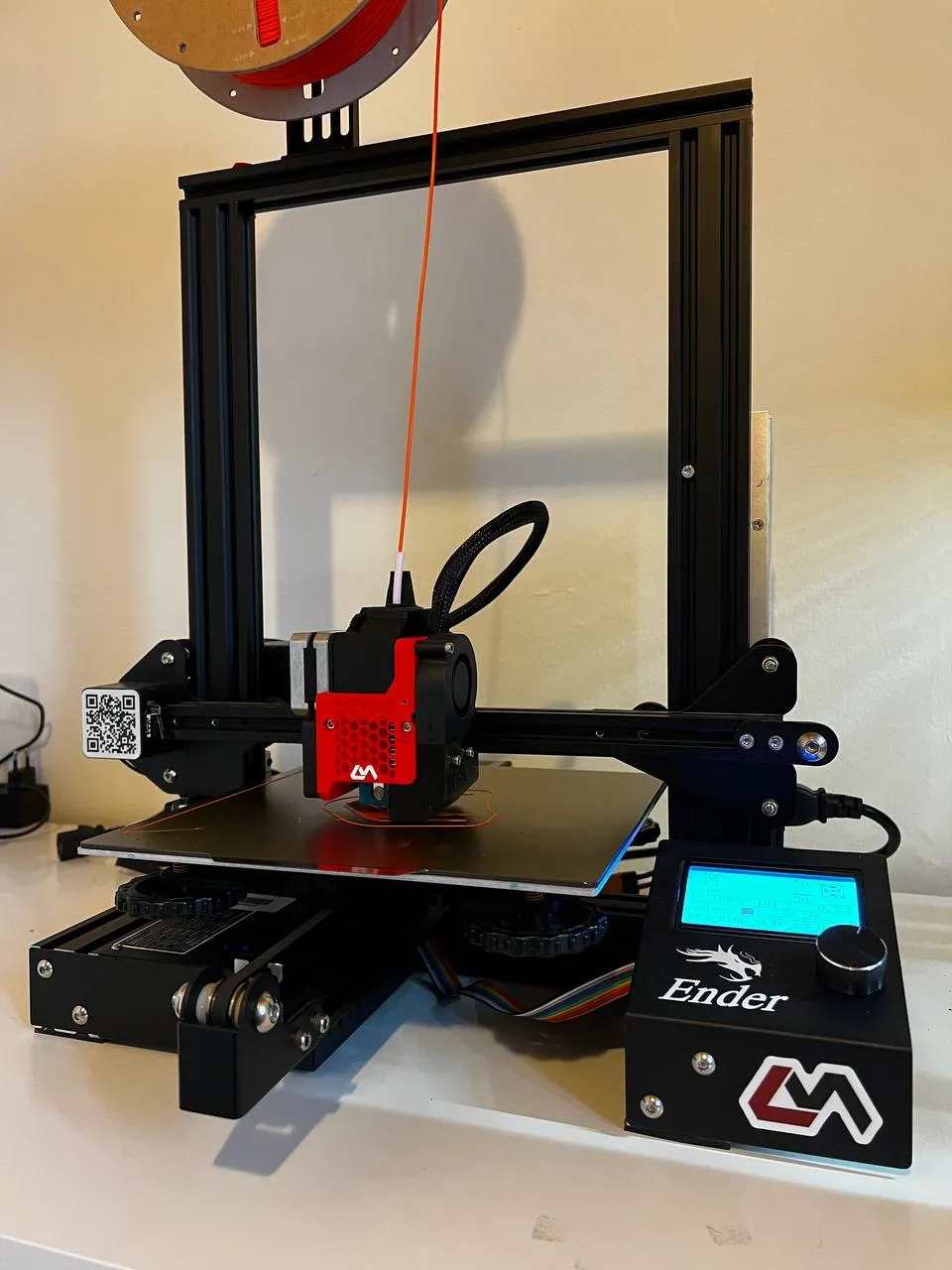

Ender 3 - Ender 5 - CR10 - BMG + V6 - Direct extruder

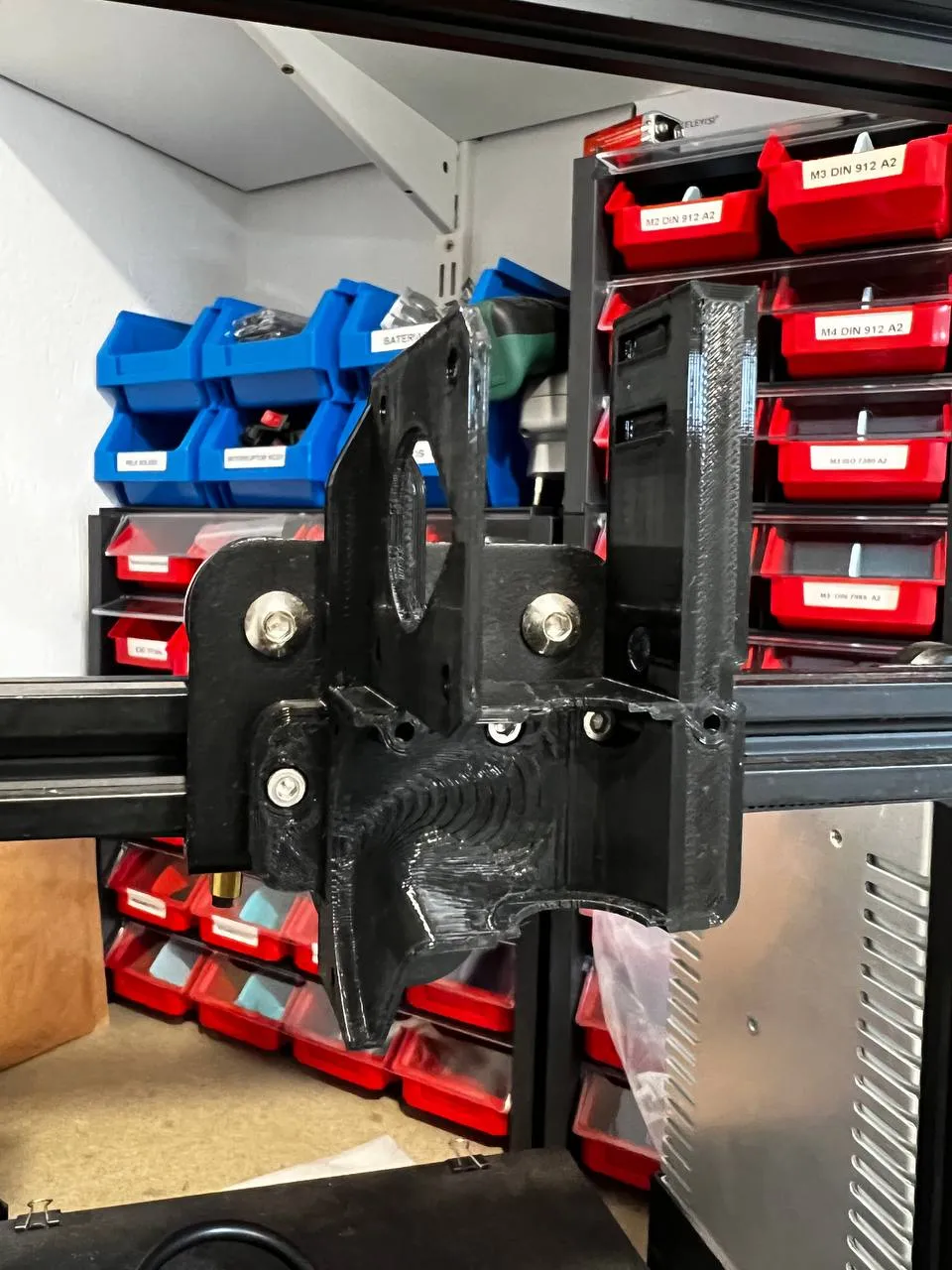

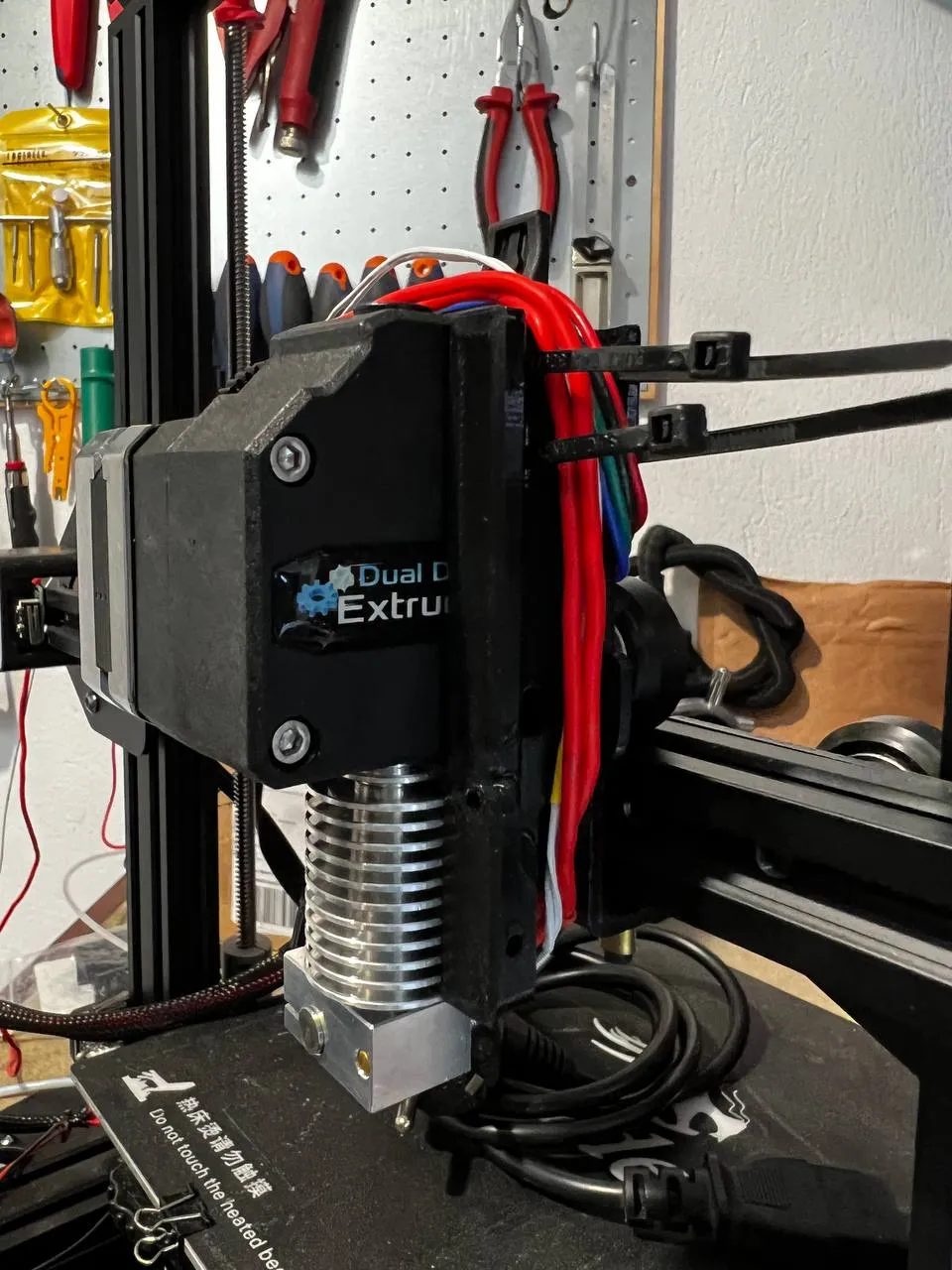

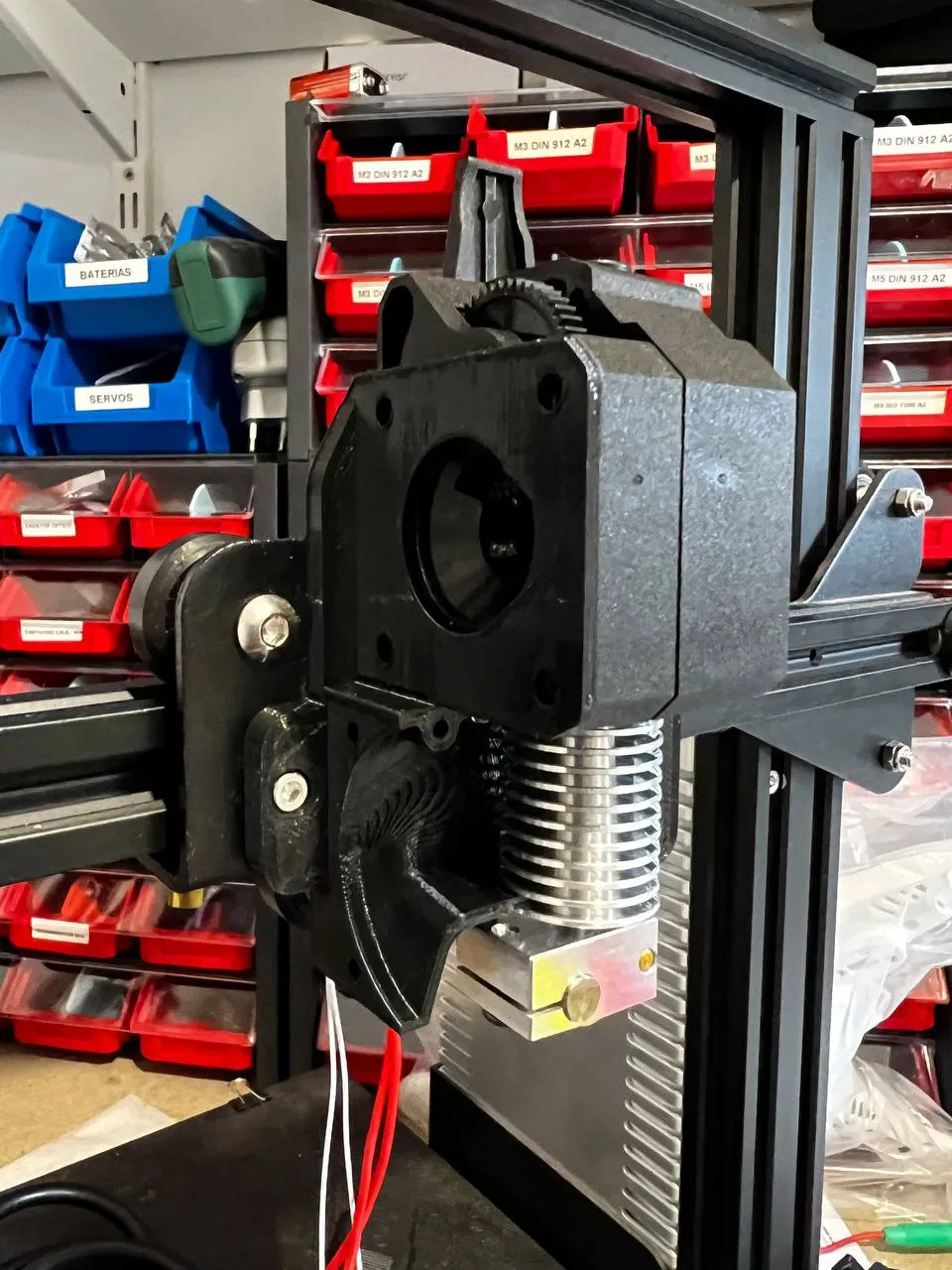

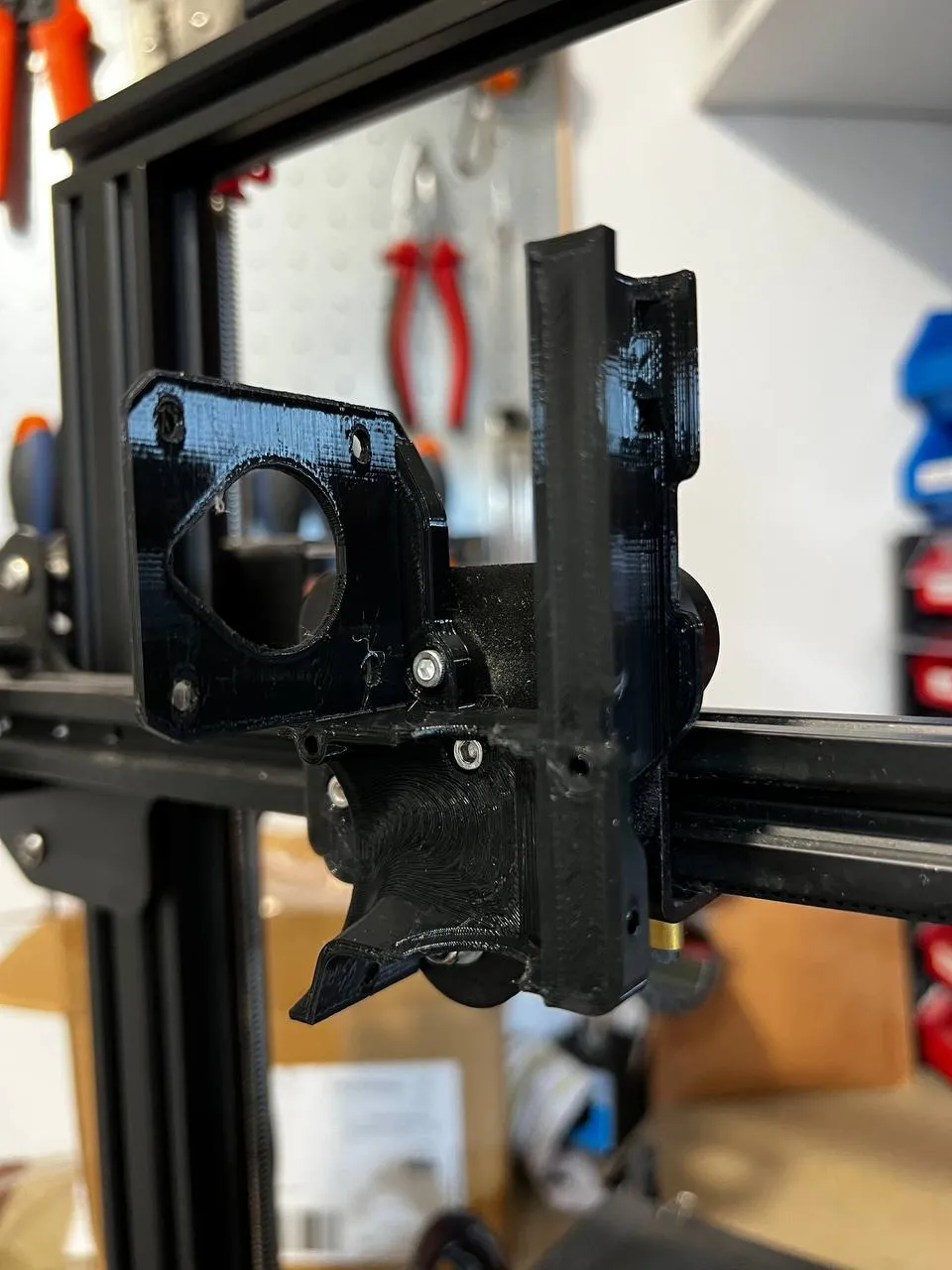

This is a design of direct extruder with bmg + V6 / V6 Volcano for Ender 3, Ender 5, Ender 5 Plus and CR10. Attached you can find the assembly instructions, material list and all stl files you need to make it.

Buy through the links or make a donation to help me continue creating. Thanks

---------------------------------------------------------------------------------------------------------------

Este es un diseño de extrusión directa con Bmg + V6 / V6 Volcano para la Ender 3, Ender5, Ender 5 Plus y Cr10. Adjunto podéis encontrar los manuales de instrucciones para el ensamblaje, la lista de materiales y todos los archivos stl para poder realizar la modificación.

Comprar a través de los links o realizar una donación para ayudar a seguir creando. Gracias

Update 08/05/2023

Fan duct Volcano V6

Bltouch support Volcano V6

Update 19/09/2022

New update of Fan_layer_Ender_Rv04 improves cooling

Update 28/12/2022

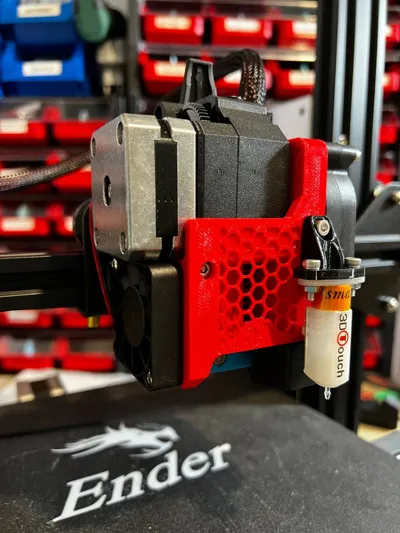

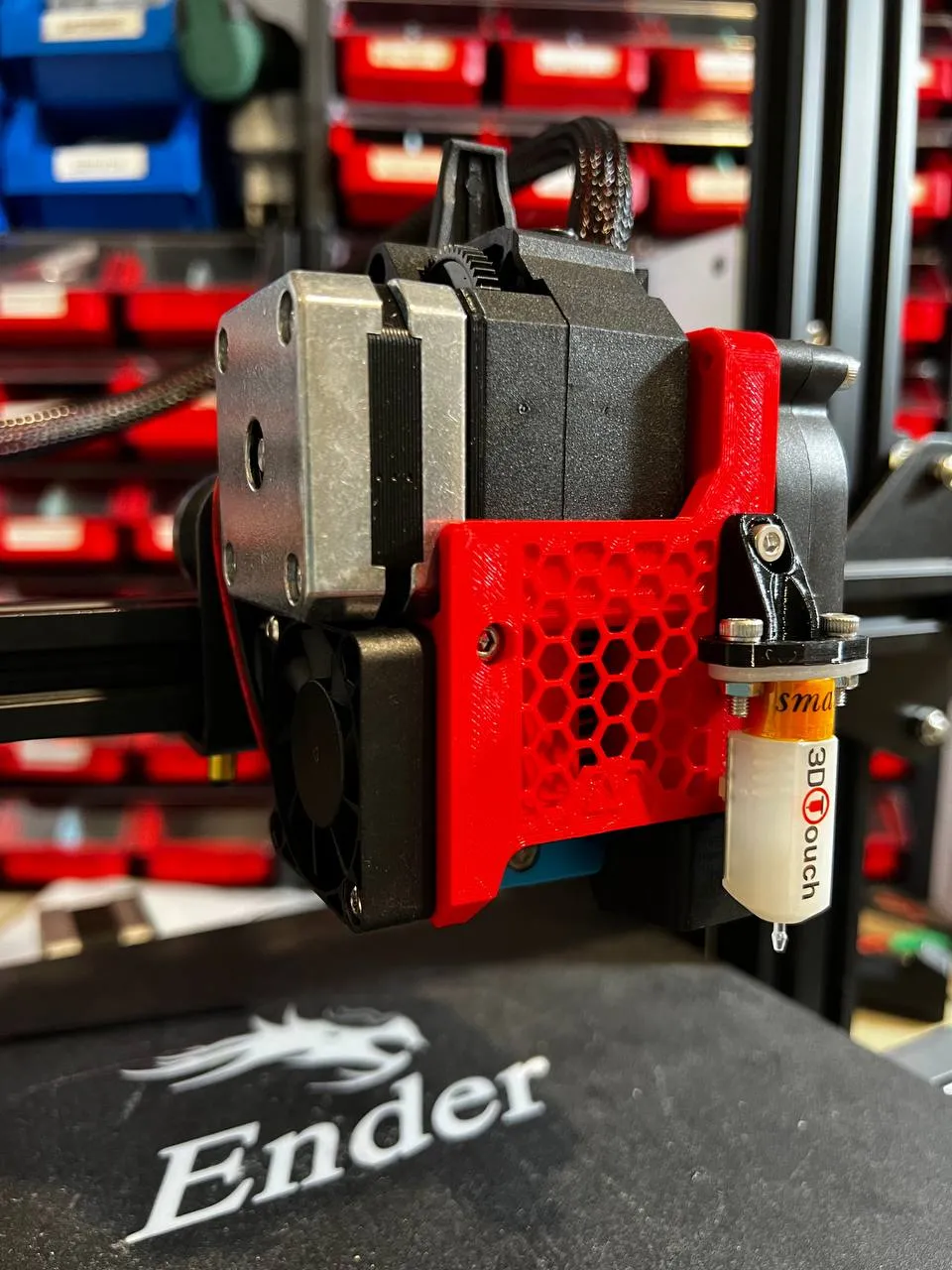

New support Bltouch on fan 4010 Offset X-53 Y-5.25

Bill of materials

• 1 unit – DDB Extruder V2.1
• 1 unit – Motor Nema 17 25mm
• 1 unit- Hotend V6 (Option V6)
• 1 unit- Hotend V6 Volcano ( Option V6 Volcano)
• 60-70 mm - PTFE Capricorn
• 1 unit – Thermistor ATC Semitec 104GT (I recommend changing the original)
• 1 unit – 40W Heater Cartridge 24V (you can use the original)
• 1 unit– Fan 5015 24V
• 1 unit – Fan 4010 24V
• 2 units – Screw ISO 7380 M3x6
• 3 units – Screw ISO7380 M3x8
• 3 units – Screw ISO 7380 M3x16
• 3 units – Screw ISO 7380 M3x20
• 2 units – Screw ISO 7380 M3x30
• 2 units -- Self-Locking Cable Ties 2,5x100 mm

Optional:

• --1 m – Cable Sleeve Self Closing PET 13mm

Print Settings

Supports: No

Resolution: 0.2

Infill: 25
