E-Vader CT-22 Speedometer Display Mount
Print Profile(3)
Description

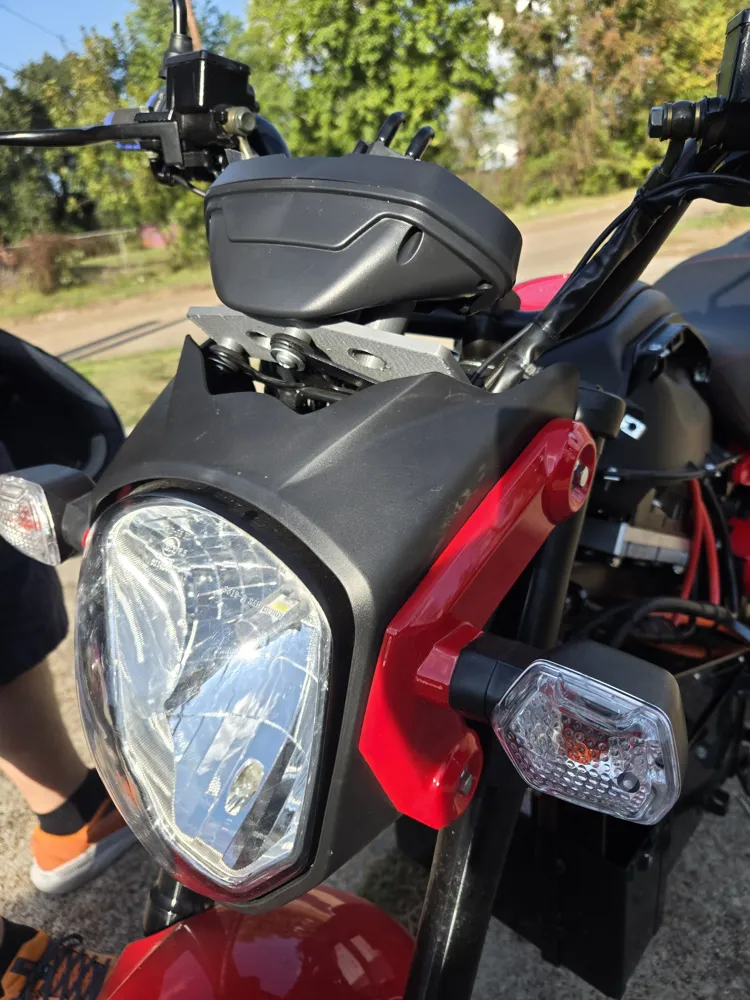

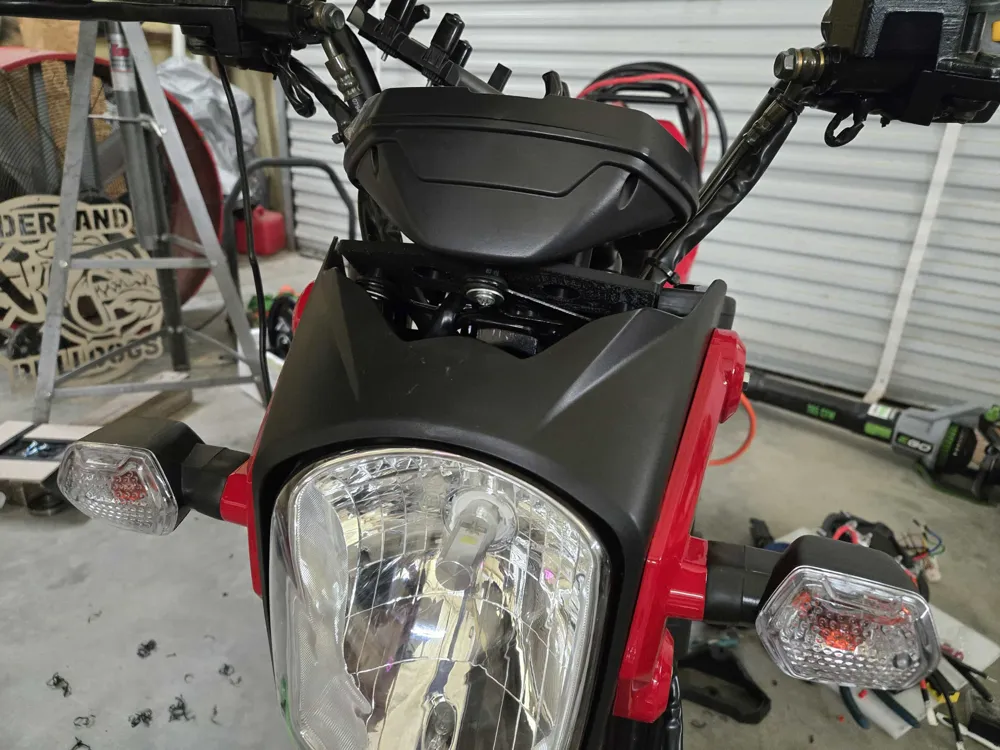

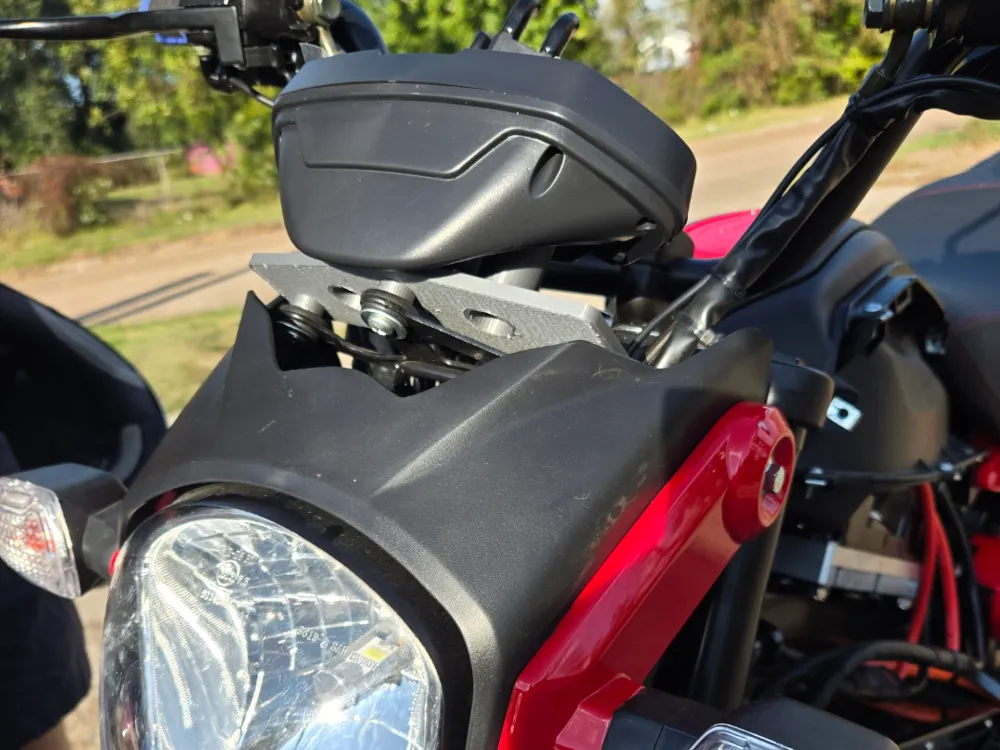

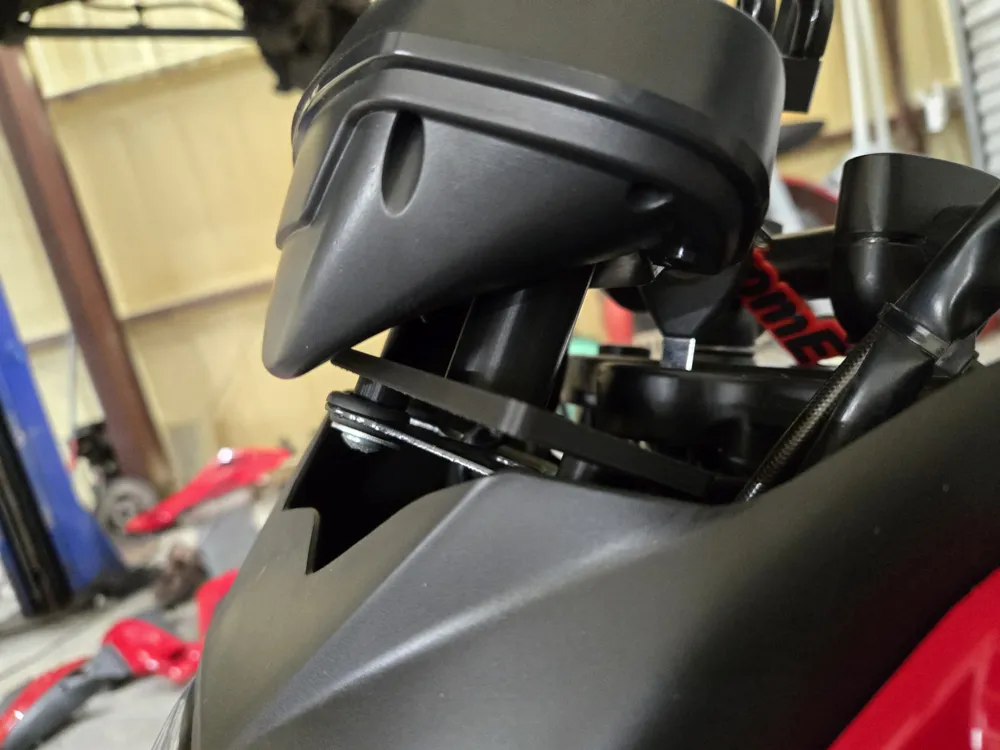

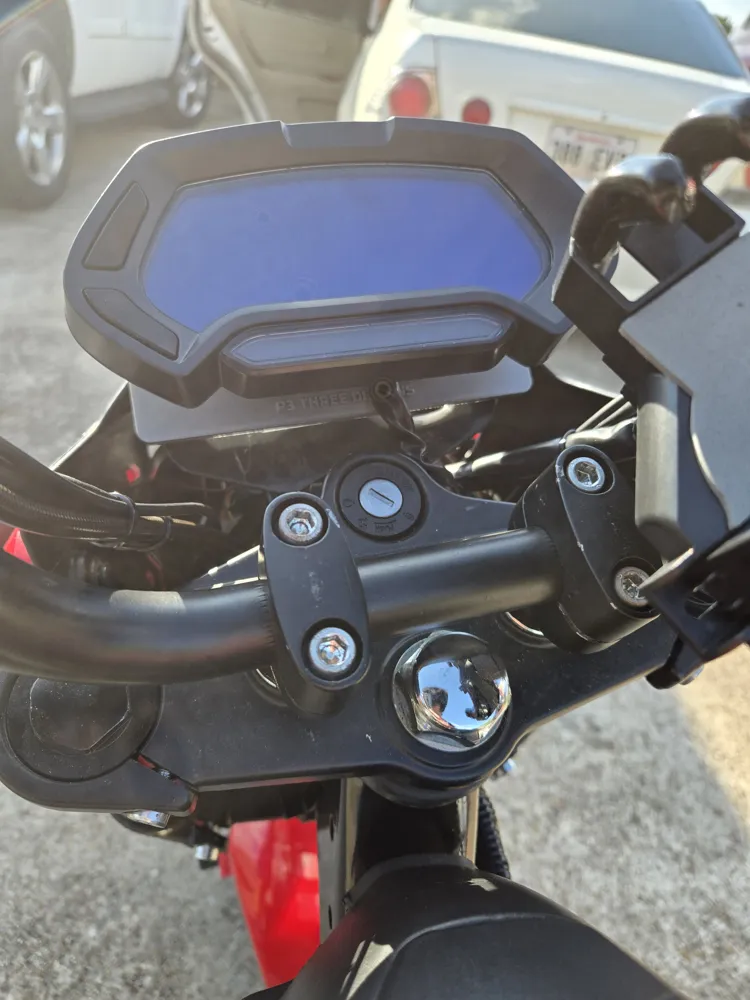

This is my bracket to mount a CT-22 display/speedo/cluster to the factory bracket of the Venom E-Vader or Boom BD1578Z. I have a few different versions. You can mount the adapter bracket to the eVader with the factory screws and washers. The screen has 2 studs that use 2 nuts (10mm socket) to bolt to the bracket.

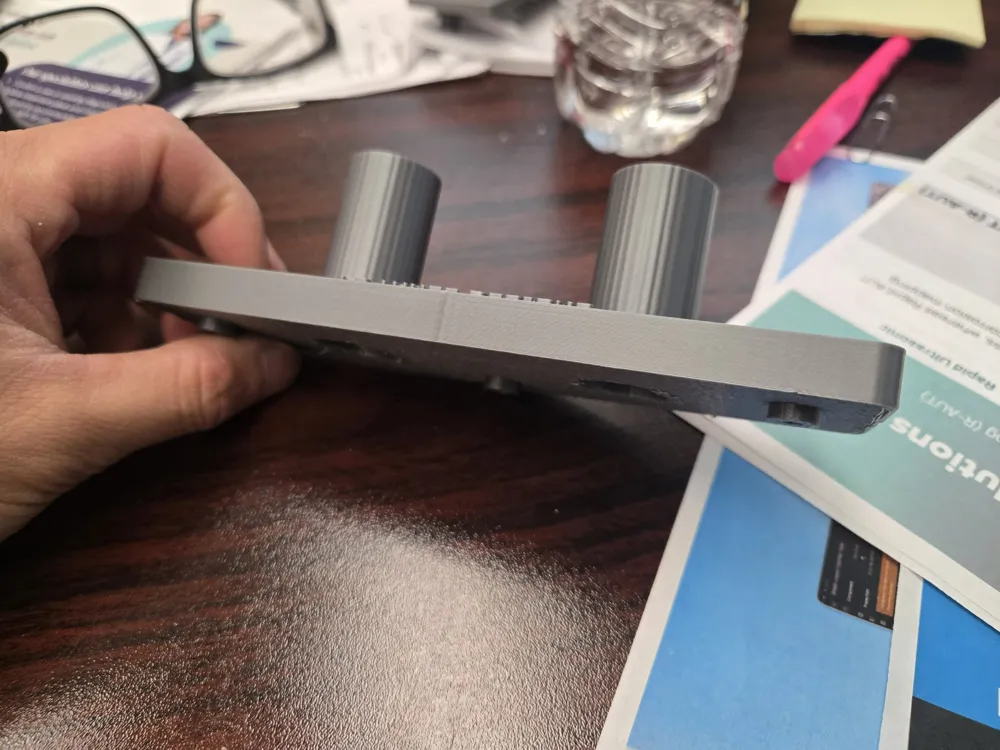

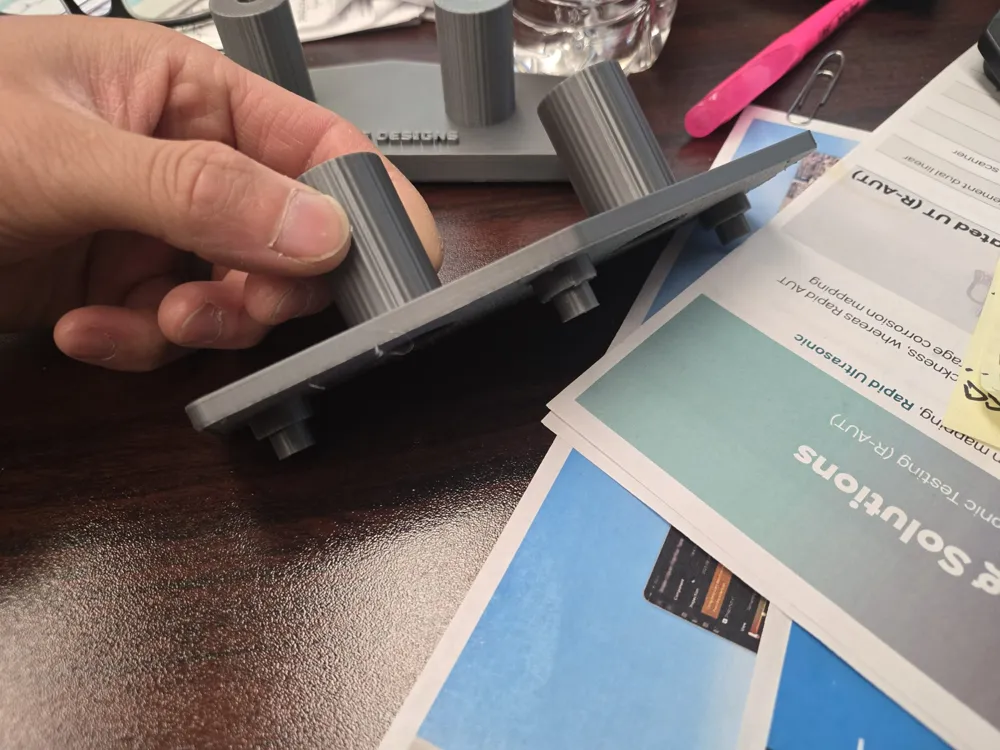

I printed mine in PETG, 4 walls, and 50% infill with good results. Supports will be needed for printing.
Squished bushings:

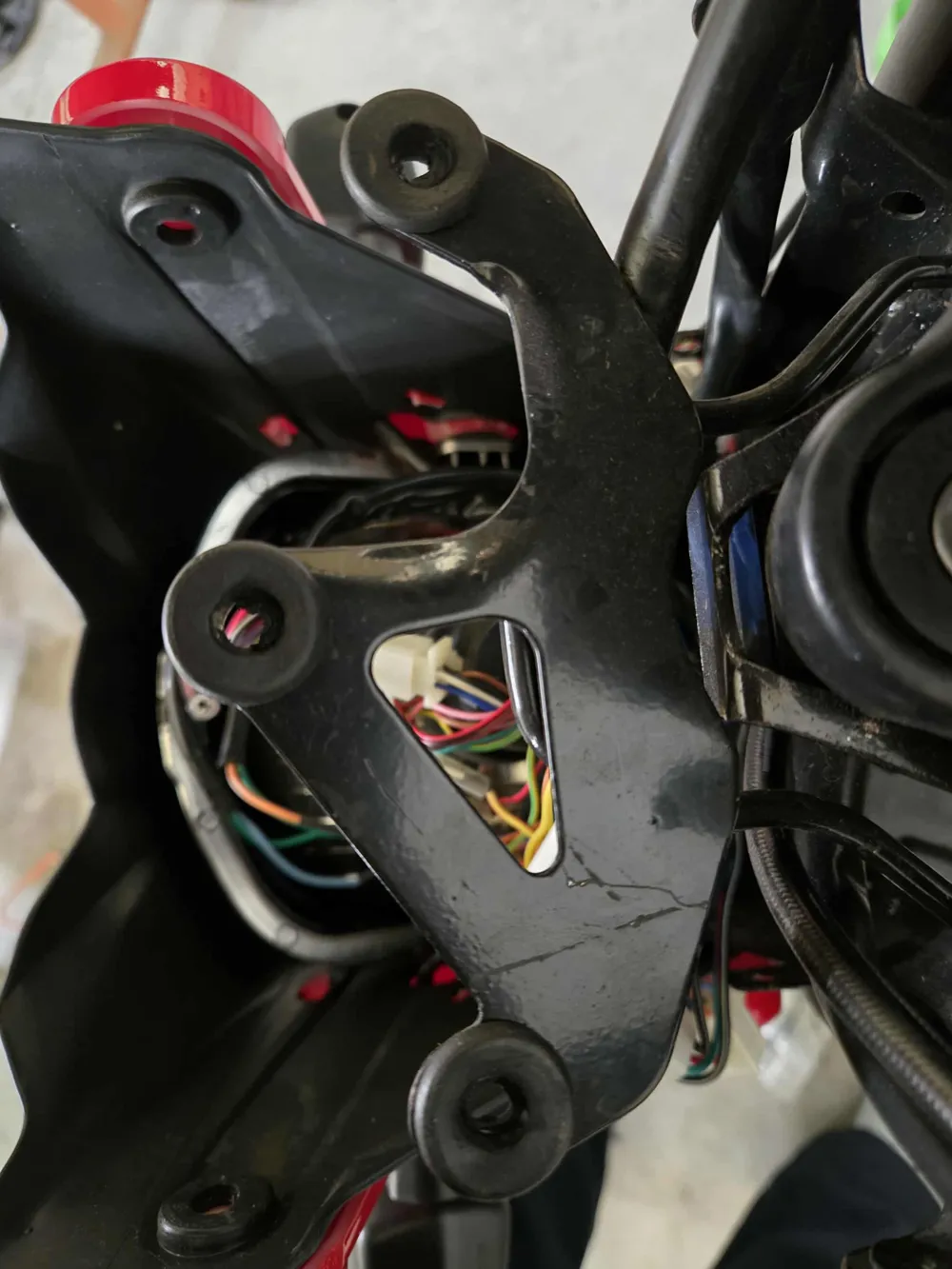

The squished bushings version is what I had to use for my bike as the factory install crushed the bushings to where the factory gauge didn't even slot through the bushing.
Standard bushing:
This is designed to match the factory display mount with normal bushings.
Thicc No Bushing:
I made this version for someone who had got their eVader with no bushings and the top hole cut out.
