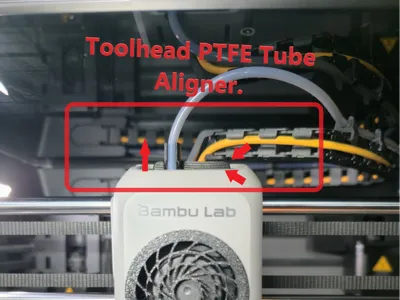

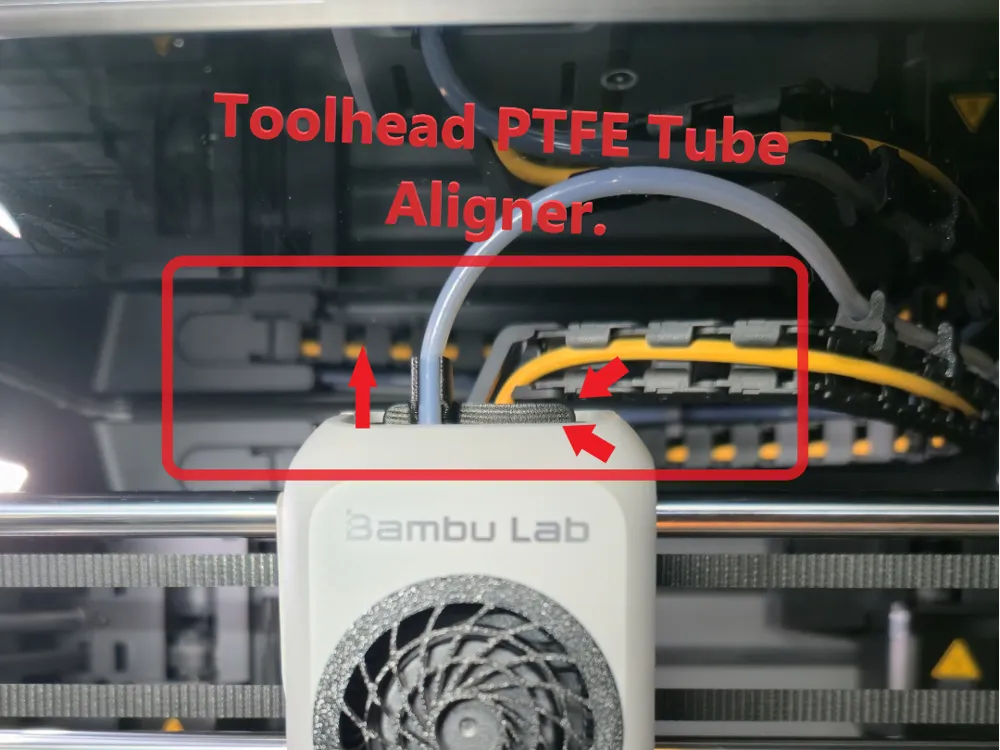

P2S Toolhead PTFE Tube holder / vertical aligner
Print Profile(2)
Description
First download these ptfe tube holding clips/brackets : P2S/H2D/H2S Drag Cable chain PTFE holding clip by Ryxxi_makes MakerWorld: Download Free 3D Models
Remove the Ptfe tube from the extruder and cut it by a bit (makesure the length is enough. You can check this by moving the printhead to both front Left and right corners):

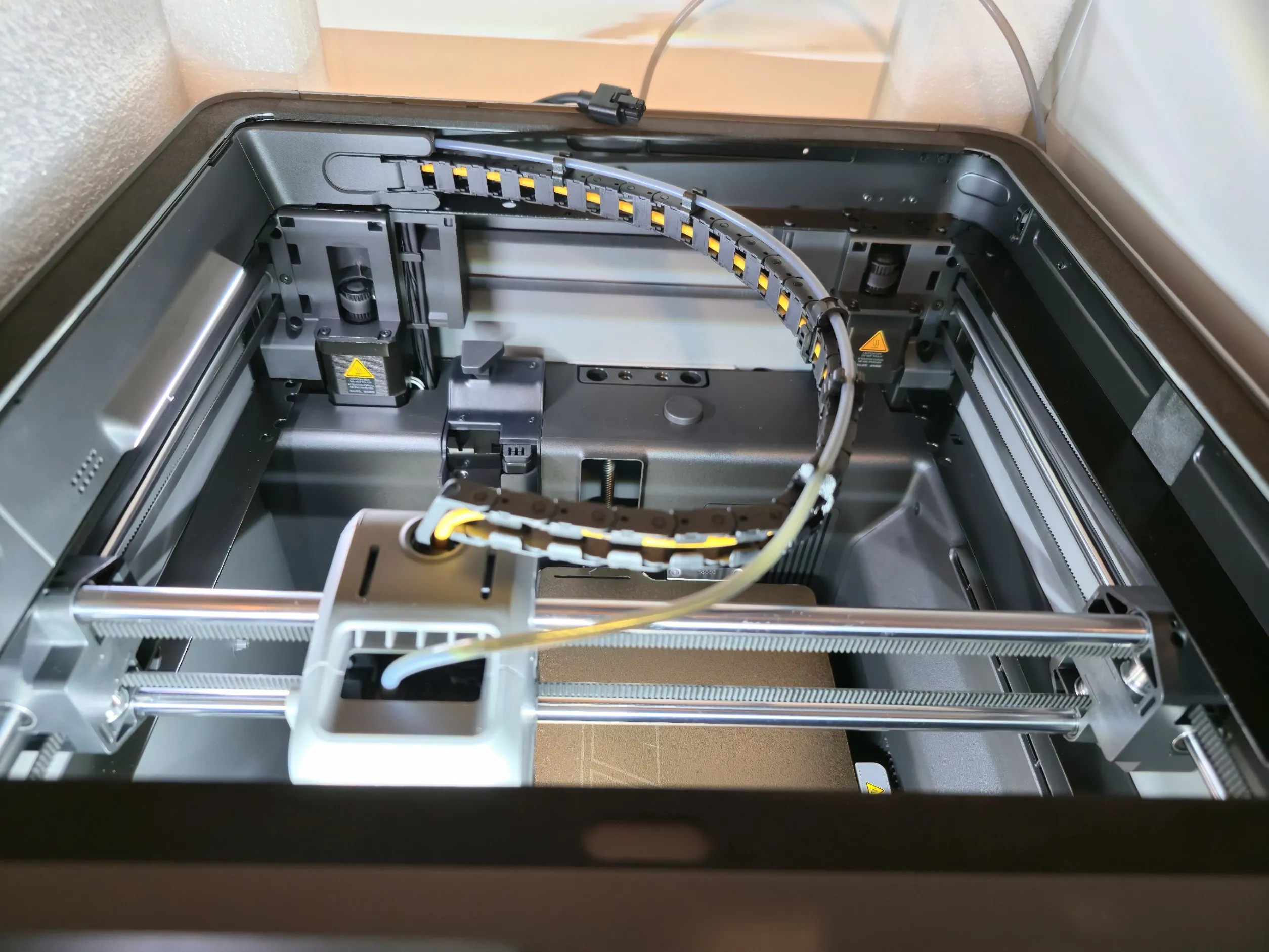

Add some clips to secure the prfe tube to the drag chain.

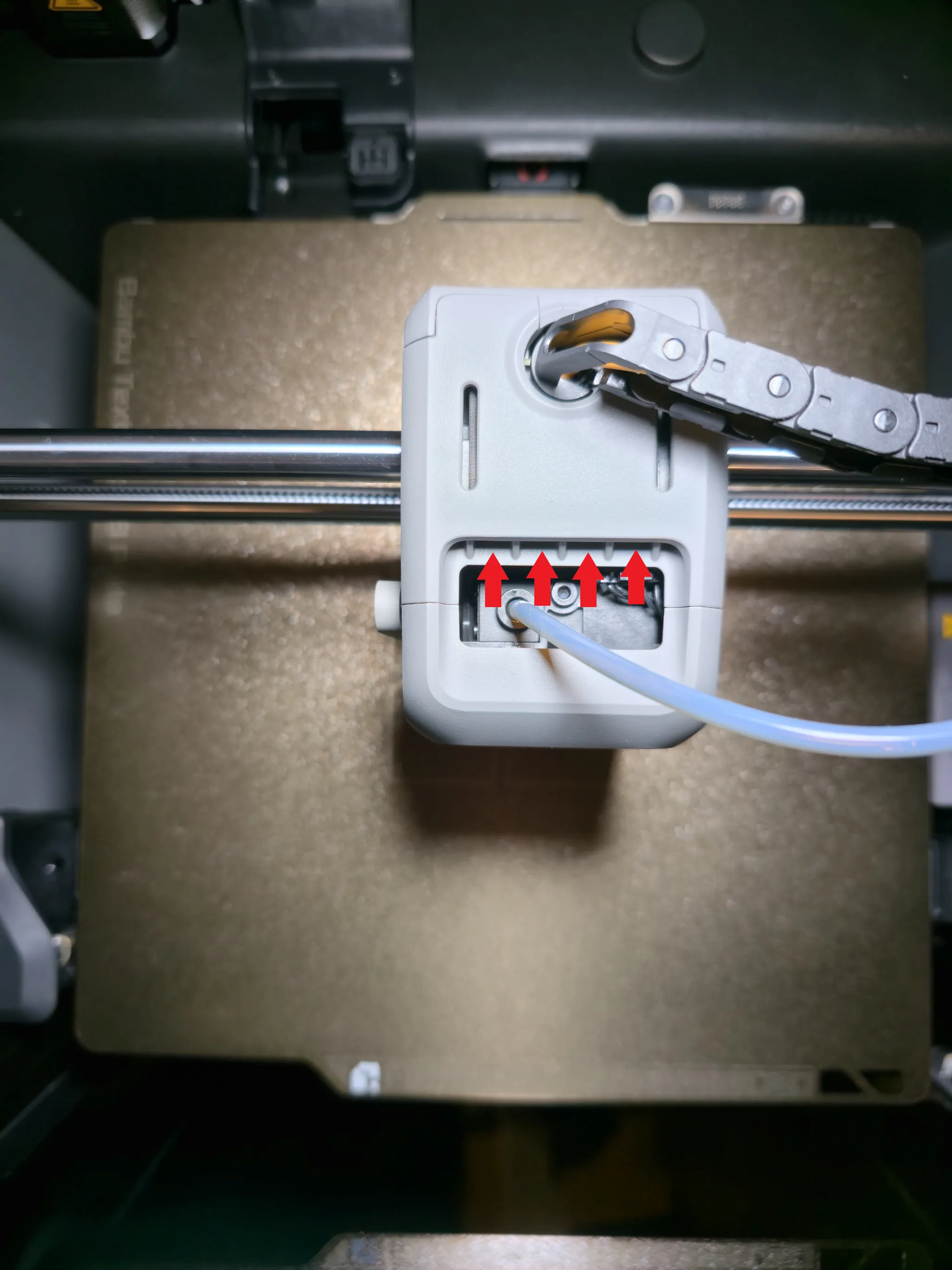

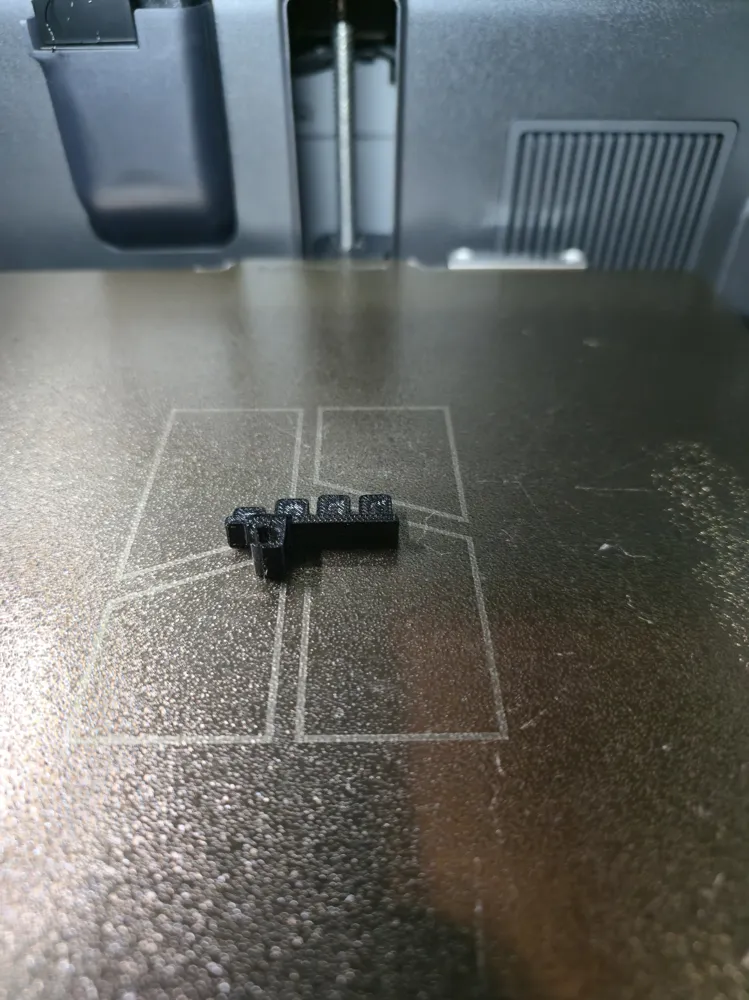

Press in the Adapter into the slots on the Toolhead.

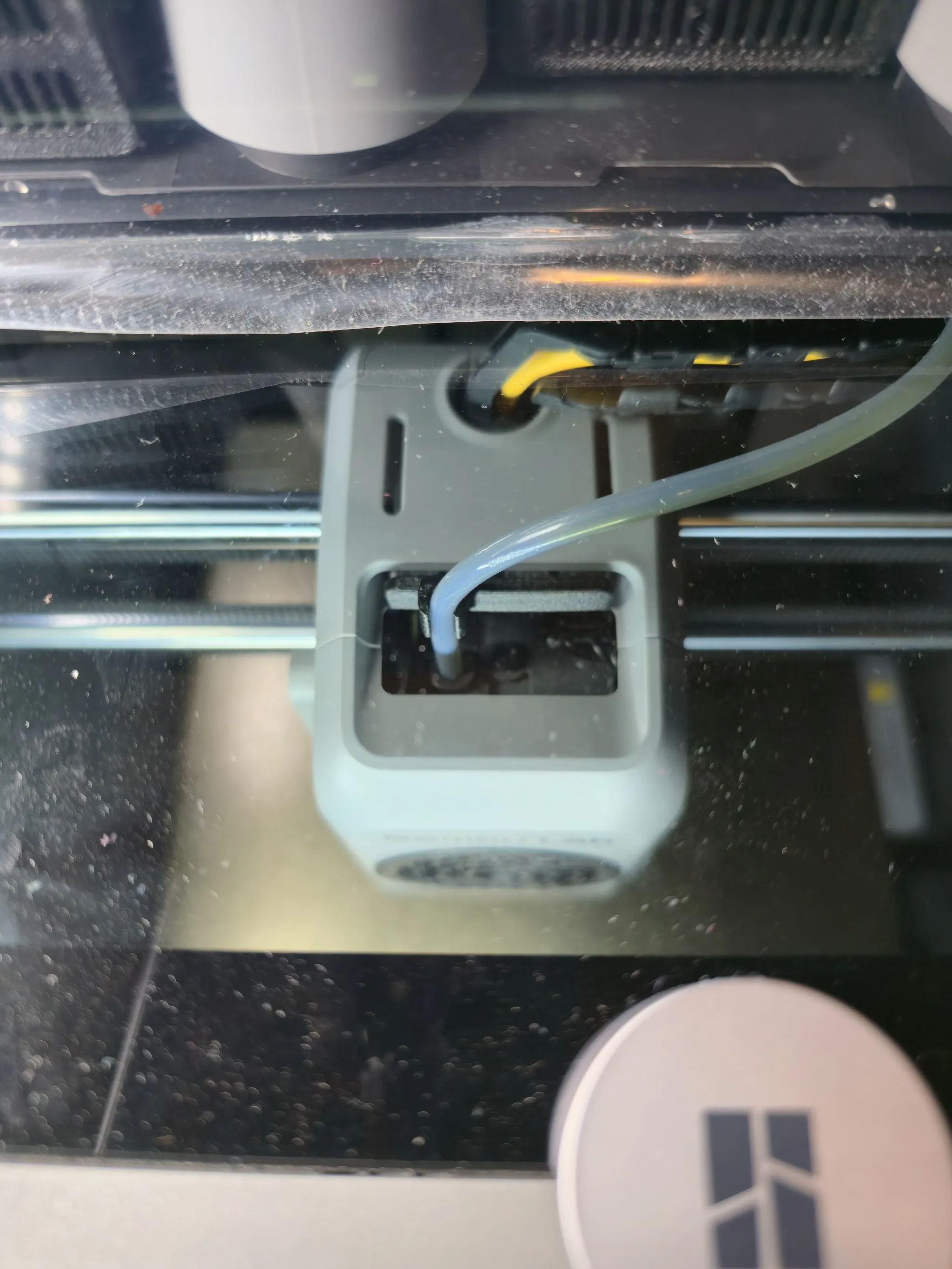

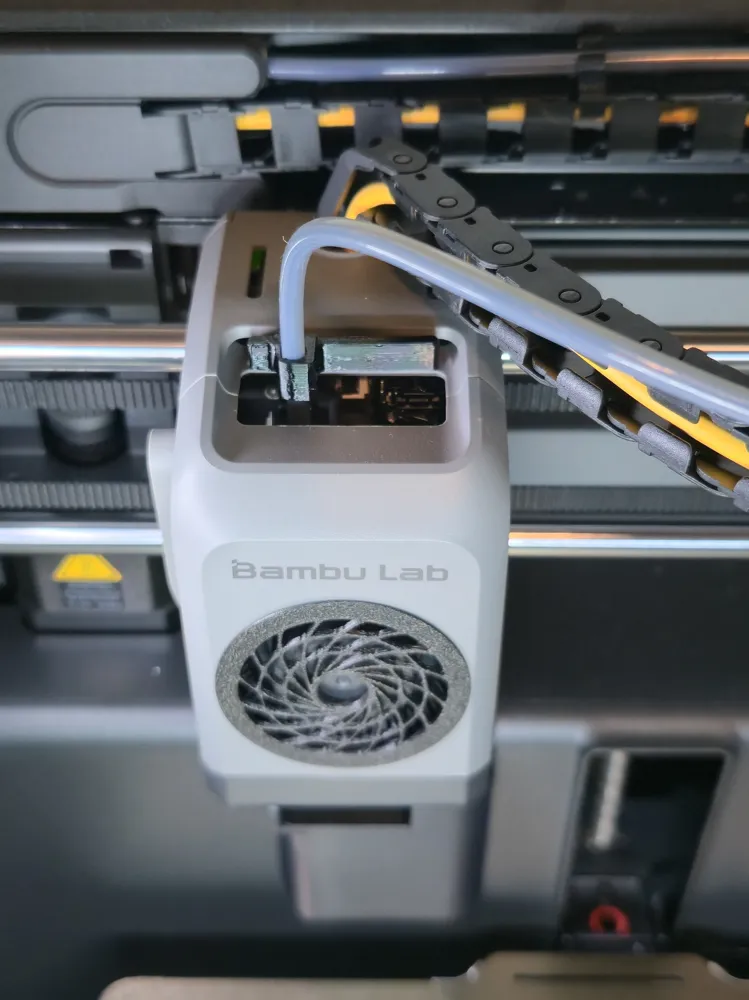

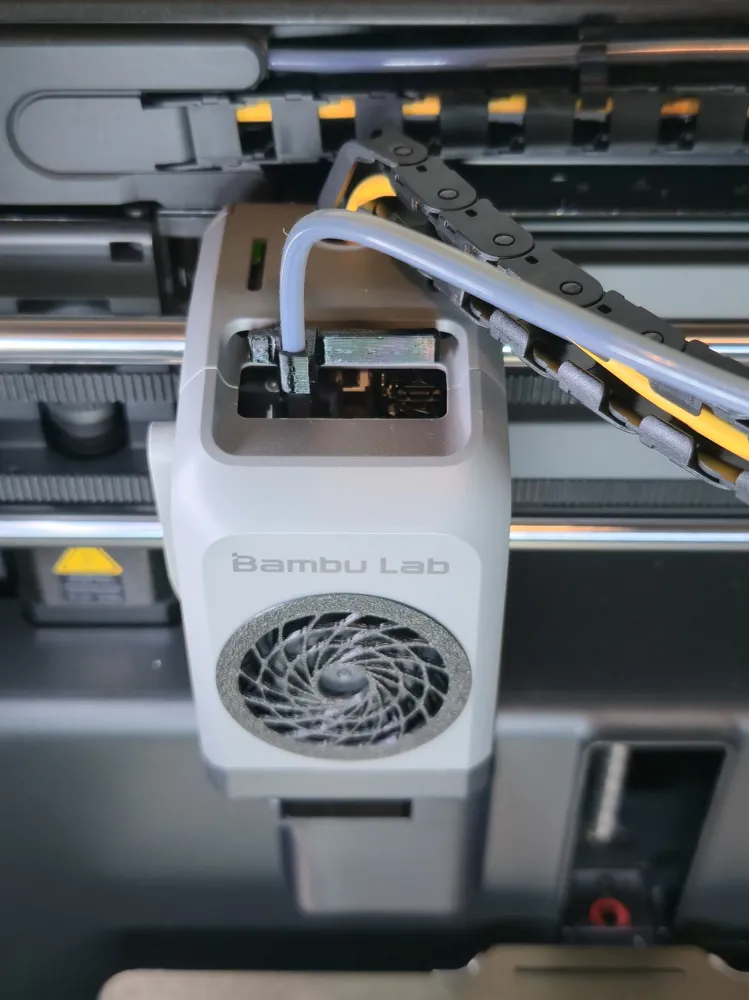

next snap the ptfe tube into the alignment channel.

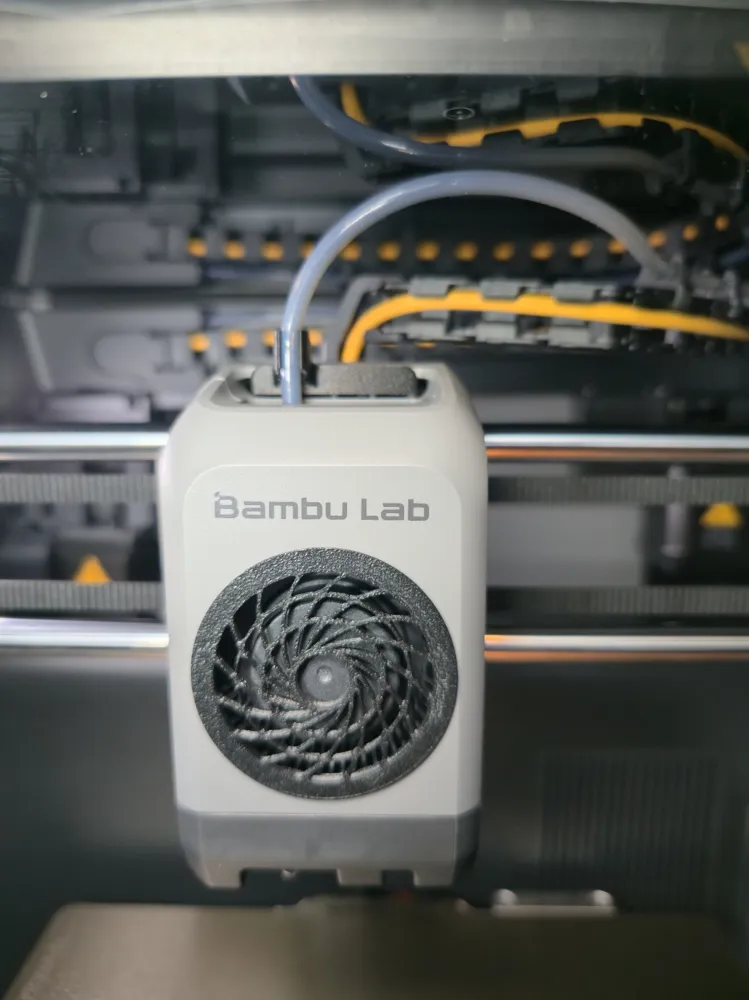

Make sure that the ptfe tube path is not too bend.
