4" / 100mm Round Vents for RV (Fixed & Adjustable)
Print Profile(2)
Description

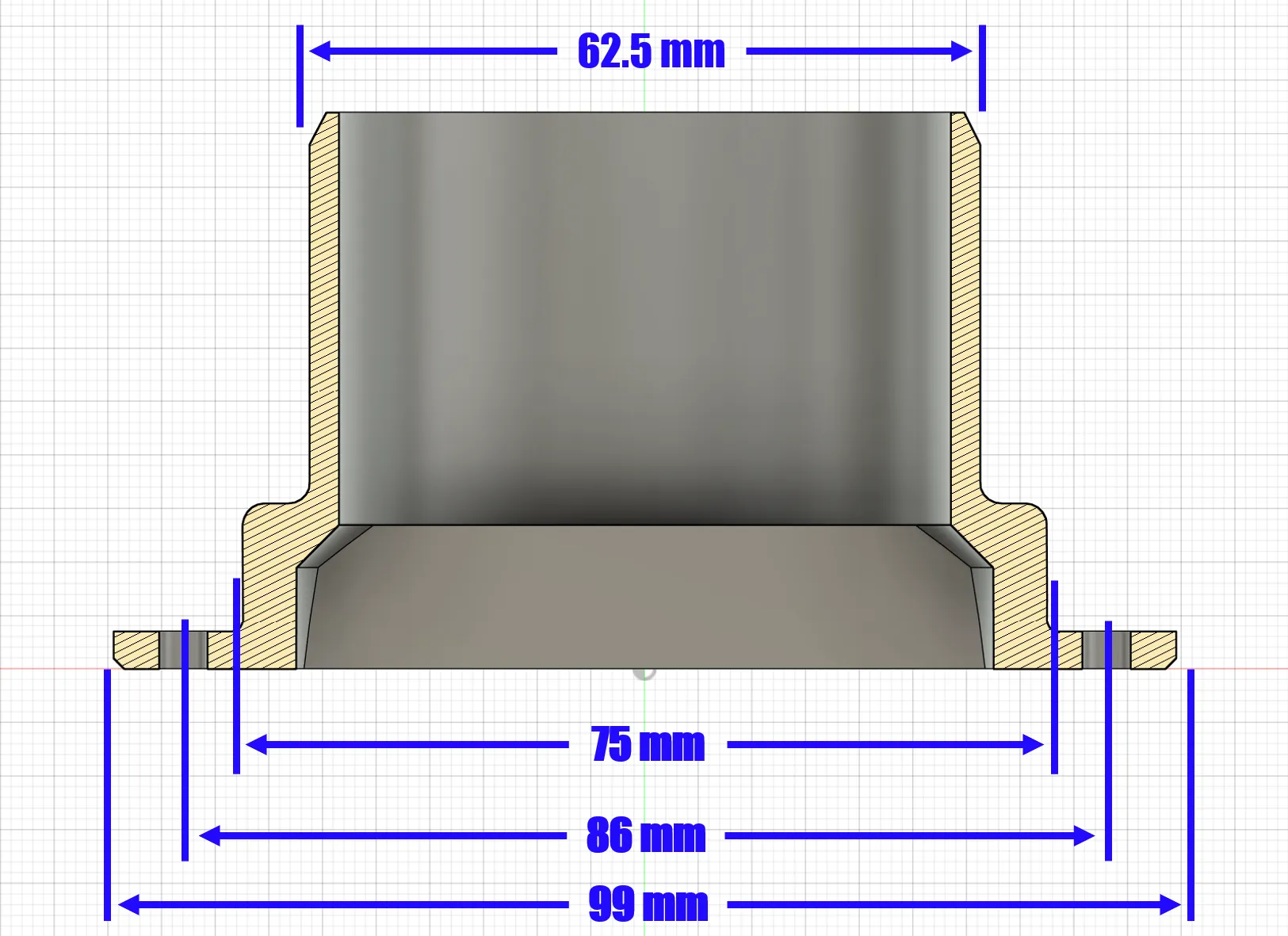

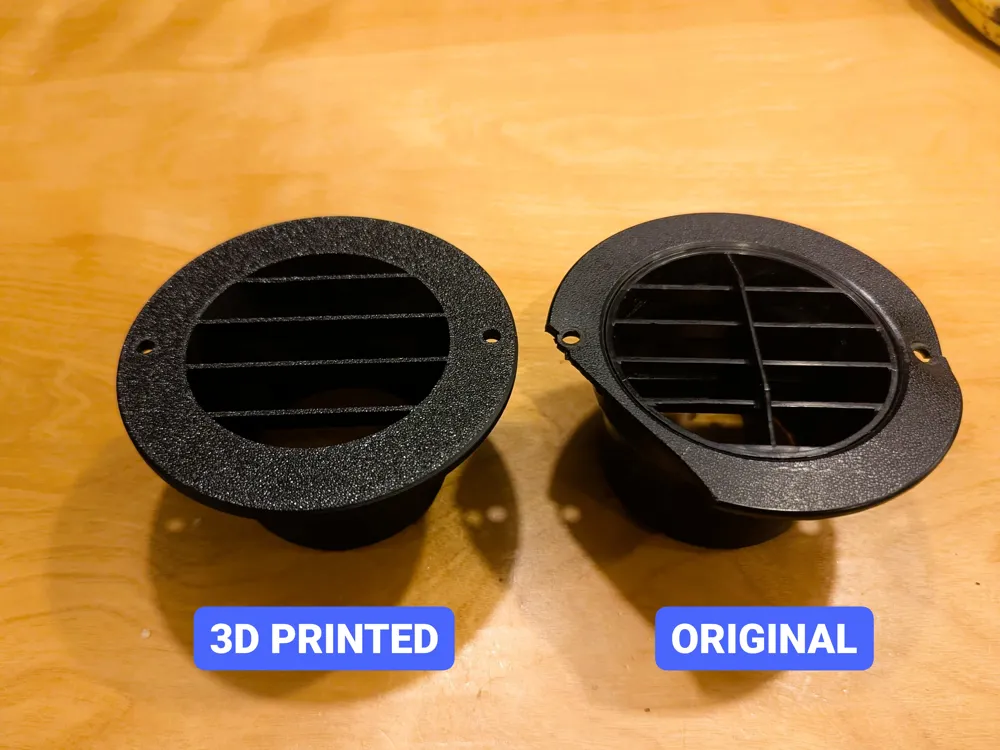

A buddy asked if we could improve on the vents in his RV, so I came up with these models. I don't know know the original model or brand, but there's a picture of the broken original and a sketch with dimensions so you can see if they'll fit. There are two options:

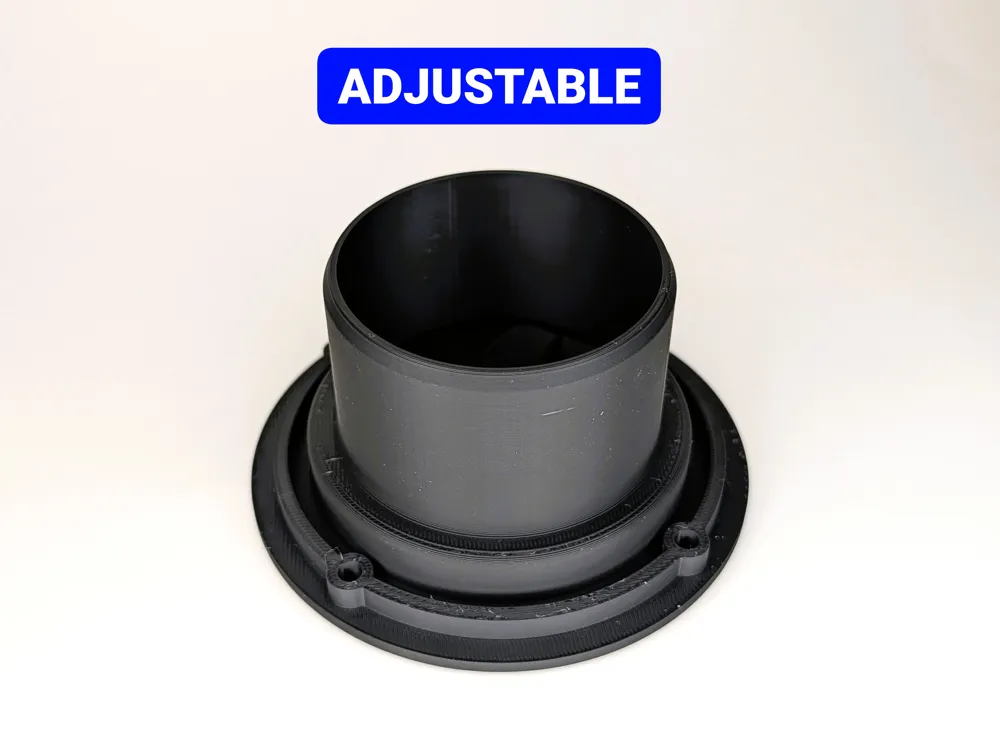

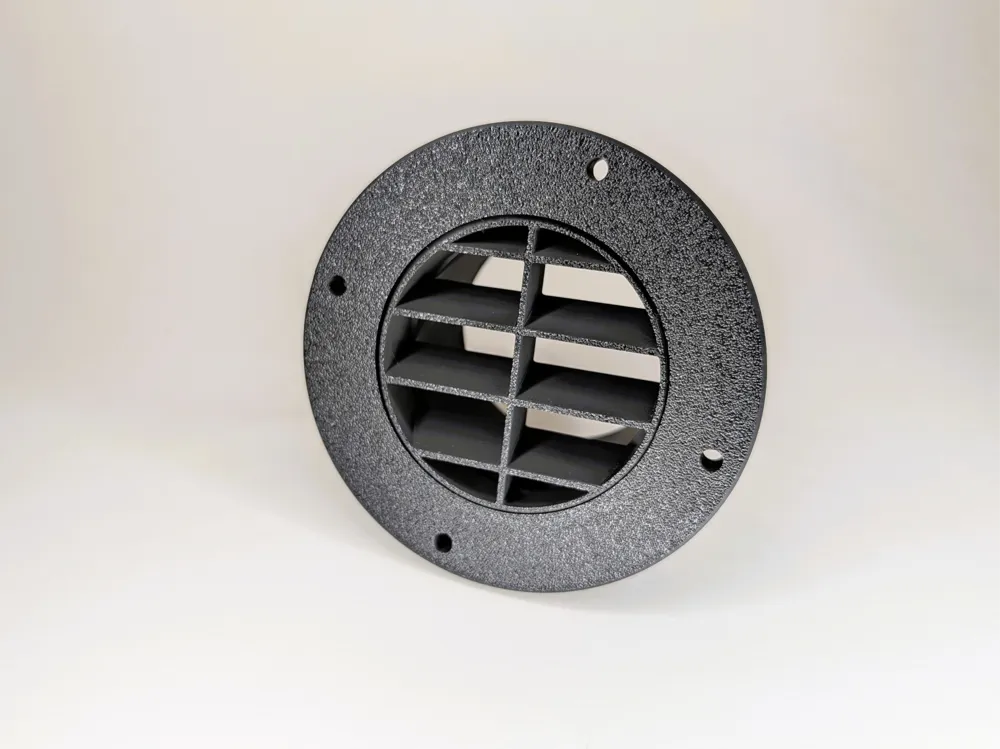

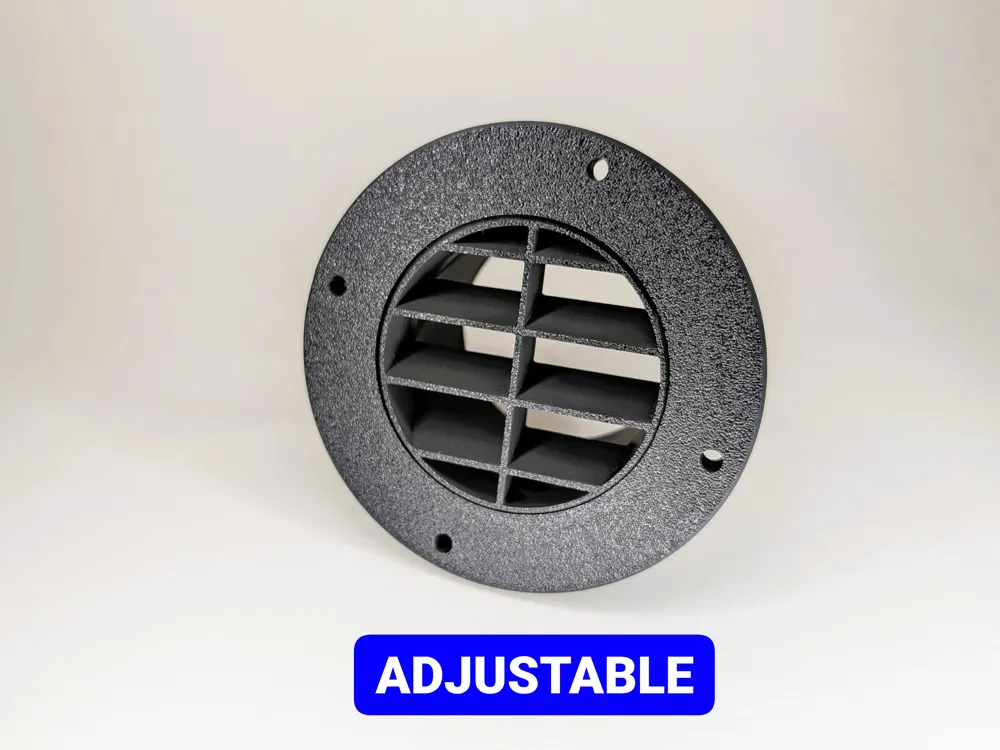

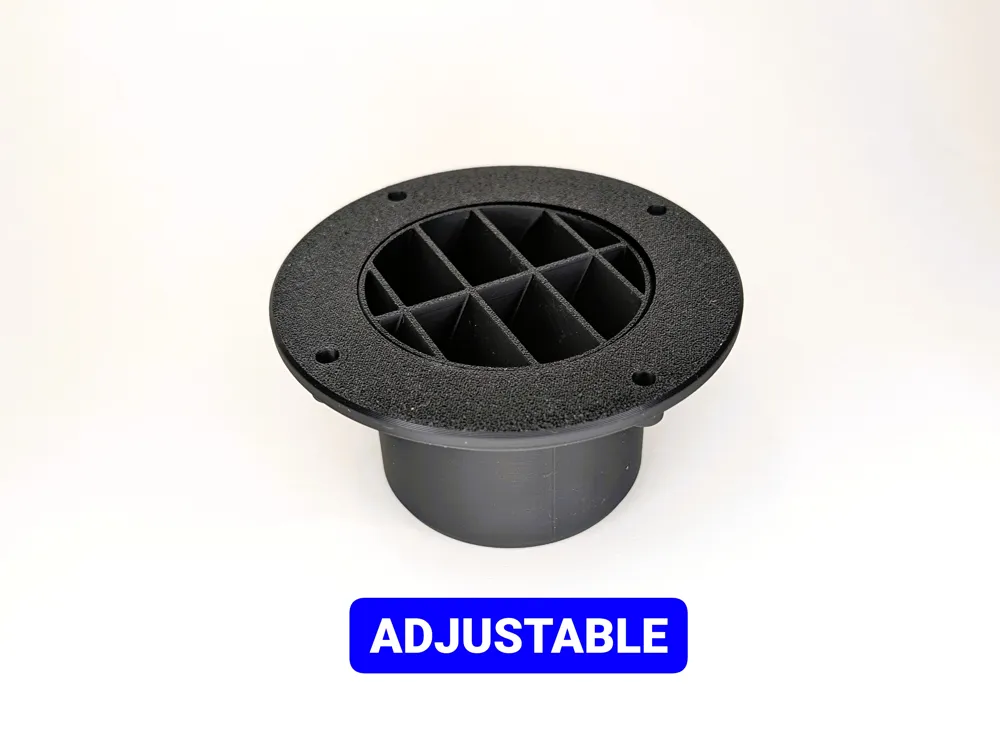

An adjustable/improved version:
- Includes the ability to rotate the louvers to direct the air flow
- Includes a rib behind the face plate to add stiffness and hopefully improve rigidity (see picture of failed unit)
- Includes bosses behind the screw holes
- Includes 2 additional screw holes for more secure mounting.

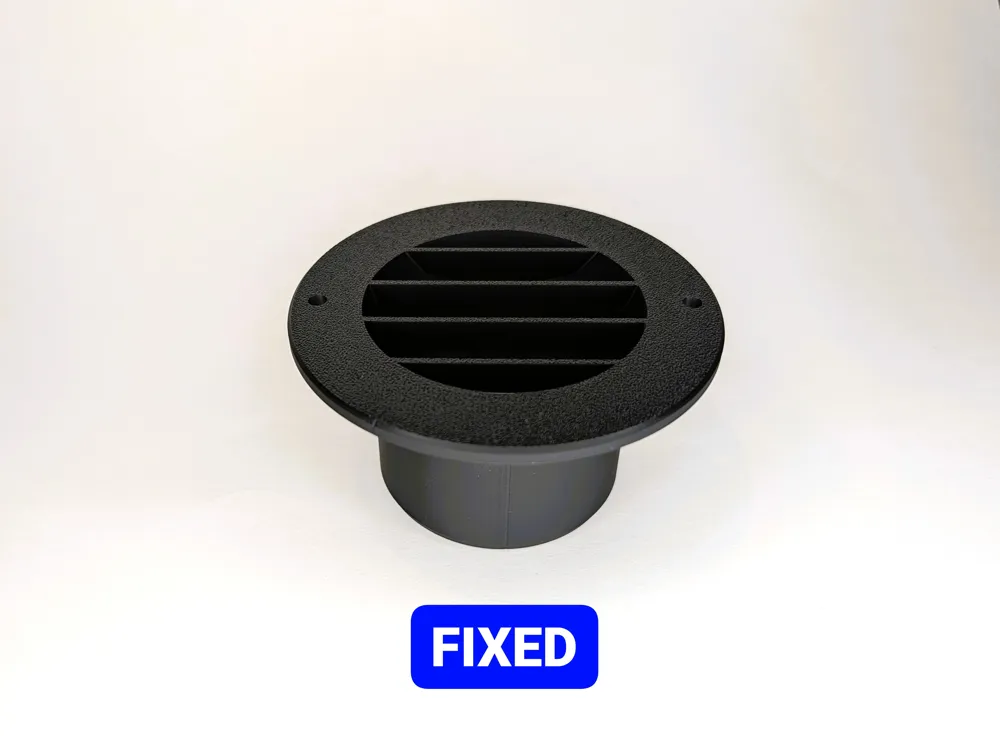

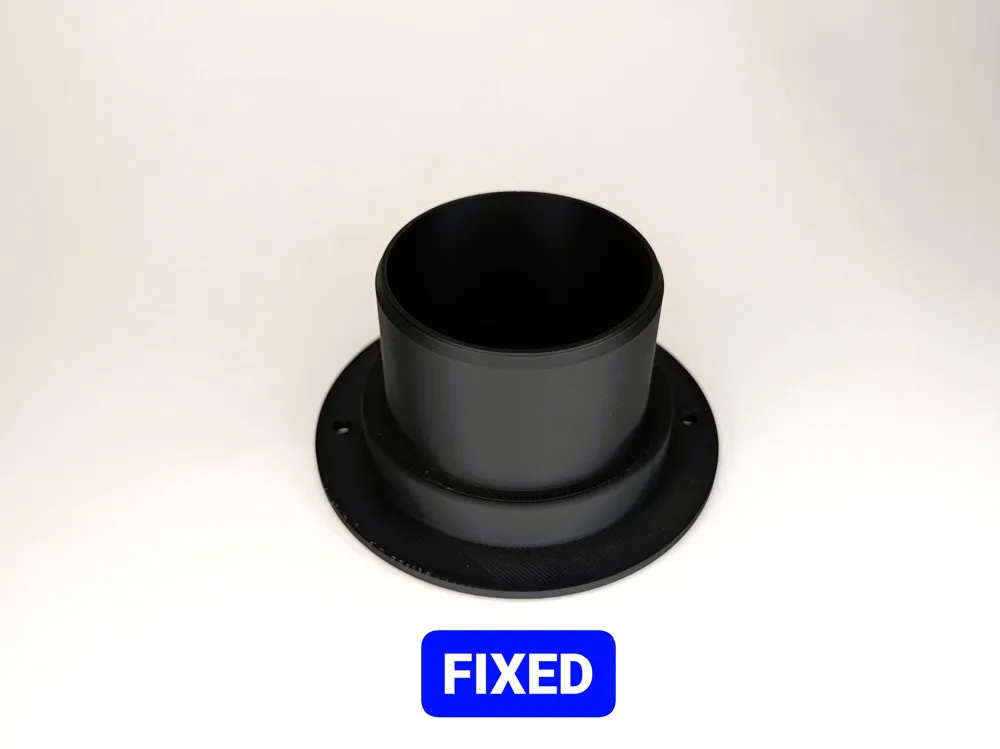

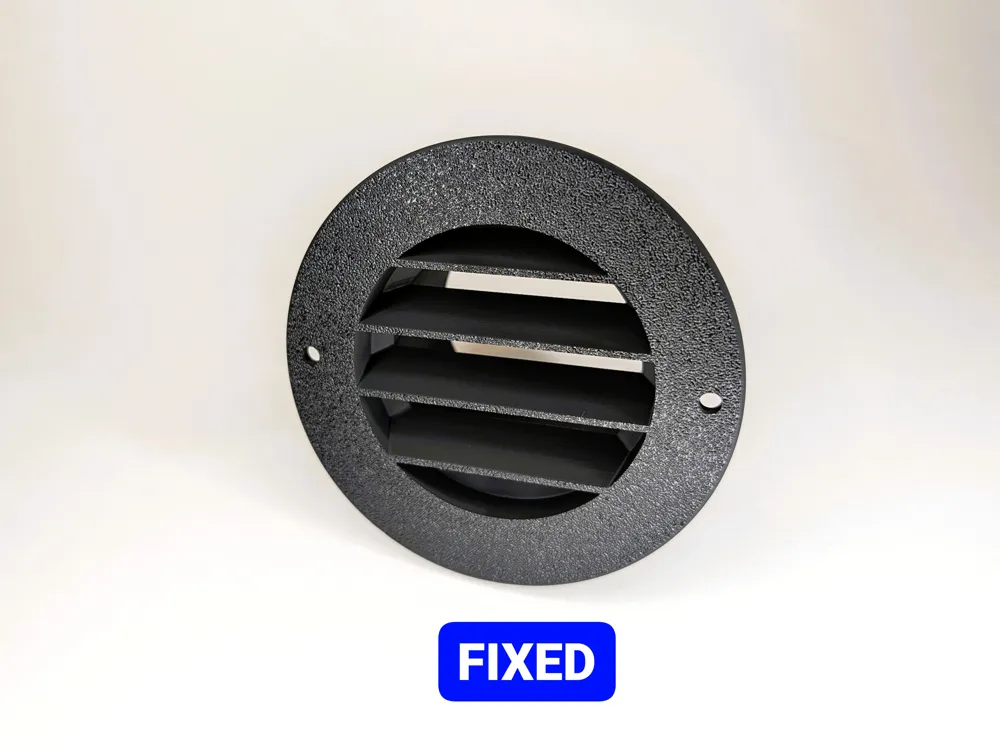

- A fixed version that replicates the original
Overall dimensions are the same for both models. Both models are print-in-place design; no supports required!
If you found this design interesting or useful, check out some of my other models.
Boost Me (for free)
I appreciate any and all constructive feedback to improve my designs. Thanks!
