Magnet Dispenser Pen – 45min Print 6x3mm Magnet

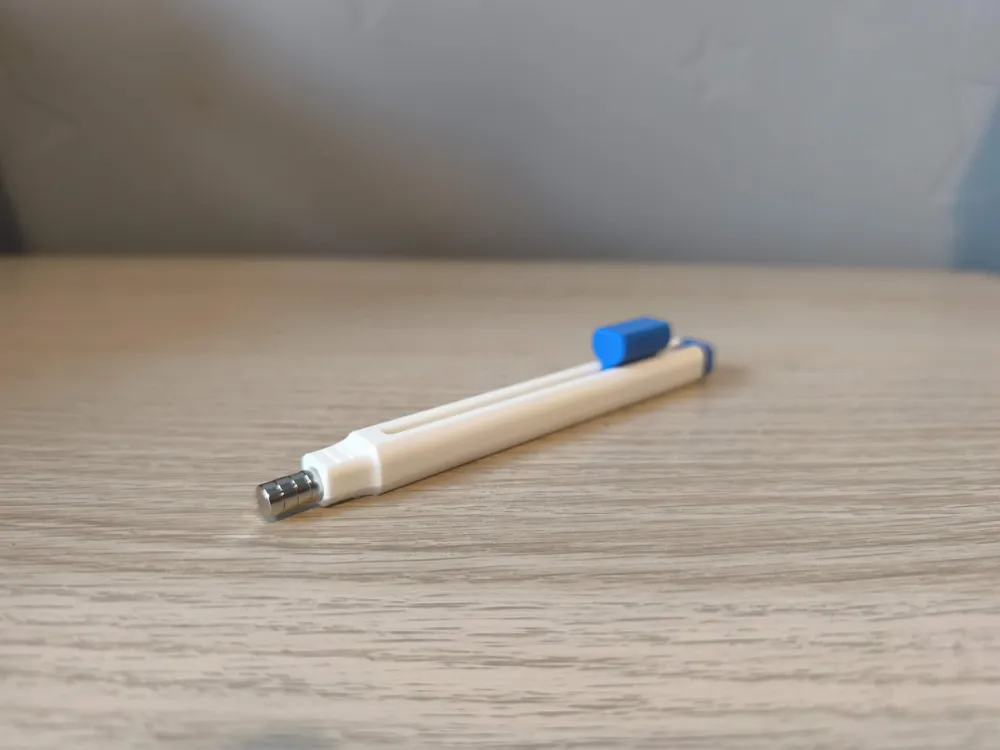

Magnet Dispenser Pen – Fast Print, Easy Load, Polarity-Friendly

After finding that most magnet dispensers online were tall prints, I designed this horizontal-printing magnet dispenser pen. Because it prints lying down instead of vertically, it uses far fewer layers, giving you a stronger part, cleaner walls, and a much quicker print overall - around 45 mins for this one.

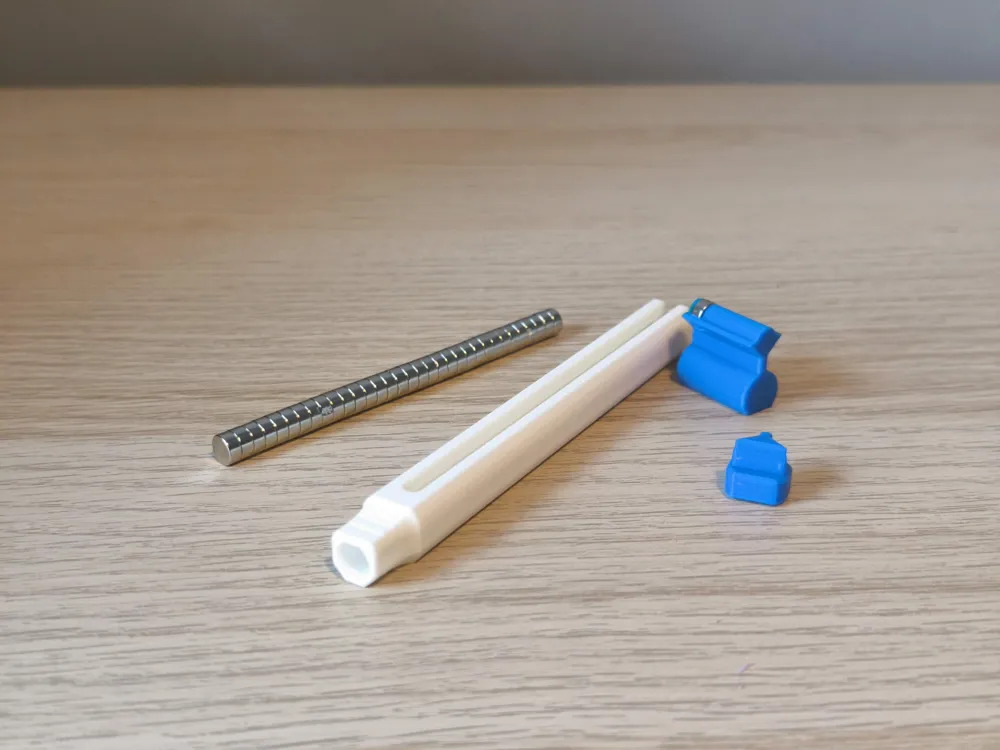

This version is built for 6 mm diameter × 3 mm thick magnets and comes in three simple parts:

Main Body

Holds your stack of disc magnets securely and slides smoothly thanks to the horizontal design.

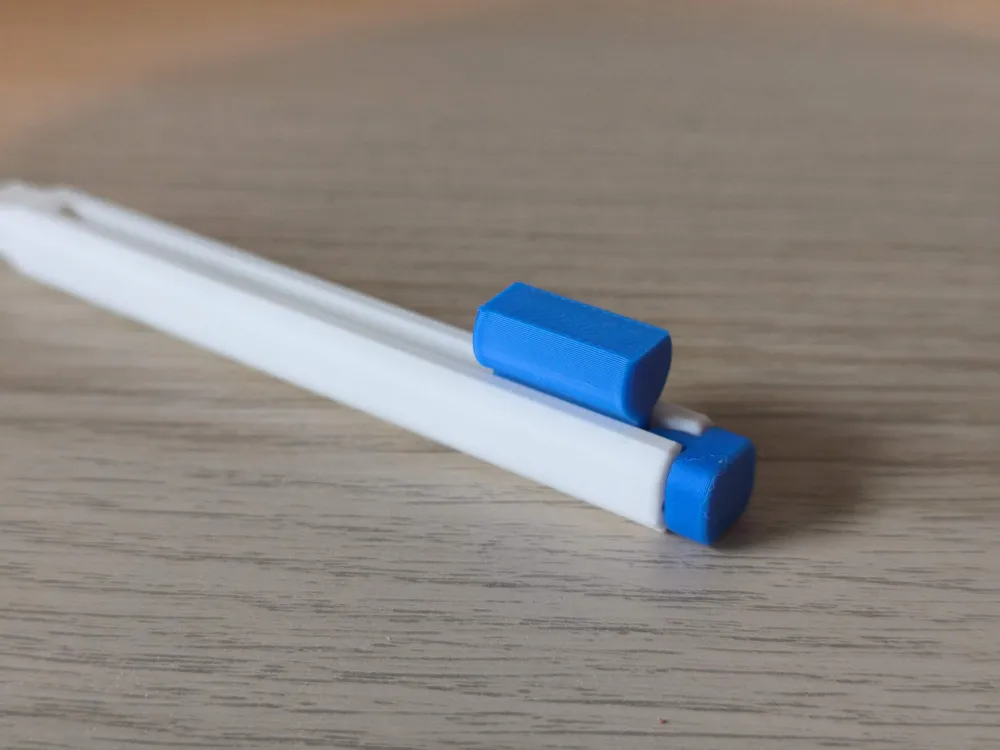

Sliding Magnet Carrier

A small insert with a magnet slot. Pop a magnet into the slot and it acts like a “grabber” to pull the next magnet from the stack.

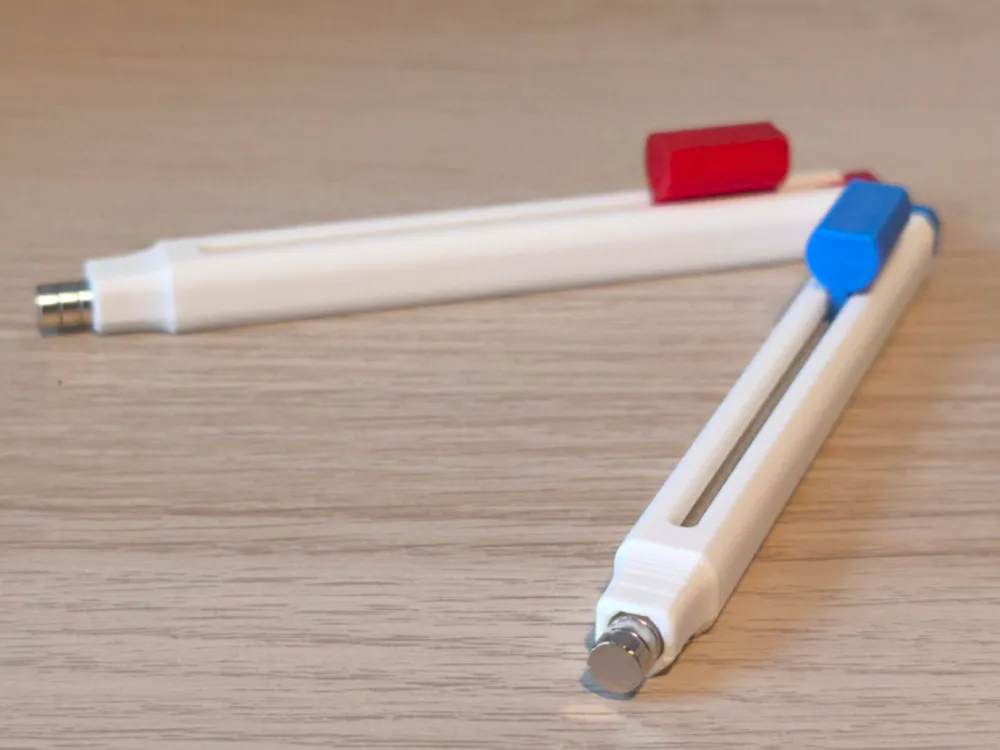

You can print this piece in red or blue to help mark polarity.

Press-Fit Cap

Clips onto the End to stop the slider falling out. Also printable in red or blue so you can colour-code the ends.

Features

• Fast horizontal print (much quicker than tall vertical designs)
• Designed for 6mm dia ×3 mm magnets
• Simple 3-part system (body, slider, cap)
• Slider holds its own magnet for easy dispensing
• Optional polarity colour coding
• No supports required
• Strong, smooth mechanics thanks to lower layer count
• Great addition to any workshop desk
