Description
Super Jerkbait Lure for Largemouth Bass (Achigan), Pike, and Perch Fishing
Sinking, it has a very wide swimming action. Your jerks will easily propel it from left to right, it animates very well
Follow the assembly instructions to achieve the desired result
Instructions and information :
Materials : I performed 10Kg resistance tests on PLA and PETG which passed without issue, PETG's durability is much better! but you can fish for hours with PLA provided you add varnish
Lure Version :
- You can edit colors without any problem
- Perfectly suited for M and MH rods

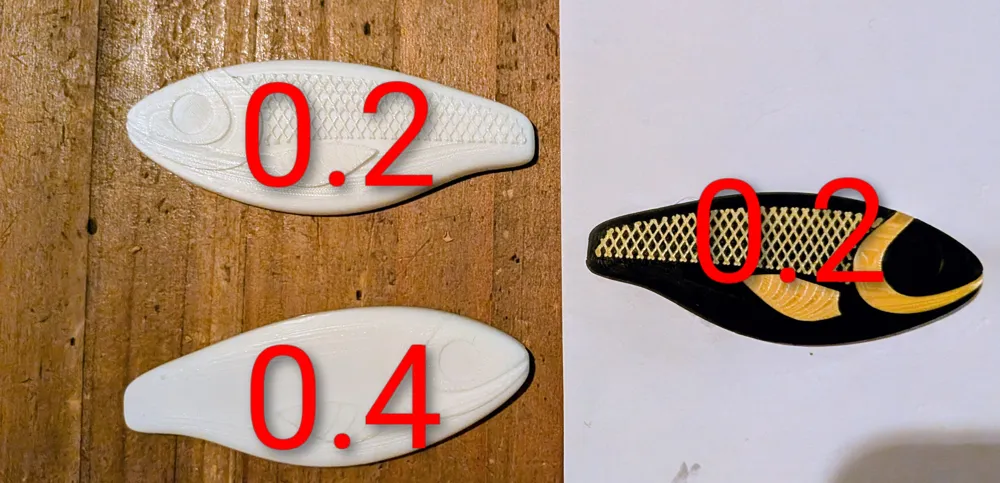

- 0.2 nozzle version with two colors

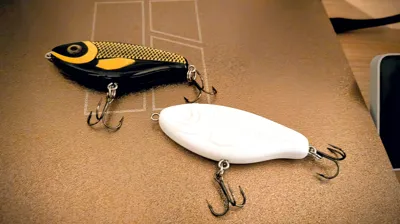

- 0.2 nozzle white version to paint
0.4 nozzle version (less detail)
Equipment :
- Ring 8 hook attachment
Steel or lead balls
- Maximum 5.3mm diameter
- https://fr.aliexpress.com/item/1005006776214313.html?spm=a2g0o.order_list.order_list_main.39.2faa5e5bWbWwGG&gatewayAdapt=glo2fra
- 8mm Stainless Steel Split Rings
Amazon link here
Eyes
- Treble hooks number 4
Amazon link here
Epoxy Resin
- Link here
Assembly Instructions :
Important for lure balance : I advise you to weigh all elements before assembly! (Lure, hook, attachment, rings…) The body weight may change depending on the filament, for example, but not the volume!

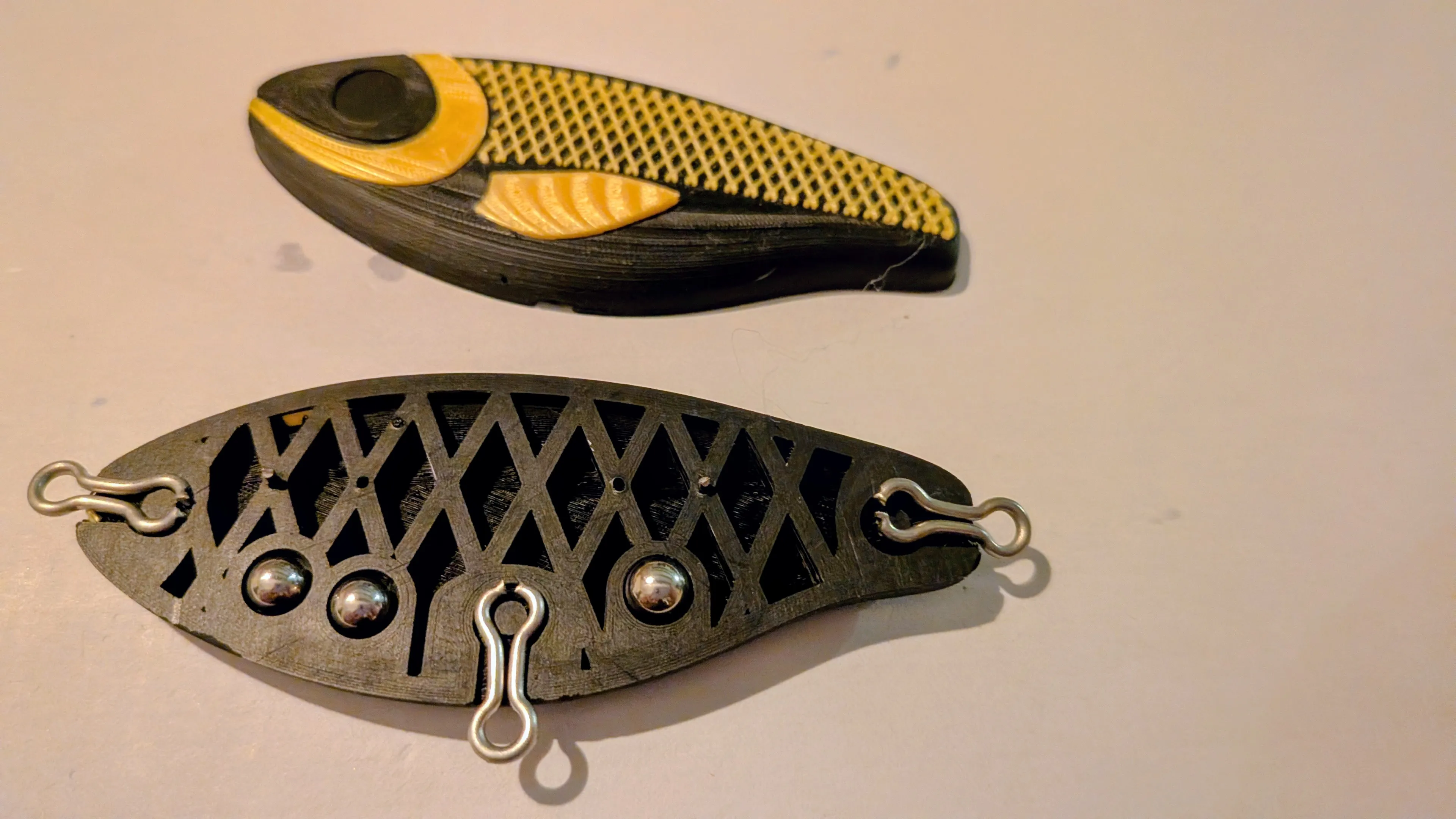

Add internal elements :
- Place gently, without pushing the attachments in too far
- Arrange the weights (preferably 25% heavier at the front)

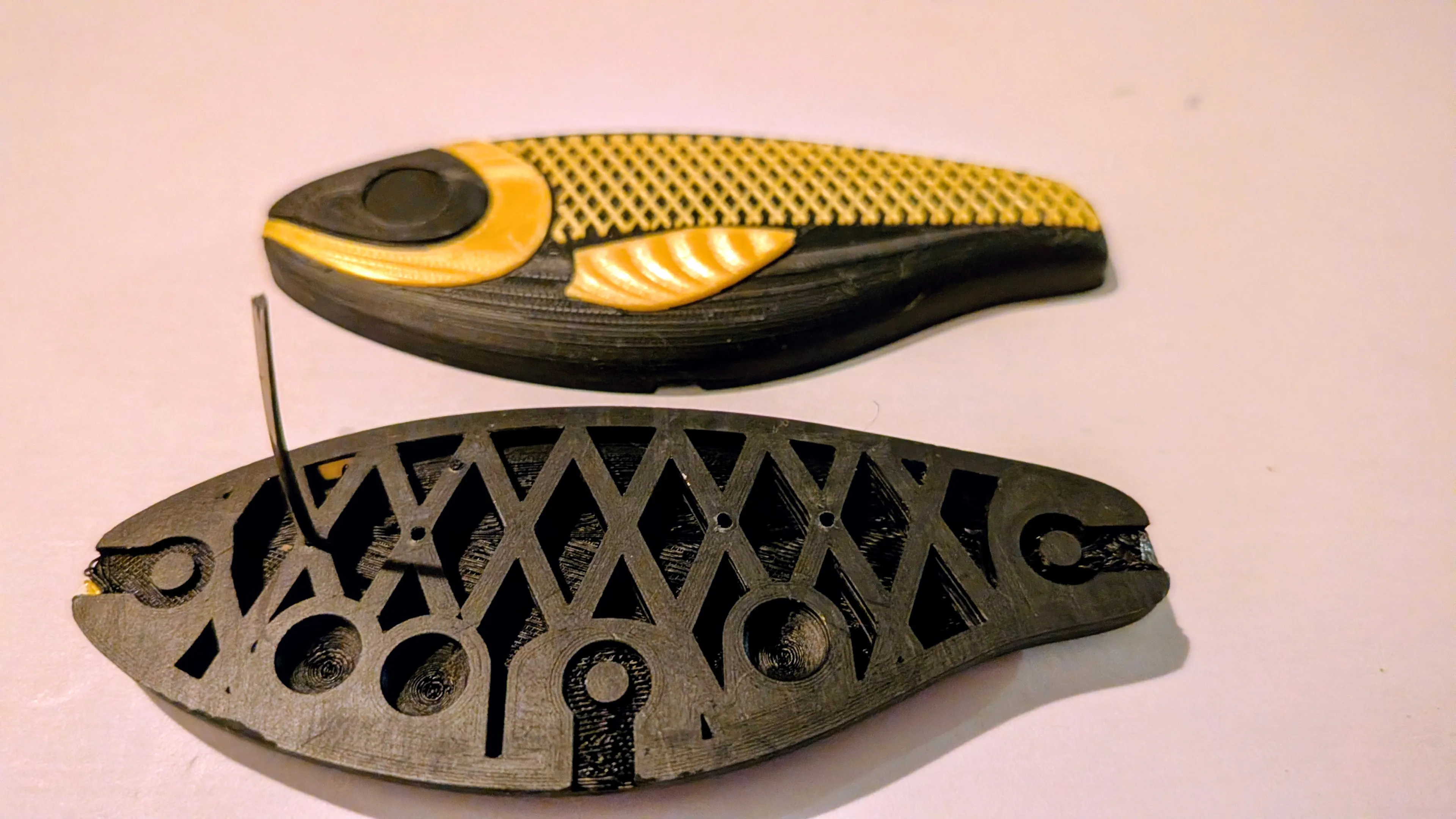

you can use piano wire (0.5 or 0.7mm diameters) for perfect alignment
Assemble the body :
- Apply super glue to the entire other side and assemble (wear gloves!)
- Adjust the alignment of the attachments, they must be perfectly in line!

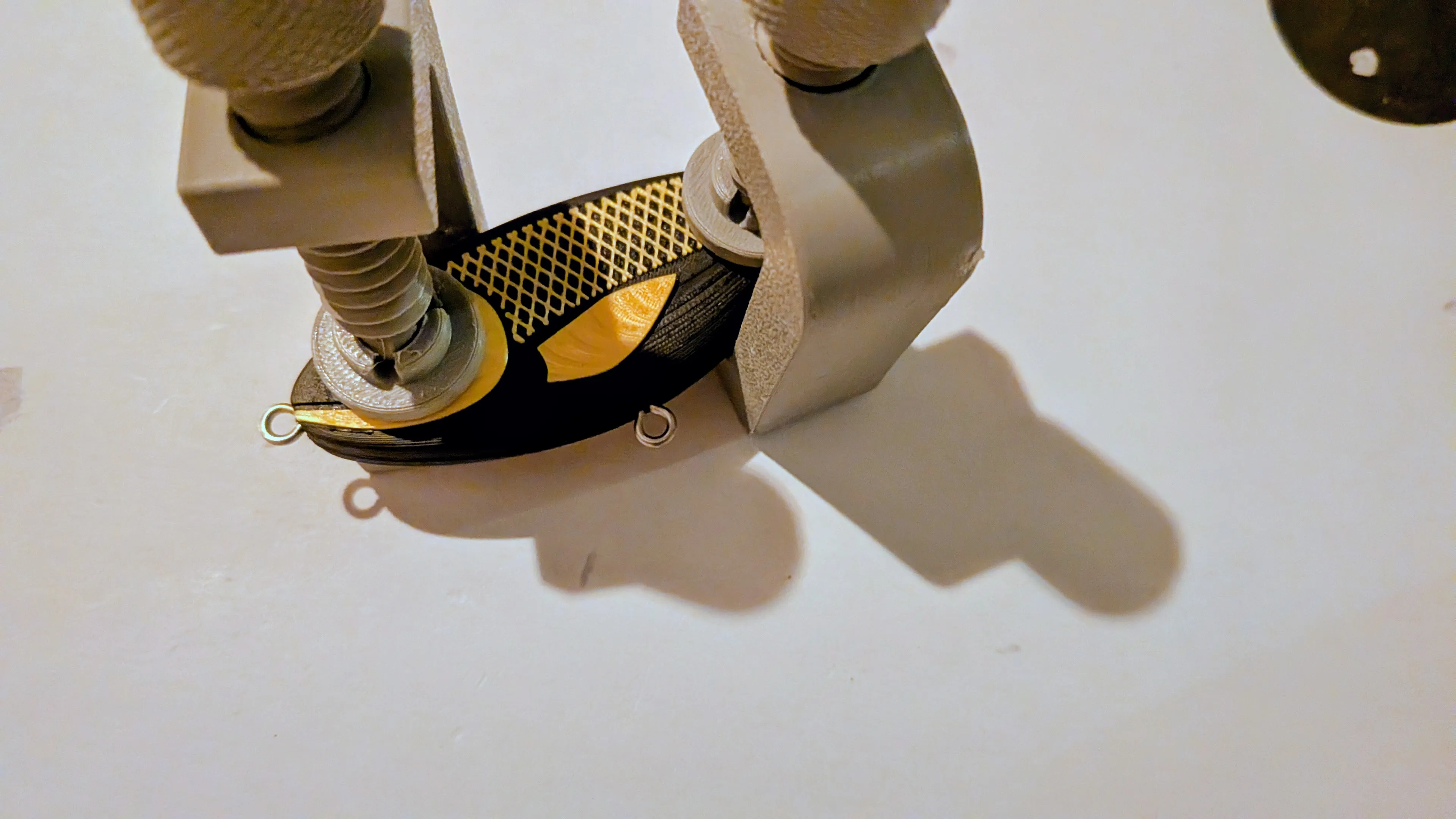

Tighten the assembly with two clamps (you can print them here if needed)
Finalization :
- Glue the eyes (with glue)

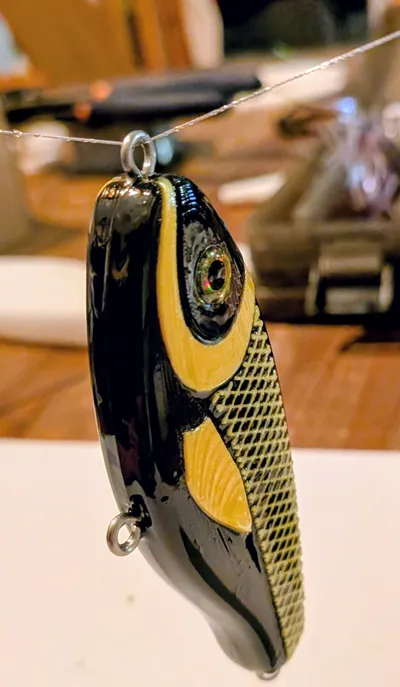

- Paint with epoxy resin
- Mount the rings and hooks
- Drop the computer and go fishing ;-)
I hope you like it ;-)
