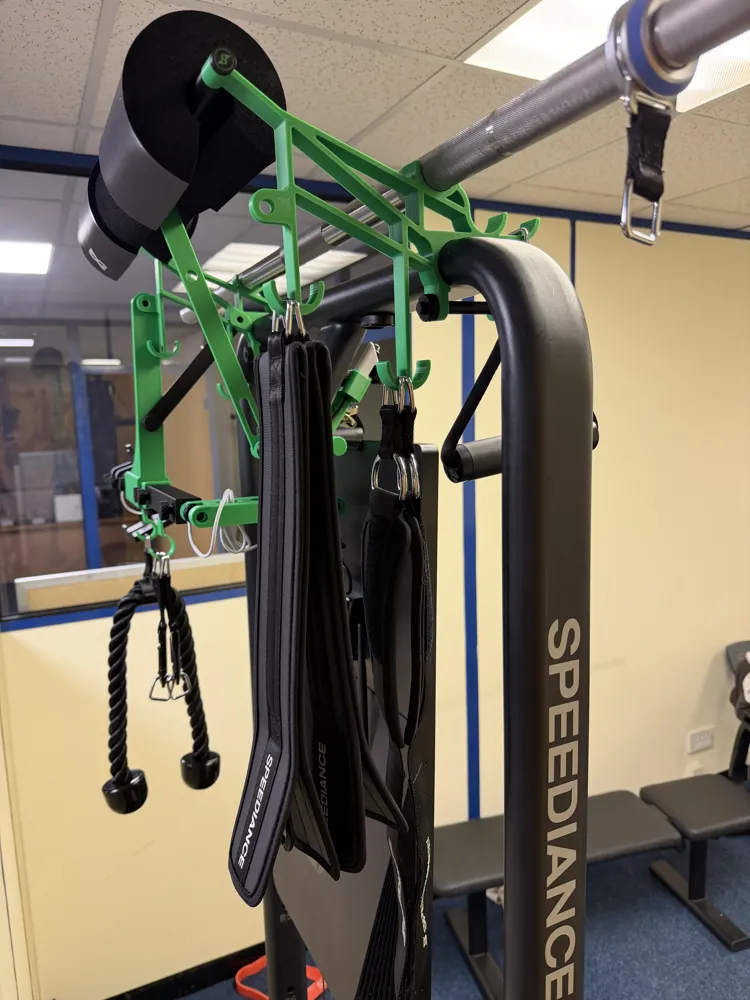

Speediance Gym Monster Accessory Rack V2

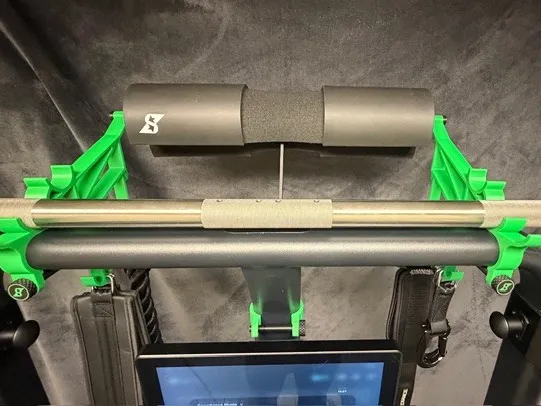

So here is the new version of the Speediange GM Storage.

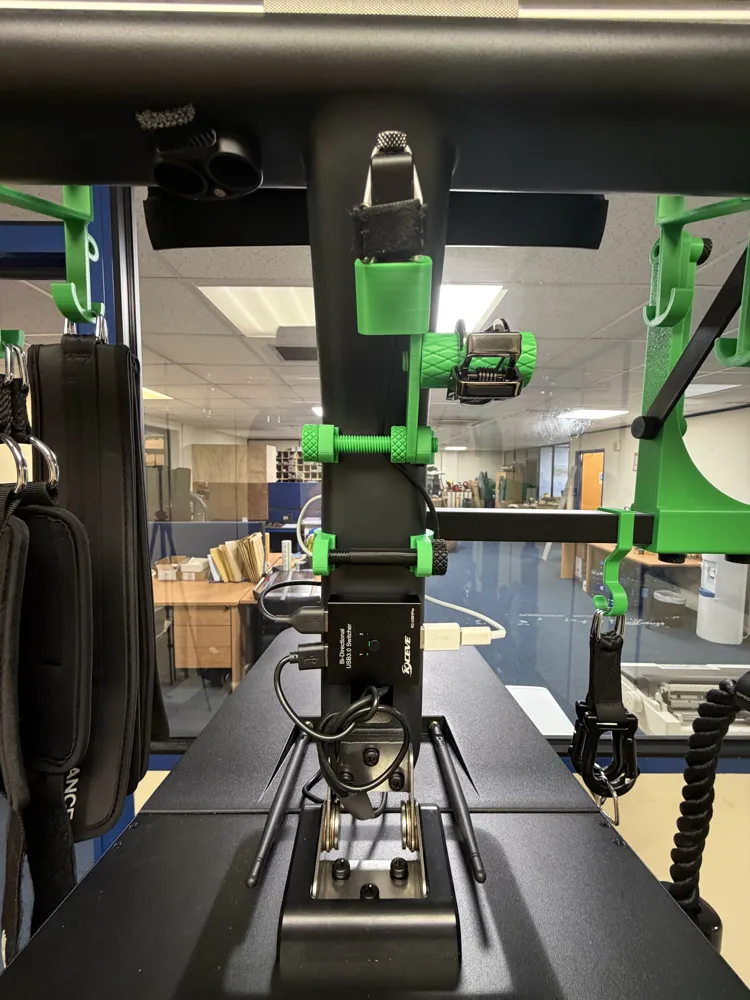

V2 Includes Acccesory Holder for Phone or Tablet, It also includes a dock for the ring and the bar mount.

If you utilise the ring dock you will need a slightly longer USB cable.

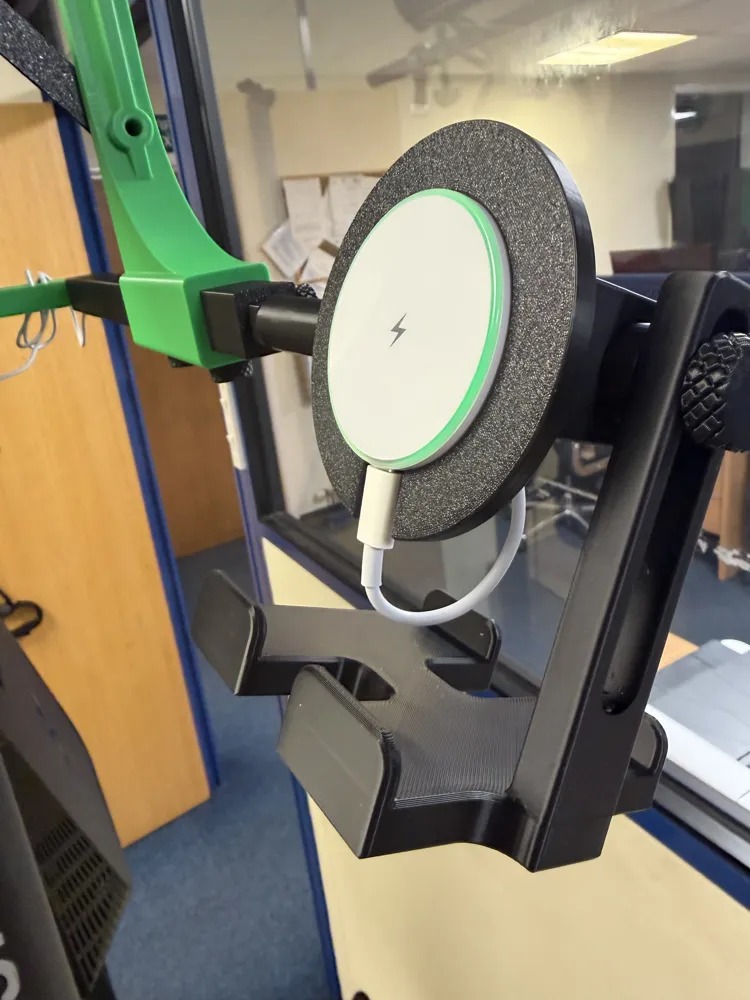

For the magsafe holder i designed for use with this size magsafe charger.

https://www.amazon.co.uk/dp/B0F637XHZL?ref=ppx_yo2ov_dt_b_fed_asin_title

 Although it works fine without a magsafe as just a phone holder, and if you want to charge both phone and ring from the GM you will need a USB splitter.

One thing to note is if you train hard and fast on the GM there may be wobble on the tablet holder please check and make sure you are happy before using as excessive force could cause parts to wobble and drop your phone or tablet from the holder, so please test and use at your own risk!!

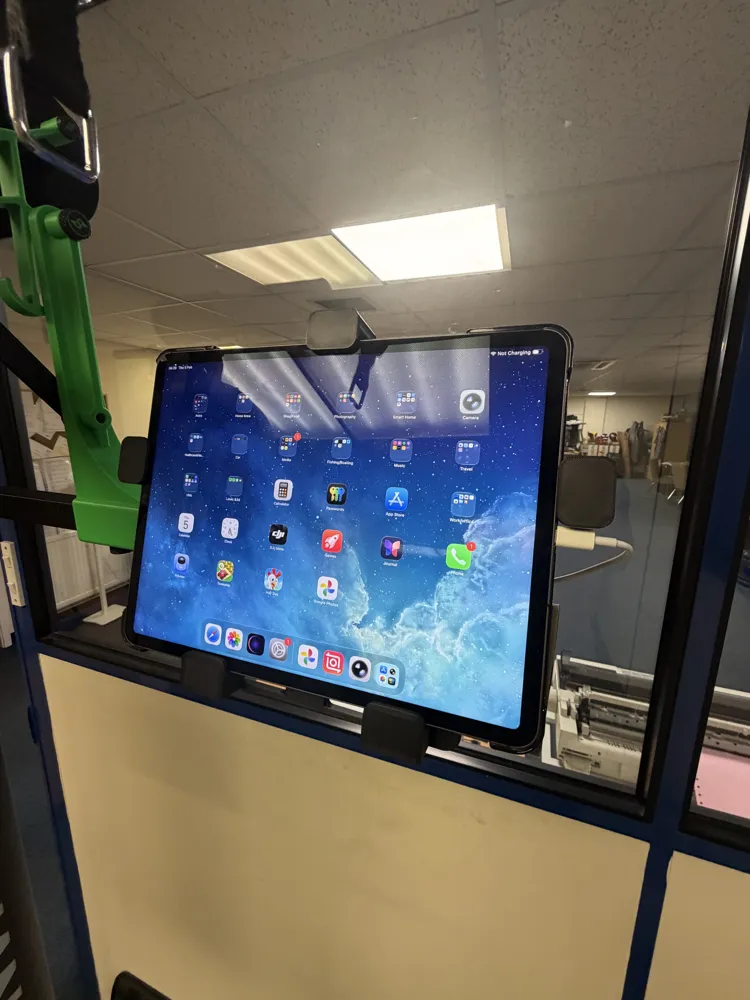

I have a large 13 Inch ipad and this has been fine so far.

I have printed many times and played with the wall setting and infill, this is currently printed in PLA but will print just as well in PETG.

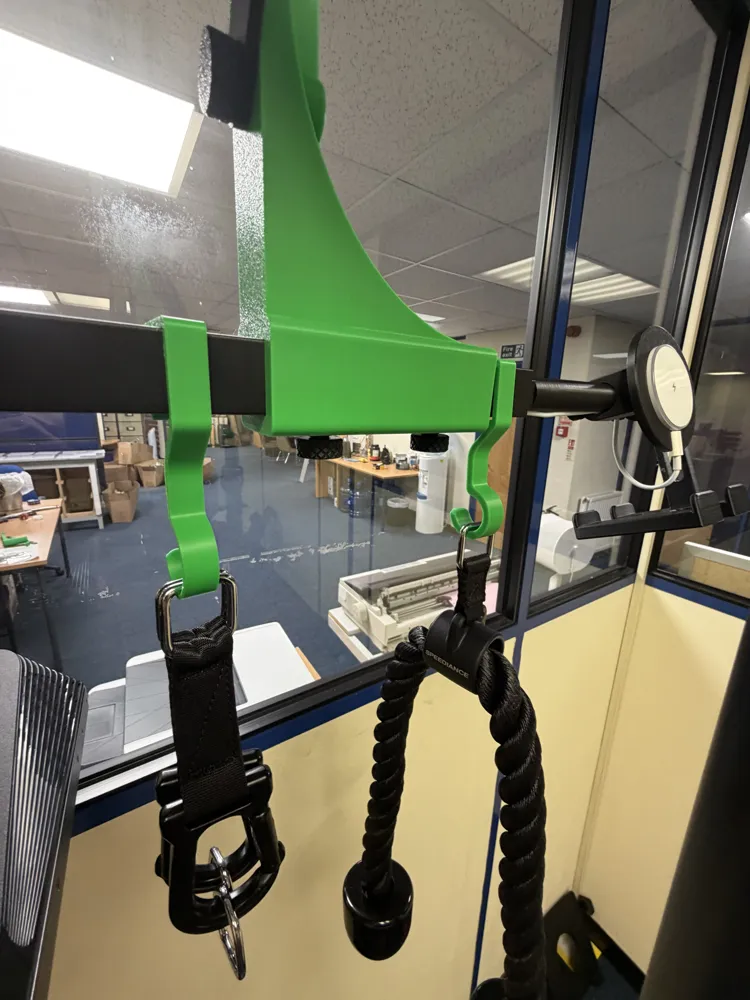

When putting the Hangers and centre clamps on refer to the video to see best way to do this so you do not put excess pressure on the part, as it will need to flex a little.

Plates are as follows

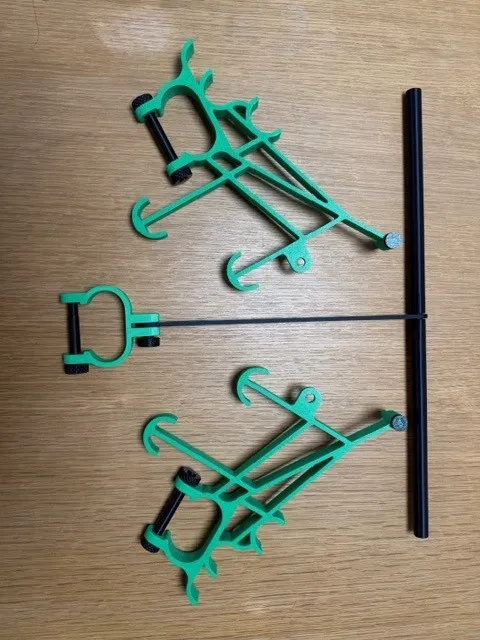

Main Holder

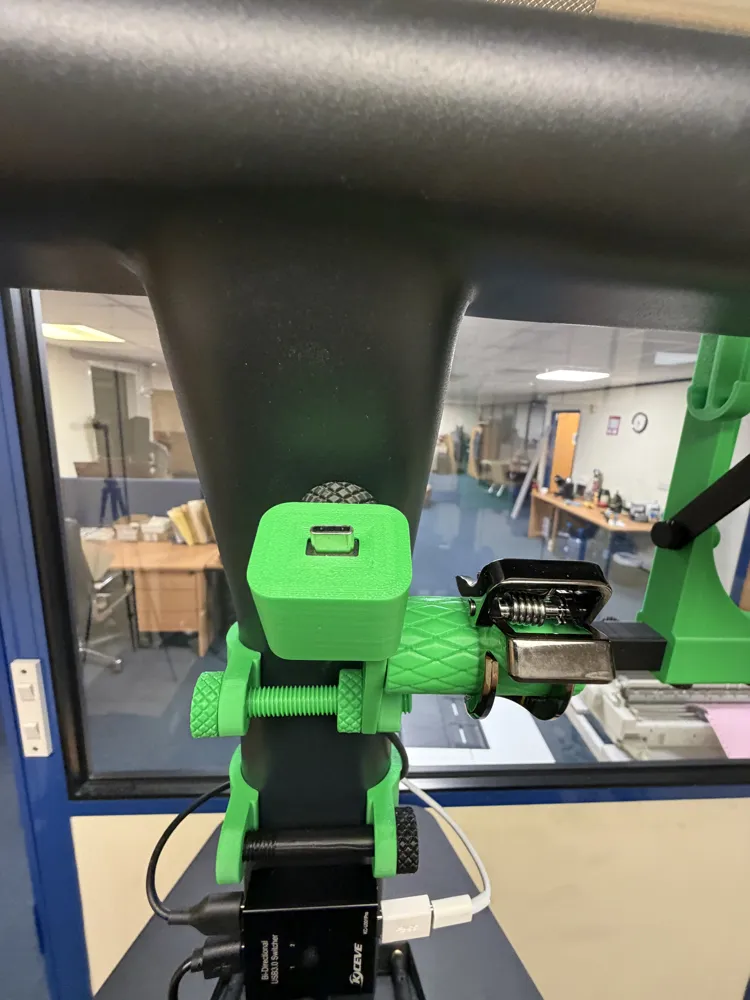

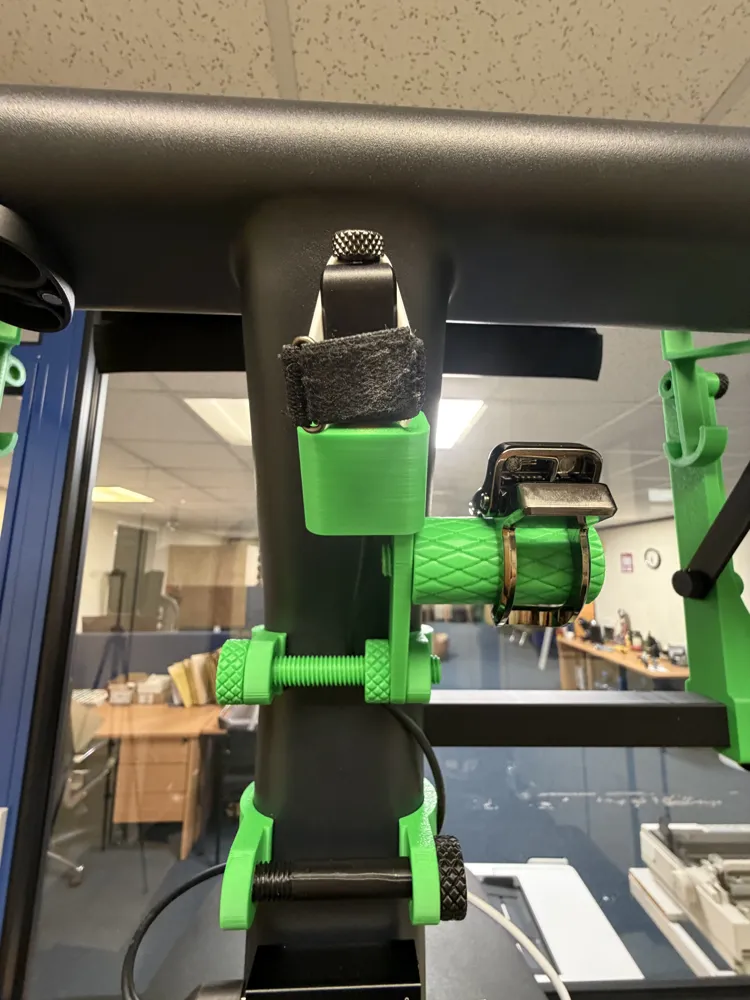

This also now includes the ring dock & clampholder fully compatible with V1, if you just want to print this to add to the V1, its the 4 items on plate 3.

Ring Clamp

Ring Holder

M10 x 18mm Bolt

M10 Nut

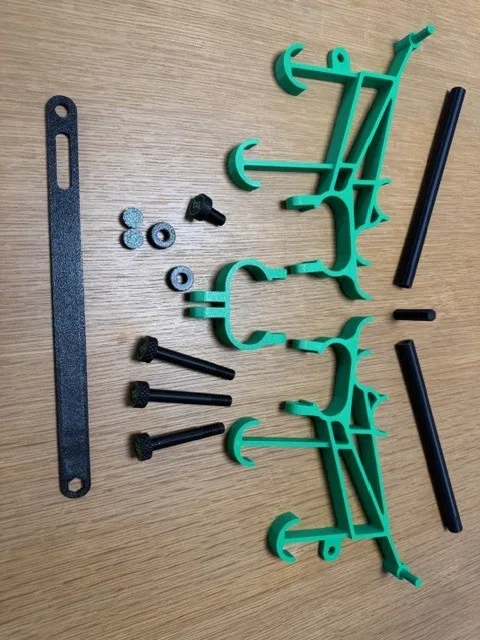

Plates 1 - 3 Print 1 of each plate ths is the main storage excluding bolts.

Then Print either Plate 4 or 5 (depending on if you have multicolour and want the bolts with the printed speediance logo)

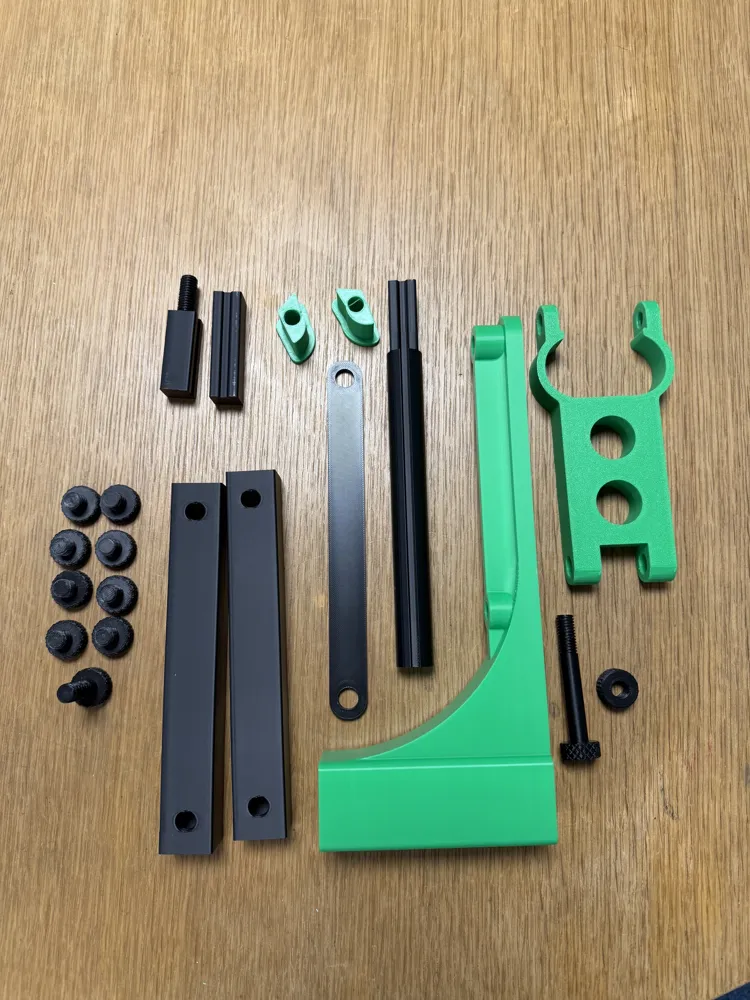

Accessory Holder Parts

Plate 6 is for if you want to add the accesory holder Print once

Then Print either Plate 7 or 8 (depending on if you have multicolour and want the bolts with the printed speediance logo)

For the Phone Holder print plate 9 or 10 (depending on if you have multicolour and want the bolts with the printed speediance logo)

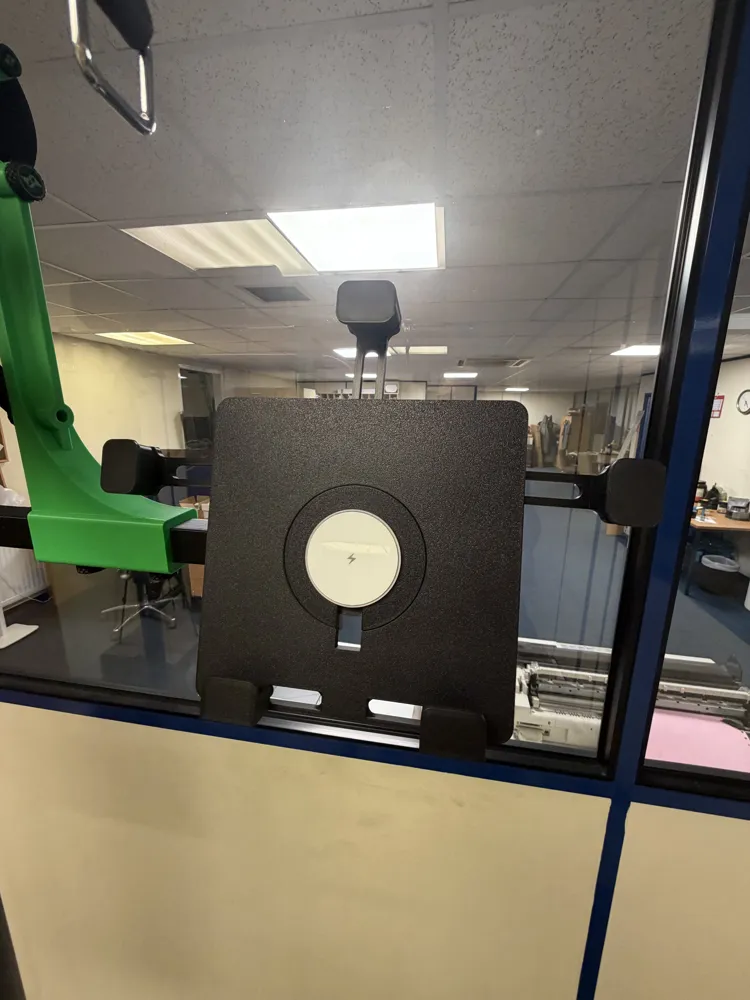

For the Tablet holder Print Plate 11 then either Plate 12 or 13 (depending on if you have multicolour and want the bolts with the printed speediance logo)

There is also a video below of the V2 accessory Holder.

Keep checking back for updates.
