Box Mod YiHi SX350J bottom feeder
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
5
5
0
0
0
0
Released
Description
Summary

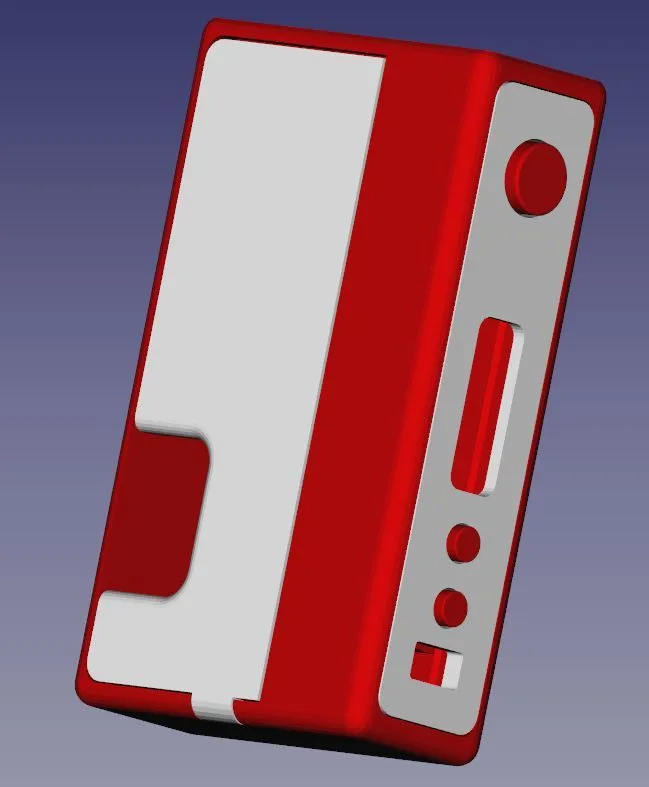

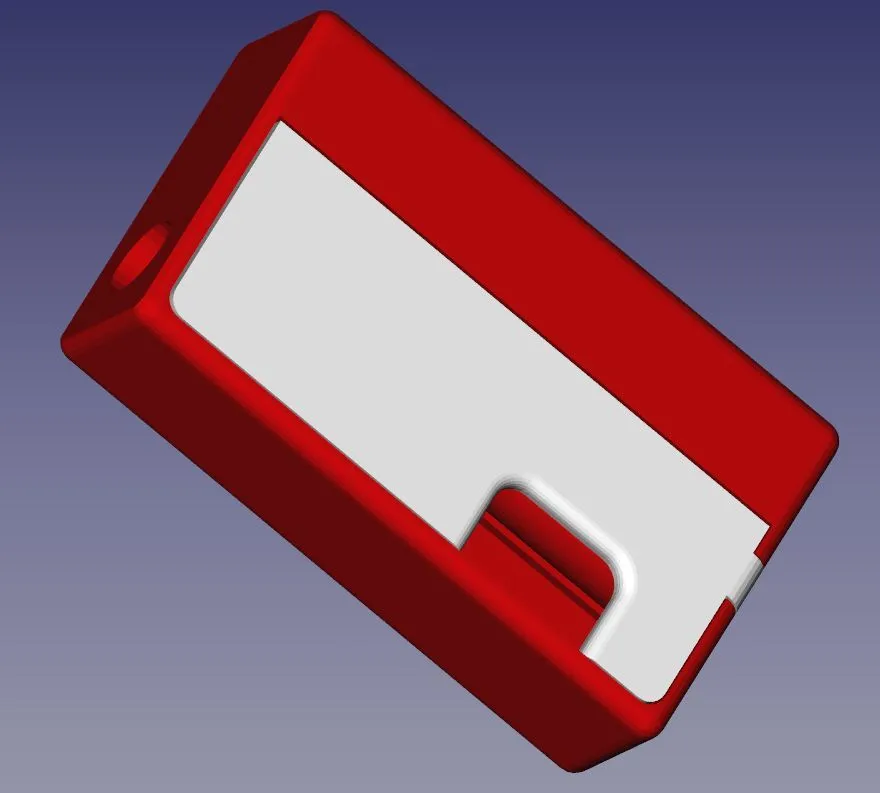

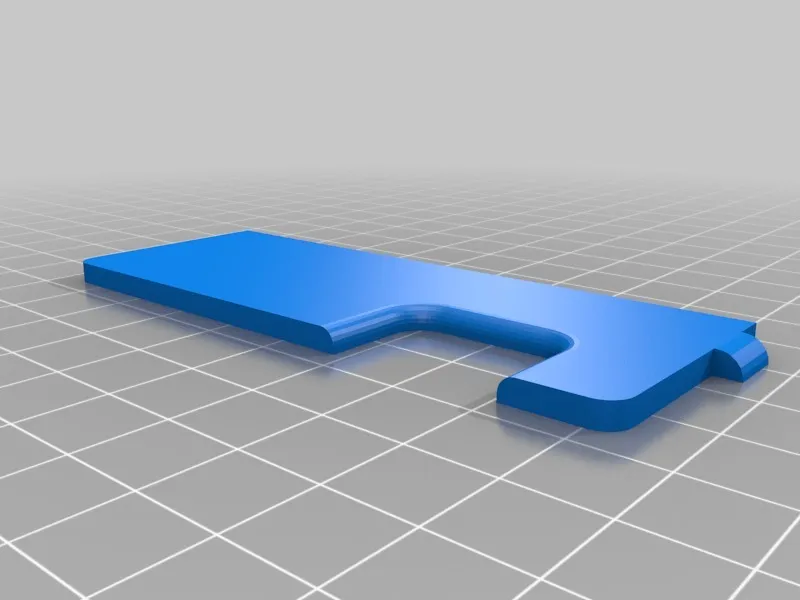

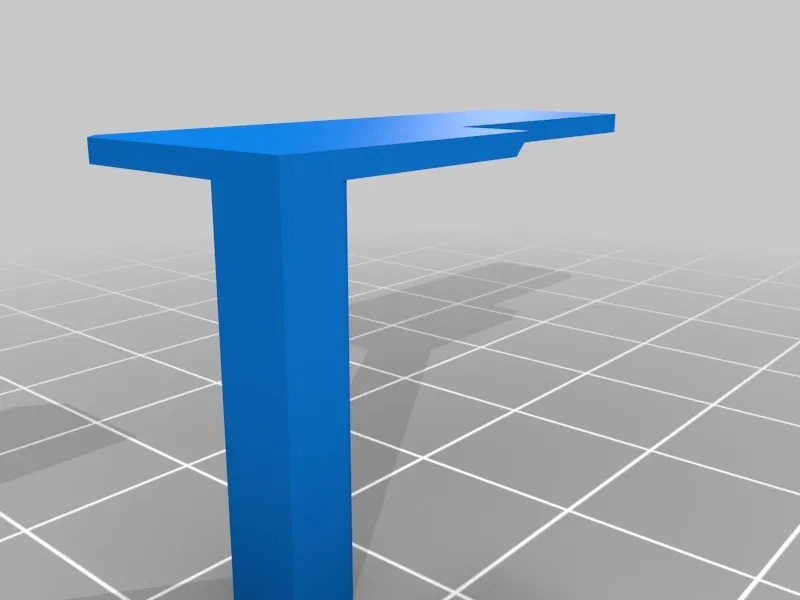

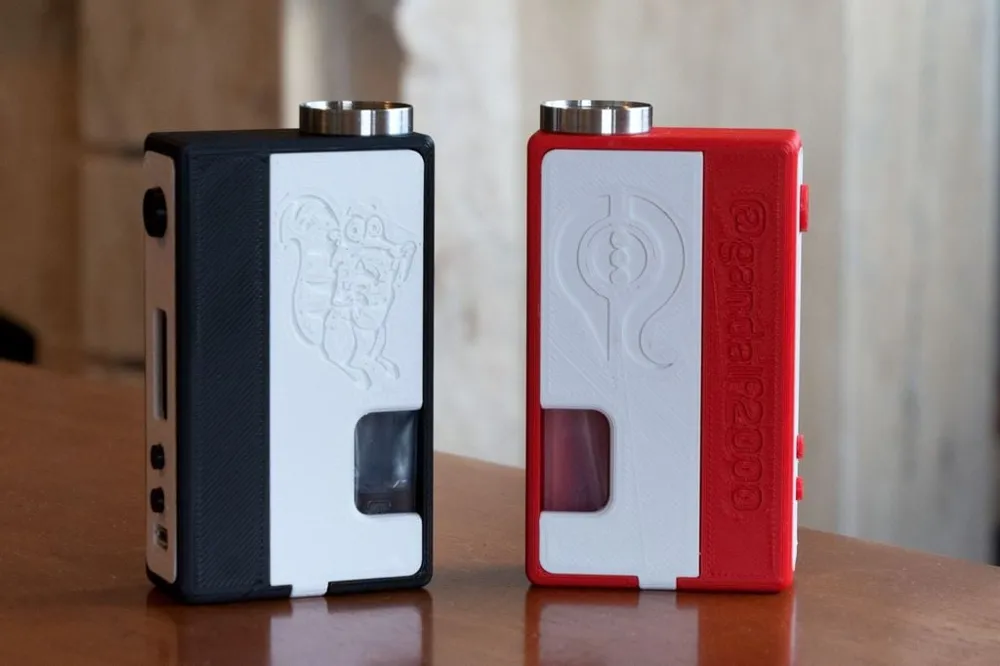

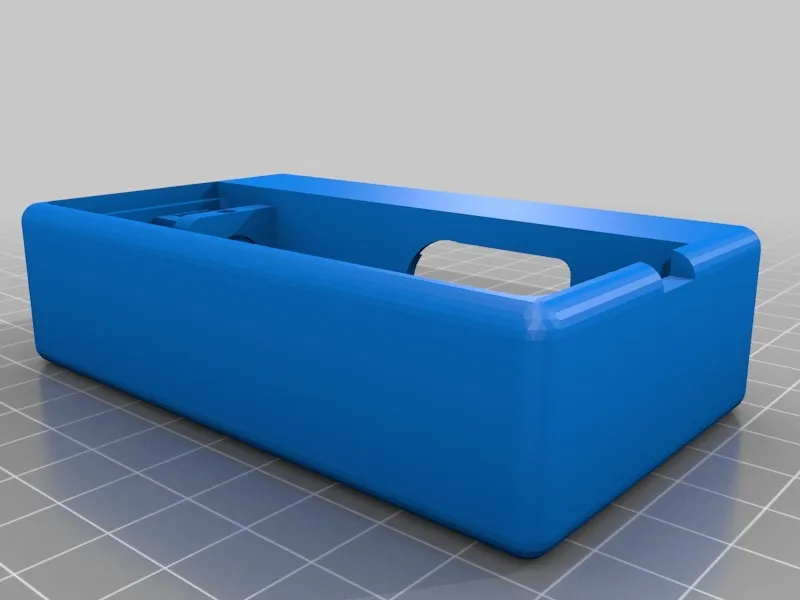

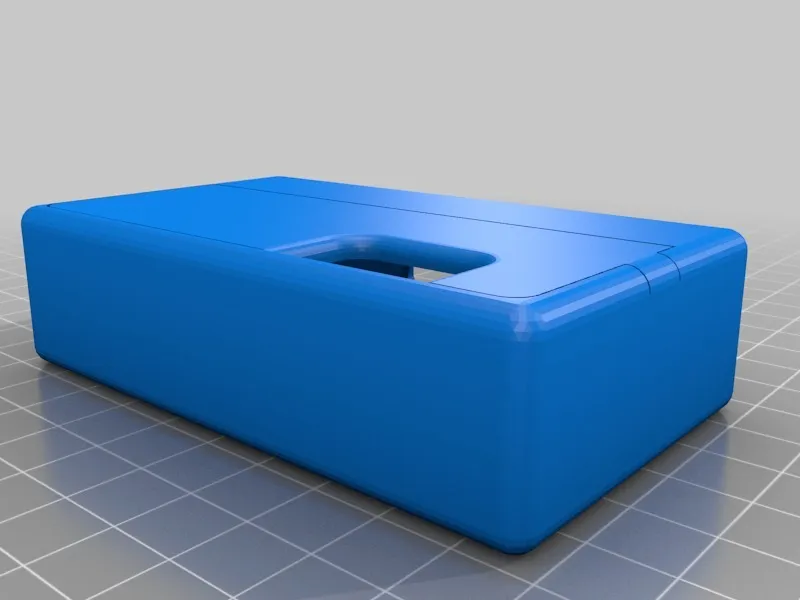

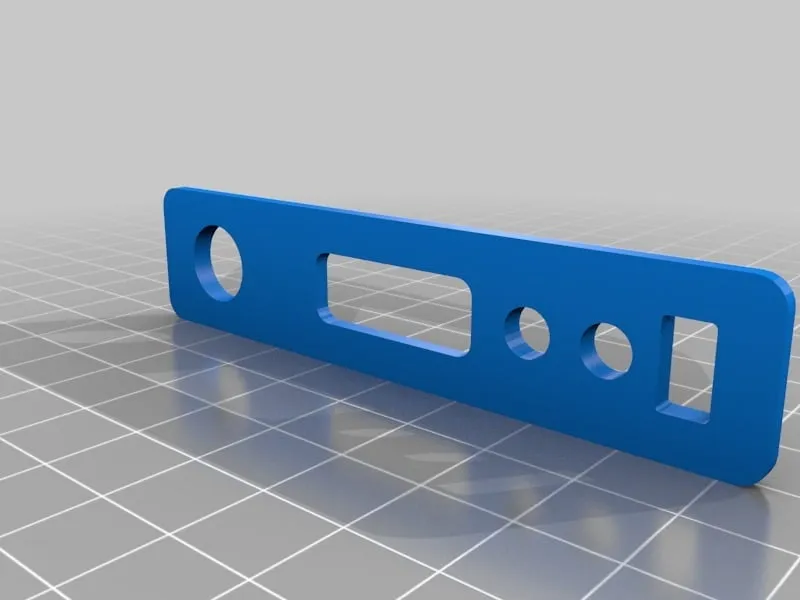

A box mod designer to install the YiHi SX350 board with or without temperature control.
Like this one: http://www.thingiverse.com/thing:952113
To complete the work u need of:
- soma magnets 3x2;
- 6 screw M1.6x5 for the board;
- positive contact;
- negative spring (i used the one from svapamo.it);

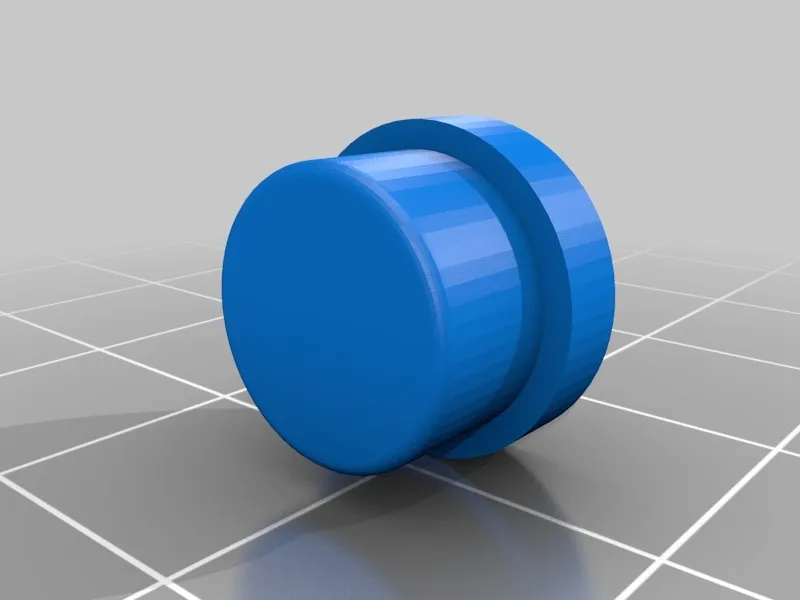

- a cap (i used the MAV3 from svapamo.it);
- the SX350 board from YiHi ;
- square japanese bottle (http://www.japanesekitchen.co.uk/empty-rectangular-bottle-shape-sachets-7ml-x-100pcs.html)
- cap 1/4 SAE (optional, for the bottle)
A video about this box (italian):
https://www.youtube.com/watch?v=tJvwFWTfKfc
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial
