Dremel 8250 Zipper Case Gridfinity Storage System
Print Profile(2)
Description

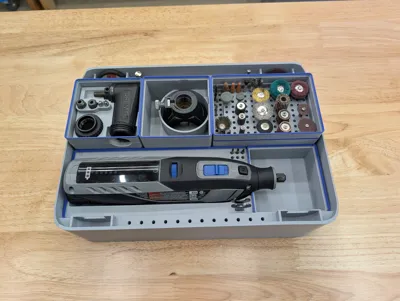

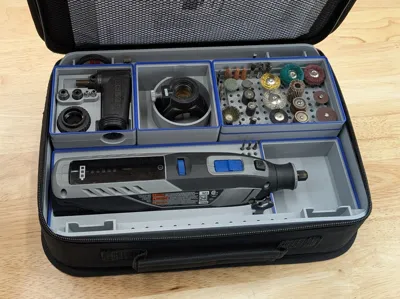

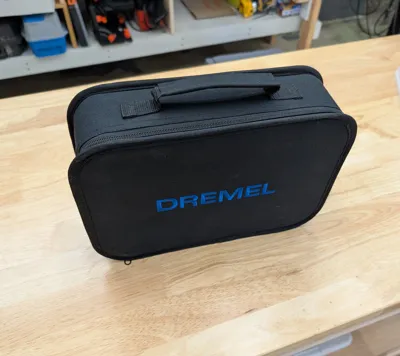

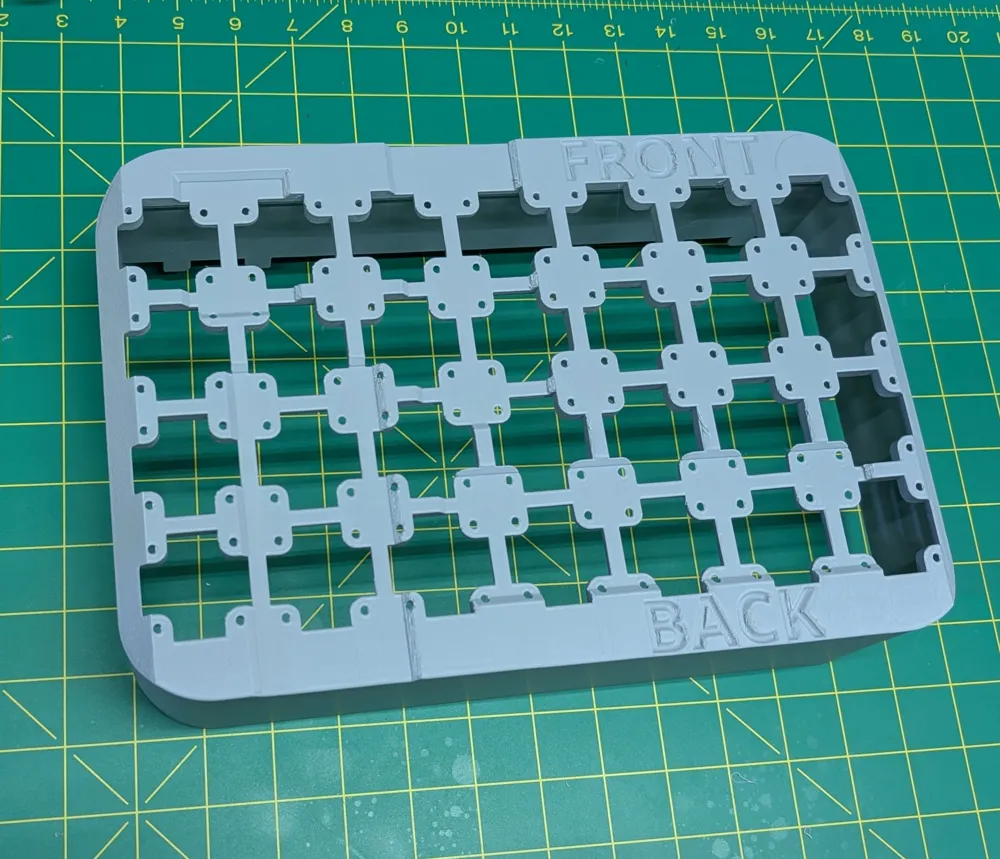

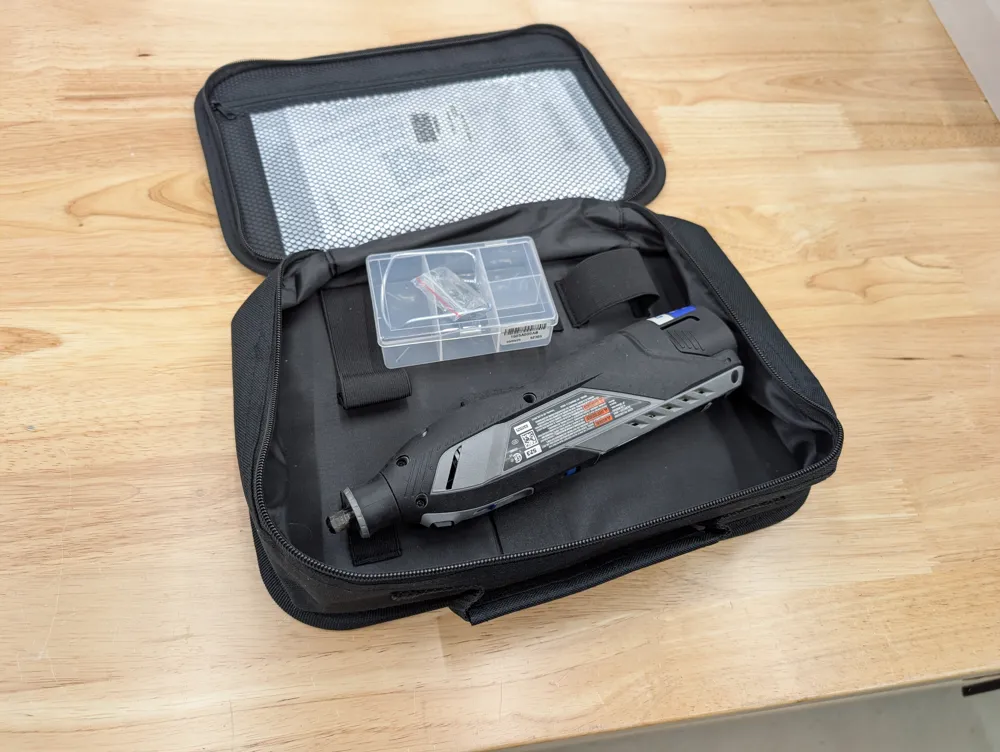

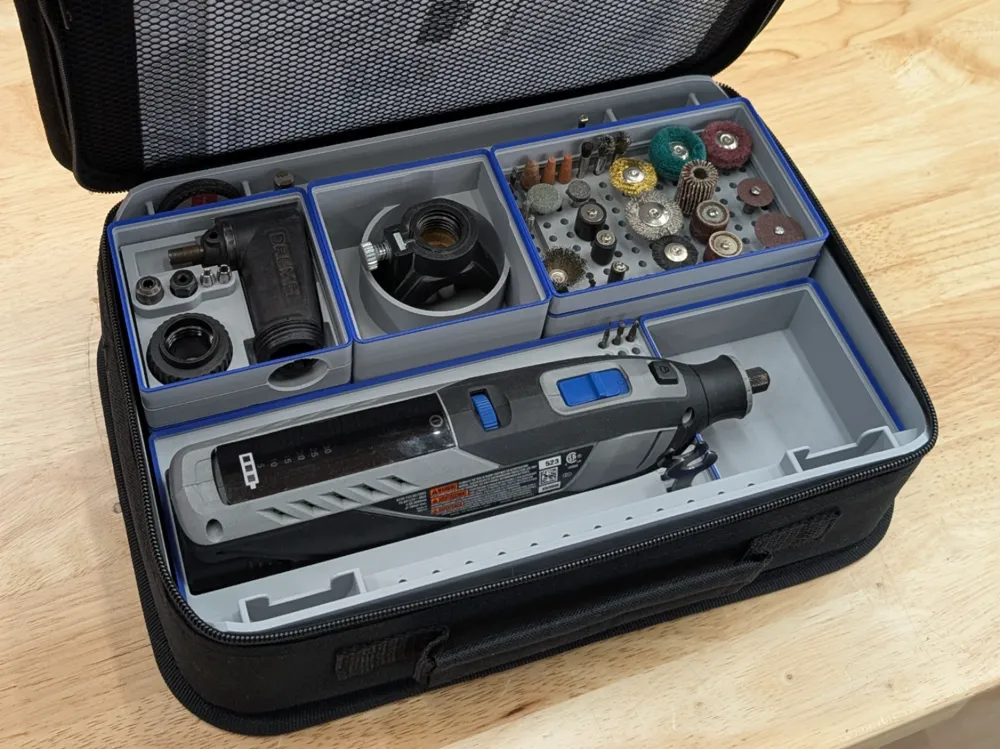

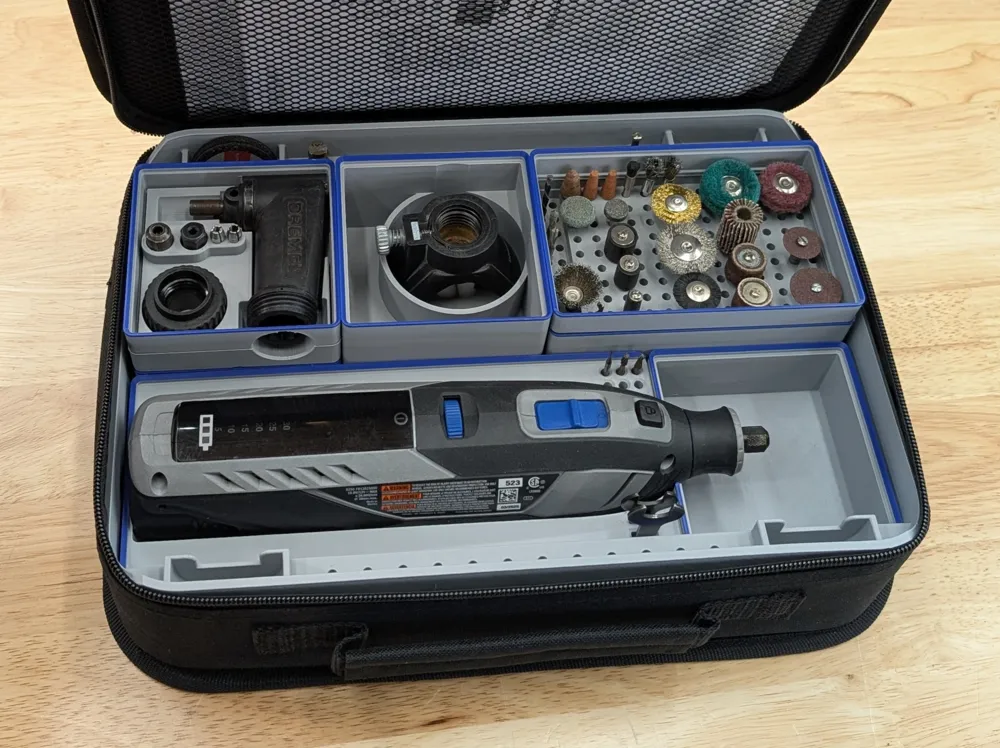

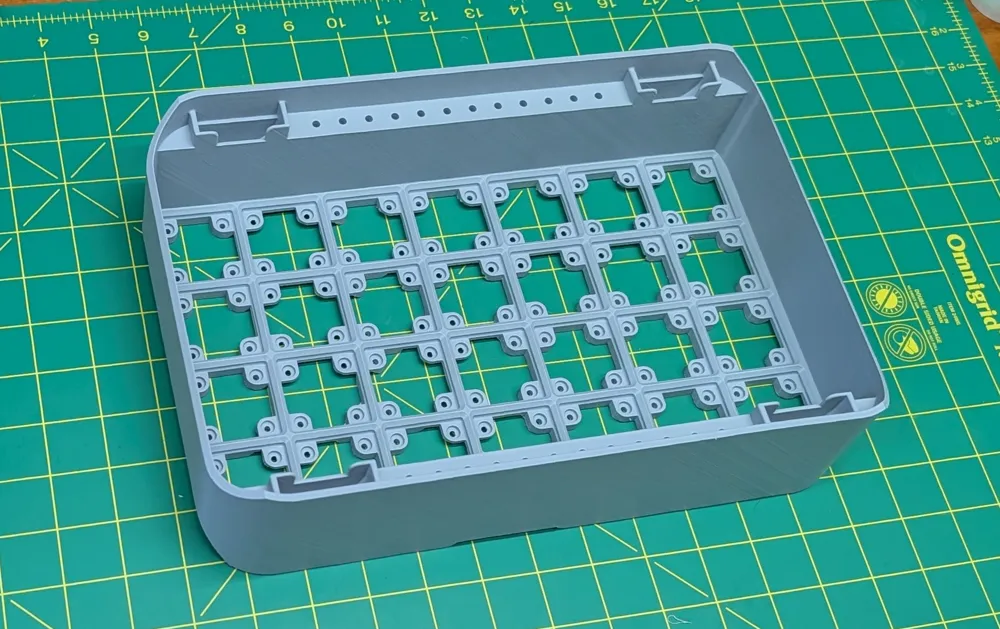

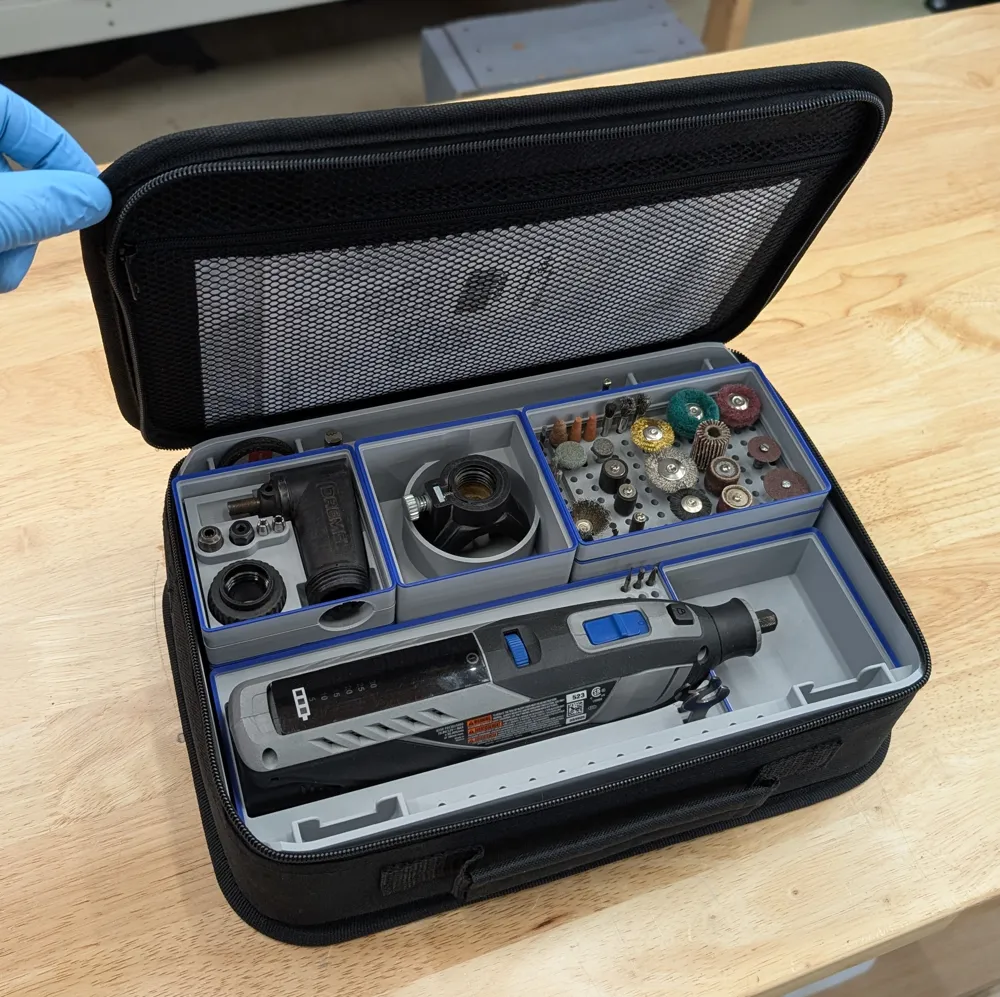

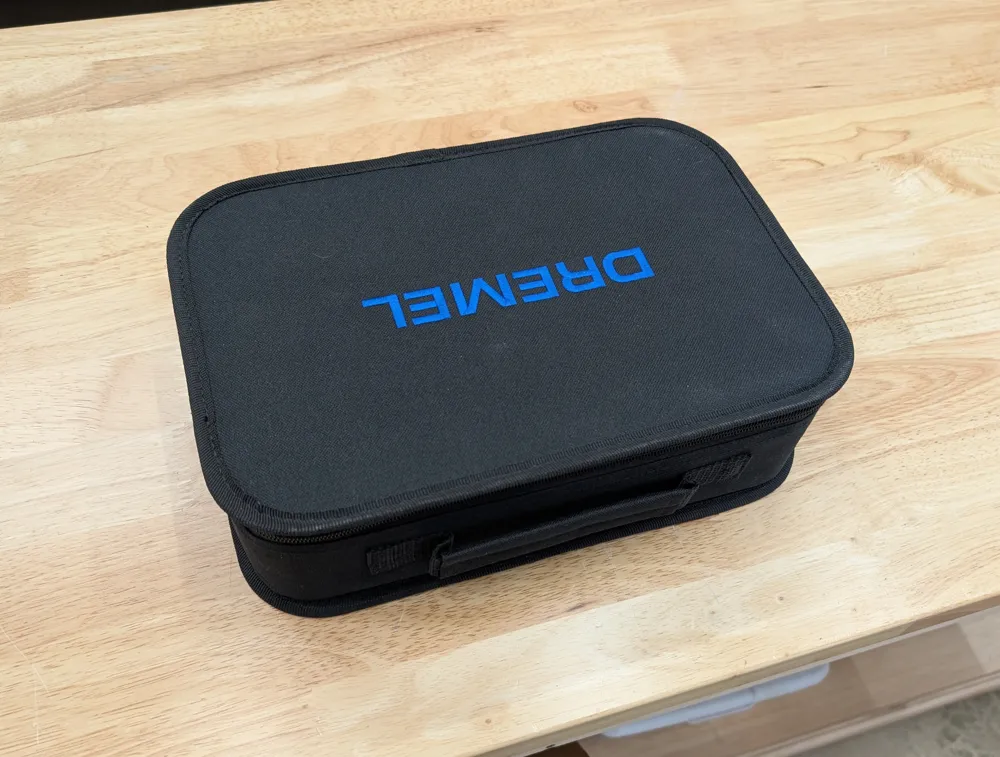

This is a Gridfinity case insert for a Dremel 8250. It converts the zipper case that comes with the Dremel into versatile Gridfinity storage. The insert has “front” and “back” markings because there are strategically placed cutouts for the straps on the floor of the zipper case.

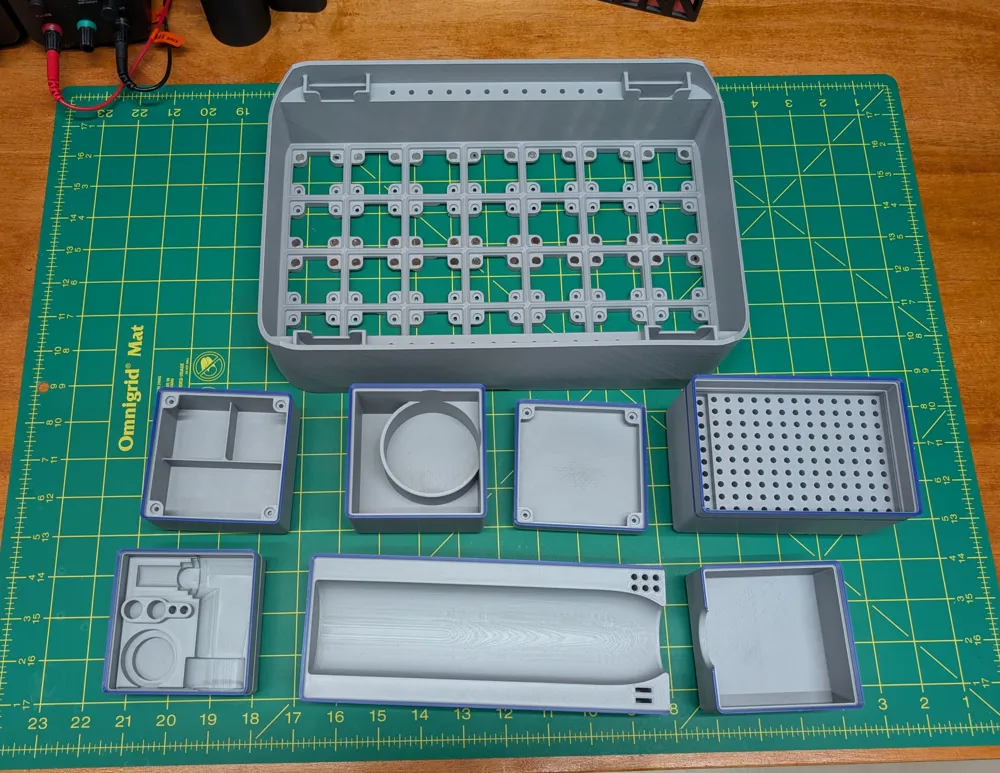

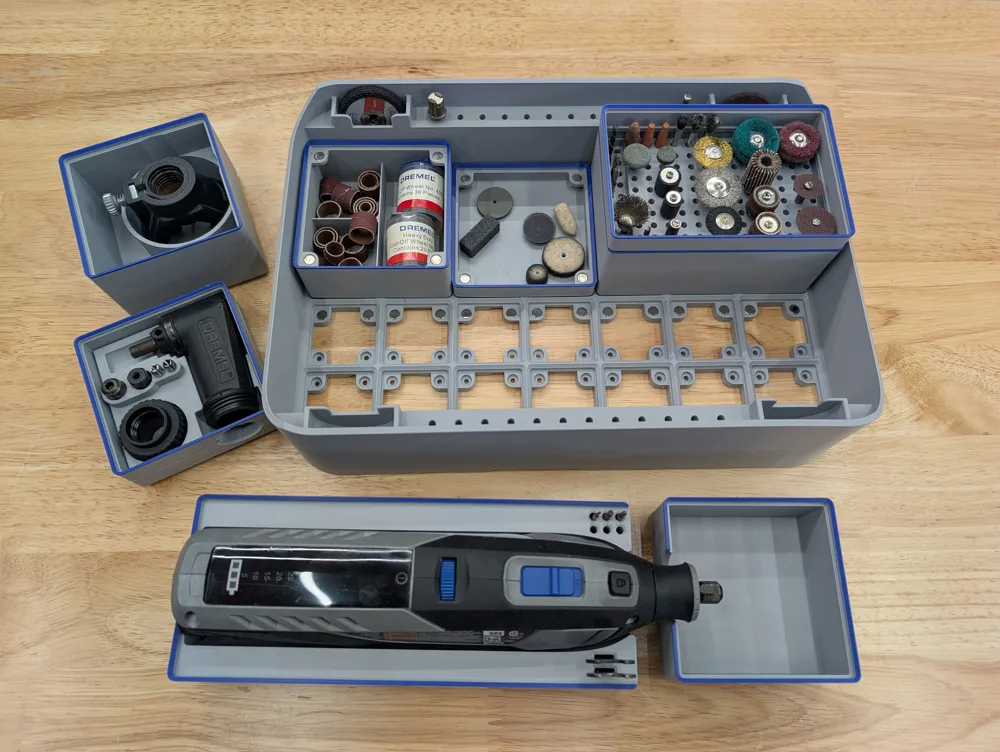

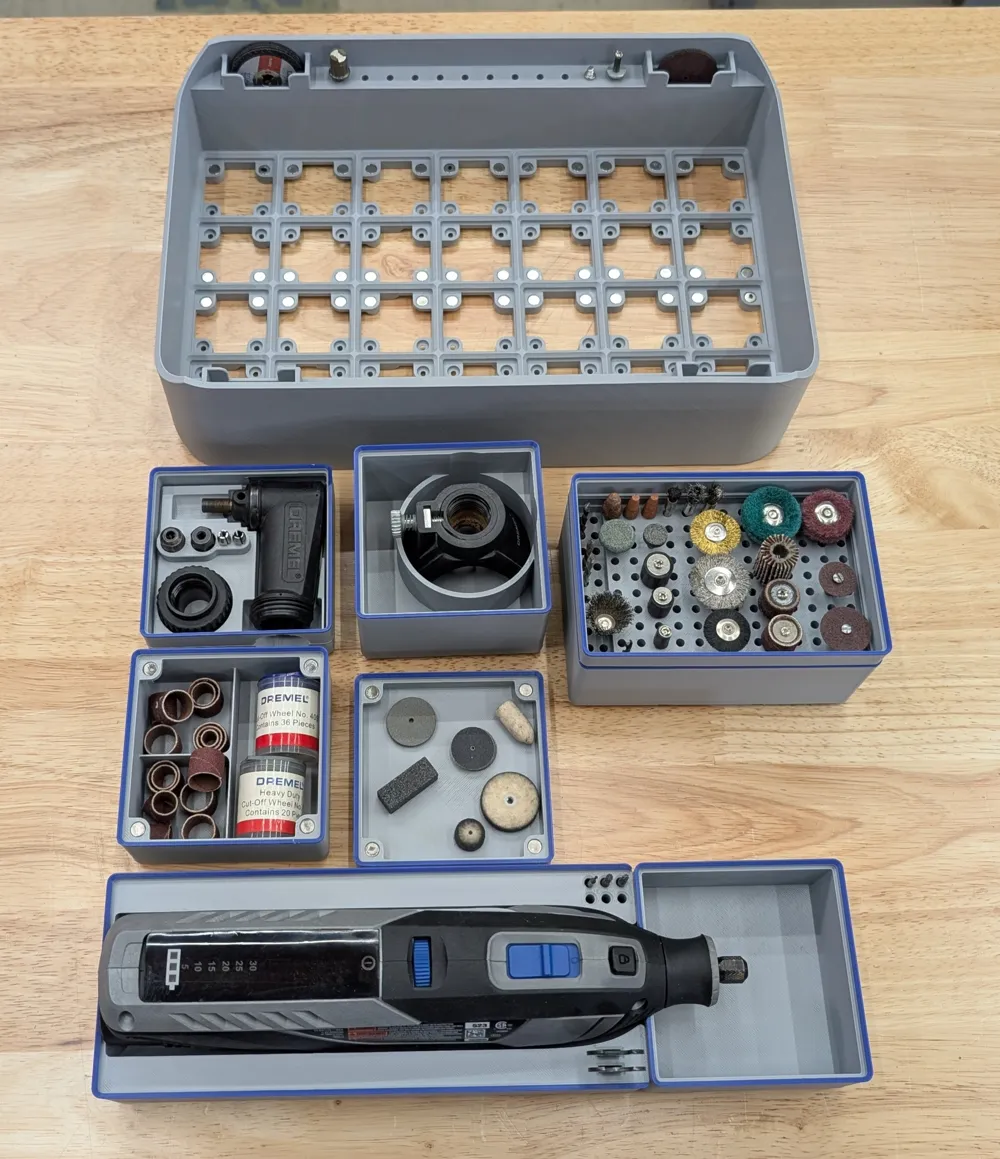

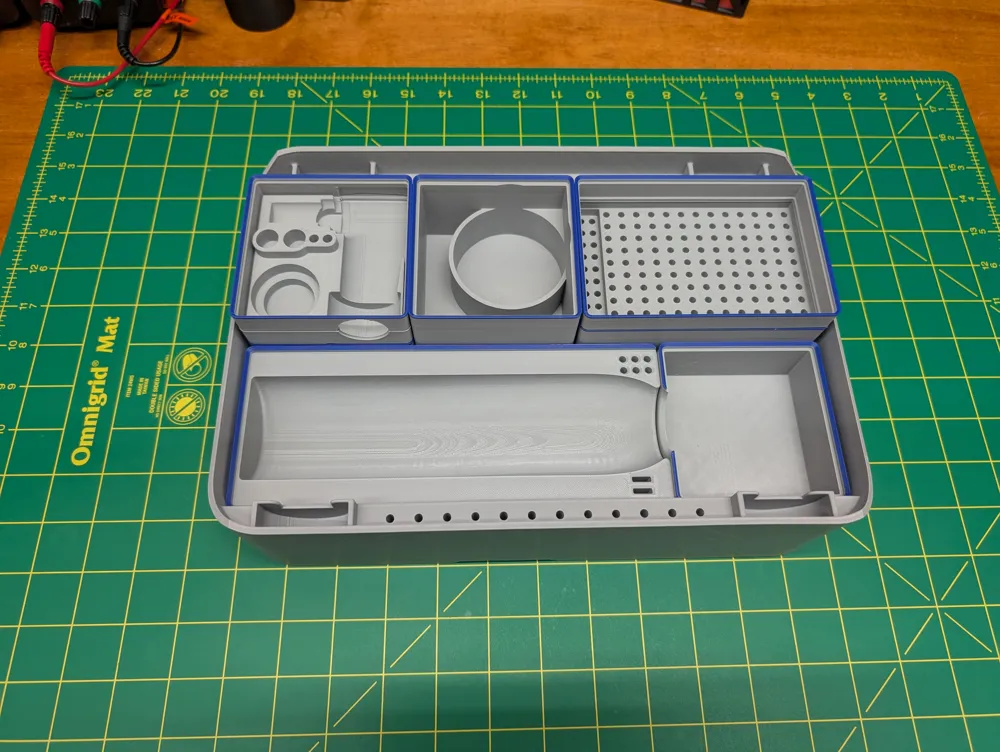

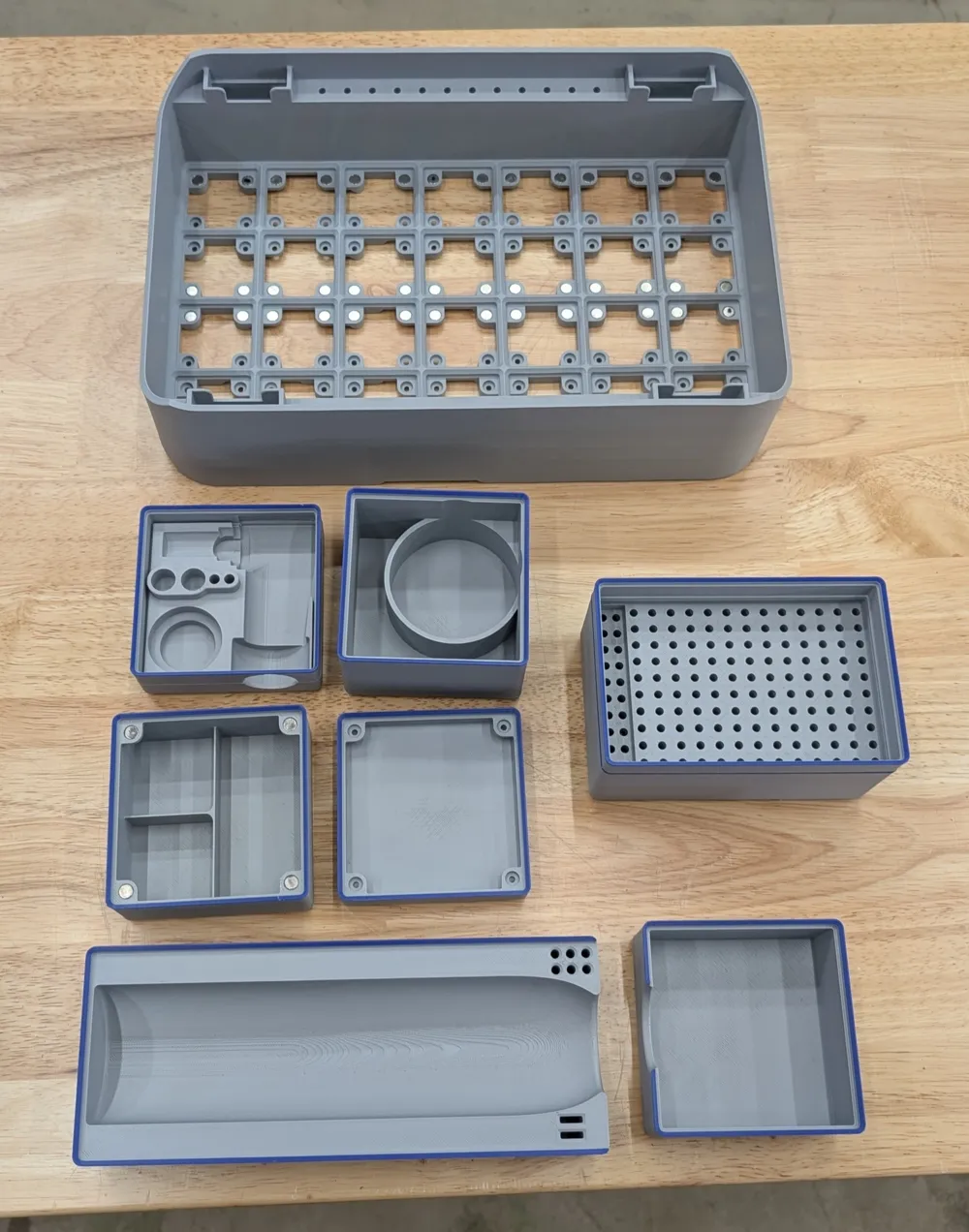

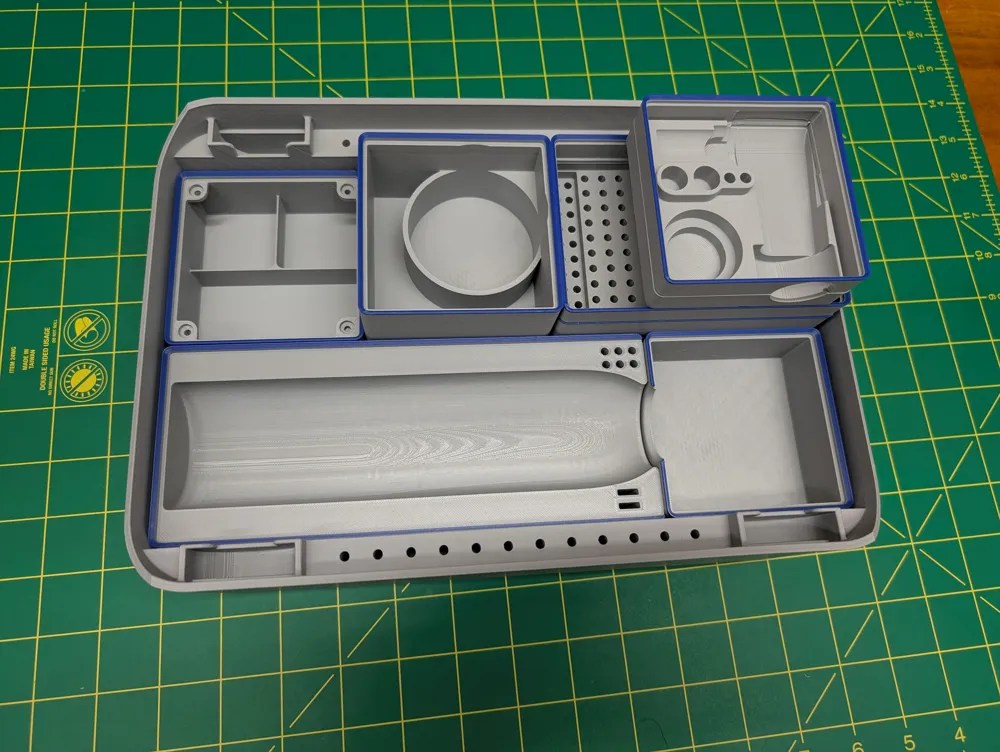

Several tool holders are provided. They are designed to be flush with the top of the case so objects don't fall out when the case is on it's side. Therefor, these are not standard Gridfinity height units because they are optimized for this specific zipper case.
These models use the 42mm Gridfinity system.
If you don't have the zipper case, there are several Gridfinity case generators available that would accept these tool holders.
The “Main Insert” must be printed at a 45° angle unless you have a large format printer. I added extra supports in the print profile to make sure it stays stable during printing.
The “Router Holder” is for the Dremel 565 Multi-Purpose Cutting Attachment.
The “Angle Holder” is for the Dremel 575 Right Angle Attachment
