Gridfinity base for IKEA FAKTUM

Original made by Giovanni @Giovanni_96815

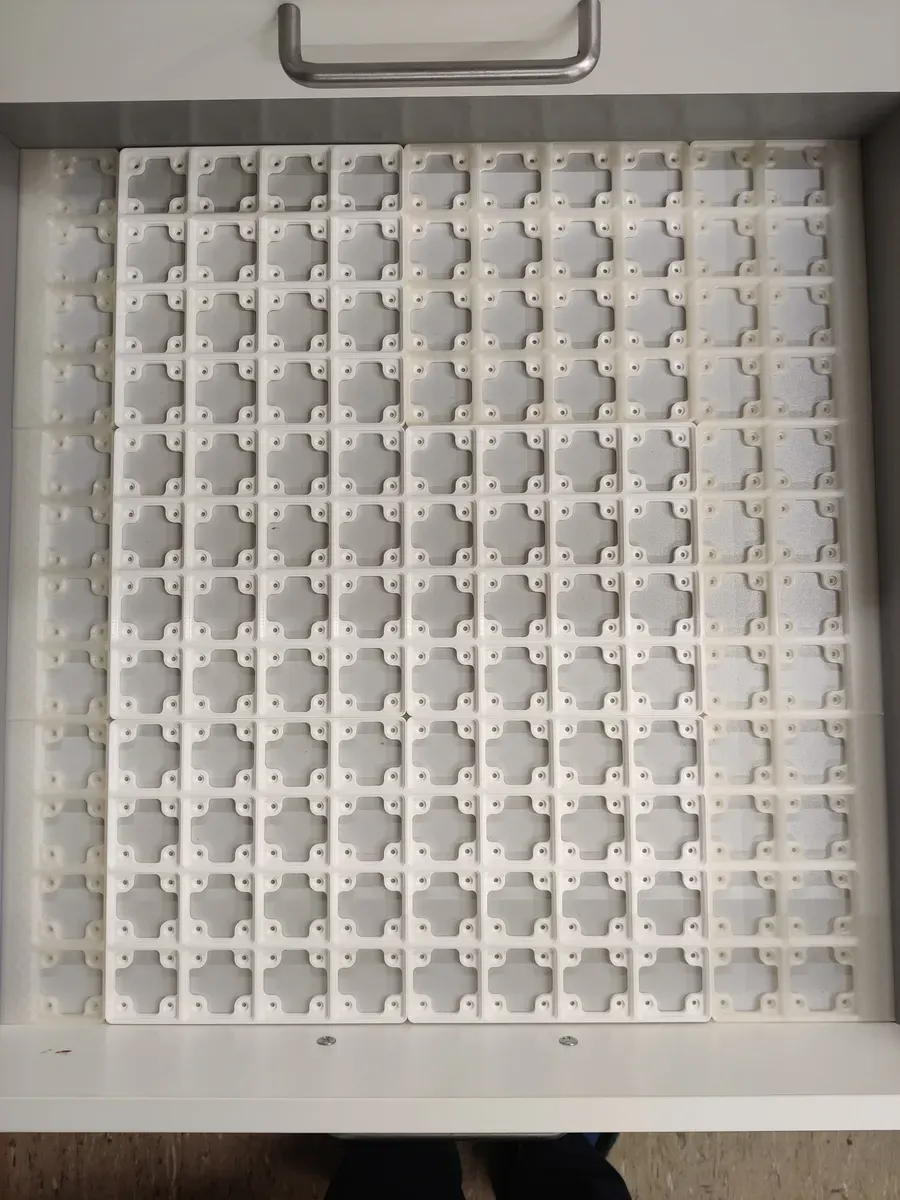

The original is made for the IKEA Faktum drawer 60x60cm:

(and for that you would need)
2 x GRIDFINITY DTBASE1x4_left
1 x GRIDFINITY DTBASE1x4_left_top
4 x GRIDFINITY DTBASE4x4
2 x GRIDFINITY DTBASE4x4_top
2 x GRIDFINITY DTBASE2x4_right
1 x GRIDFINITY DTBASE2x4_right_top

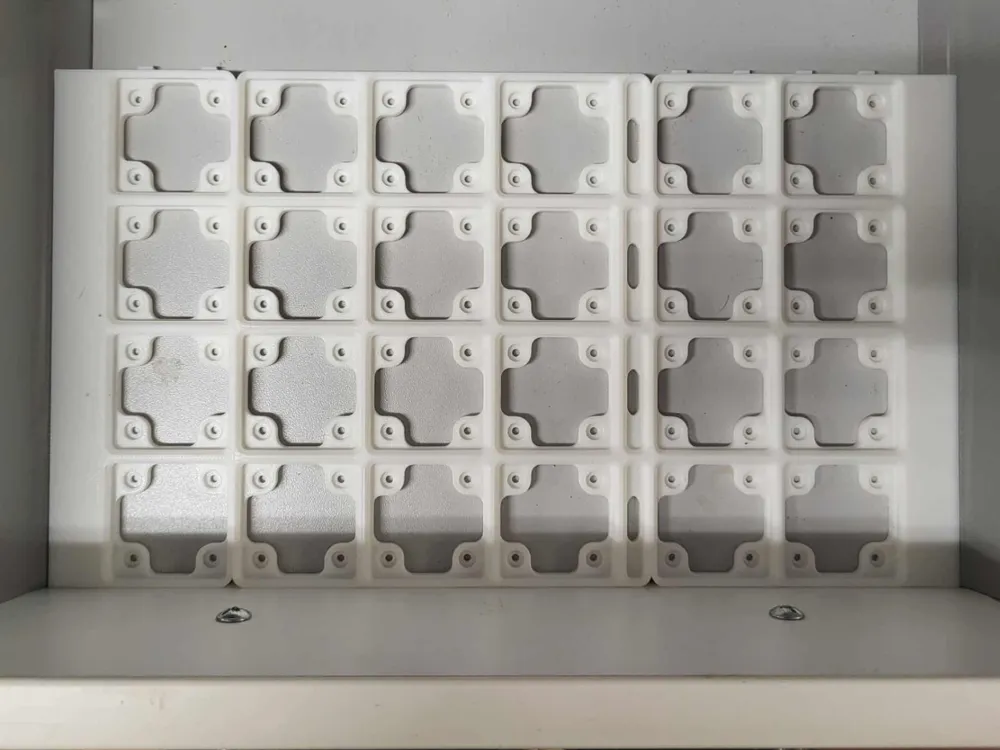

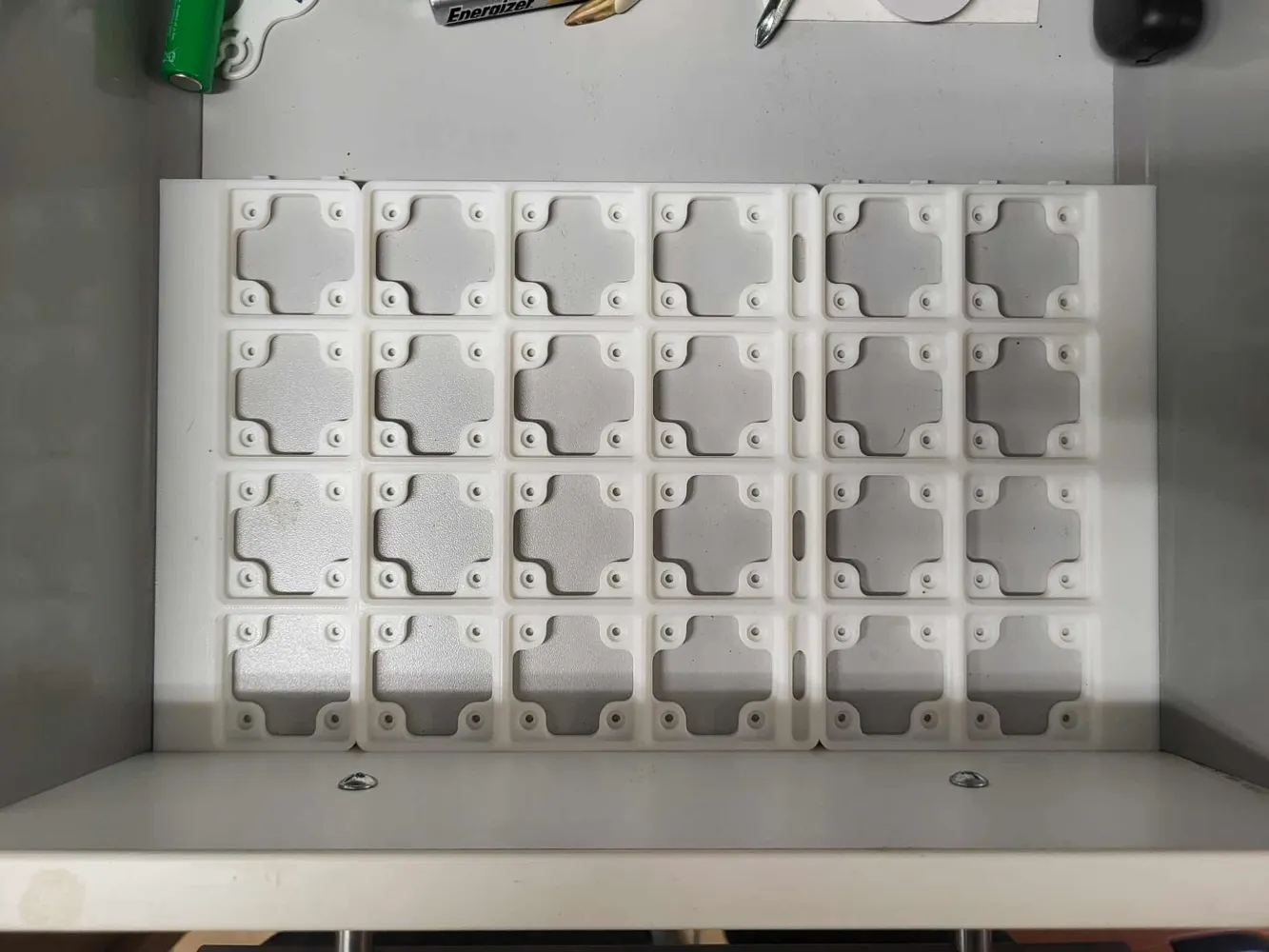

I needed this for the IKEA Faktum drawer 30x60cm:

2 x GRIDFINITY DTBASE1x4_left
1 x GRIDFINITY DTBASE1x4_left_top
2 x GRIDFINITY DTBASE3.5x4_modified
1 x GRIDFINITY DTBASE3.5x4_top_modified
2 x GRIDFINITY DTBASE2x4_right
1 x GRIDFINITY DTBASE2x4_right_top

The base is not 3.5 as the filename state. When making accessories the size of the neighboring grid container can be increased by 10mm) on the X-axel. The size of each grid follows the normal 42mm. But the reduced smaller grid only 10mm (10/42 = 0,238)

I will add a couple of containers that matches this size in the future.

There is a STL-added that is a baseplate cover for the specially sized grid.

Hopefully someone else will find this useful.
