Arduino Stream deck

Homemade stream deck made with arduino pro micro and some mechanical switches and one poteciometer.
And of course with Bambu 3d printer :)

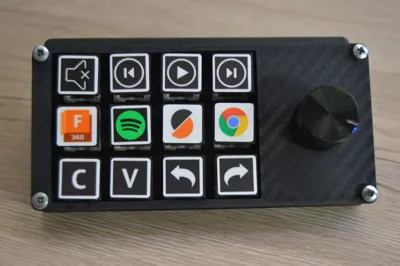

Homemade Elgato Stream Deck made with Arduino Pro Micro and some mechanical switches and a potentiometer and of course with a Bambulab 3D printer :)

To assemble the model 12 mechanical switches and a potentiometer are needed I used a 10K one

Of course an Arduino Pro Micro which you can get on Aliexpress for about 50 CZK

And the printed attached models I recommend using PLA or PETG

A carbon fiber patterned mat was also used also from Aliexpress for approximately 220 CZK

I recommend printing keycaps at a layer height of 0.10mm and the rest at 0.15-0.20mm depending on your preference for detail and print time

Also needed are 4x M3x2 screws + 1x M3x10 screw

There is a prepared hole at the back for the Arduino's USB C port

Optionally also a knob for the potentiometer and a USB C data cable

And of course C++ code for Arduino this depends on what functions you want your stream deck to perform

I had custom stickers made for the keycaps you can print them on your 2D printer on special paper or on plain paper and cover them with clear tape (that's a last resort)

#include <HID-Project.h>

#include <HID-Settings.h>

#define MUTE 10

#define PREVIOUS 14

#define PLAY_PAUSE 15

#define SKIP 16

#define CTRL_ALT_F 6

#define CTRL_ALT_S 8

#define CTRL_ALT_P 7

#define CTRL_ALT_C 9

#define COPY 3

#define PASTE 4

#define ARROW_LEFT 2

#define ARROW_RIGHT 5

int potentiometerPin = A0; // Pin pro potenciometr

int previousVolume = -1; // Uložení předchozí hlasitosti (-1 pro inicializaci)

// Setup

void setup() {

// Nastavení pinu pro tlačítka jako vstupy s interními pull-up rezistory

pinMode(MUTE, INPUT_PULLUP);

pinMode(PREVIOUS, INPUT_PULLUP);

pinMode(PLAY_PAUSE, INPUT_PULLUP);

pinMode(SKIP, INPUT_PULLUP);

pinMode(CTRL_ALT_F, INPUT_PULLUP);

pinMode(CTRL_ALT_S, INPUT_PULLUP);

pinMode(CTRL_ALT_P, INPUT_PULLUP);

pinMode(CTRL_ALT_C, INPUT_PULLUP);

pinMode(COPY, INPUT_PULLUP);

pinMode(PASTE, INPUT_PULLUP);

pinMode(ARROW_LEFT, INPUT_PULLUP);

pinMode(ARROW_RIGHT, INPUT_PULLUP);

// Inicializace HID pro klávesnici a multimédia

Consumer.begin();

Keyboard.begin();

}

void loop() {

// *Tlačítka*

if (digitalRead(MUTE) == LOW) {

Consumer.write(MEDIA_VOLUME_MUTE);

delay(200); // Malá prodleva, aby se příkaz neopakoval příliš rychle

}

if (digitalRead(PREVIOUS) == LOW) {

Consumer.write(MEDIA_PREVIOUS);

delay(200);

}

if (digitalRead(PLAY_PAUSE) == LOW) {

Consumer.write(MEDIA_PLAY_PAUSE);

delay(200);

}

if (digitalRead(SKIP) == LOW) {

Consumer.write(MEDIA_NEXT);

delay(200);

}

// *Kombinace kláves*

if (digitalRead(CTRL_ALT_F) == LOW) {

Keyboard.press(KEY_LEFT_CTRL);

Keyboard.press('f');

delay(200);

Keyboard.releaseAll();

}

if (digitalRead(CTRL_ALT_S) == LOW) {

Keyboard.press(KEY_LEFT_CTRL);

Keyboard.press('s');

delay(200);

Keyboard.releaseAll();

}

if (digitalRead(CTRL_ALT_P) == LOW) {

Keyboard.press(KEY_LEFT_CTRL);

Keyboard.press('p');

delay(200);

Keyboard.releaseAll();

}

if (digitalRead(CTRL_ALT_C) == LOW) {

Keyboard.press(KEY_LEFT_CTRL);

Keyboard.press('c');

delay(200);

Keyboard.releaseAll();

}

if (digitalRead(COPY) == LOW) {

Keyboard.press(KEY_LEFT_CTRL);

Keyboard.press('c');

delay(200);

Keyboard.releaseAll();

}

if (digitalRead(PASTE) == LOW) {

Keyboard.press(KEY_LEFT_CTRL);

Keyboard.press('v');

delay(200);

Keyboard.releaseAll();

}

if (digitalRead(ARROW_LEFT) == LOW) {

Keyboard.press(KEY_LEFT_CTRL);

Keyboard.press('y'); // CTRL + Z místo šipky doleva

delay(200);

Keyboard.releaseAll();

}

if (digitalRead(ARROW_RIGHT) == LOW) {

Keyboard.press(KEY_LEFT_CTRL);

Keyboard.press('z'); // CTRL + Y místo šipky doprava

delay(200);

Keyboard.releaseAll();

}

// *Potenciometr*

int potentiometerValue = analogRead(potentiometerPin);

int currentVolume = map(potentiometerValue, 0, 1023, 0, 100);

if (currentVolume != previousVolume) {

adjustVolume(previousVolume, currentVolume);

previousVolume = currentVolume;

}

delay(50); // Malá prodleva pro stabilitu

}

// Funkce pro změnu hlasitosti

void adjustVolume(int previous, int current) {

if (current > previous) {

for (int i = previous; i < current; i++) {

Consumer.write(MEDIA_VOLUME_UP);

delay(5);

}

} else if (current < previous) {

for (int i = previous; i > current; i--) {

Consumer.write(MEDIA_VOLUME_DOWN);

delay(5);

}

}

}
