Nema 23 Motor Mount for 6060 Profile
IP Report
Print Profile(1)
0.2mm layer, 4 walls, 66% infill
Designer
5.4 h
1 plate
Open in Bambu Studio
Boost
11
25
0
0
10
2
Released
Description

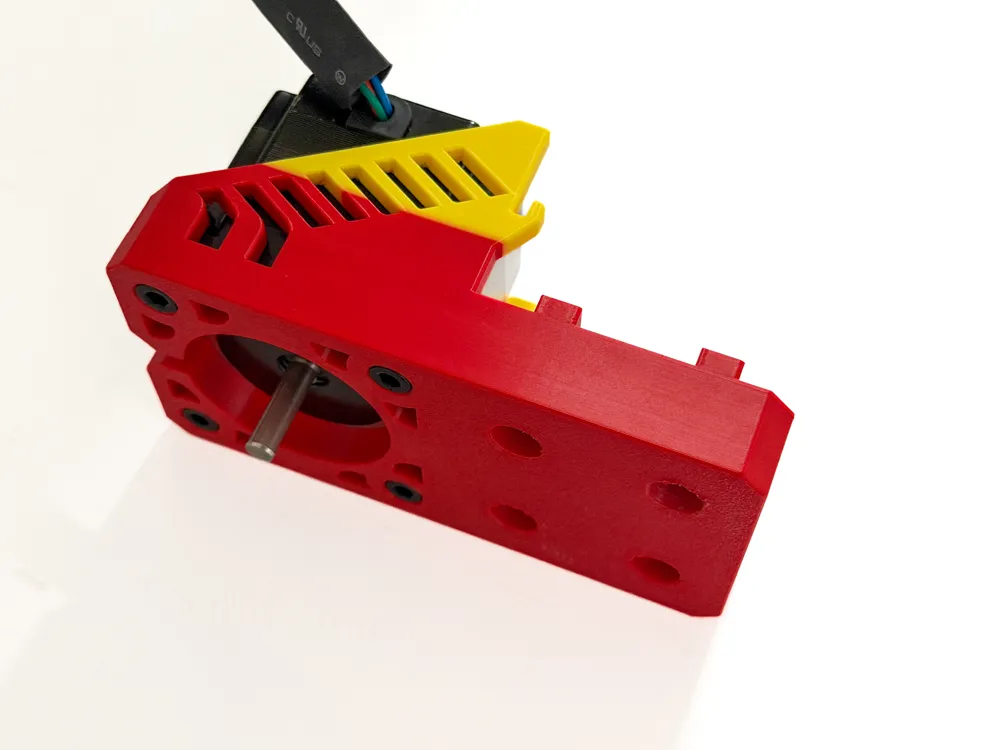

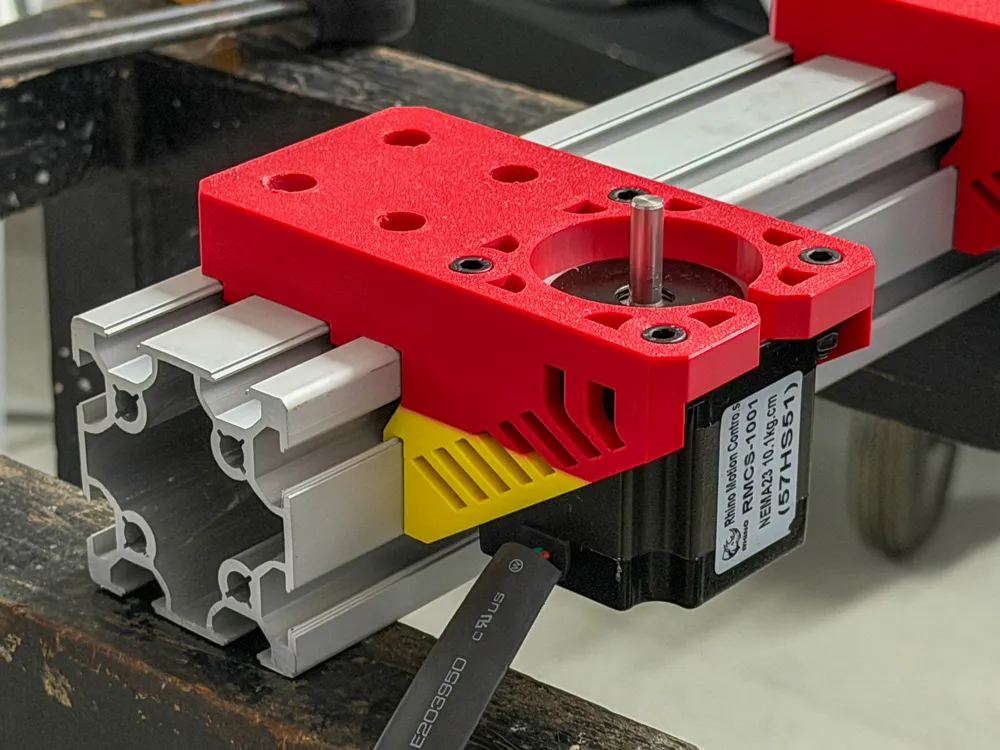

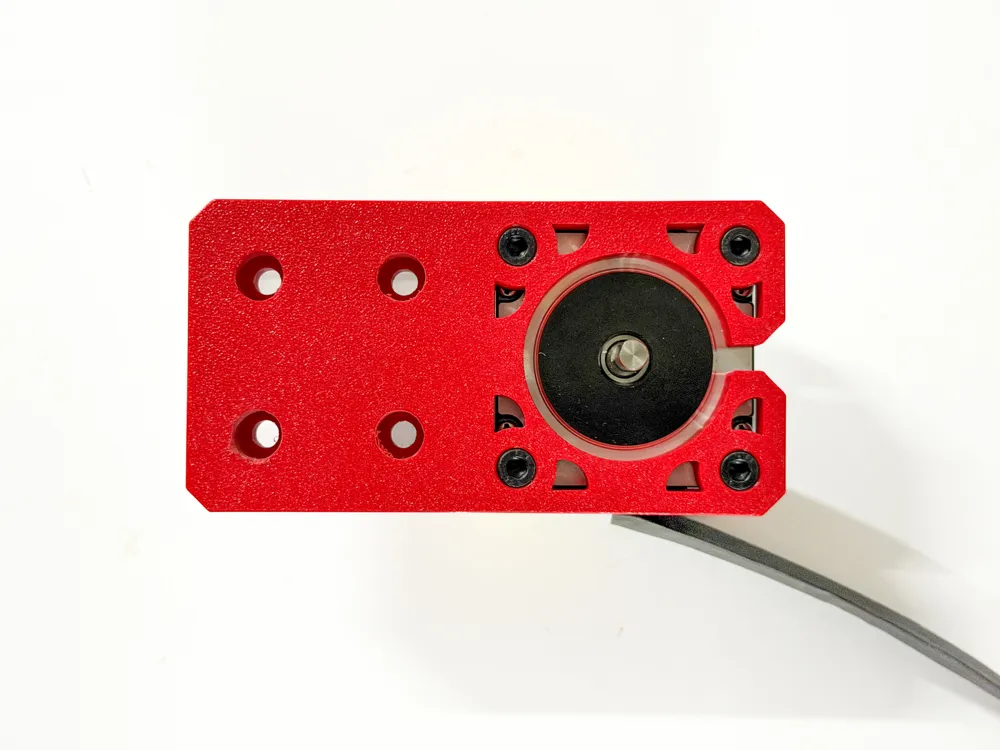

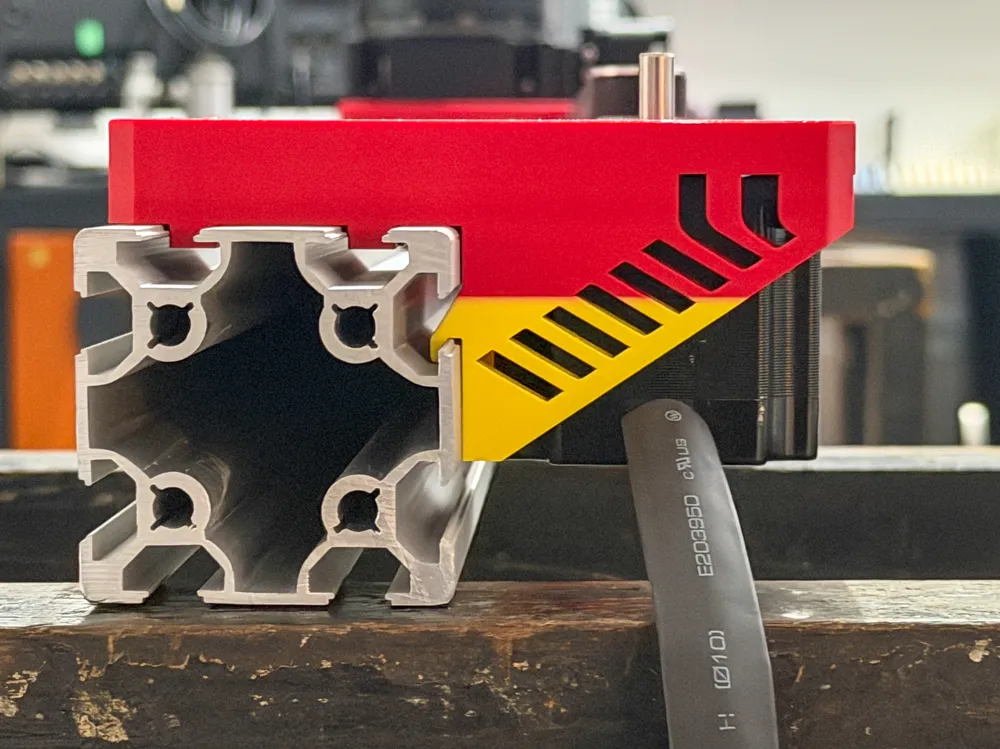

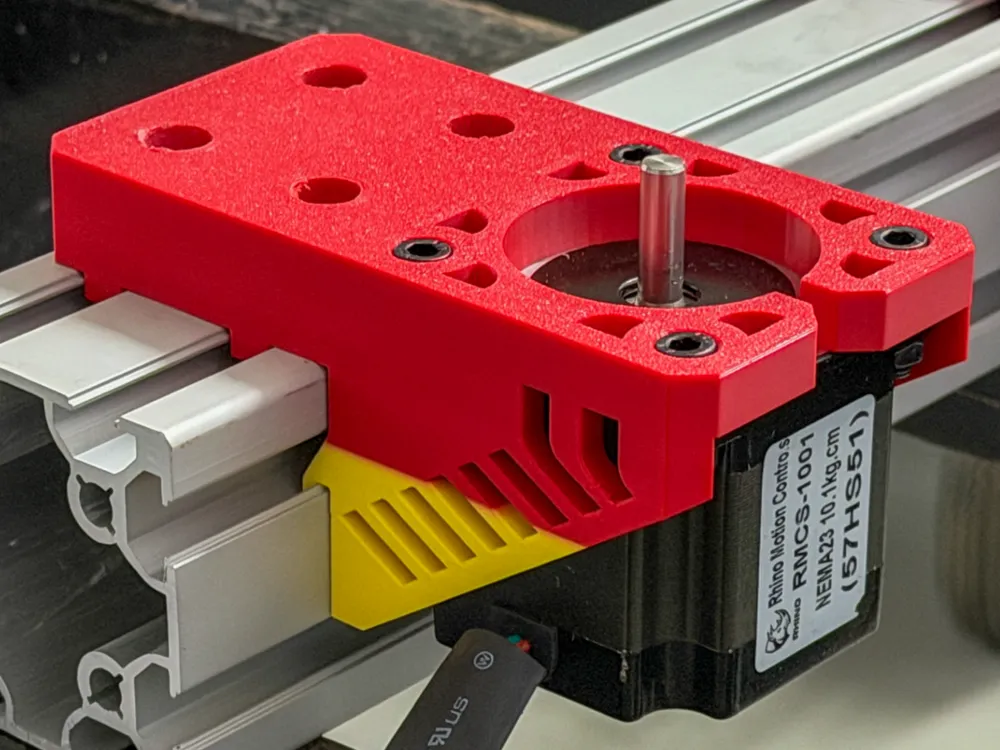

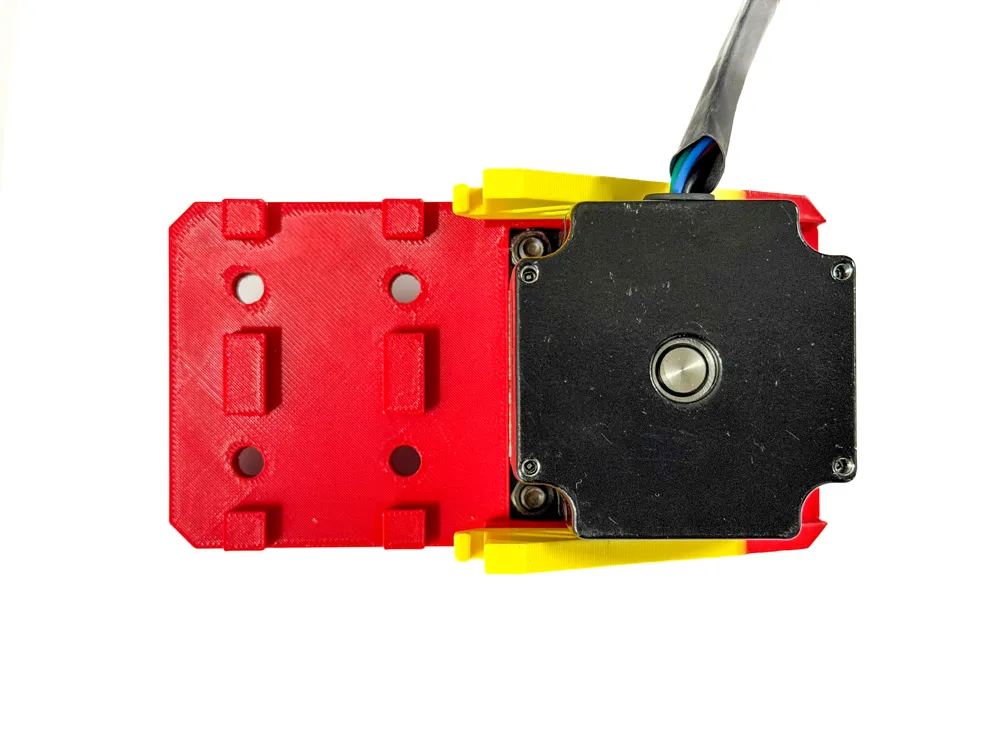

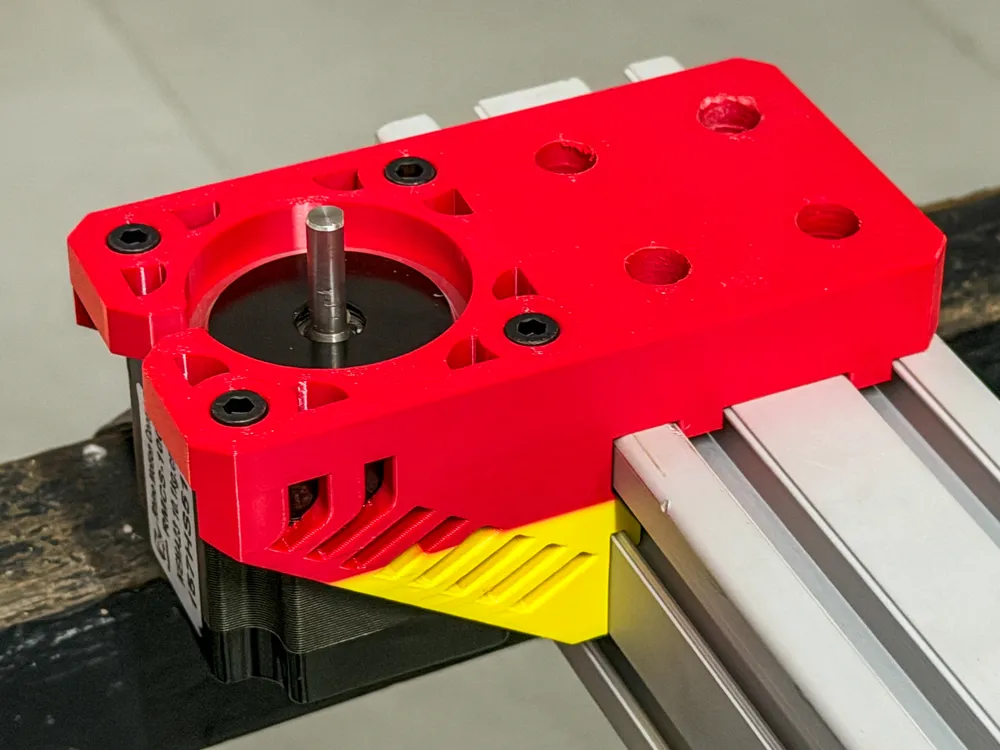

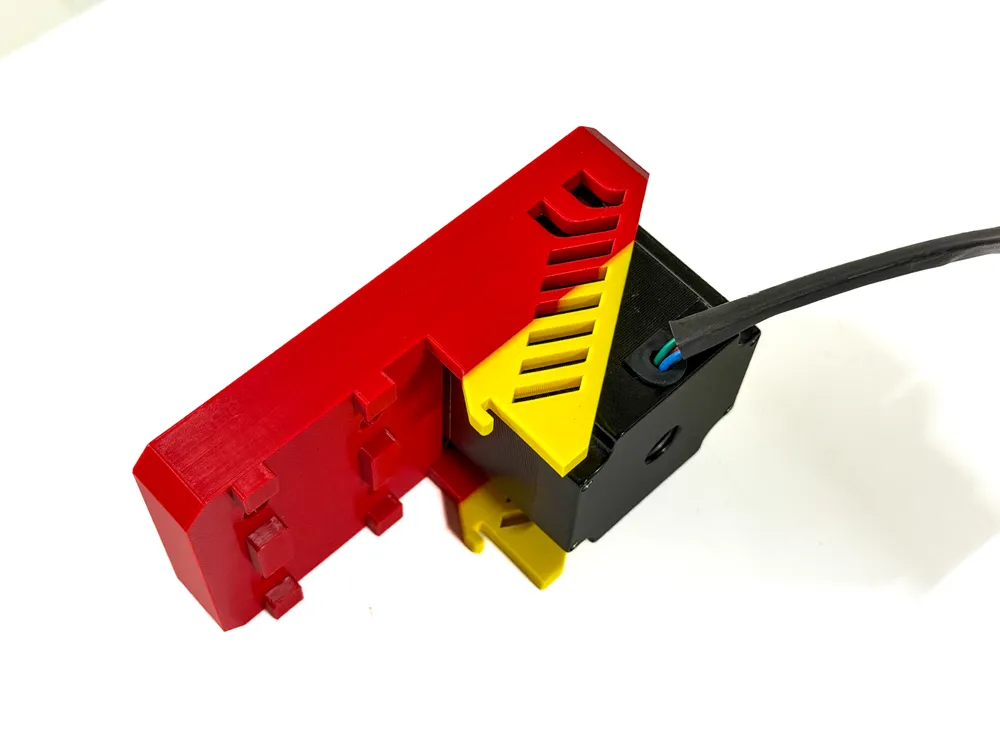

This is a sturdy mount for a Nema 23 motor, which slides onto a 6060 profile, and requires 4 x M6 bolts to secure it to the profile, using T nuts. 4 x M5 bolts secure the motor to the mount.
