Hello,

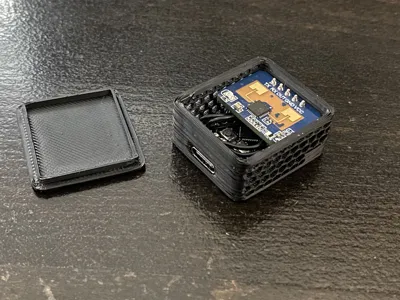

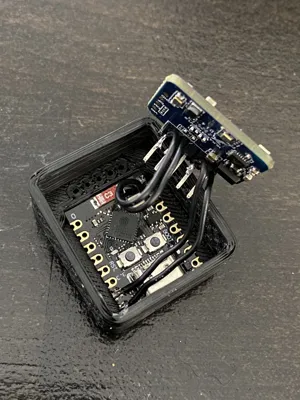

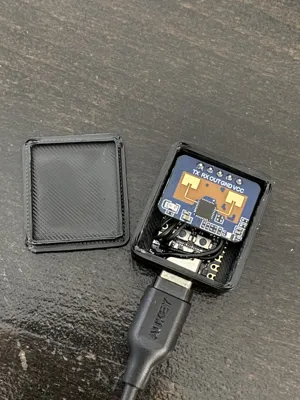

here's a small project I designed. I wanted to combine a small ESP32-C3 Super Mini with an LD2410C radar / mmWave sensor and keep the whole thing as small and modular as possible. Later, the project will be used together with ESPHome and Home Assistant to control the lighting in individual rooms. For the LD2410C, I have planned extra holes for the pins, so that you can simply insert the sensor there. The ESP32 is also simply clamped in. If you like, you can also use a dab of hot glue for fixation.
Printed on a Voron v0.2 with the following settings:
Layer height: 0.2mm
Nozzle: 0.4mm
Infill: 100%
ESPHome Code: https://pastebin.com/37U5ZZ9N
