Cuktech No. 10 Ultra Desktop Retractable Cable Charging Station

Thank you all for your support and suggestions~After continuous iteration, the finished module can be used directly without welding

————

Cuktech No. 10 ultra is a very excellent product, but for me it still doesn't quite fit the concept of a charging station

I think a charging station should be like an EV charging station, where the station comes with its own charging gun, instead of having to pull out a cable yourself and plug it into a smooth panel…

The retractable cable solution is very convenient, and hidden away it's even more concise

If it also had a hub function, where ports can be plugged and unplugged on demand, that would be even better

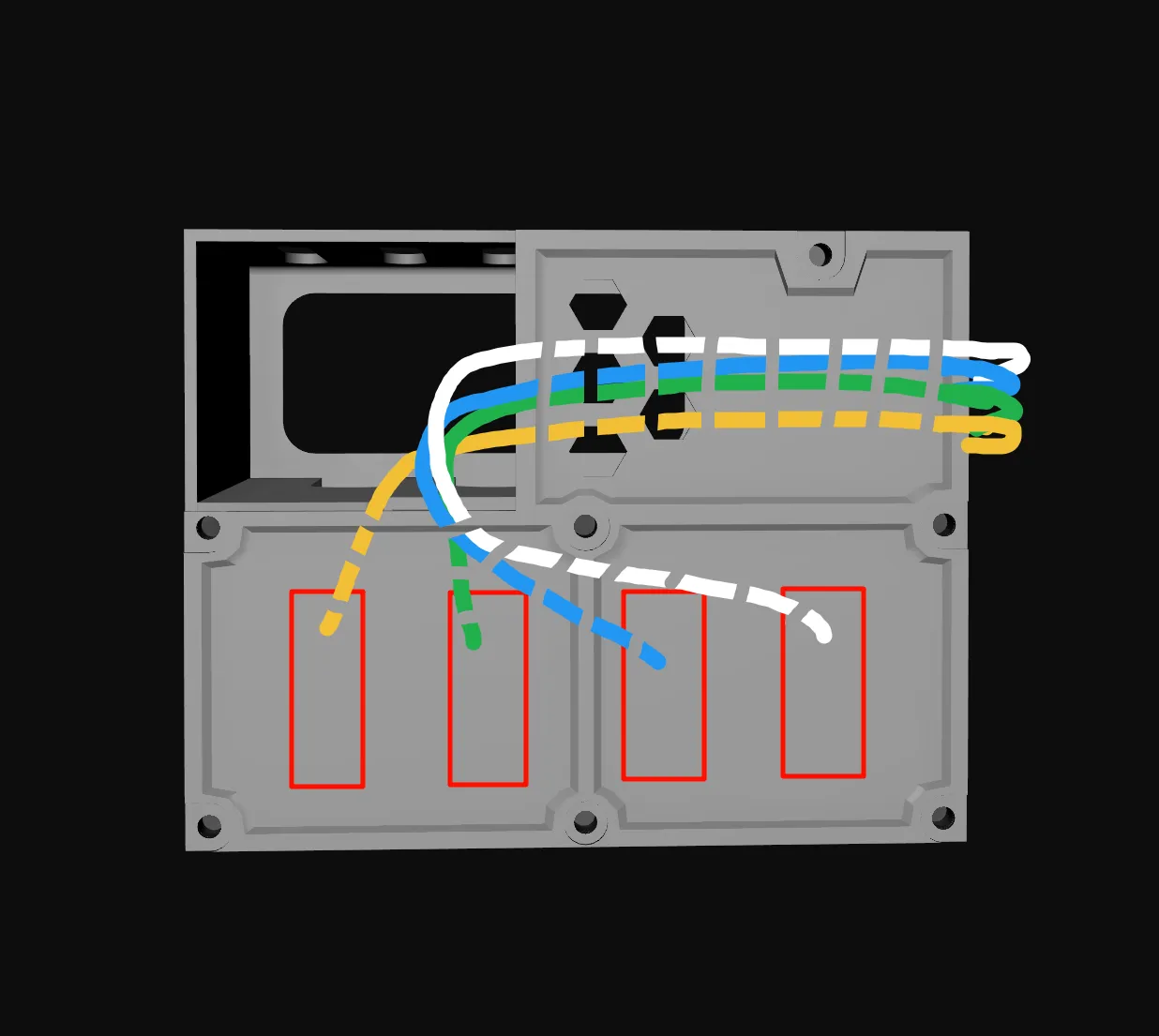

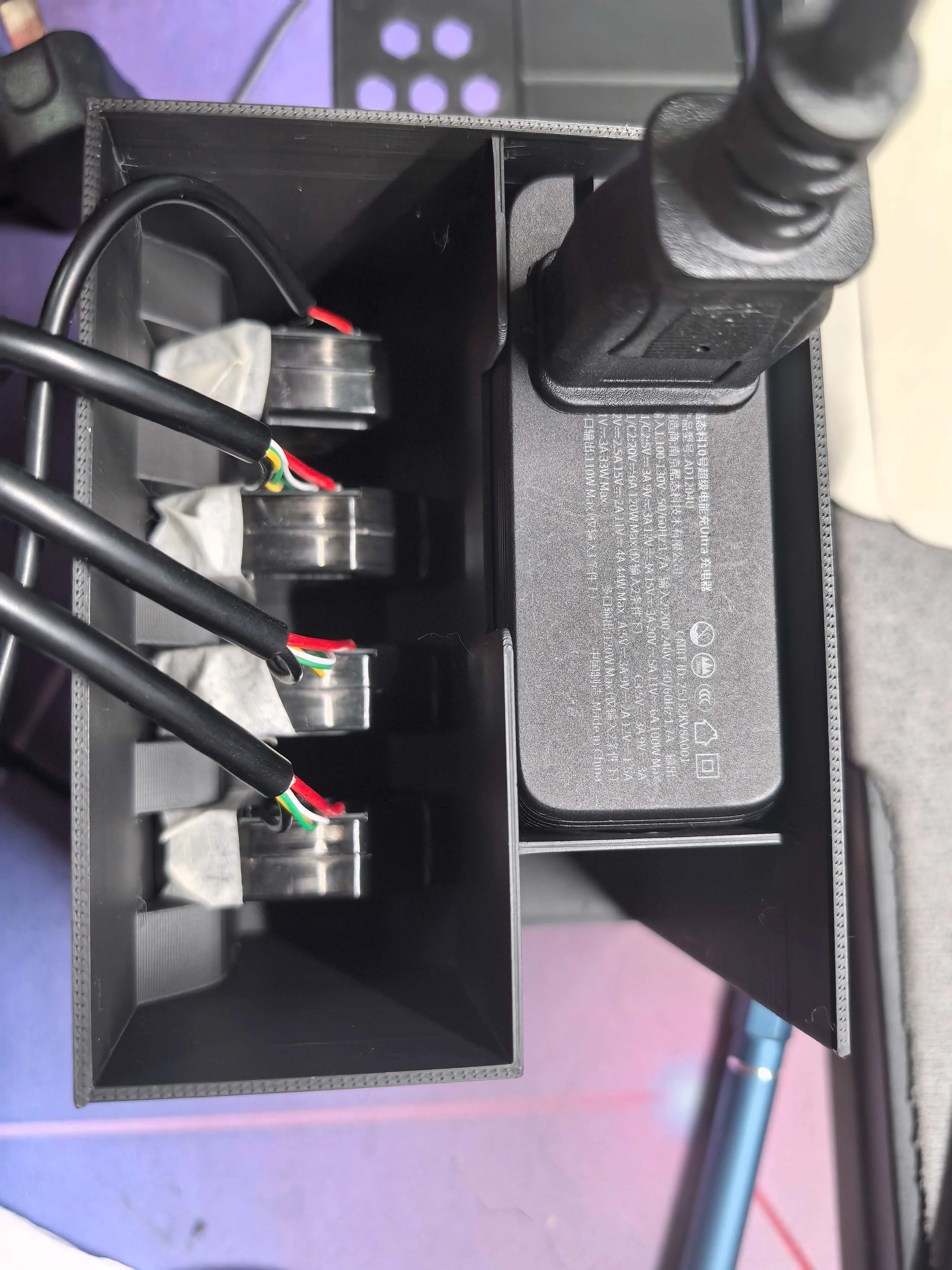

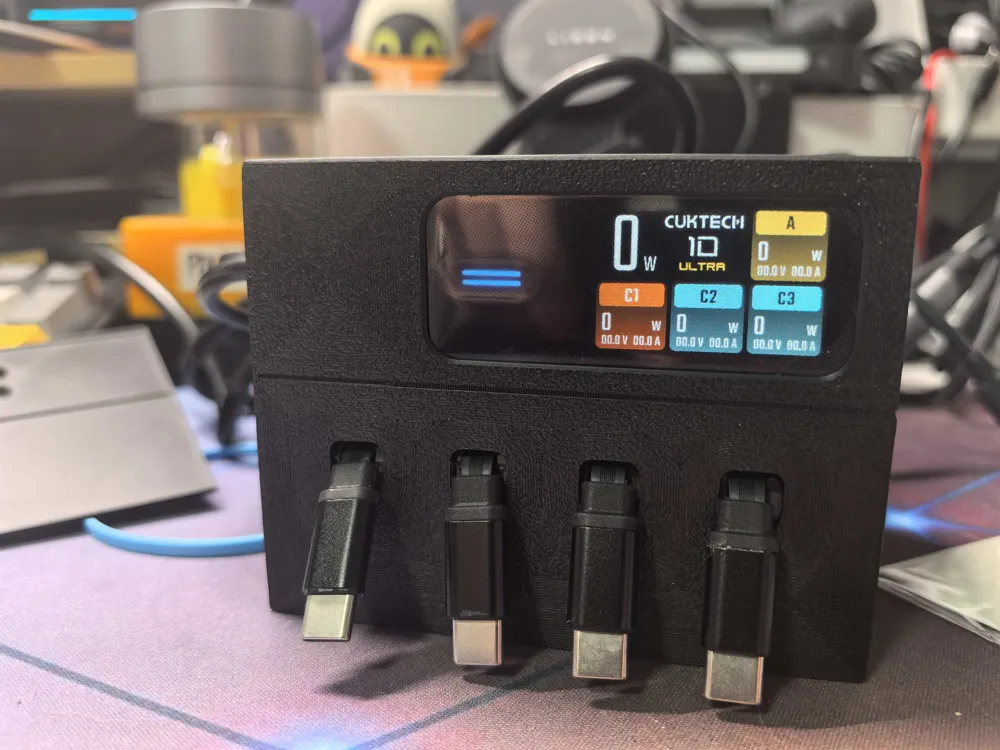

So I combined the charger and the retractable cable module, while keeping the volume small and utilization high, with low-cost materials for easy reproduction

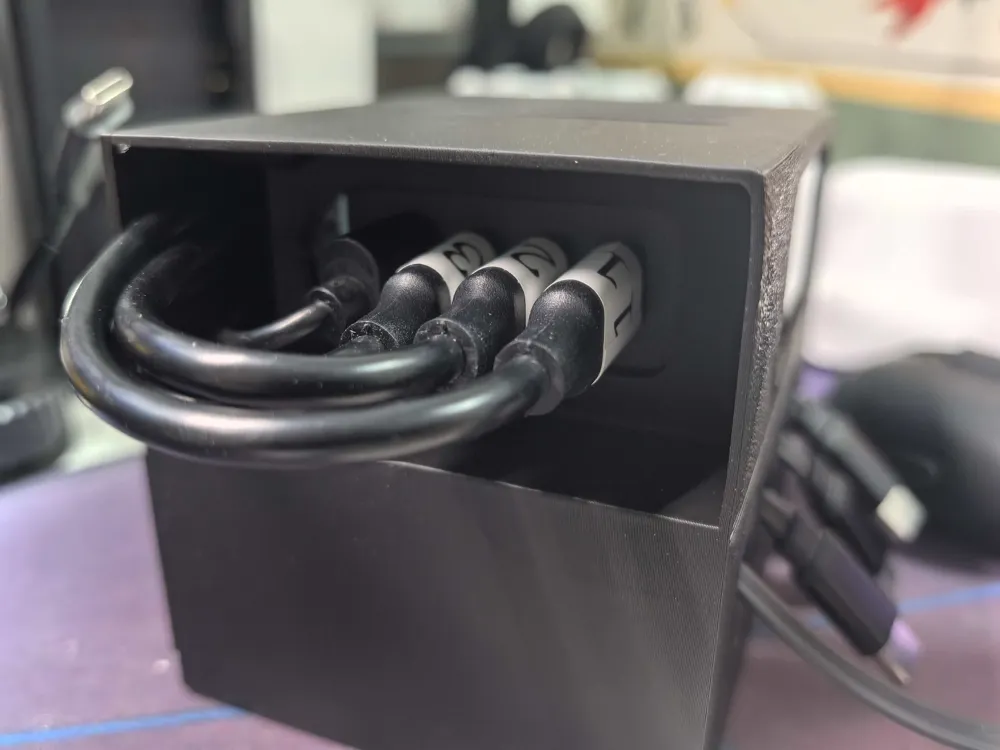

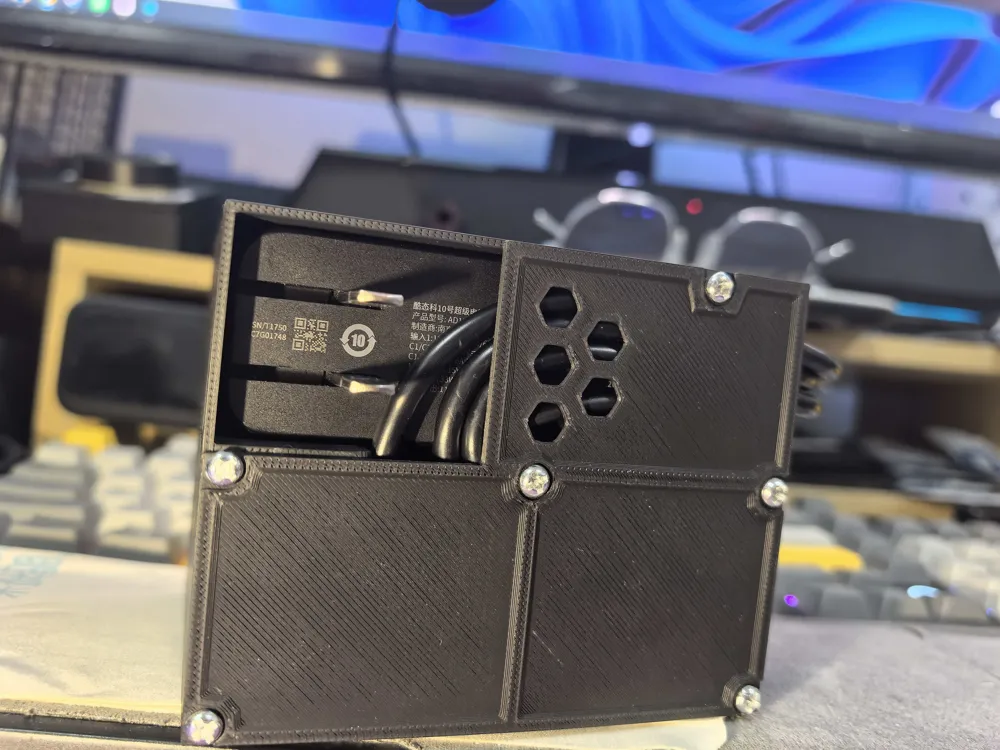

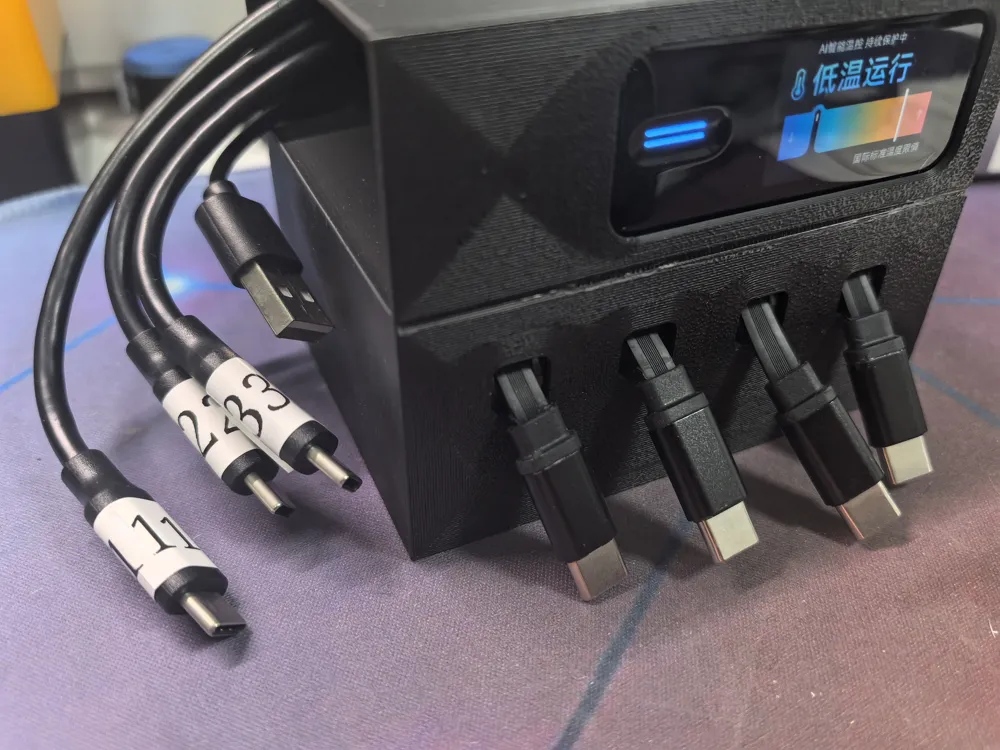

The output end is open, intentionally exposing a section of cables, giving it a bit of an industrial punk style; at the same time, considering practicality, the cables can be easily unplugged for individual use and share data with the front panel

Of course, you can extend this based on my design, the number of outputs depends on your charger's ports

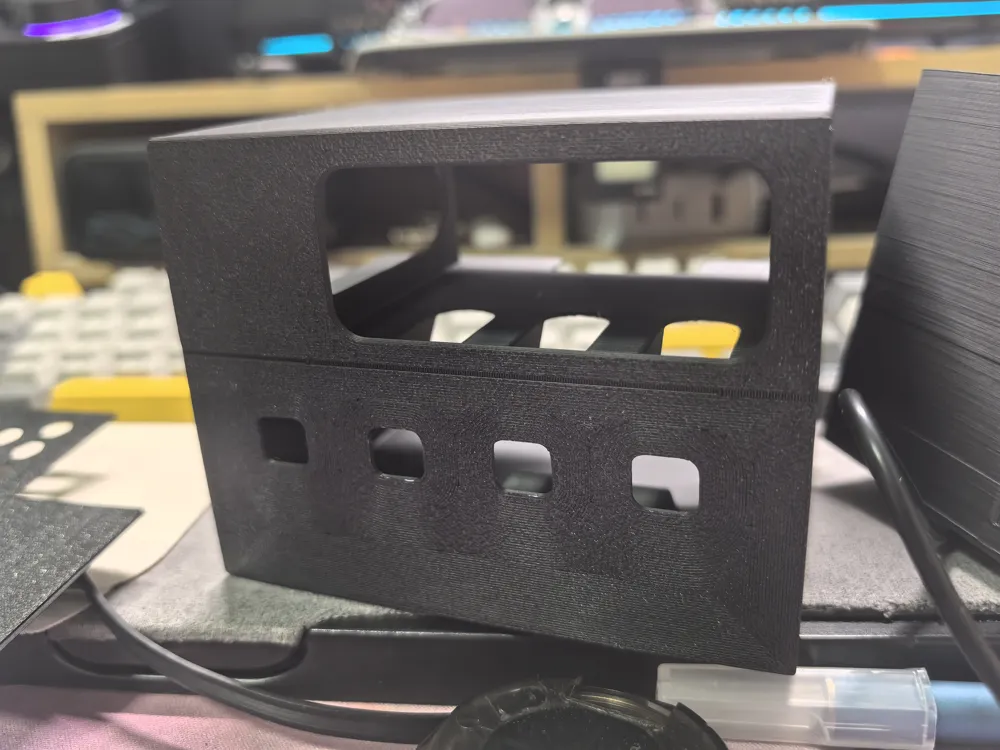

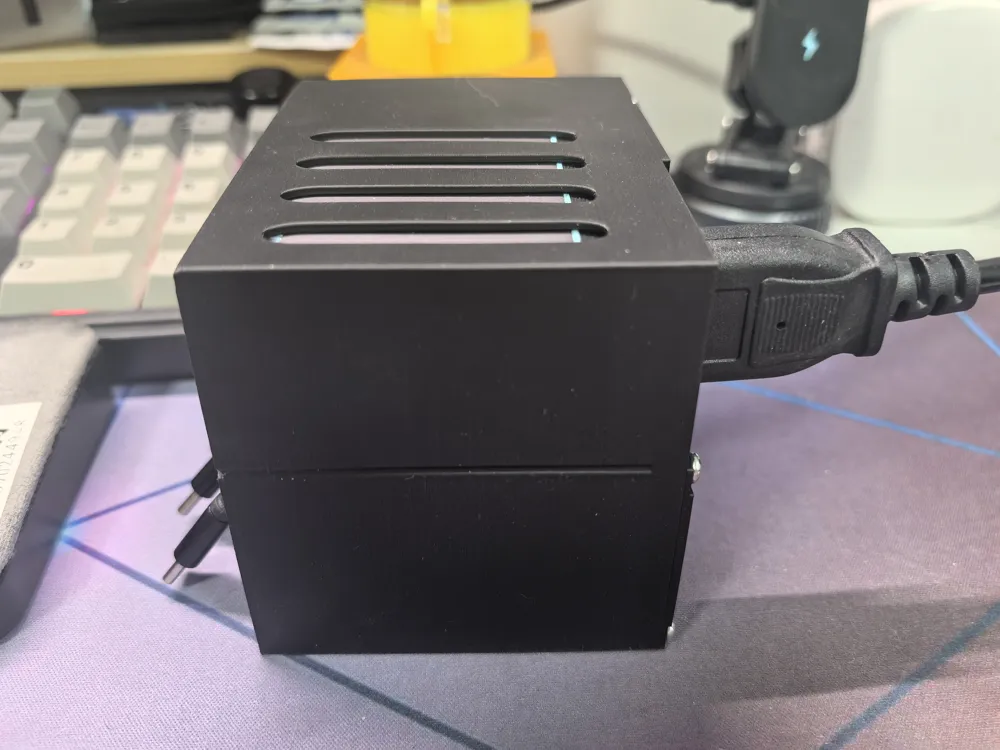

The casing and back cover have ventilation holes, no supports needed for printing

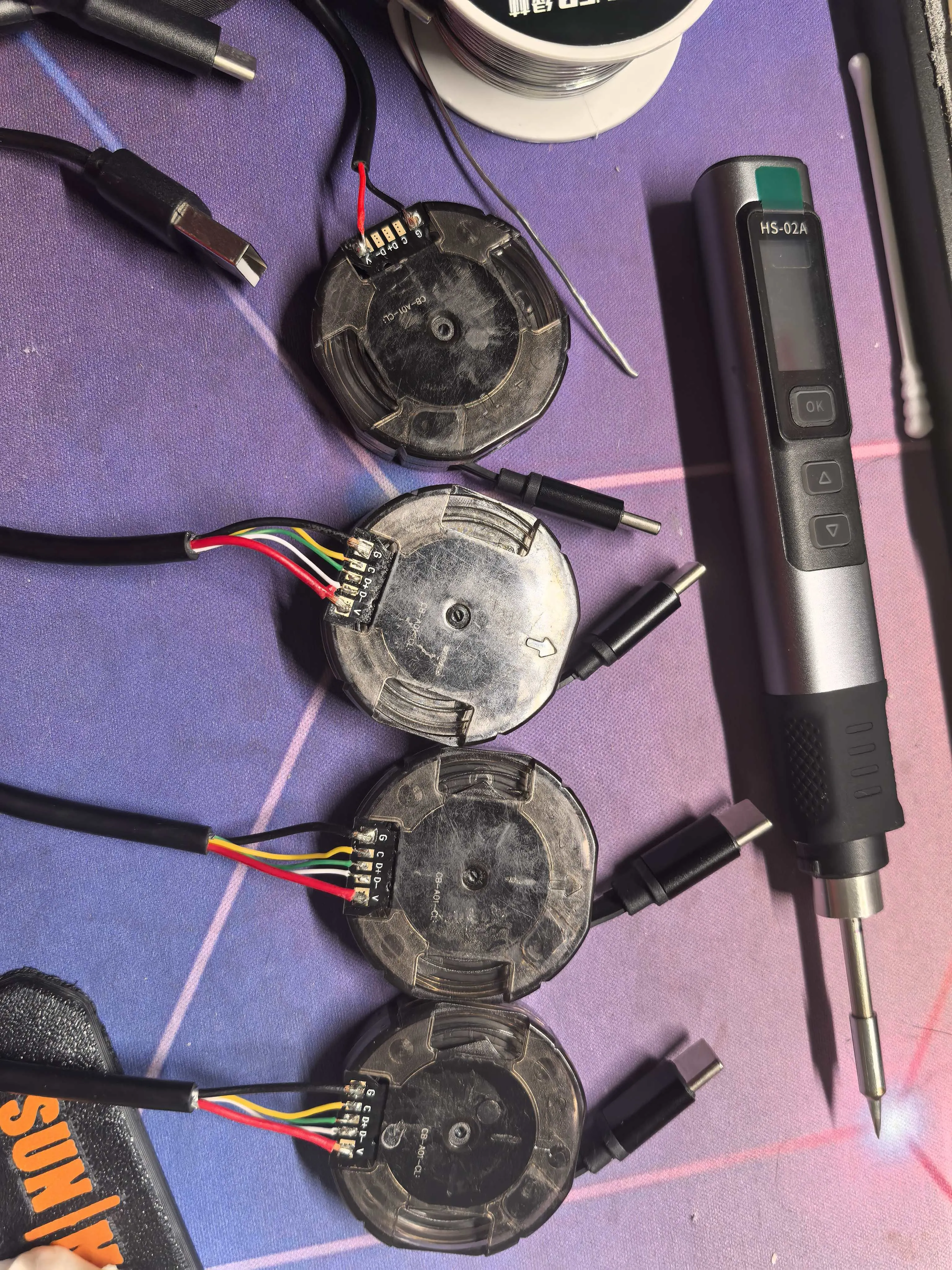

The materials for the low-cost solution can all be found on Alibaba, just need to know a little bit about welding

If you purchase ready-made modules, you can skip the welding step

List:

(Here, taking the 40x40x12mm semi-finished module as an example)

Retractable cable module x4 (Lightning, old Android, etc. are all fine, as above, choose between charge-only or full-featured cables)

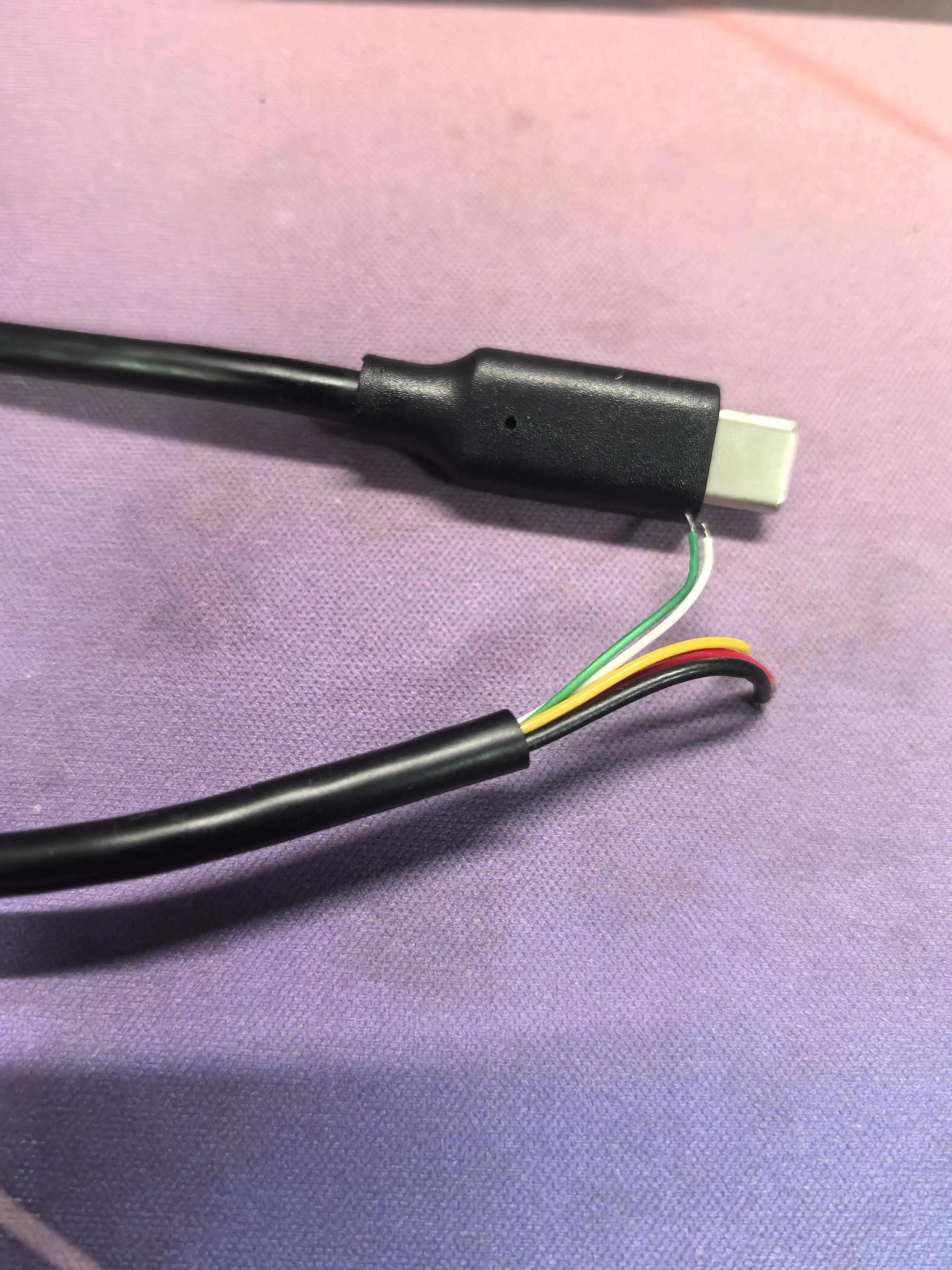

Single-head Type-C male charging cable x3 (If data transfer is needed, you can buy full-featured ones, the pin definitions will be more complete)

Single-head USB-A charging cable x1 (Cut off charging cables from most small appliances that are not needed)

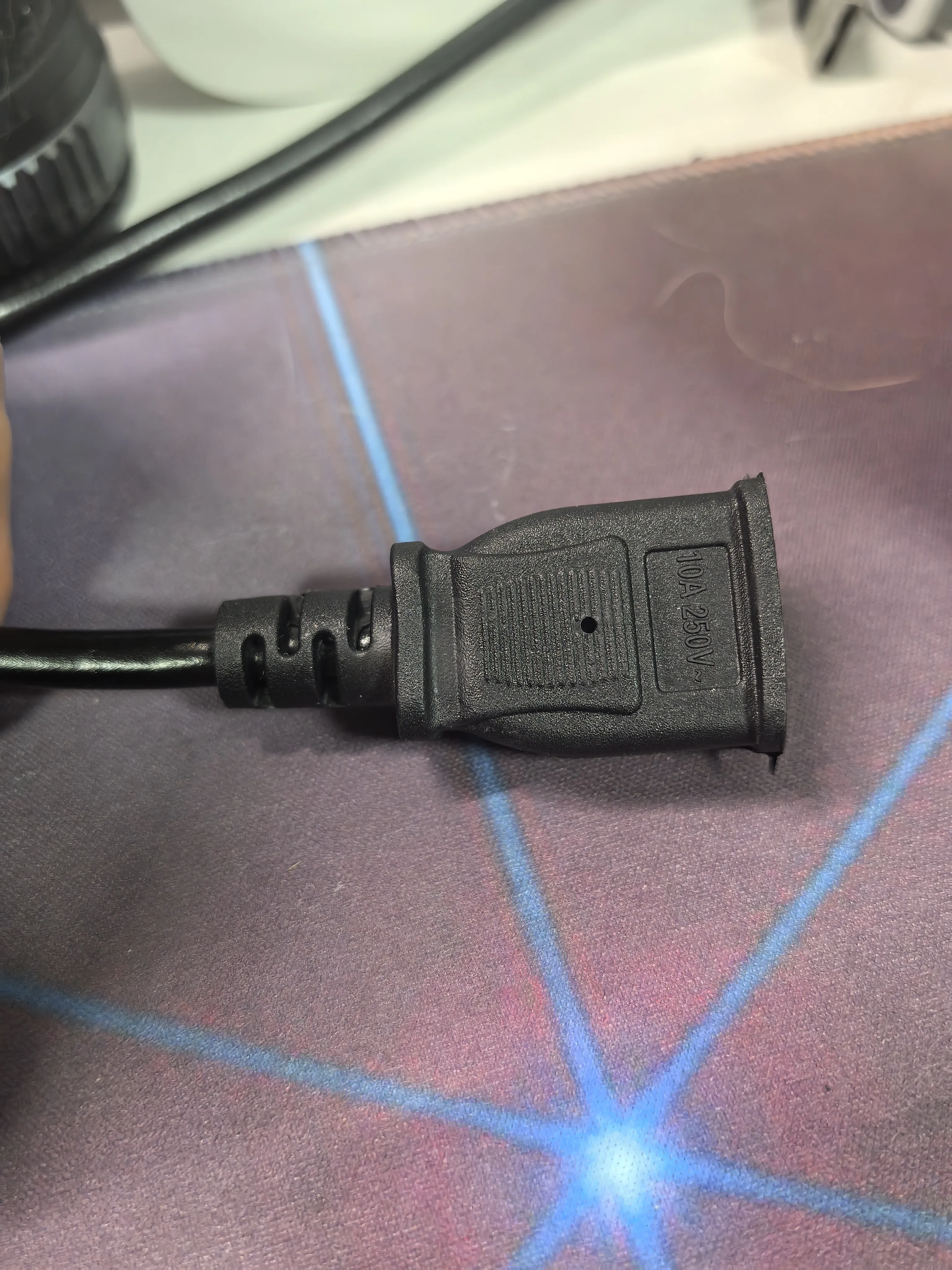

Two-hole power extension cord x1 (Angled male plugs are more convenient)

m3 6mm screws x7

————

2025/10/07

Modified the type of short cables for the charger output in the list, it should be 1 A port and 3 C ports, previously written as 4 C ports

Responding to a request from a user in the comments section, added a version for those who bought the retractable cable module in 43x43x13 size

————

2025/11/11

Updated the size of the 51.55mm*14.70mm module bought by a user in the comments section

————

2025/12/15

Updated the size of the 55mm*23mm, 80cm module bought by a user in the comments section

————

2026/03/02

Updated the retractable cable module solution for HiBy from a user in the comments section, retaining three outlets, with the A port idle
