Description
The model includes 5 printing plates.

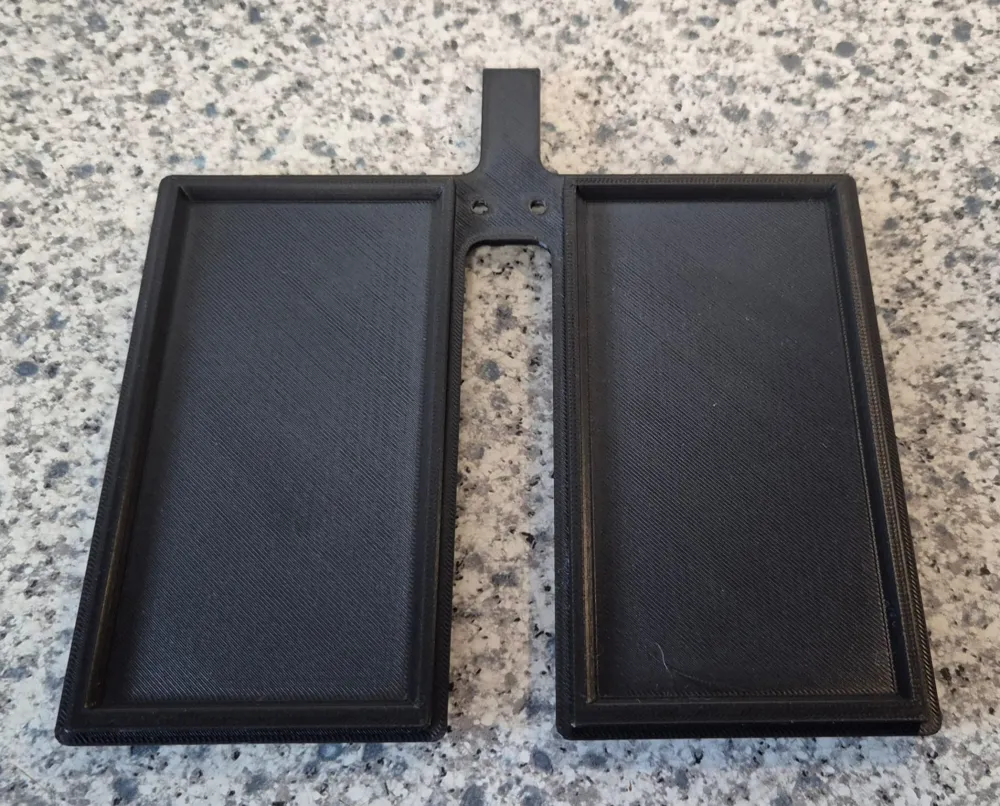

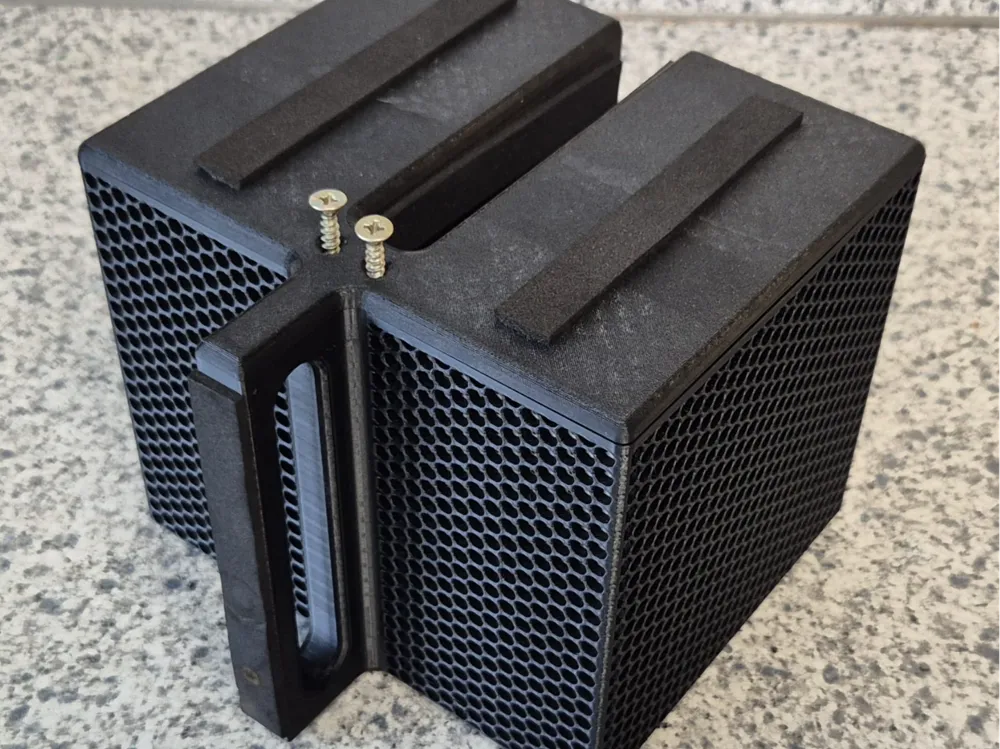

The container and lid are inserted using two tabs and secured with 2 screws.

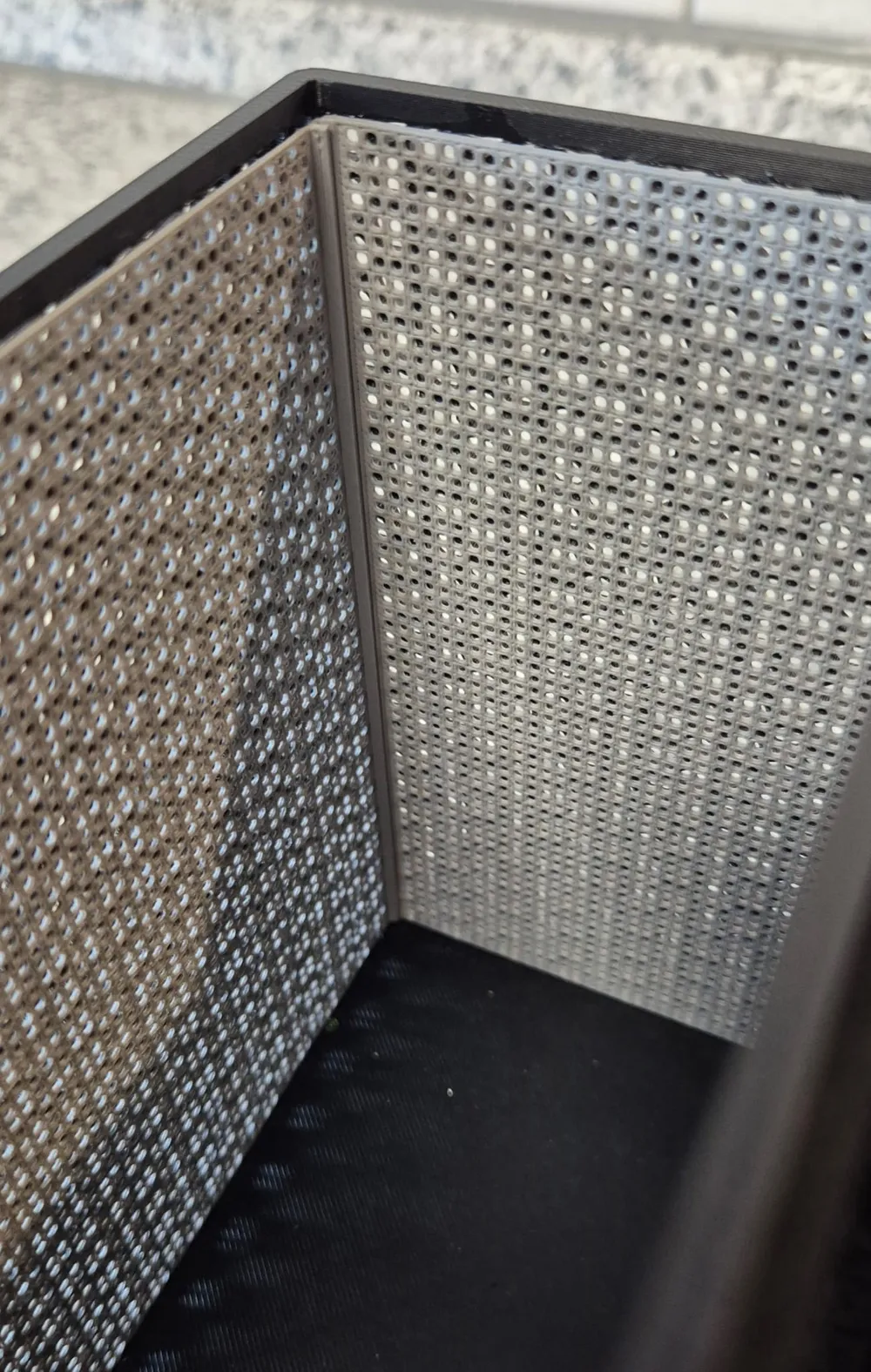

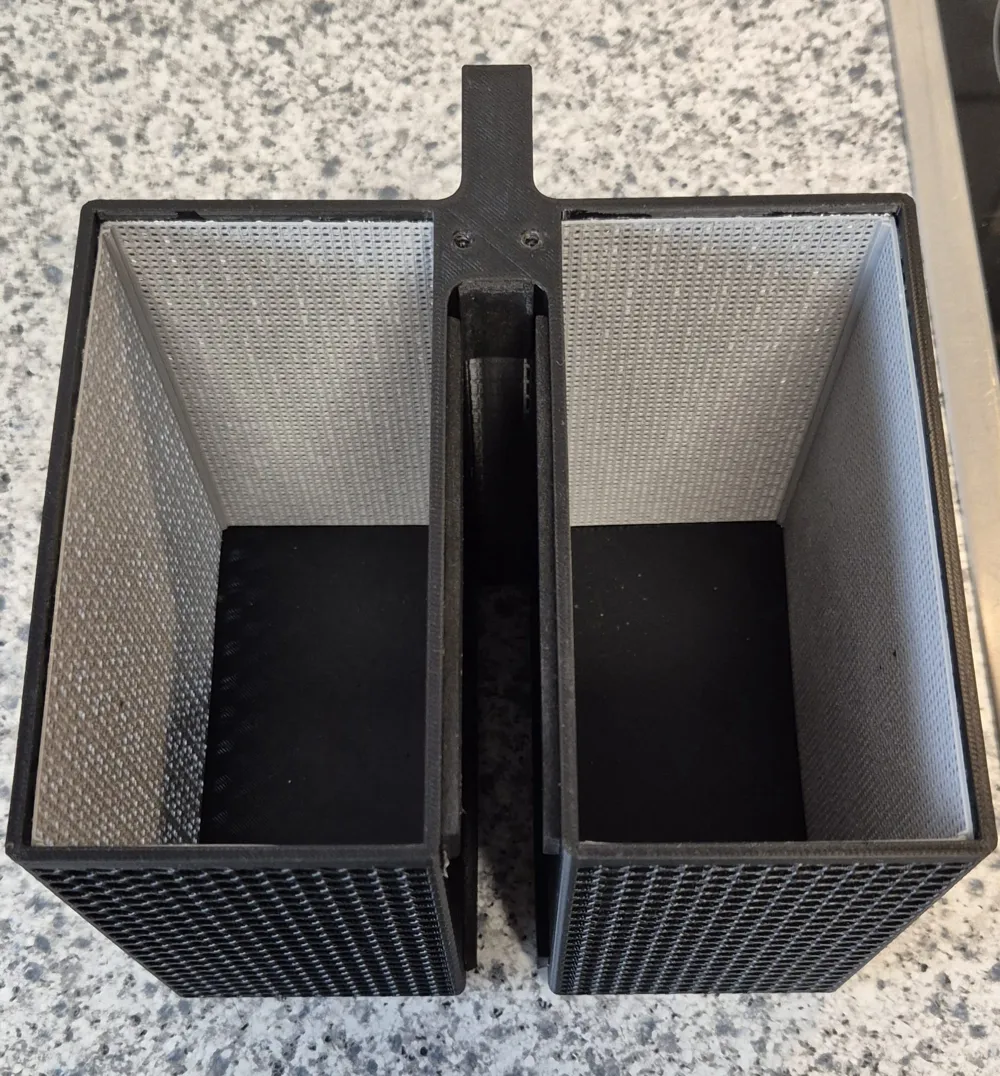

The finer mesh panels are placed inside the container and fixed with adhesive.

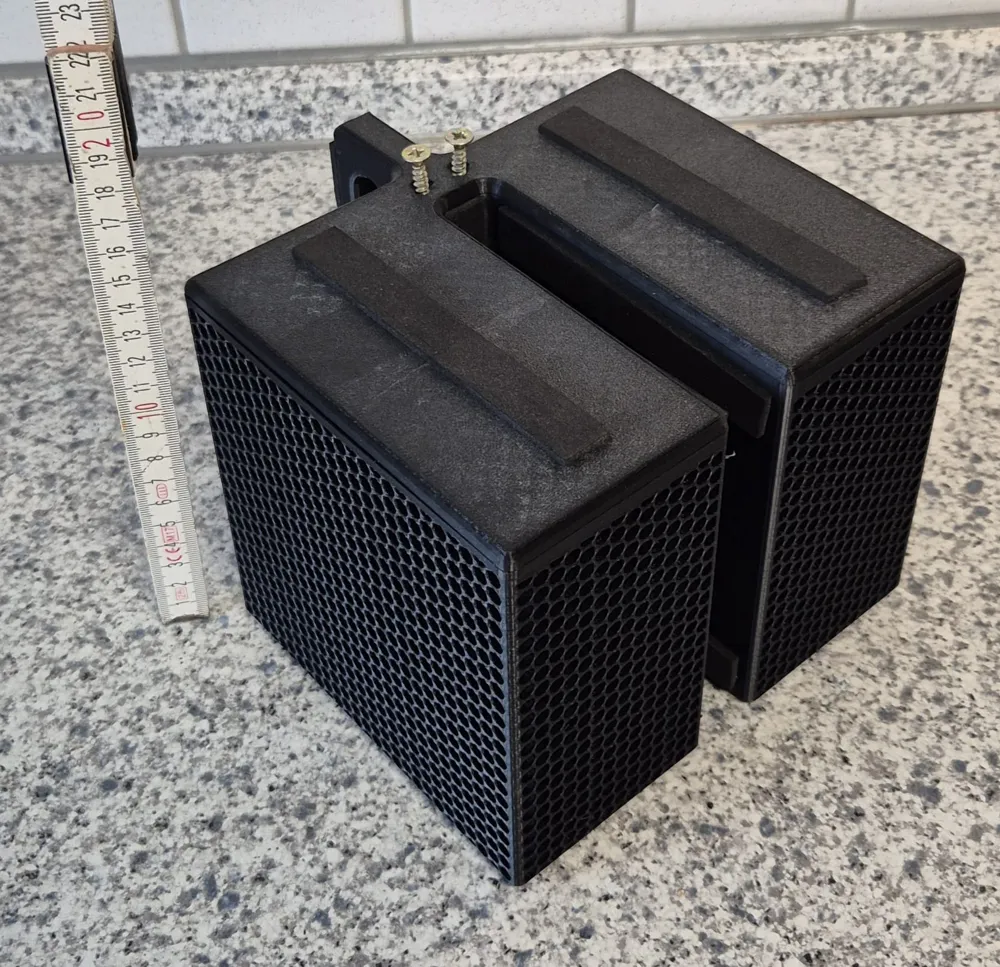

Dimensions of the container with handle: H x W x D 141mm x 170mm x 175mm
Dimensions of the container without handle: H x W x D 141mm x 170mm x 140mm
Handle width: 15mm

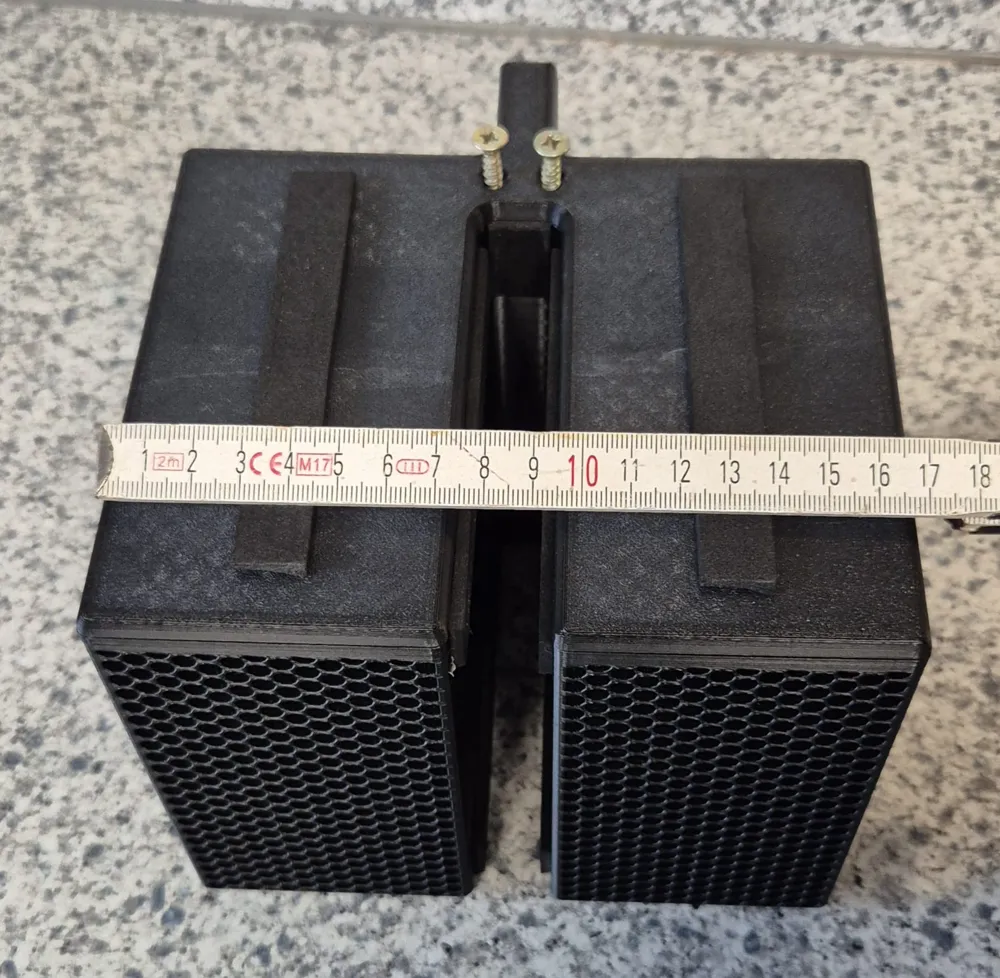

Gap width: 20mm (With 2mm foam rubber on both sides: 16mm)

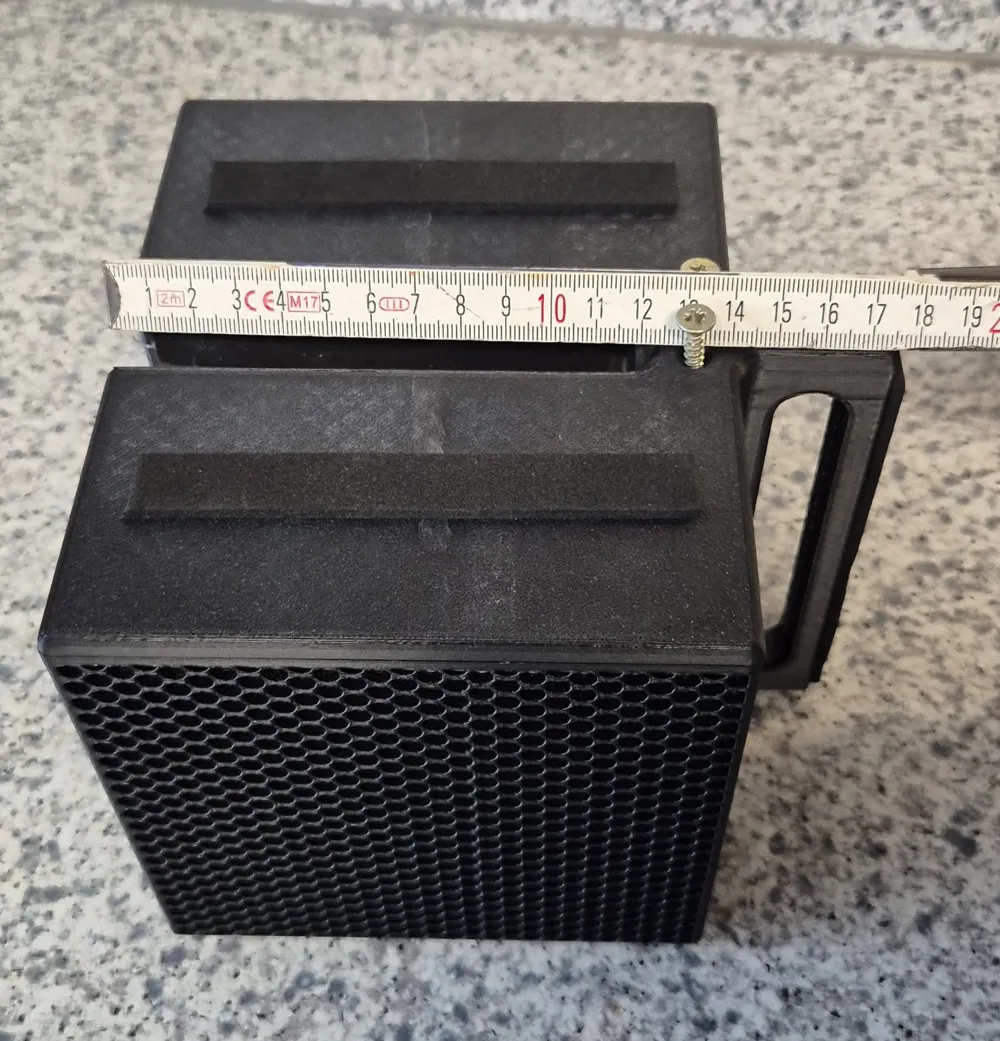

Distance from back of gap to front edge of handle: 55mm

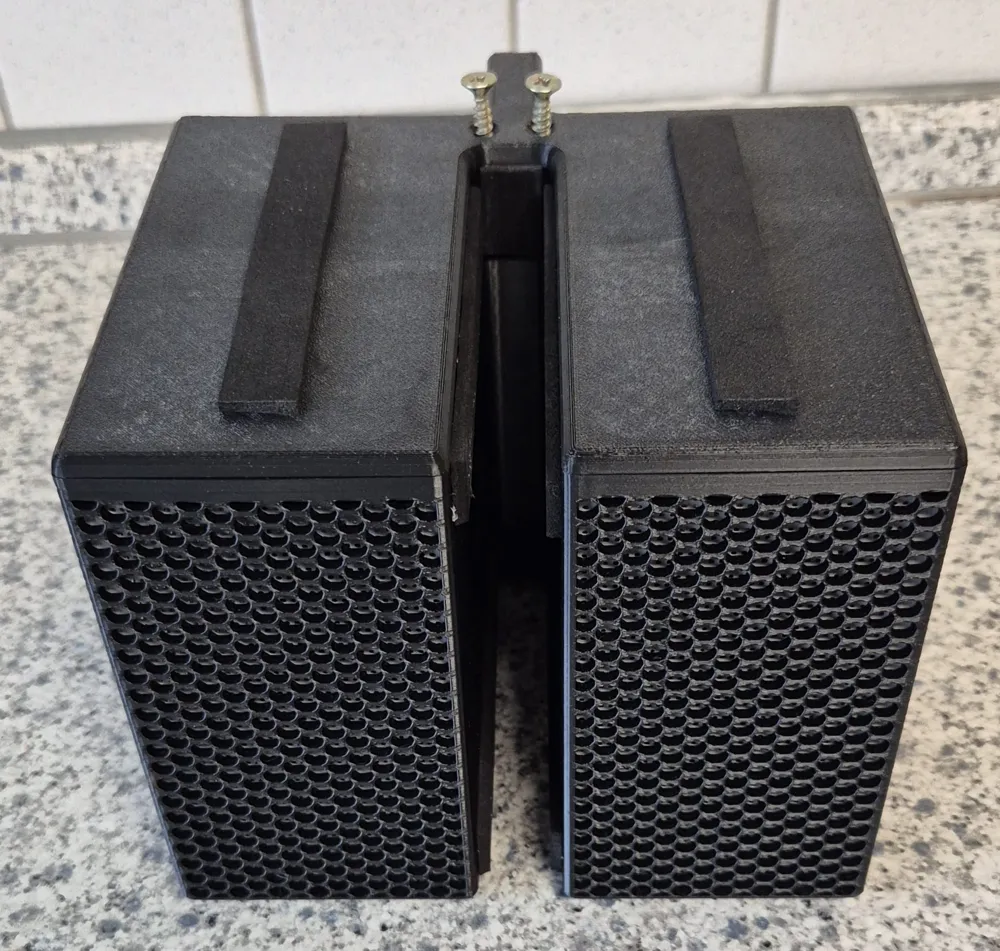

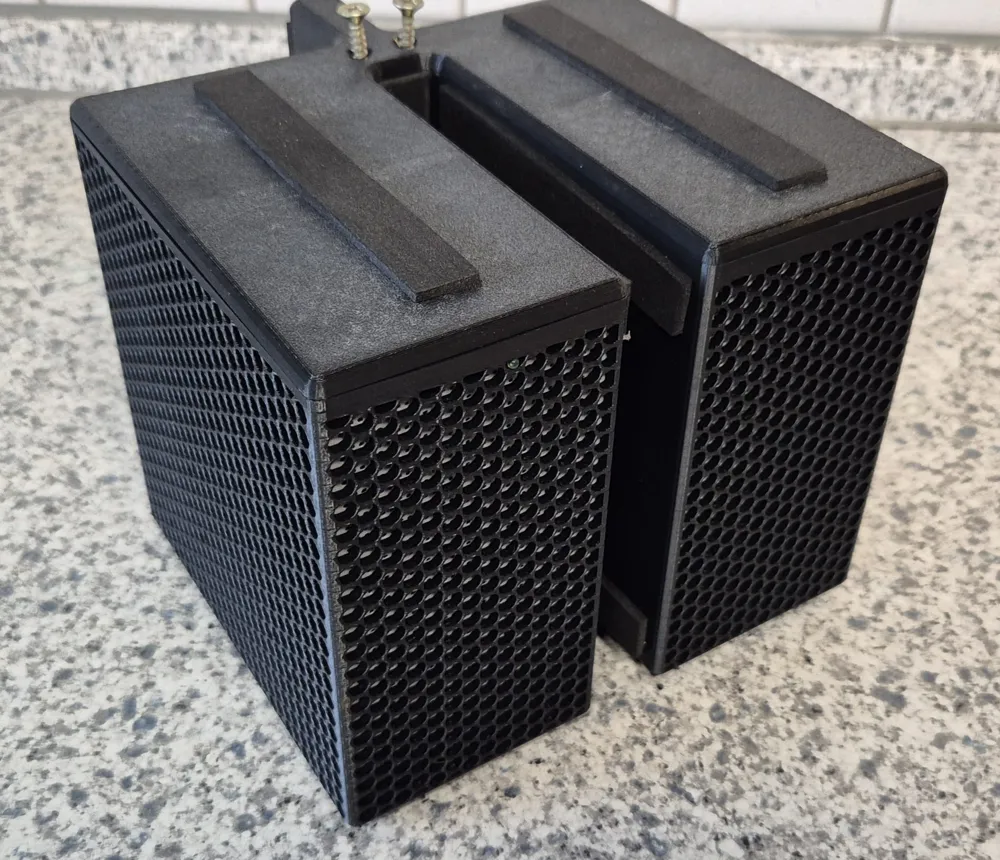

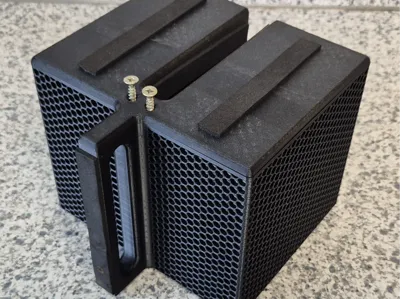

I recommend adding 2mm foam rubber to the gap (see pictures). This allows the boxes to be placed on 15mm plates and multiple boxes to be stacked using the handle.
Please feel free to contact me with any questions or requests for modifications.
Thank you!
-------------------------------------------------------------
The model includes 5 printing plates.
The container and lid are inserted using two tabs and secured with 2 screws.
The finer mesh panels are placed inside the container and fixed in place with adhesive.
Dimensions of the container with handle: H x W x D 141mm x 170mm x 175mm
Dimensions of the container without handle: H x W x D 141mm x 170mm x 140mm
Handle width: 15mm
Gap width: 20mm (16mm with 2mm foam rubber on both sides)
Distance from back of gap to front edge of handle: 55mm
I recommend adding 2mm foam rubber to the gap (see pictures). This allows the boxes to be placed on 15mm plates and multiple boxes to be stacked using the handle.
Please feel free to contact me with any questions or requests for modifications.
Thank you!
