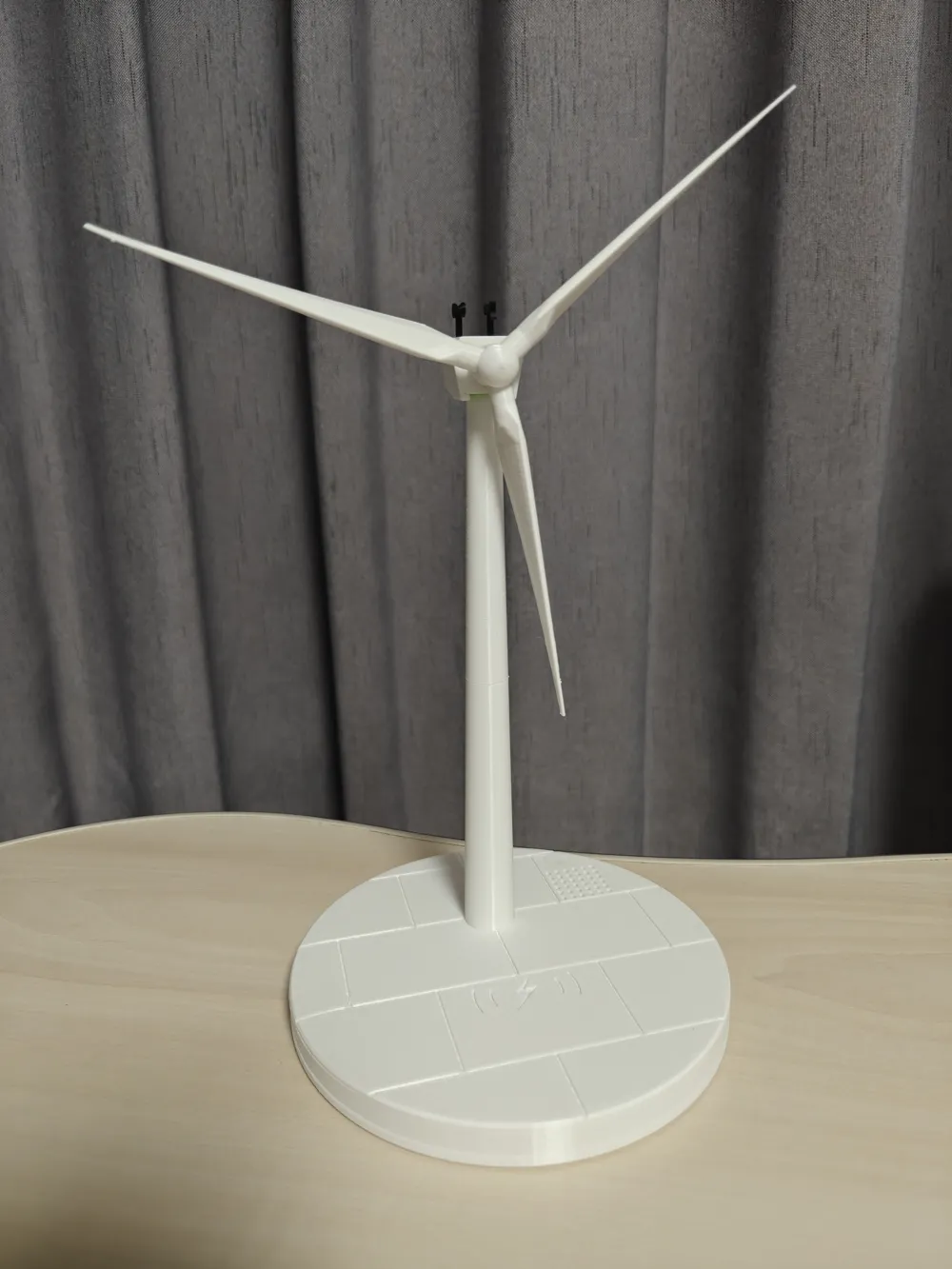

Wind-Powered Wireless Charger V2.1
Print Profile(2)
Description

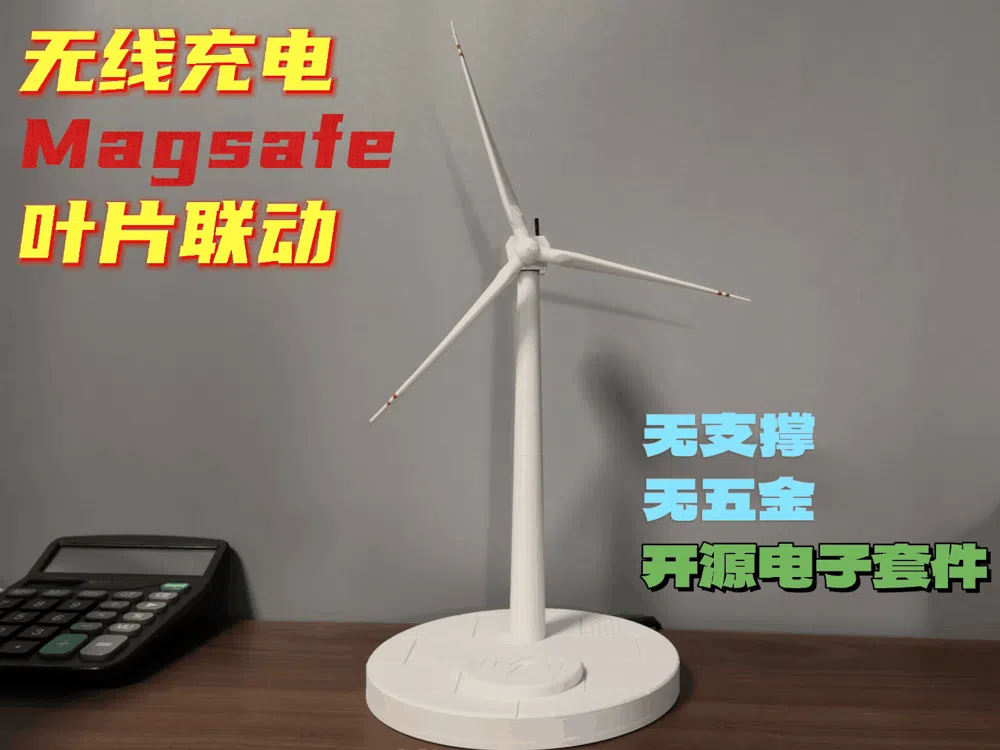

"Wind-Powered" Wireless Charger — Updated to V2.1 (20260530):
- Structurally added a Magsafe magnetic attachment version
- Added a potentiometer on the circuit to adjust the rotation speed
"Wind-Powered" Wireless Charger — V2.0 has finally arrived:
- Independently designed a charging circuit board that supports wireless charging, motor control, and linkage mode switching. All circuit data is open-sourced on the LCSC open-source platform, encouraging experienced makers to replicate the PCBA. Additionally, complete electronic kits are occasionally (due to my limited time and energy) sold on Xianyu, making it convenient for makers without electronics experience to replicate them
- Replaced with an N20 geared motor, specified at 3V 15 rpm. This allows for a lower rotation speed, closer to that of an actual wind turbine, while also reducing motor noise
- Added TPU 3D printed vibration-damping components (included in the kit), effectively reducing noise from structural resonance. In a quiet environment, the overall noise is almost imperceptible at a distance of 1 meter

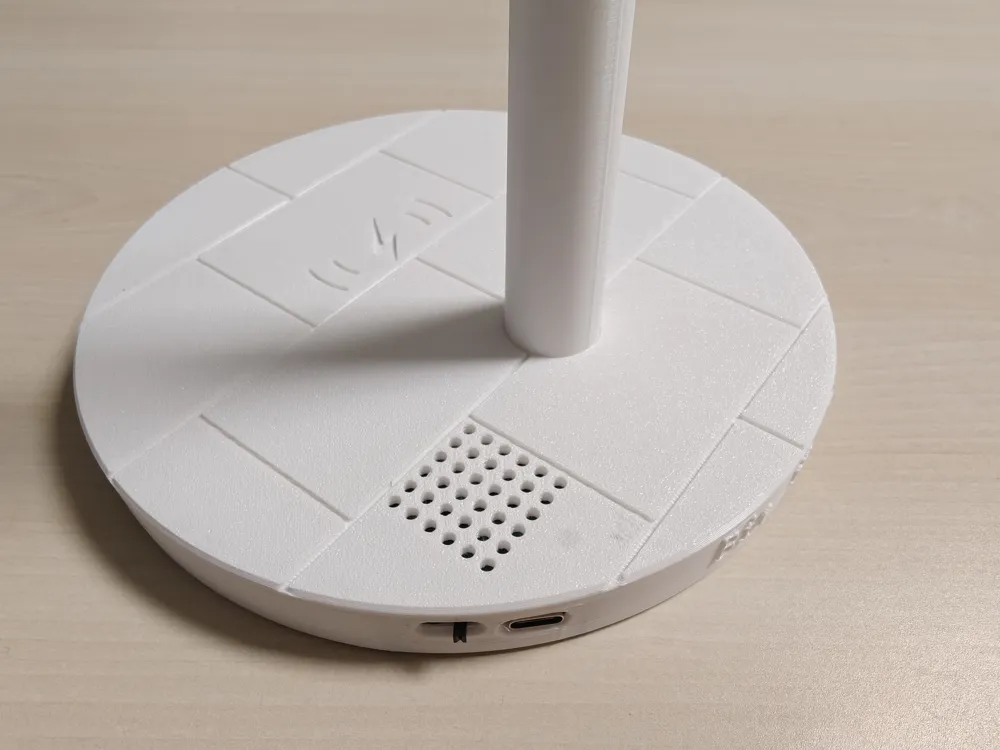

- Added heat dissipation holes. The charging circuit board itself supports up to 15W wireless charging, but it is recommended to use a 5V2A charger to reduce charging power and heat generation
- Added a power generation easter egg function
Boost Me (for free)
Your support is my motivation to update!
Circuit Open Source Data:"Wind-Powered" Wireless Charger - LCSC Open Source Hardware Platform
Electronic kit package randomly available: Search for the same ID on Xianyu: 别在干电子

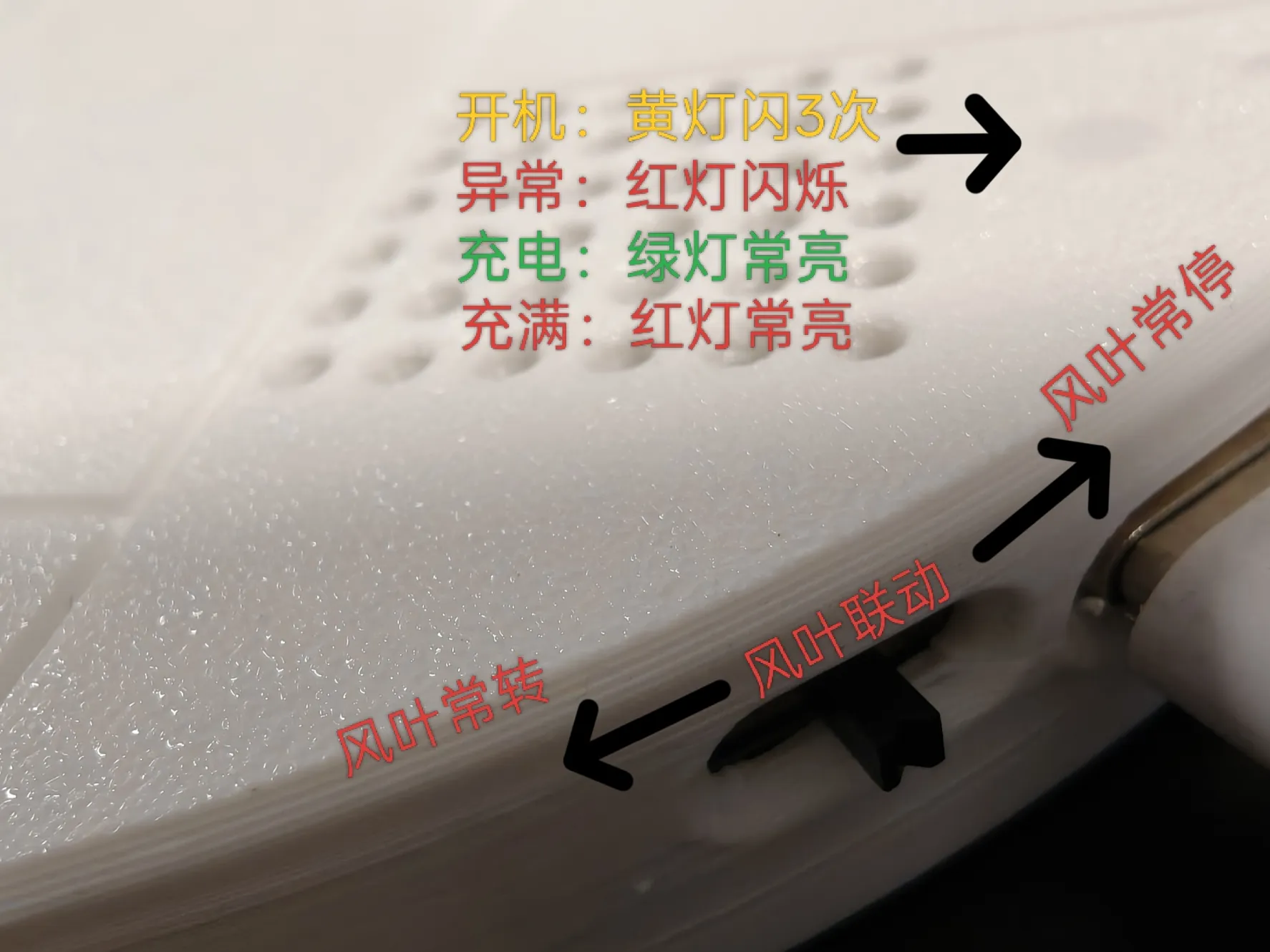

Function Status Description:
Please feel free to contact me with any comments or suggestions, thank you everyone!
