Strain gauge Load cell holder/mount, DIY 5Kg scale
Print Profile(2)
Description

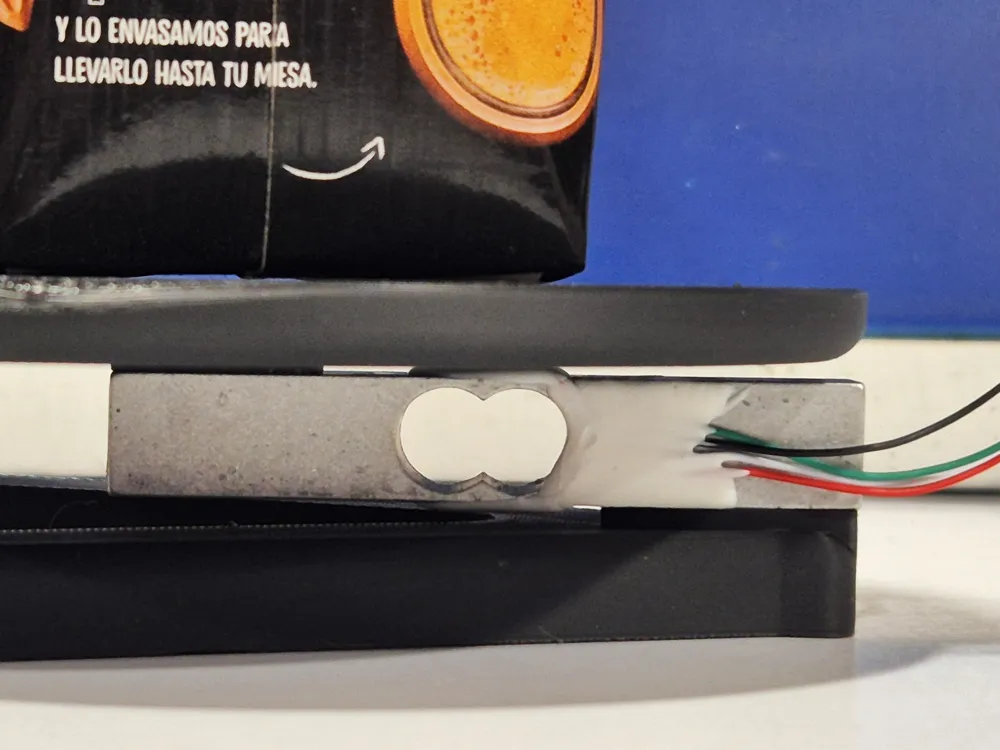

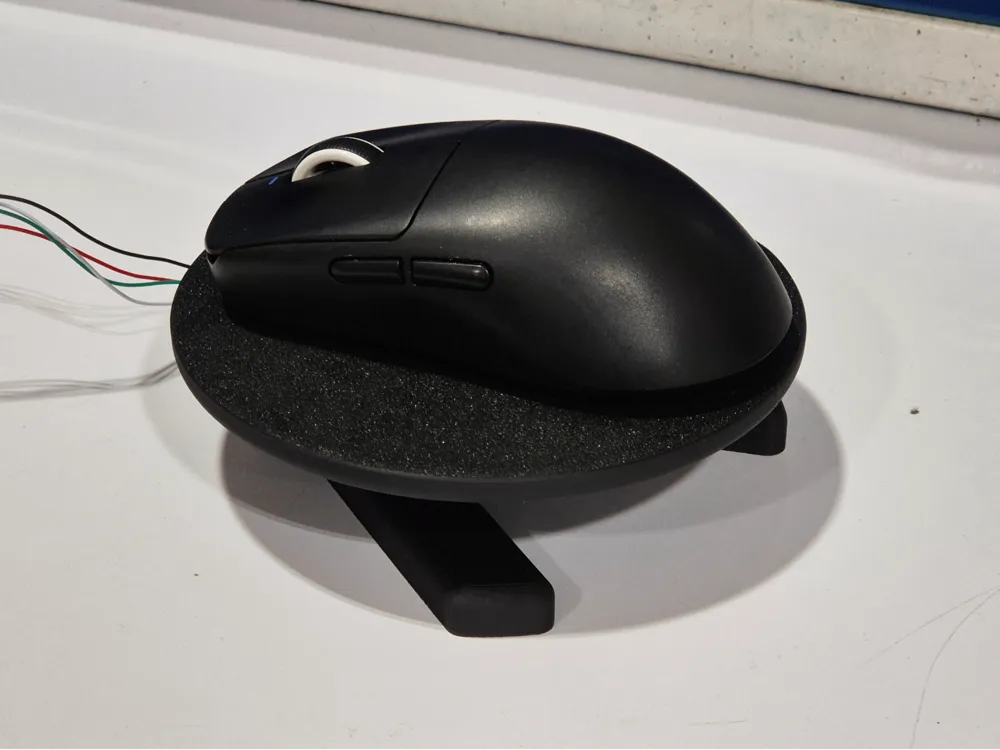

Turn your strain gauge / load cell into a proper, sleek looking scale.

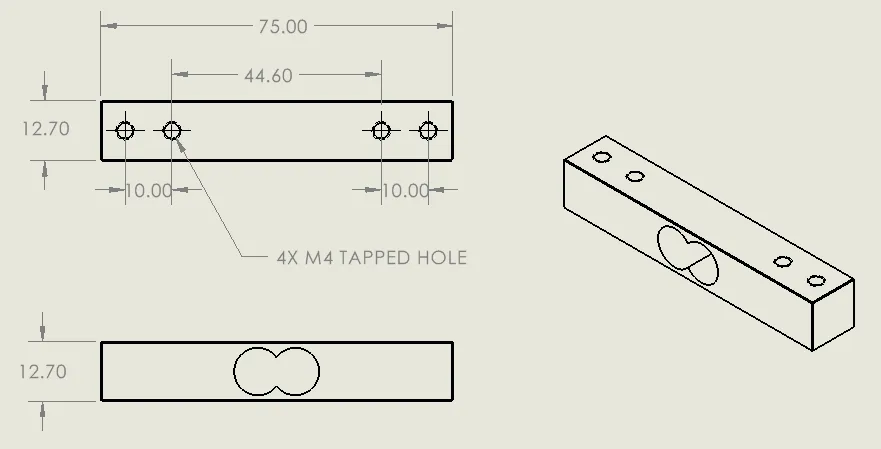

Fits the most common 75mm long load cells with M4 threaded holes. Tested up to 5Kg (Using PLA).
The model uses either socket head cap or flat head M4x0.7 screws, the SHCS print profile uses supports in the holes and they're tricky to remove, you can also disable the supports, the counterbore will be ugly but it will work after some cleaning up.
I recommend the flat head screw print profile as it needs no supports.
Flat head screws need to be at least 12mm, up to 25mm in length.
Socket head cap screws need to be at least 10mm, up to 20mm in length.
Boost Me (for free)
Feel free to make questions or requests, thank you!
